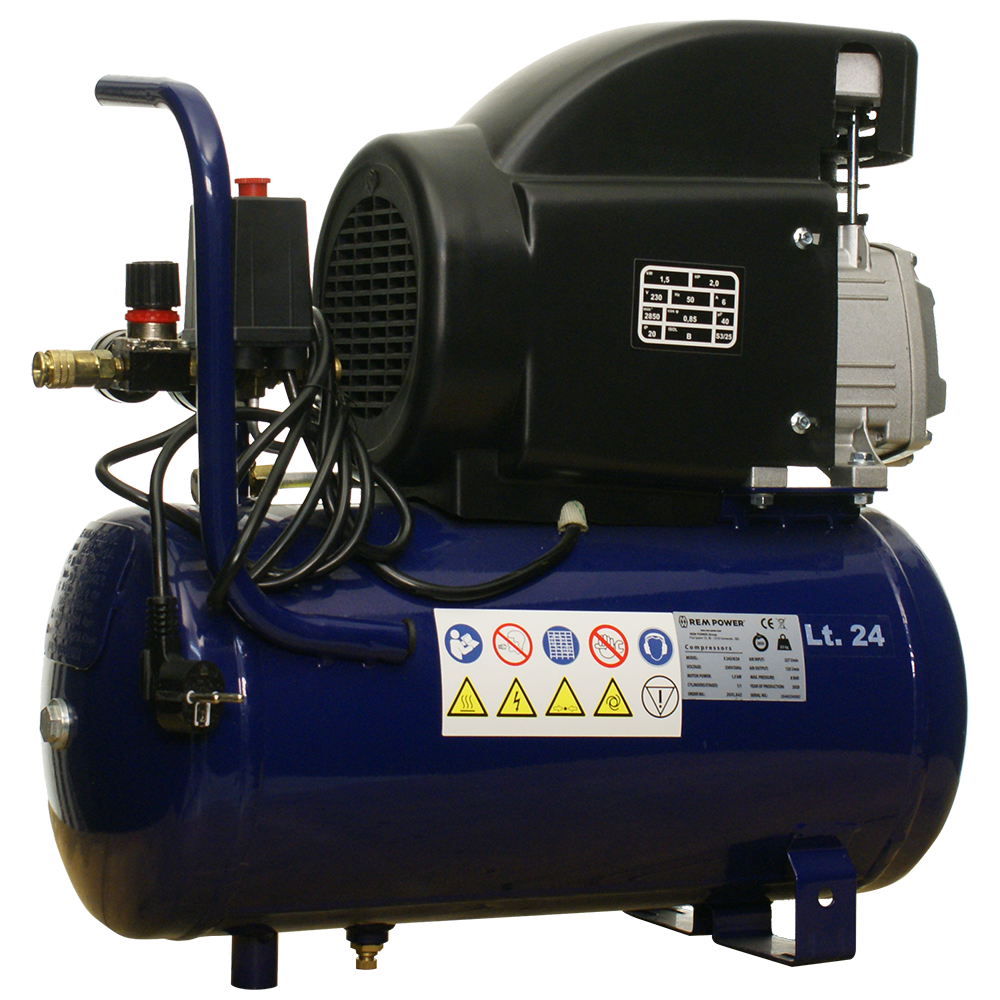

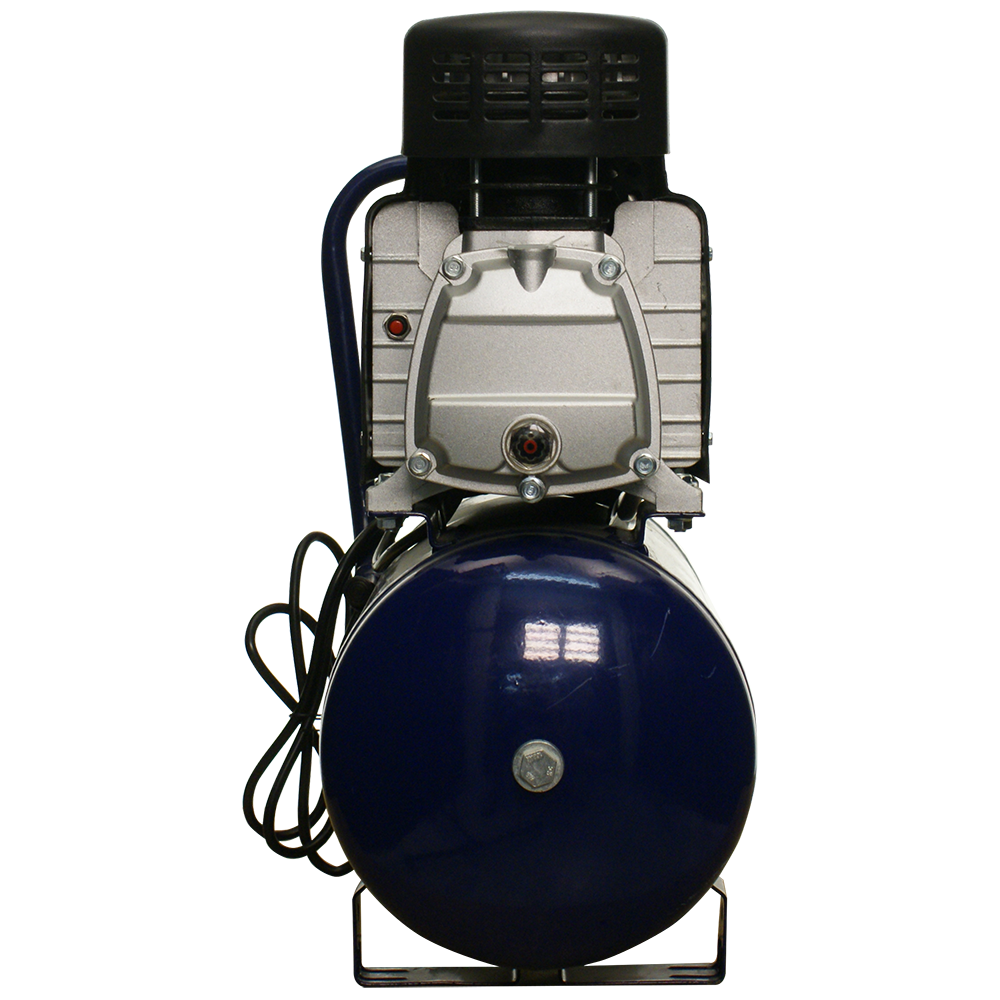

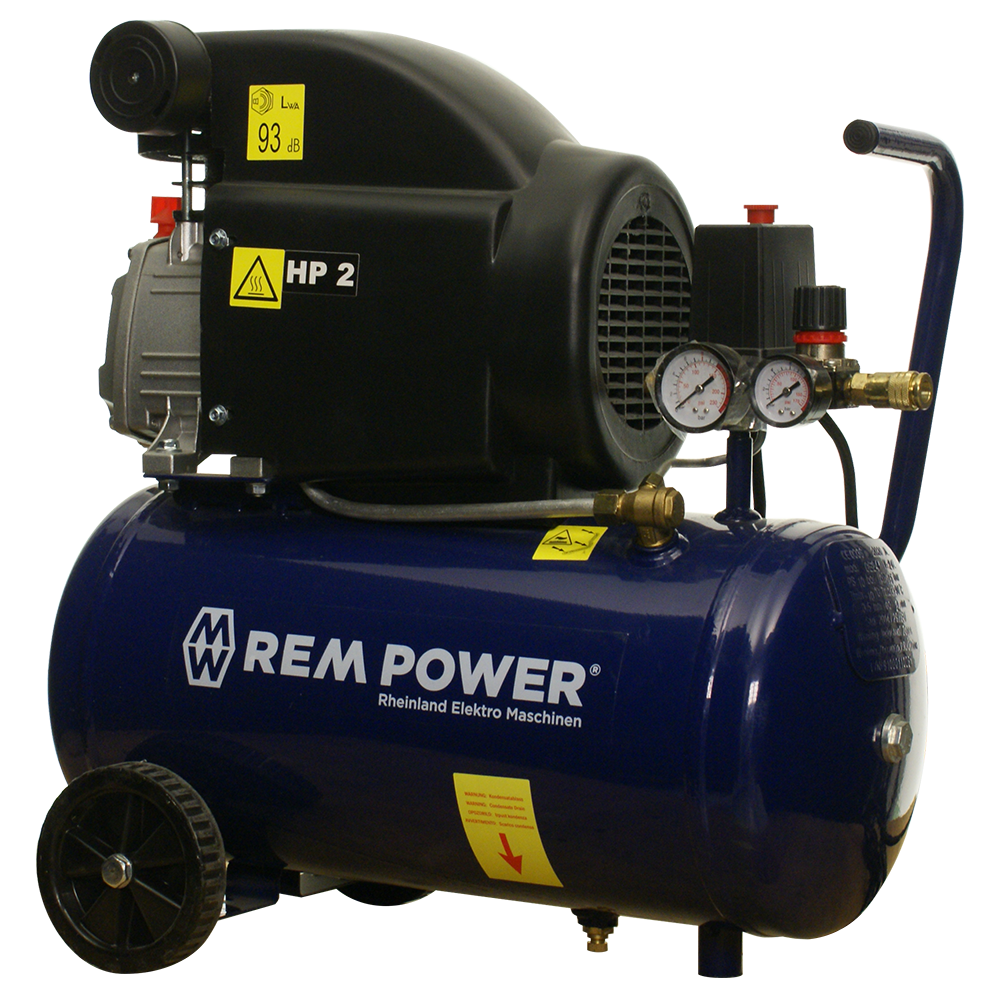

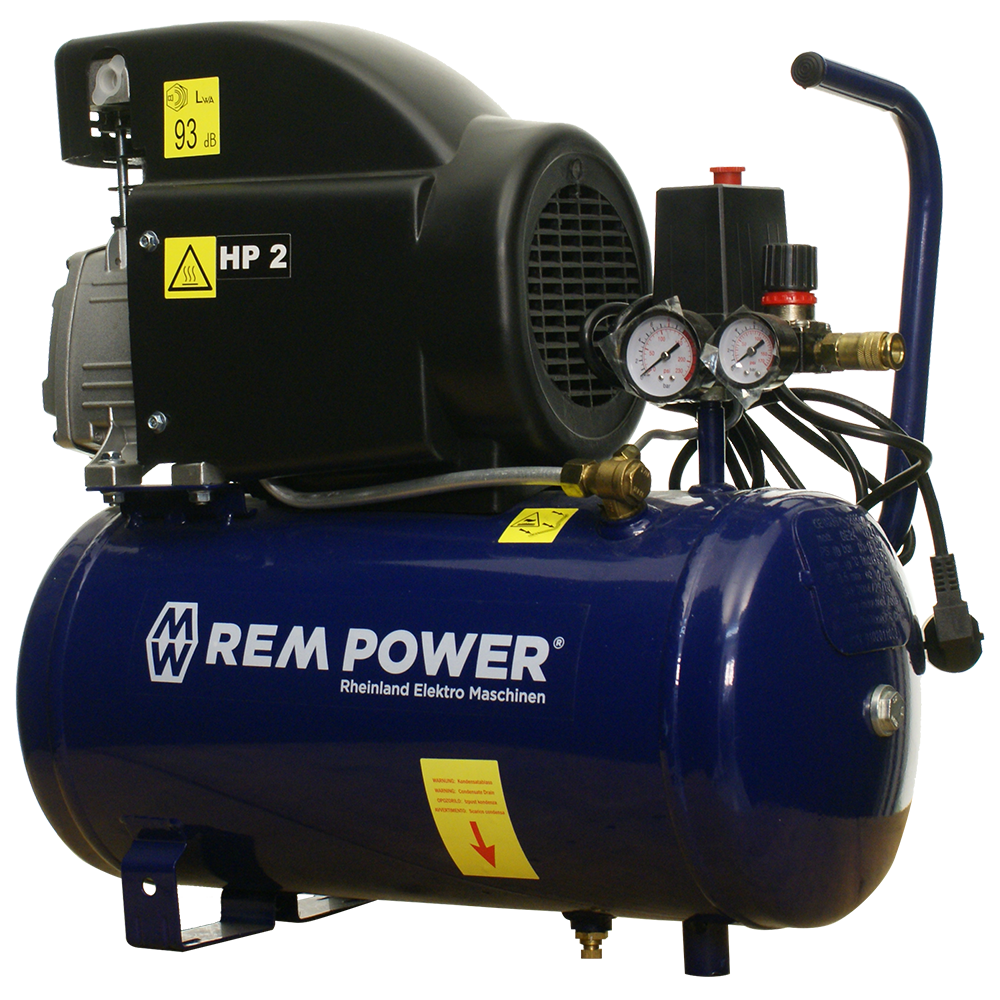

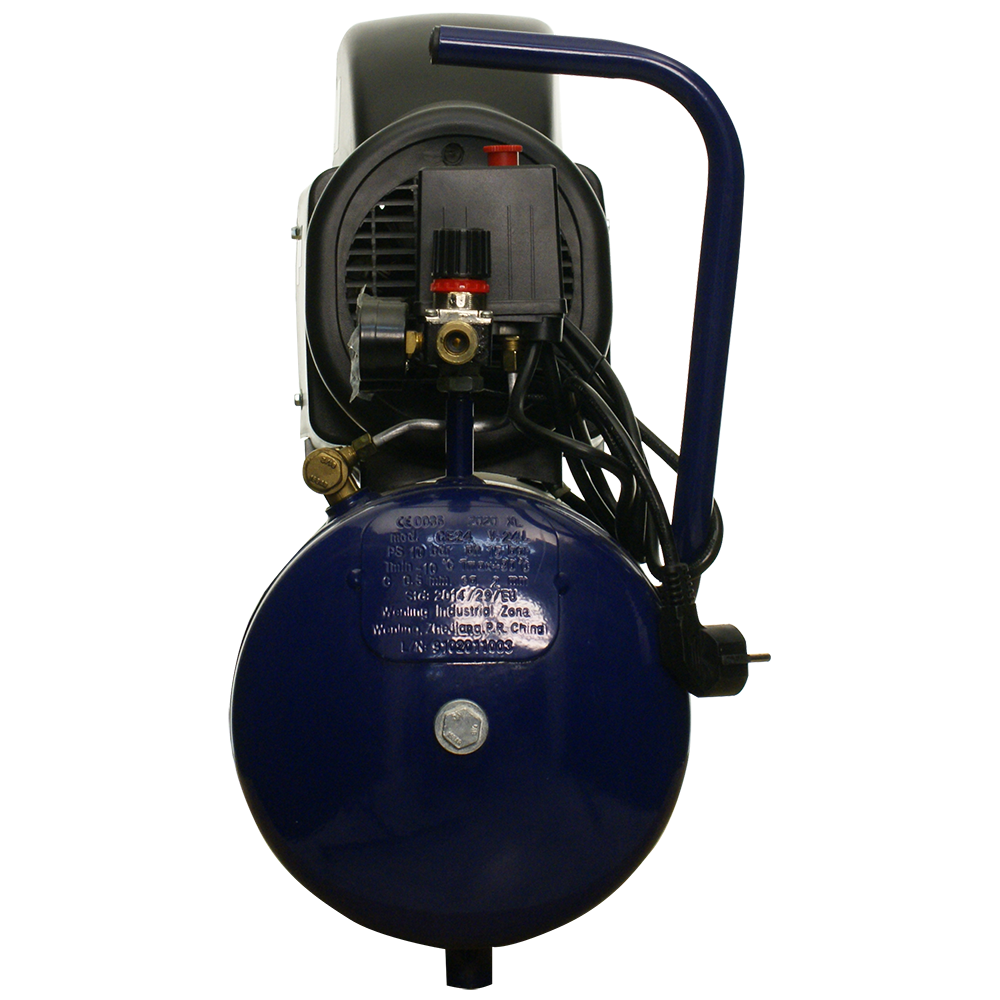

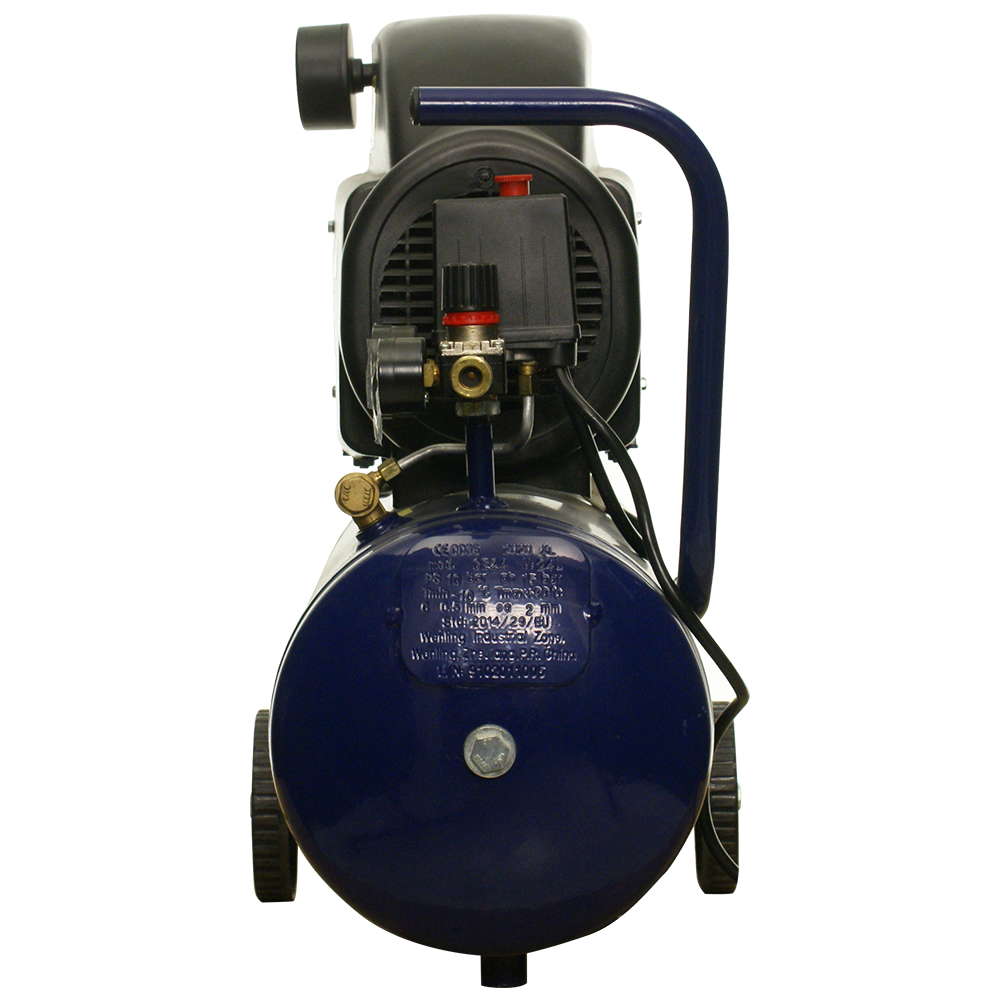

    E 243/8/24 Piston compressor

    SKU: 90243248 Categories: , Brand:

    E 243/8/24 , 125 L/min, 8 bar, 24L, 2HP, 230V

    Advantages:

    • One cylinder lubricated compressor pump with cast iron cylinder
    • Direct drive
    • Pressure regulator with gauge and fast coupling
    • Air receiver volume 24l with condensation drain
    • Handle and big wheels for easier transport

    Standard equipment:

    connection cable

    In stock

    Add to compare
    Add to wishlist
    11 People watching this product now!

    Payment:

    AIR INPUT (l/min)

    227
    AIR OUTPUT (l/min)

    125
    Number of cylinders

    1
    Pressure (bar)

    8
    Pump type

    E 243
    Motor power (kW)

    1.5
    Number of stages

    1
    Tank capacity (l)

    24
    VOLTAGE (V/Hz)

    230/50

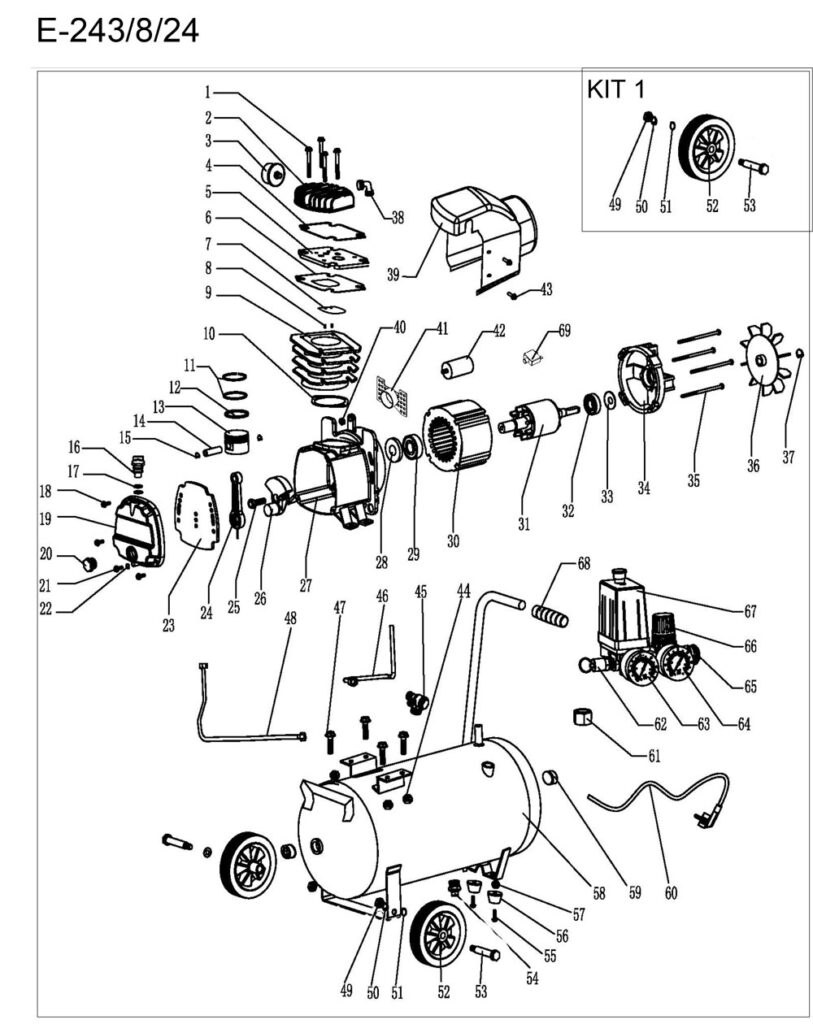

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8804000000660
    • BoltM8x105
    • 1
    		0.70 €YES
    8804000000661
    • cylinder head
    • 2
    		5.20 €YES
    8804000000662
    • Air filter
    • 3
    		0.70 €Pre-Order
    8804000000663
    • cylinder seals
    • 4
    		0.47 €YES
    8804000000664
    • valve plate
    • 5
    		1.65 €YES
    8804000000665
    • valve plate gasket
    • 6
    		0.26 €YES
    8804000000666
    • valve clack
    • 7
    		0.26 €YES
    8804000000667
    • pinφ3x6
    • 8
    		0.19 €YES
    8804000000668
    • cylinderφ48
    • 9
    		5.40 €YES
    8804000000669
    • cylinder gasket
    • 10
    		0.26 €YES
    8804000000670
    • Gas Ring φ48*2
    • 11
    		0.47 €YES
    8804000000671
    • Oil Ring φ48*3
    • 12
    		0.47 €YES
    8804000000672
    • piston φ48
    • 13
    		0.70 €YES
    8804000000673
    • piston pin φ12x39.5
    • 14
    		0.23 €YES
    8804000000674
    • circlip φ12
    • 15
    		0.18 €YES
    8804000000675
    • breath pipe
    • 16
    		0.47 €YES
    8804000000676
    • O circlip φ18.3xφ2.65
    • 17
    		0.18 €YES
    8804000000677
    • bolt M5x16
    • 18
    		0.23 €YES
    8804000000678
    • crank case cover
    • 19
    		3.06 €YES
    8804000000679
    • oil leveler
    • 20
    		0.70 €YES
    8804000000680
    • bolt M6x10
    • 21
    		0.23 €YES
    8804000000681
    • O circlip φ5.6xφ1.8
    • 22
    		0.23 €YES
    8804000000682
    • rubber gasket
    • 23
    		0.70 €YES
    8804000000683
    • conncting rod
    • 24
    		1.18 €YES
    8804000000684
    • hex bolt M8x22(left)
    • 25
    		0.23 €YES
    8804000000685
    • crank 20
    • 26
    		3.06 €YES
    8804000000686
    • crank case
    • 27
    		14.10 €YES
    8804000000687
    • sealing ring
    • 28
    		0.70 €YES
    8804000000688
    • brearing 6204
    • 29
    		1.88 €YES
    8804000000689
    • stator
    • 30
    		32.00 €YES
    8804000000690
    • rotor
    • 31
    		11.75 €YES
    8804000000691
    • brearing 6202
    • 32
    		1.41 €YES
    8804000000692
    • wave washer D35
    • 33
    		0.23 €YES
    8804000000693
    • motor cover
    • 34
    		4.23 €YES
    8804000000694
    • bolt M5x105
    • 35
    		0.47 €YES
    8804000000695
    • Wind leaf
    • 36
    		0.94 €YES
    8804000000696
    • circlip φ14
    • 37
    		0.23 €YES
    8804000000697
    • connector
    • 38
    		1.18 €YES
    8804000000698
    • fan cover
    • 39
    		2.35 €YES
    8804000000699
    • nut M8
    • 40
    		0.23 €YES
    8804000000700
    • flap
    • 41
    		0.70 €YES
    8804000000701
    • capacitance
    • 42
    		4.70 €YES
    8804000000702
    • thermal protector
    • 43
    		2.35 €YES
    8804000000703
    • bolt M5x12
    • 44
    		0.23 €YES
    8804000000704
    • nut M8
    • 45
    		0.23 €YES
    8804000000705
    • umilateralism
    • 46
    		2.82 €YES
    8804000000706
    • release pipe φ6.5
    • 47
    		0.94 €YES
    8804000000707
    • bolt M8x25
    • 48
    		0.23 €YES
    8804000000708
    • discharge pipe φ10
    • 49
    		1.41 €YES
    8804000000709
    • nut M10
    • spring φ10 Kit 1
    • washer φ10 Kit 1
    • Wheel shaft Kit 1
    • Wheel Kit 1
    • 50
    • 51
    • 53
    • 52
    • 54
    		1.32 €YES
    8804000000710
    • drain plug
    • 55
    		1.41 €YES
    8804000000711
    • washer foot
    • 56
    		0.70 €YES
    8804000000712
    • tank
    • 57
    		32.00 €YES
    8804000000713
    • stem Rp1/2
    • 58
    		1.18 €YES
    8804000000714
    • powr cord
    • 59
    		5.88 €YES
    8804000000715
    • nut Rp1/4
    • 60
    		0.70 €YES
    8804000000716
    • safety valve
    • 61
    		2.58 €YES
    8804000000717
    • pressure gauge φ50
    • 62
    		3.52 €YES
    8804000000718
    • pressure gauge φ40
    • 63
    		3.29 €YES
    8804000000719
    • quick couplers
    • 64
    		2.58 €Pre-Order
    8804000000720
    • regulator valve
    • 65
    		6.11 €YES
    8804000000721
    • pressure switch
    • 66
    		6.82 €YES

    Product Data

    CE declaration

    EN user manual

    Add to compare
    Quick view
    Add to wishlist

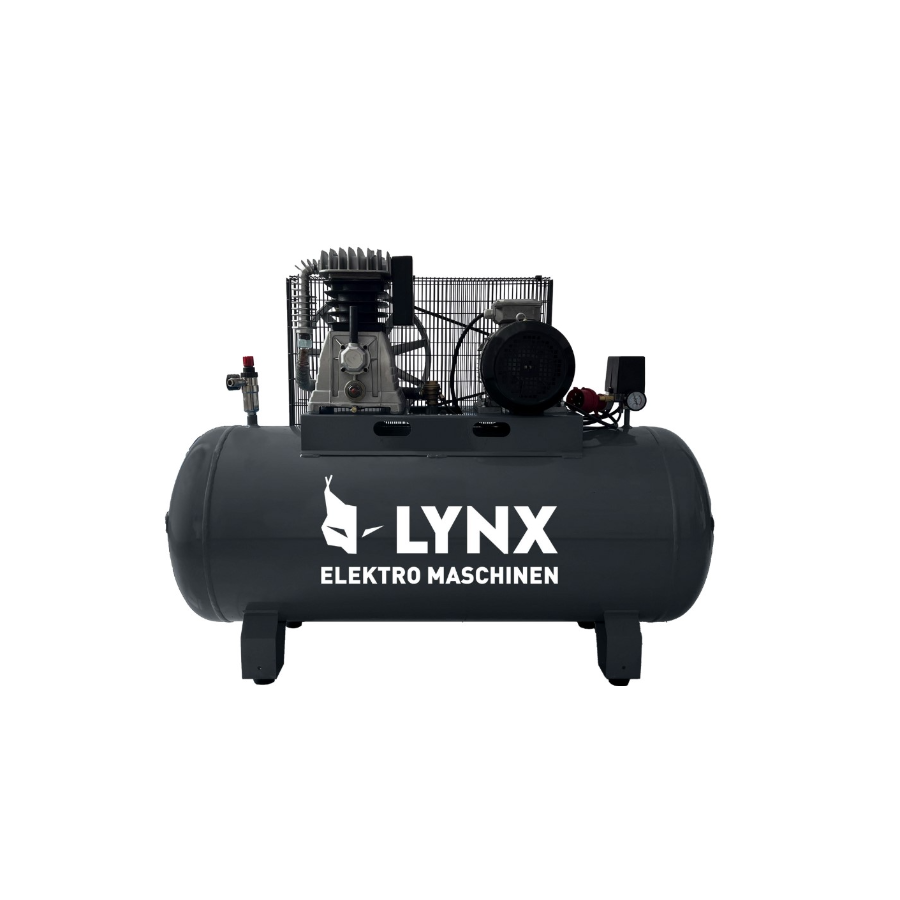

    E 501/10/270 Piston compressor

    ,

    In stock

    Read more
    SKU: 9050127010
    Air input (l/min)

    480
    Air output (l/min)

    310
    Number of cylinders

    2
    Pressure (bar)

    9
    Pump type

    E501
    Motor power (kW)

    3.3
    RPM (rpm)

    1400
    Number of stages

    1
    Tank capacity (l)

    270
    Voltage (V)

    400/50
    Add to compare
    Quick view
    Add to wishlist

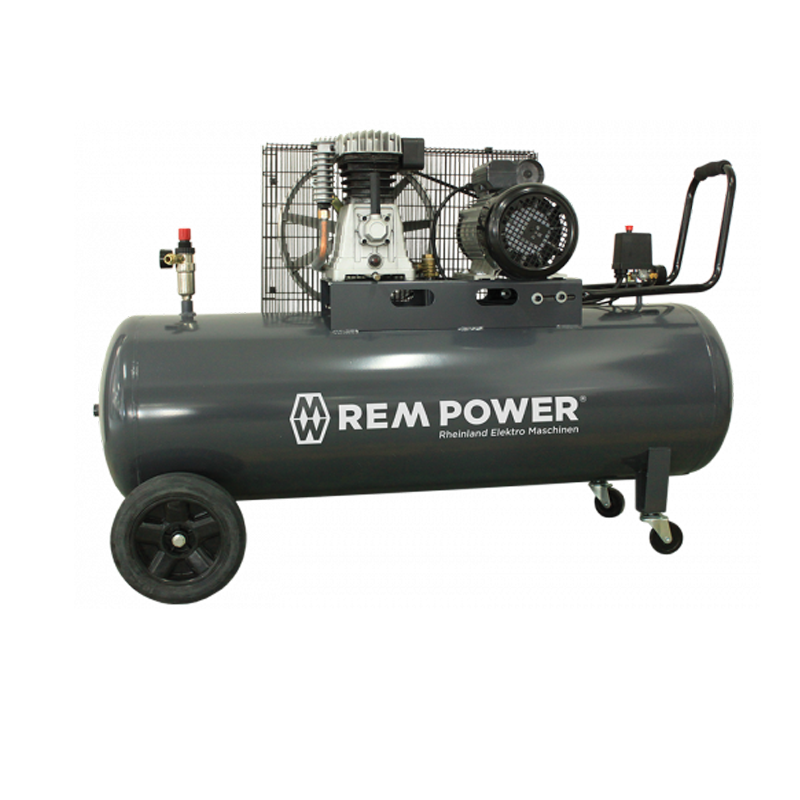

    E 501/9/200 Piston compressor

    ,

    In stock

    Read more
    SKU: 9050120010
    Air input (l/min)

    520
    Air output (l/min)

    410
    Number of cylinders

    2
    Pressure (bar)

    10
    Pump type

    E501
    Motor power (kW)

    3.3
    RPM (rpm)

    1400
    Number of stages

    1
    Tank capacity (l)

    270
    Voltage (V)

    400/50
    Add to compare
    Quick view
    Add to wishlist

    E 400/9/200 Piston compressor

    ,

    Out of stock

    Read more
    SKU: 9040020010
    AIR INPUT (l/min)

    480
    AIR OUTPUT (l/min)

    310
    Number of cylinders

    2
    Pressure (bar)

    9
    Pump type

    E 500
    Motor power (kW)

    2.2
    Number of stages

    1
    Tank capacity (l)

    200
    VOLTAGE (V/Hz)

    230/50
    Add to compare
    Quick view
    Add to wishlist

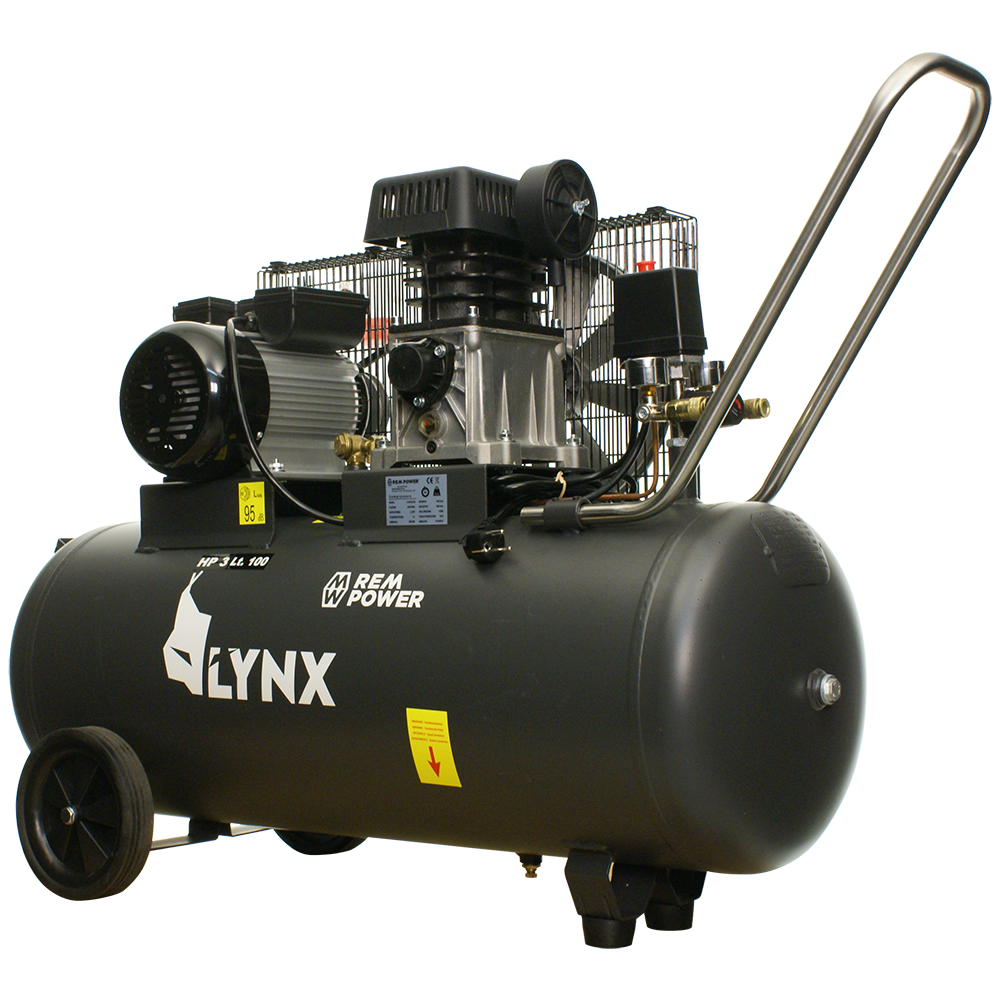

    E 349/8/100 Piston compressor

    ,

    In stock

    Read more
    SKU: 9034910010
    Air input (l/min)

    349
    Air output (l/min)

    290
    Number of cylinders

    2
    Motor power (kW)

    2,2
    RPM (rpm)

    950
    Number of stages

    1
    Tank capacity (l)

    100
    Voltage (V)

    230/50
    Add to compare
    Quick view
    Add to wishlist

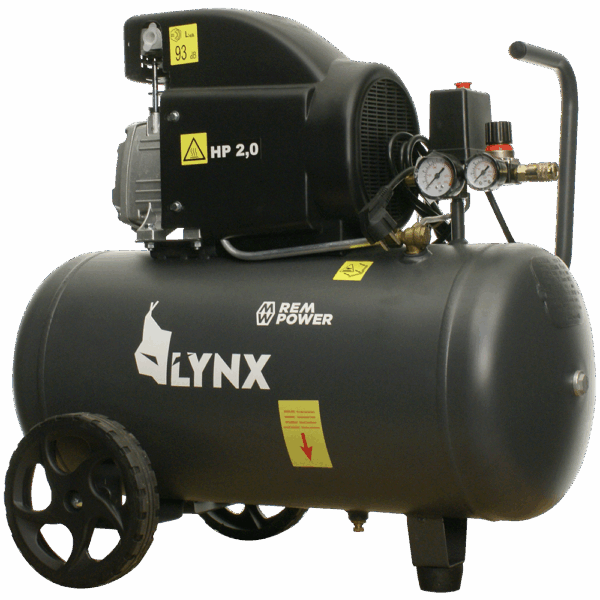

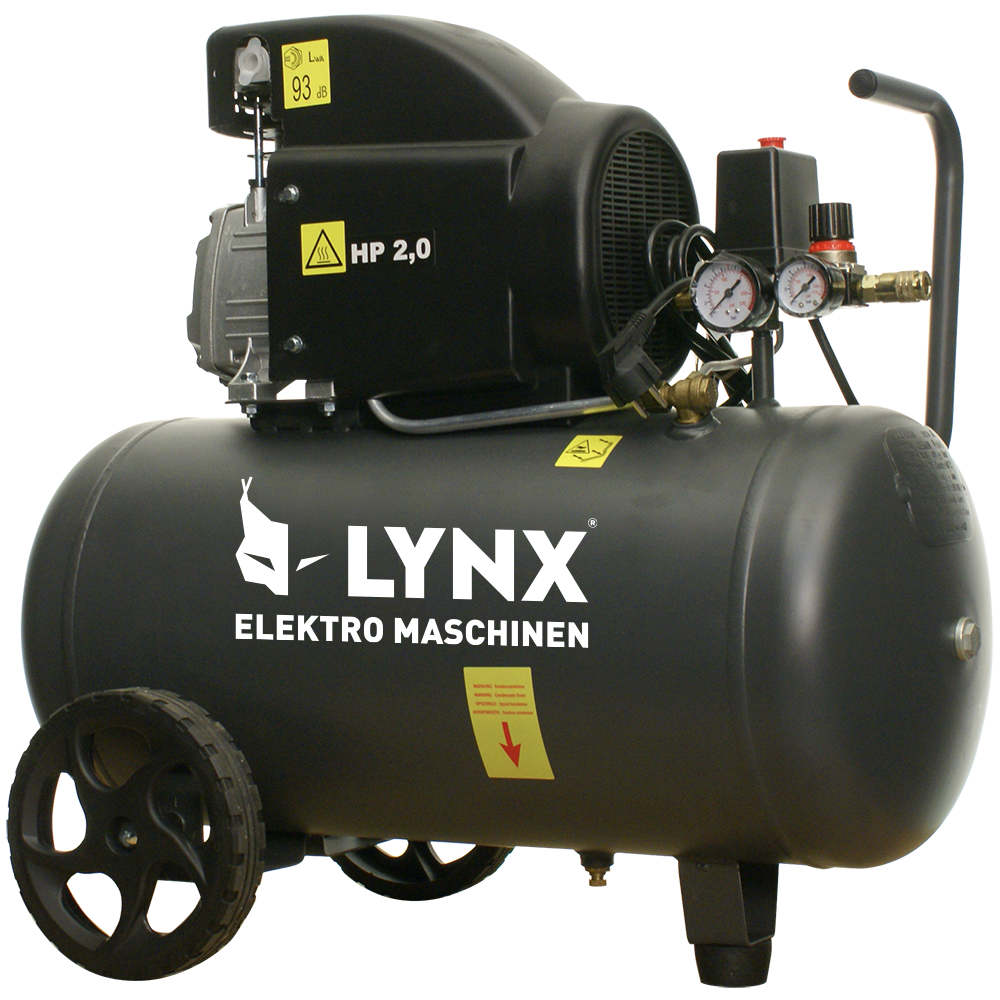

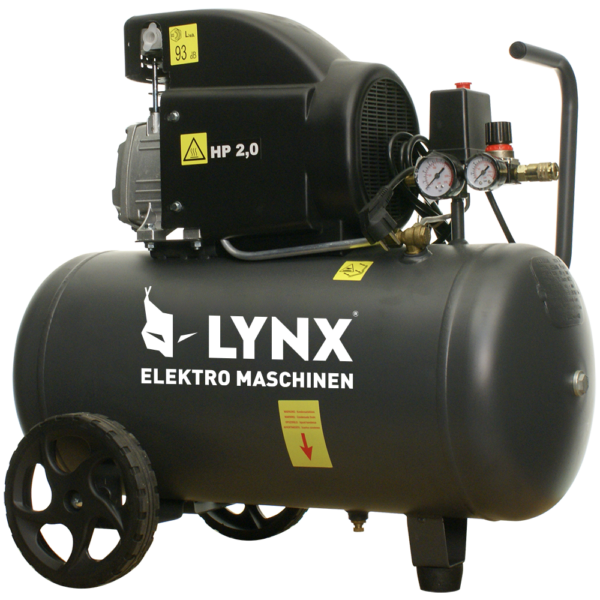

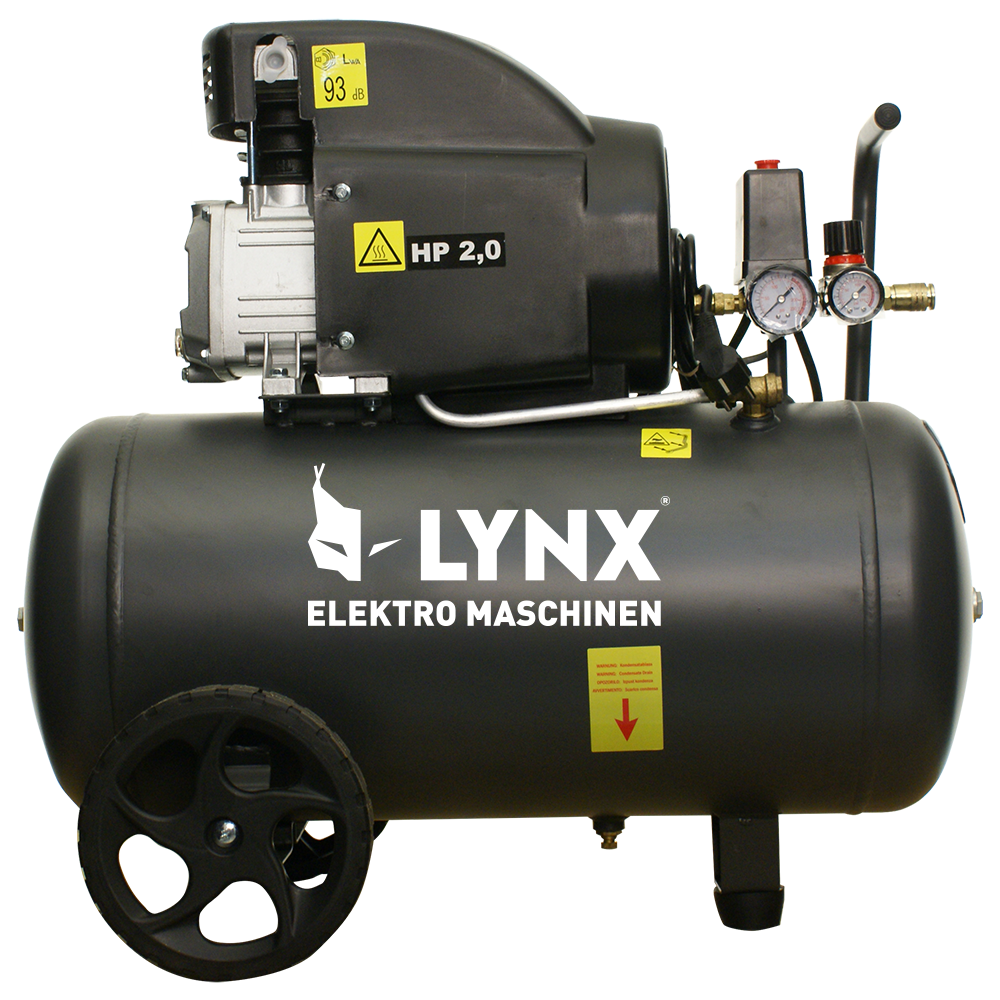

    E 243/8/50 Piston compressor

    ,
