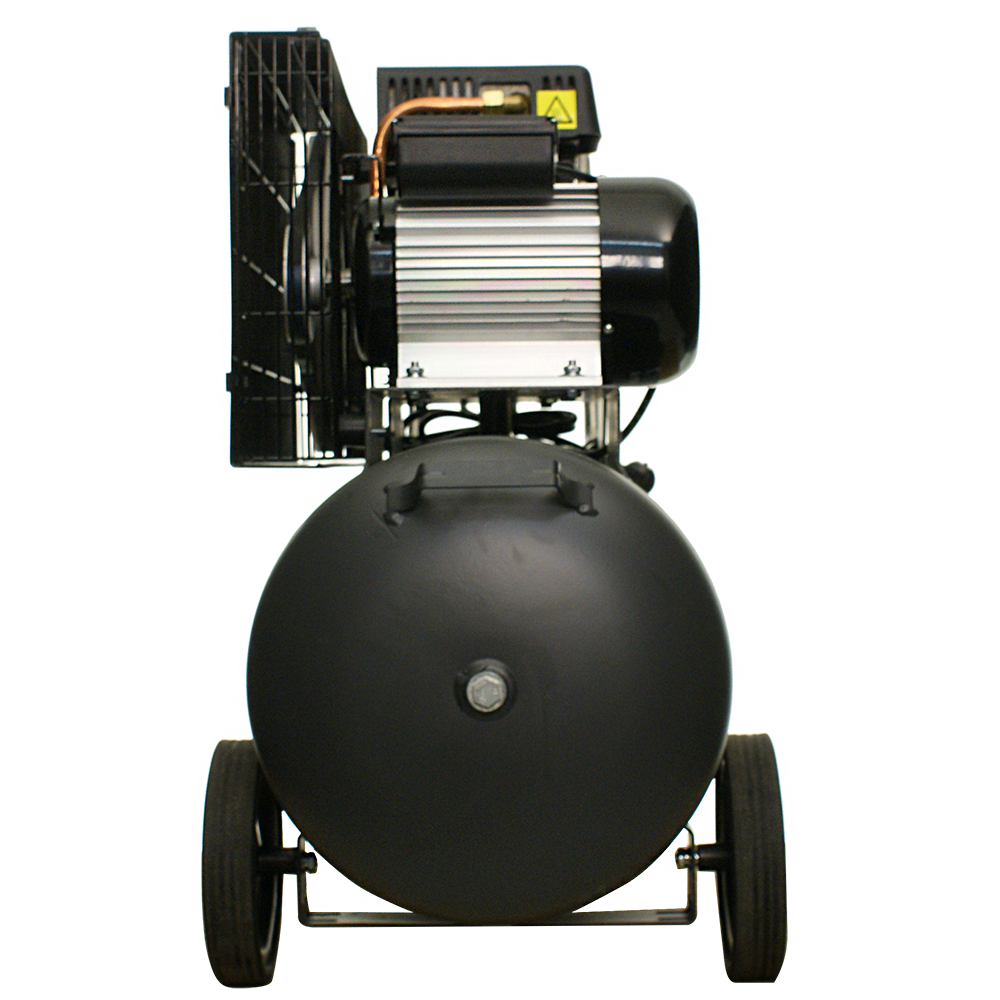

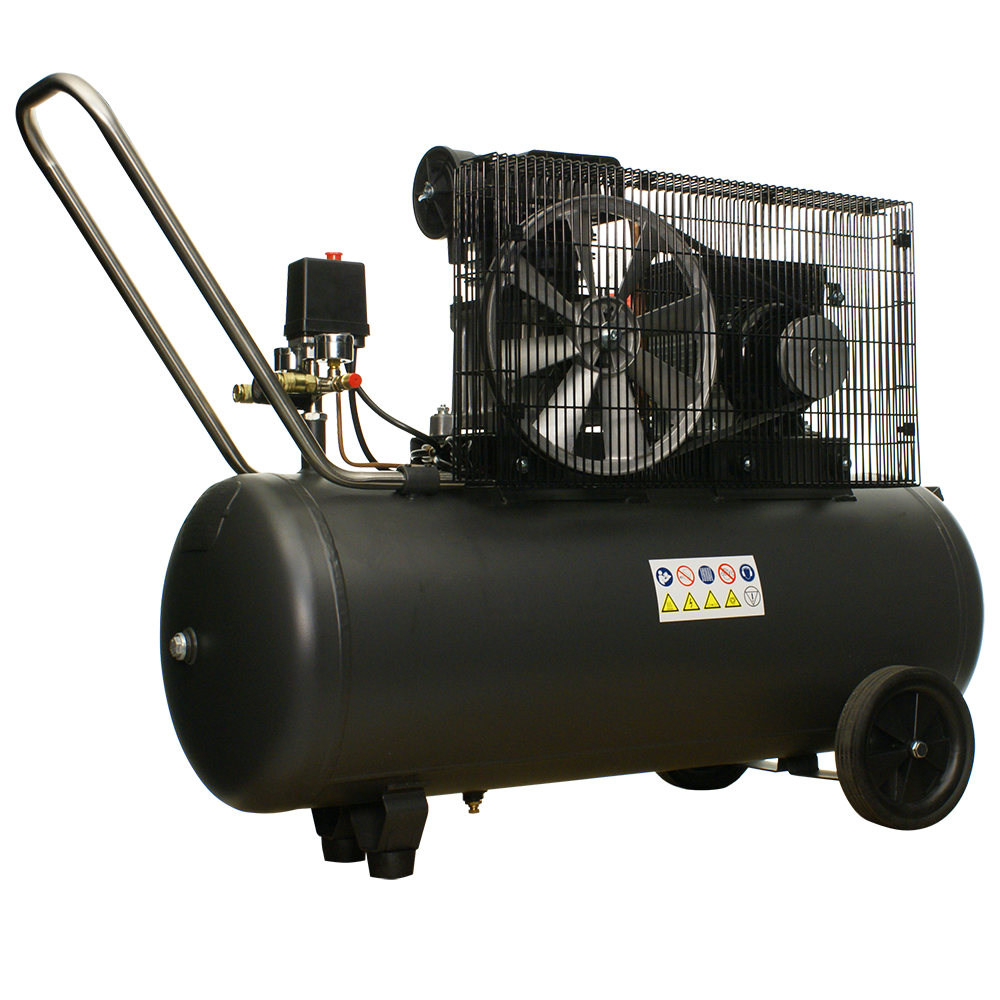

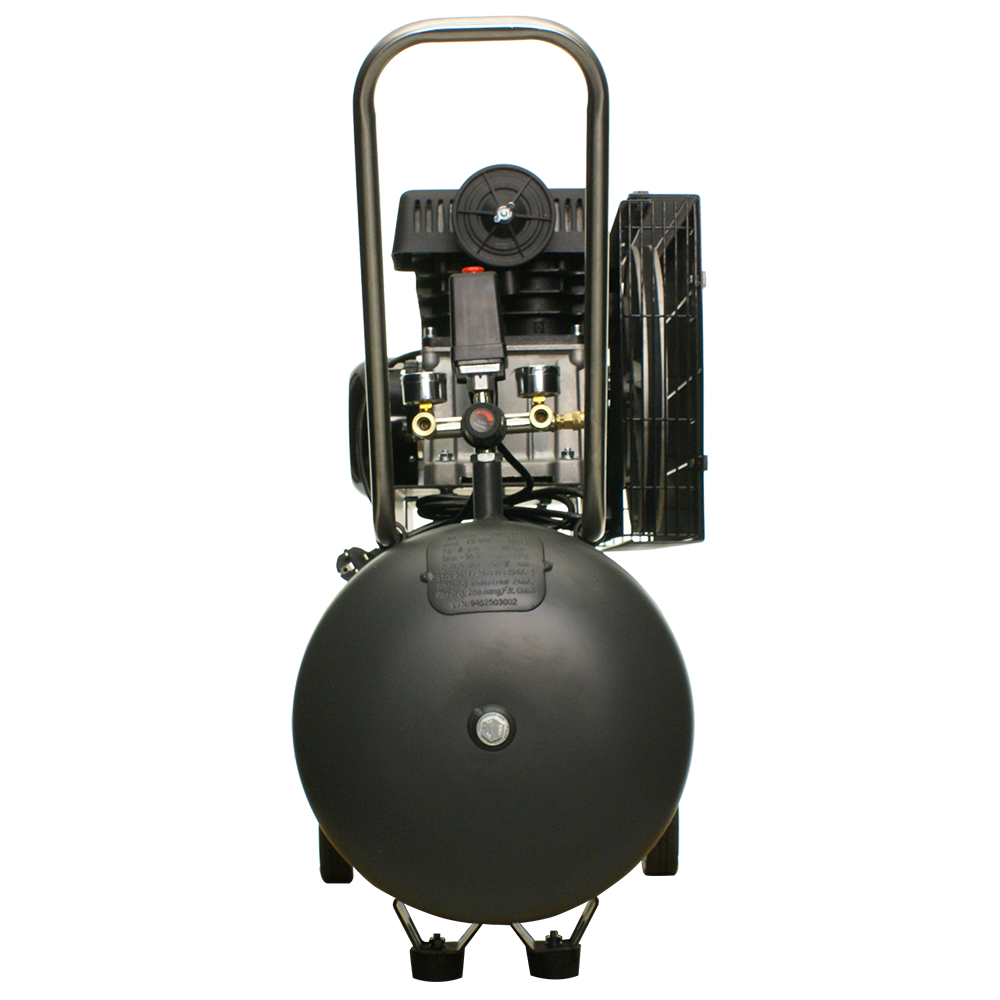

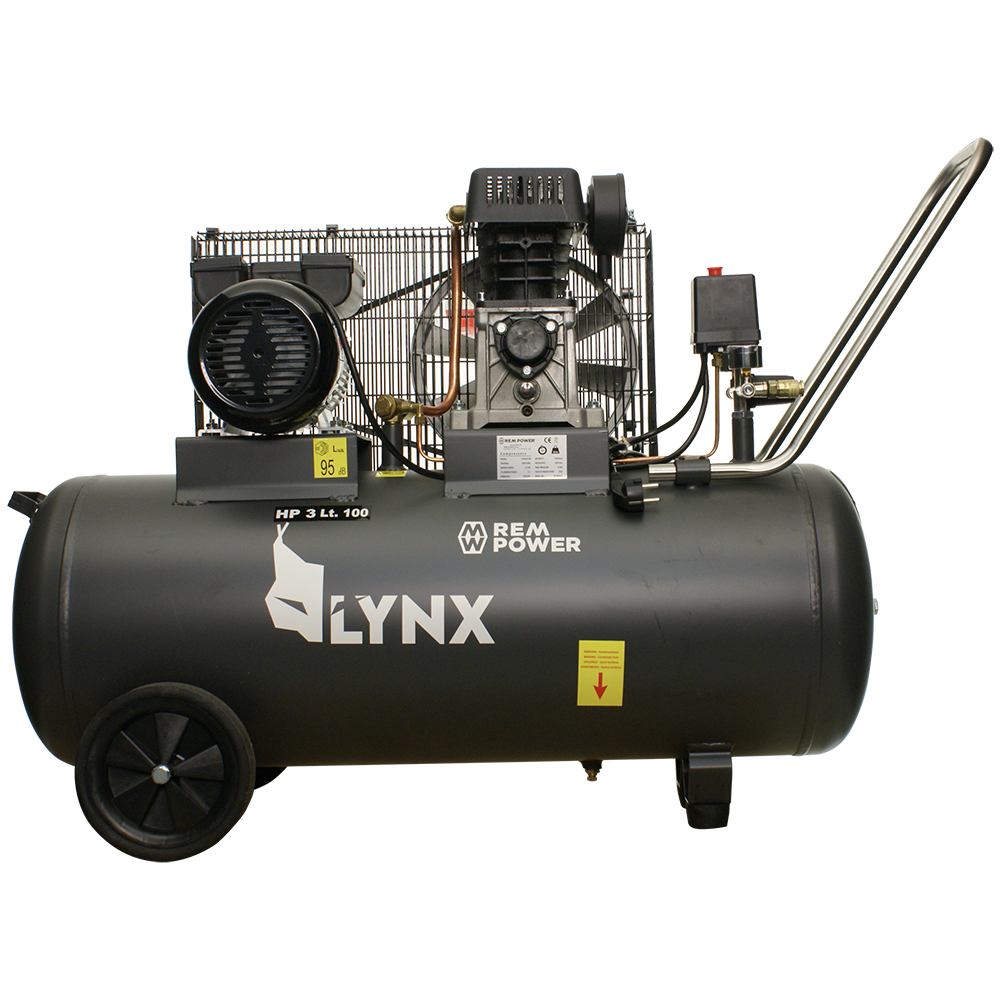

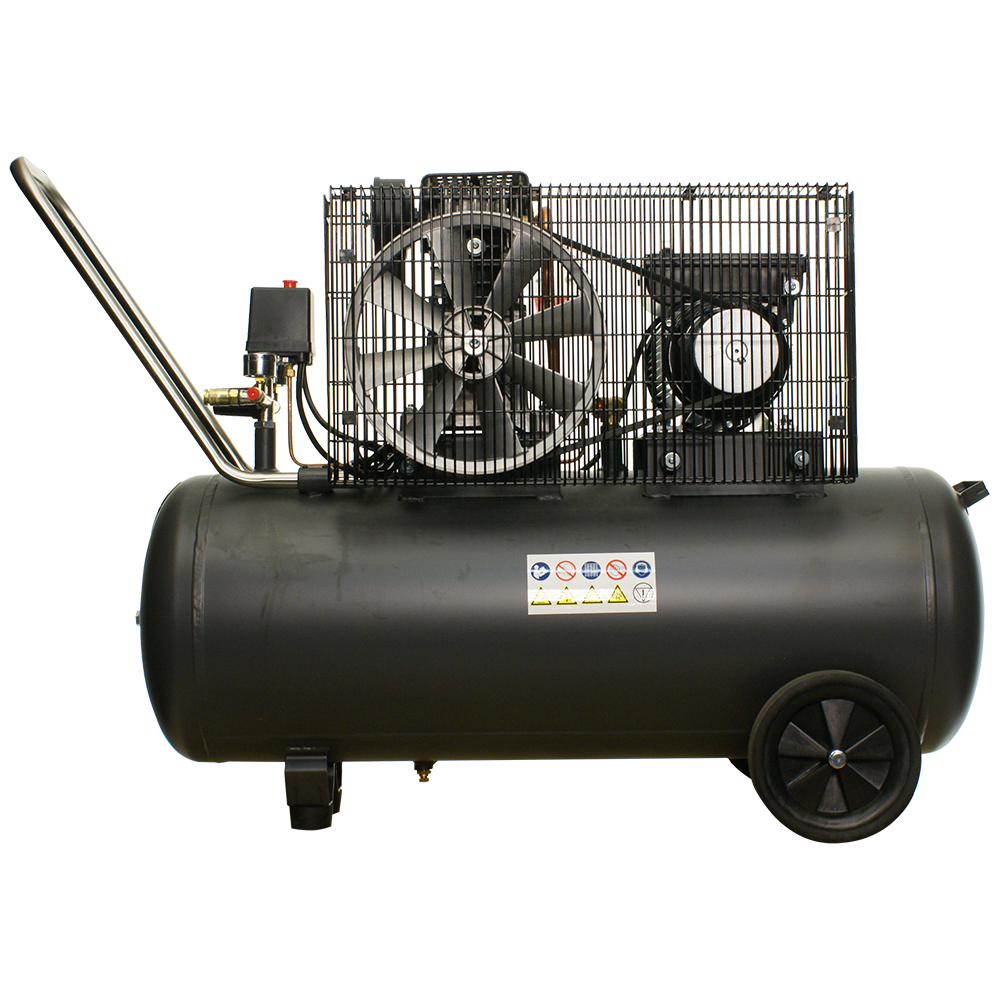

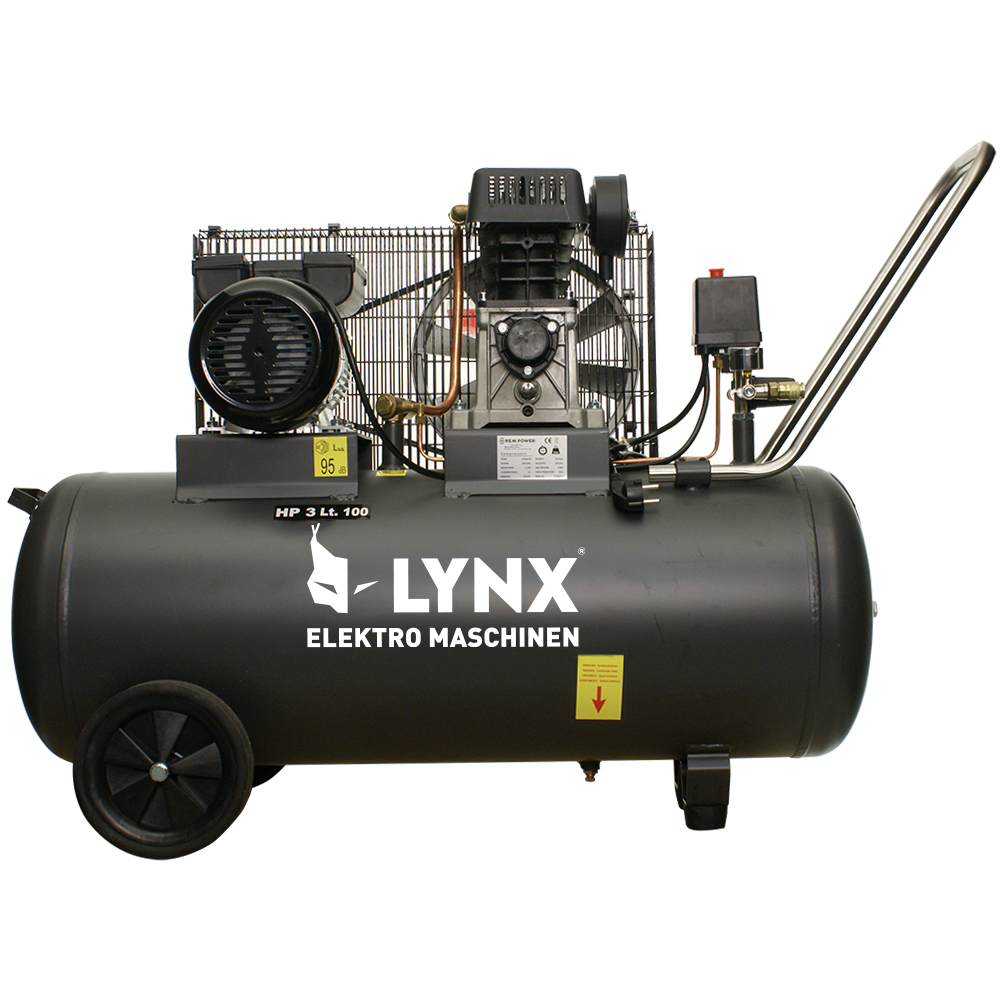

E 349/8/100 Piston compressor

SKU: 9034910010 Categories: , Brand:

Two cylinder lubricated compressor pump with cast iron cylinder Belt drive Pressure regulator with gauge and fast coupling Air cooler on the compressor pump (output) Metal belt guard protection Air receiver volume 100 l with condensation drain Big wheels for easier transport

Advantages:

• Two cylinder lubricated compressor pump with cast iron cylinders
• Belt drive
• Air cooler on the compressor pump (output)
• Metal belt guard protection
• Pressure regulator with gauge and two fast couplings
• Air receiver volume 100 l with condensation drain
• Large wheels for easier transport

In stock

18 People watching this product now!

Payment:

Air input (l/min)

349

Air output (l/min)

290

Number of cylinders

2

Motor power (kW)

2,2

RPM (rpm)

950

Number of stages

1

Tank capacity (l)

100

Voltage (V)

230/50

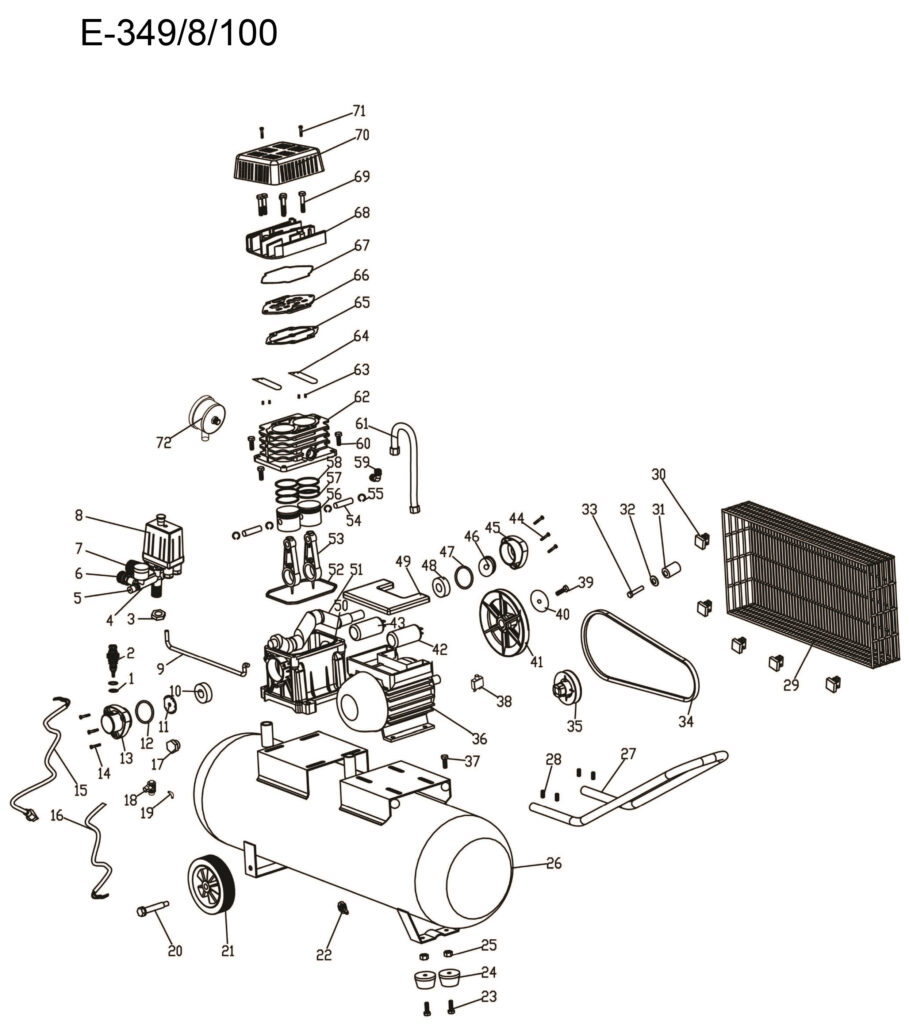

REM Code Name Position Price Stock Order
8804000000575
  • Ring φ18×φ2.4
  • 1
0.40 €YES
8804000000576
  • Respirator
  • 2
0.40 €YES
8804000000577
  • Nut
  • 3
0.18 €YES
8804000000578
  • Pressure regulator
  • 4
3.38 €YES
8804000000579
  • Safety valve
  • 5
1.74 €YES
8804000000580
  • Release valve
  • 6
1.22 €YES
8804000000581
  • Pressure gauge
  • 7
1.90 €YES
8804000000582
  • Pressure switch
  • 8
4.58 €YES
8804000000583
  • Unloading pipe
  • 9
5.43 €YES
8804000000584
  • Bearing 6204
  • 10
1.13 €YES
8804000000585
  • Oil baffle plate
  • 11
0.89 €YES
8804000000586
  • Ring φ48×φ2.65
  • 12
0.07 €YES
8804000000587
  • Bearing
  • 13
1.34 €YES
8804000000588
  • Bolt M6×16
  • 14
0.89 €YES
8804000000589
  • Plug wire
  • 15
2.70 €YES
8804000000590
  • Power cord
  • 16
4.09 €YES
8804000000591
  • Plug
  • 17
0.56 €YES
8804000000592
  • One-way valve
  • 18
5.19 €YES
8804000000593
  • Elbow
  • 19
2.19 €YES
8804000000594
  • Axle Set
  • 20
0.49 €YES
8804000000595
  • Rubber Wheel
  • 21
4.46 €YES
8804000000596
  • Drain valve
  • 22
0.87 €YES
8804000000597
  • Bolt M8×30
  • 23
0.89 €YES
8804000000598
  • Rubber pad
  • 24
0.33 €YES
8804000000599
  • NutM8
  • 25
0.89 €YES
8804000000600
  • Gas tank
  • 26
92.00 €YES
8804000000601
  • Handle
  • 27
4.89 €YES
8804000000602
  • Bolt M8×8
  • 28
0.89 €YES
8804000000603
  • Net Cover
  • 29
20.21 €YES
8804000000604
  • Plastic cards
  • 30
0.89 €YES
8804000000605
  • Plastic pad
  • 31
0.89 €YES
8804000000606
  • Flat pad φ6
  • 32
0.47 €YES
8804000000607
  • Bolt M5×35
  • 33
0.47 €YES
8804000000608
  • Triangle
  • 34
1.32 €YES
8804000000609
  • Motor wheel
  • 35
6.53 €YES
8804000000610
  • Motor
  • 36
21.03 €YES
8804000000611
  • Bolt M8×40
  • 37
0.47 €YES
8804000000612
  • thermal protector
  • 38
1.22 €YES
8804000000613
  • Bolt M8×30
  • 39
0.47 €YES
8804000000614
  • Blankφ30×3
  • 40
0.89 €YES
8804000000615
  • Host round
  • 41
9.98 €YES
8804000000616
  • Running capacitor
  • 42
2.84 €YES
8804000000617
  • Start Capacitor
  • 43
3.60 €YES
8804000000618
  • Bolt M6×16
  • 44
0.47 €YES
8804000000619
  • Later bearing
  • 45
1.13 €YES
8804000000620
  • Oilseal
  • 46
0.21 €YES
8804000000621
  • Ring φ60.3×φ2.65
  • 47
0.89 €YES
8804000000622
  • Bearing 6205
  • 48
1.34 €YES
8804000000623
  • Capacitor cover
  • 49
0.23 €YES
8804000000624
  • Crankcase
  • 50
20.19 €YES
8804000000625
  • Crank shaft
  • 51
8.60 €YES
8804000000626
  • Cylinder seals
  • 52
18.35 €YES
8804000000627
  • Link
  • 53
1.93 €YES
8804000000628
  • Piston pin
  • 54
0.38 €YES
8804000000629
  • Circlip φ14.5
  • 55
0.89 €YES
8804000000630
  • Pistons
  • 56
2.09 €YES
8804000000631
  • Oil Ring
  • 57
0.45 €YES
8804000000632
  • Gas Ring
  • 58
0.66 €YES
8804000000633
  • Connection elbow
  • 59
2.19 €YES
8804000000634
  • Bolt M8X25
  • 60
0.89 €YES
8804000000635
  • High-pressure pipe
  • 61
5.43 €YES
8804000000636
  • Cylinder
  • 62
18.35 €YES
8804000000637
  • Pin φ3.1×6
  • 63
0.18 €YES
8804000000638
  • Valves
  • 64
0.19 €YES
8804000000639
  • Valve plate pad
  • 65
0.28 €YES
8804000000640
  • Valve Plate
  • 66
3.48 €YES
8804000000641
  • Cylinder seals
  • 67
0.28 €YES
8804000000642
  • Cylinder
  • 68
11.09 €YES
8804000000643
  • Bolt M8×50
  • 69
0.47 €YES
8804000000644
  • Cylinder Head Cover
  • 70
0.78 €YES
8804000000645
  • Bolt M6×16
  • Air Filter
  • 71
  • 72
0.47 €YES
