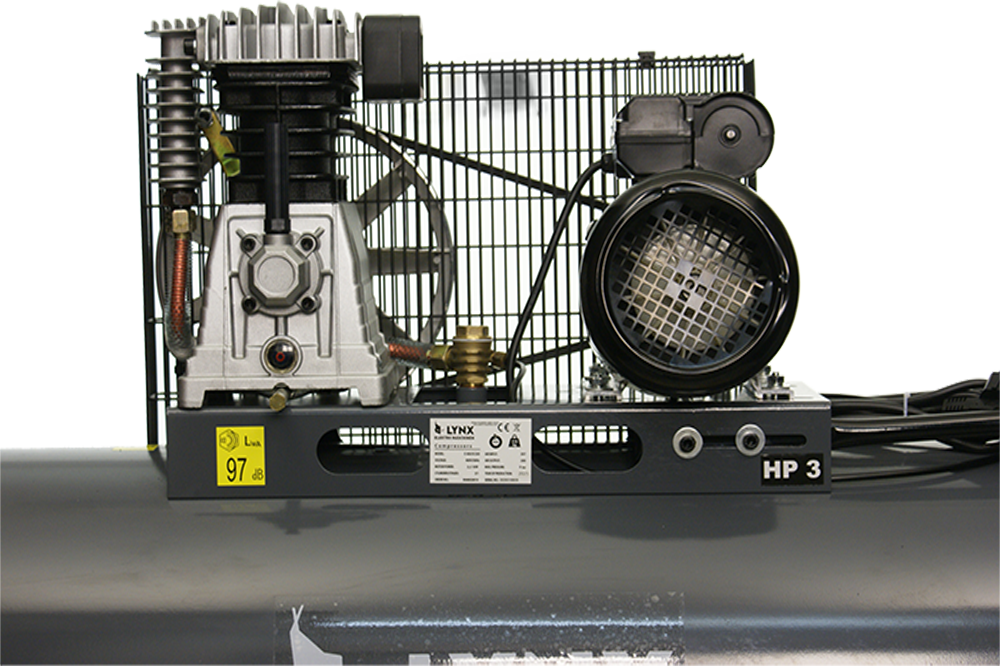

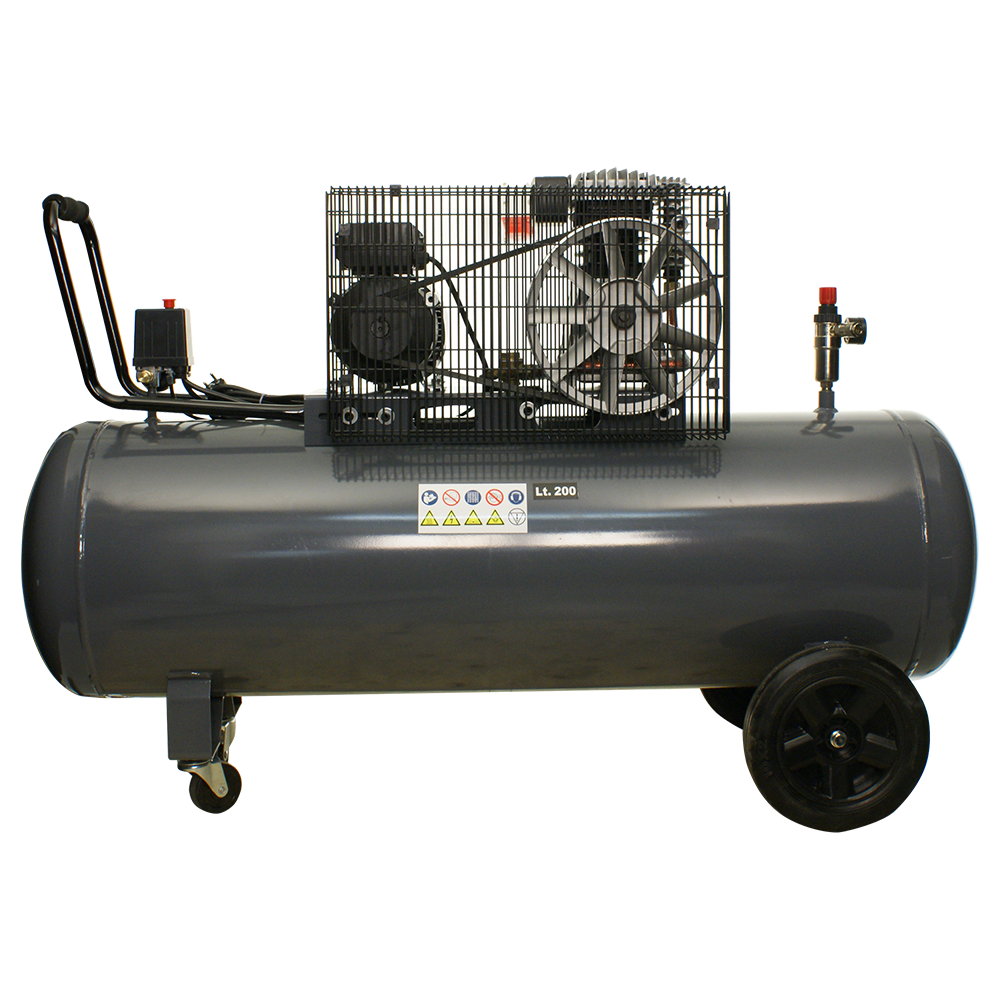

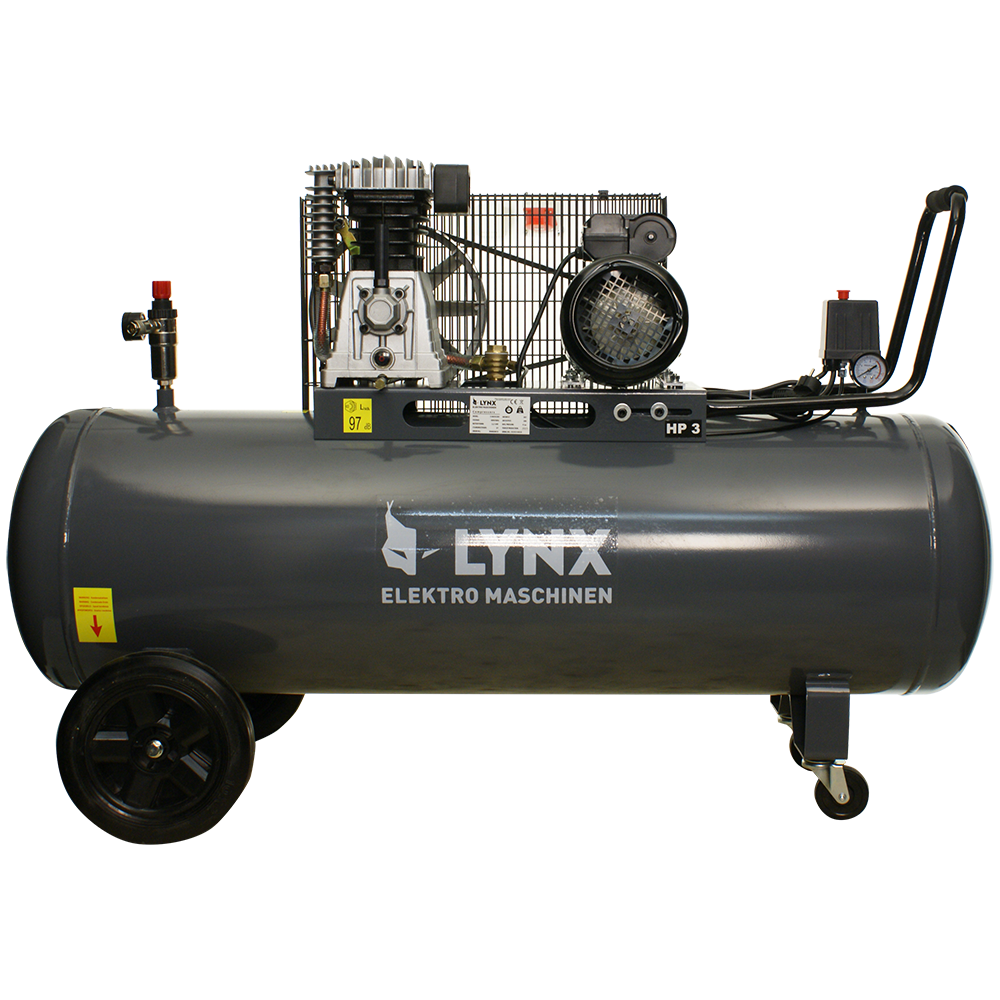

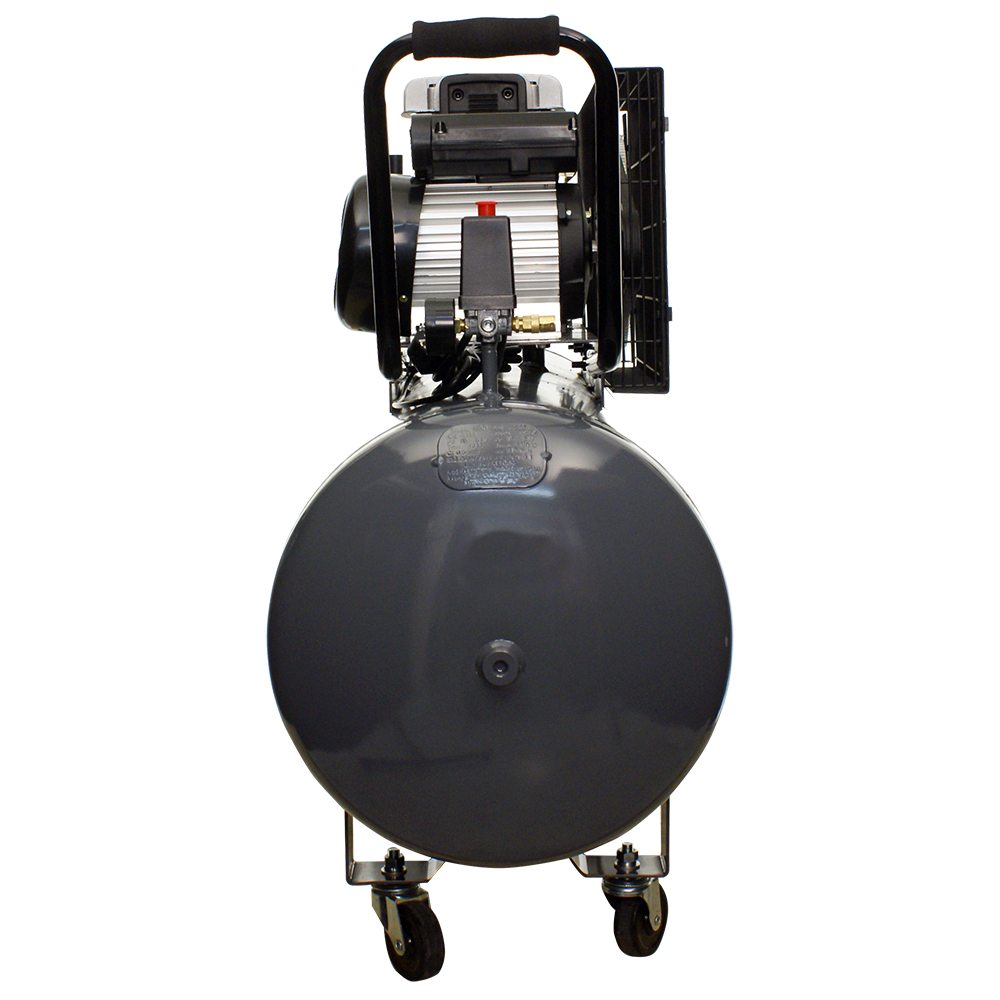

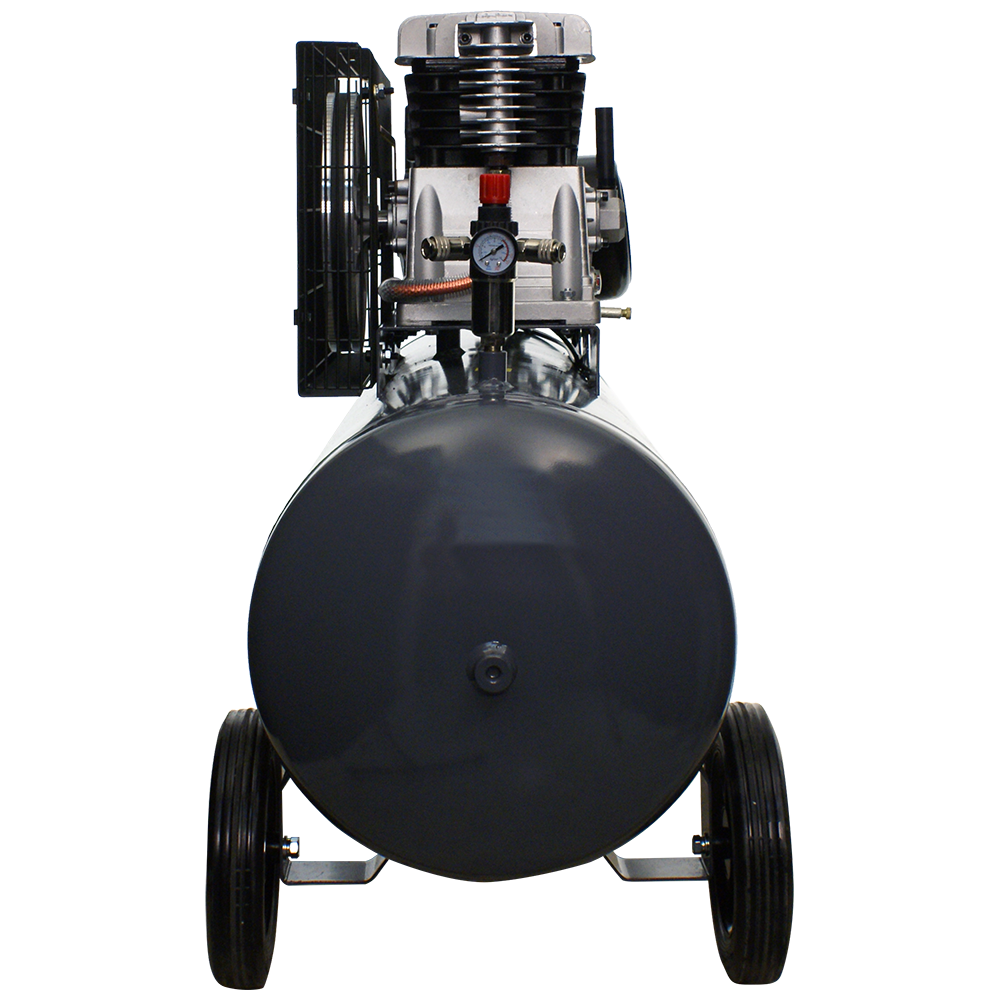

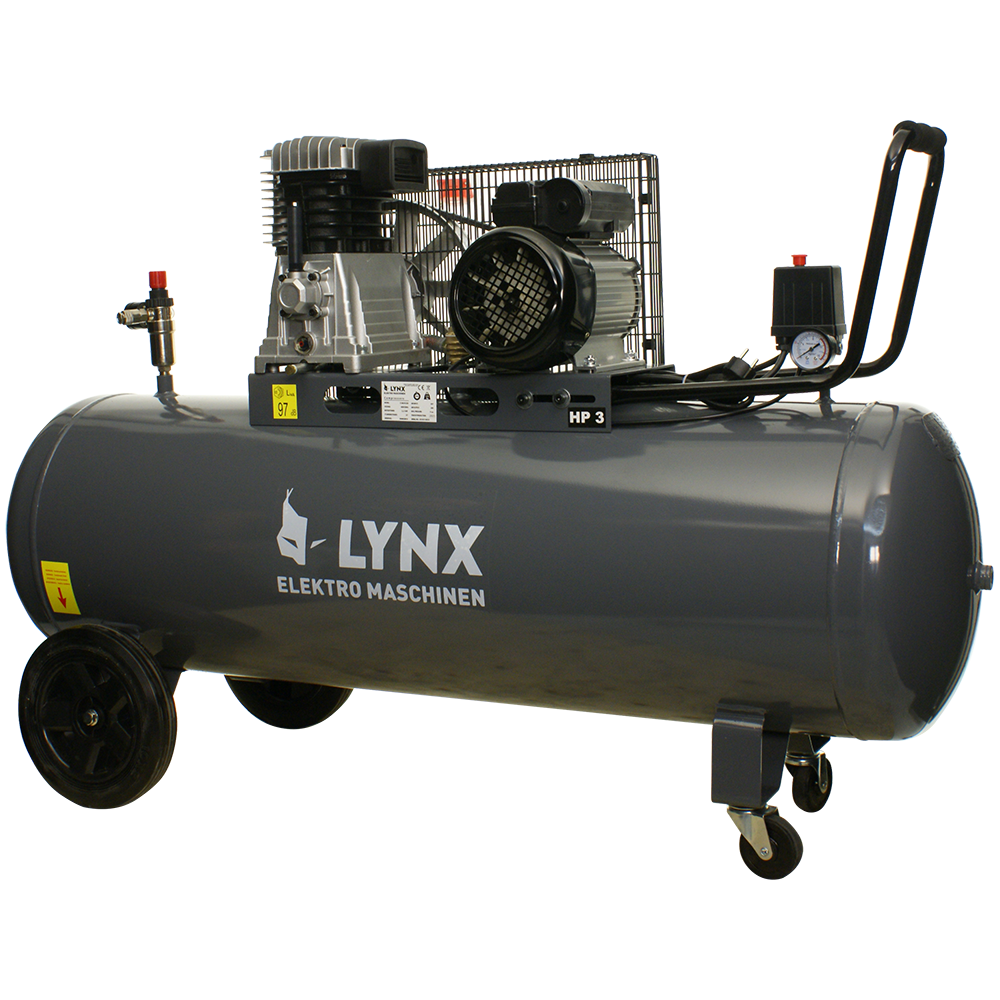

E 400/9/200 Piston compressor

E 400/9/200 , 397L/min, 9 bar, 200L, 3HP, 230V

Advantages:

• Two cylinder, one-stage compressor pump with cast iron cylinders
• Belt driven
• Metal belt guard protection
• Air cooler on the compressor pump (output)
• Direct air output with fast coupling
• Pressure regulator with gauge and two fast couplings
• Air receiver with volume 200 l with condensation drain
• Large wheels for easier transport with rotatable front wheel for easier transport

Out of stock

Add to compare

Add to wishlist

12 People watching this product now!

Payment:

AIR INPUT (l/min)	480
AIR OUTPUT (l/min)	310
Number of cylinders	2
Pressure (bar)	9
Pump type	E 500
Motor power (kW)	2.2
Number of stages	1
Tank capacity (l)	200
VOLTAGE (V/Hz)	230/50

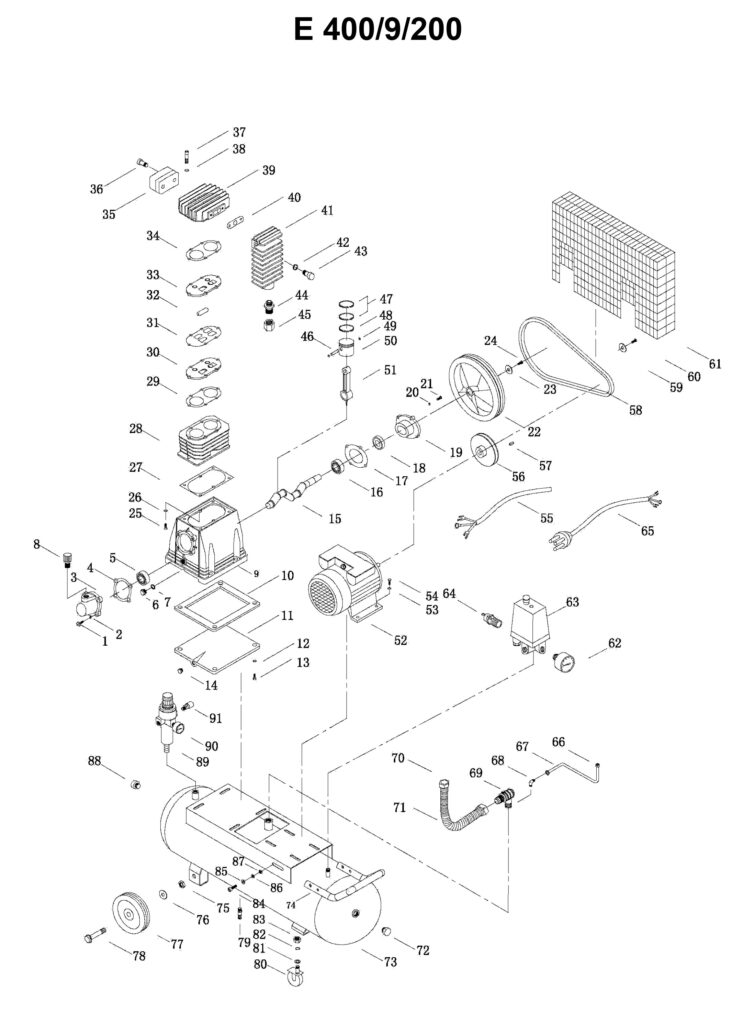

PDF Spear Parts

REM Code	Name	Position	Price	Stock
8804000000372	HEX SCREW	1	0.19 €	YES
8804000000373	SPRING WASHER	2	0.19 €	YES
8804000000374	FRONT COVER	3	1.18 €	YES
8804000000375	FRONT COVER GASKET	4	0.23 €	YES
8804000000376	BALL BEARING	5	1.76 €	YES
8804000000377	OIL SIGHTGLASS	6	0.35 €	YES
8804000000378	OIL SIGHTGLASS SEAL	7	0.23 €	YES
8804000000379	BREATHER (M16*1.5)	8	0.70 €	YES
8804000000380	CRANKCASE	9	16.45 €	YES
8804000000381	BASEPLATE SEAL	10	0.94 €	YES
8804000000382	BASEPLATE	11	5.17 €	YES
8804000000383	SPRING WASHER	12	0.19 €	YES
8804000000384	HEX SCREW	13	0.18 €	YES
8804000000385	OIL PLUG (G1/8")	14	0.23 €	YES
8804000000386	CRANKSHAFT	15	7.52 €	YES
8804000000387	BALL BEARING	16	1.76 €	YES
8804000000388	BEARING SEAT GASKET	17	0.23 €	YES
8804000000389	OIL SEAL	18	0.47 €	YES
8804000000390	BEARING SEAT	19	0.94 €	YES
8804000000391	SPRING WASHER	20	0.19 €	YES
8804000000392	HEX SCREW	21	0.18 €	YES
8804000000393	FLYWHEEL	22	15.98 €	YES
8804000000394	FLYWHEEL FLAT WASHER	23	0.23 €	YES
8804000000395	FLYWHEEL SCREW	24	0.23 €	YES
8804000000396	HEX SCREW	25	0.18 €	YES
8804000000397	SPRING WASHER	26	0.19 €	YES
8804000000398	CYLINDER GASKET	27	0.59 €	YES
8804000000399	CYLINDER	28	16.45 €	YES
8804000000400	VALVE PLATE GASKET	29	0.47 €	YES
8804000000401	VALVE PLATE	30	4.23 €	YES
8804000000402	VALVE PLATE GASKET	31	0.35 €	YES
8804000000403	VALVE REED	32	0.35 €	YES
8804000000404	VALVE PLATE	33	4.23 €	YES
8804000000405	HEAD COVER GASKET	34	0.47 €	YES
8804000000406	AIR FILTER	35	0.94 €	YES
8804000000407	HEX SCREW	36	0.48 €	YES
8804000000408	HEX SCREW	37	0.19 €	YES
8804000000409	SPRING WASHER	38	18.00 €	YES
8804000000410	HEAD COVER	39	17.62 €	YES
8804000000411	AFTERCOOLER GASKET	40	0.21 €	YES
8804000000412	AFTERCOOLER	41	8.22 €	YES
8804000000413	SPRING WASHER	42	0.19 €	YES
8804000000414	HEX SCREW	43	0.18 €	YES
8804000000415	CONNECTOR	44	0.94 €	YES
8804000000416	CONNECTOR NUT	45	0.94 €	YES
8804000000417	PISTON PIN	46	0.70 €	YES
8804000000418	COMPRESSOR RING	47	0.48 €	YES
8804000000419	OIL RING	48	1.18 €	YES
8804000000420	PIN CLIP	49	0.17 €	YES
8804000000421	PISTON	50	2.82 €	YES
8804000000422	CONNECTING ROD	51	2.35 €	YES
8804000000423	MOTOR	52	158.00 €	YES
8804000000424	SPRING WASHER	53	0.19 €	YES
8804000000425	SCREW	54	0.18 €	YES
8804000000426	MOTOR POWER CORD	55	4.70 €	YES
8804000000427	PULLEY	56	7.05 €	YES
8804000000428	KEY	57	0.23 €	YES
8804000000429	BELT	58	3.76 €	YES
8804000000430	FLAT WASHER	59	0.23 €	YES
8804000000431	SCREW	60	0.23 €	YES
8804000000432	GUARD	61	18.33 €	YES
8804000000433	PRESSURE GAUGE (50 MM)	62	2.35 €	YES
8804000000434	PRESSURE SWITCH	63	4.70 €	YES
8804000000435	SAFETY VALVE	64	2.35 €	YES
8804000000436	POWER CORD	65	8.22 €	YES
8804000000437	NUT	66	0.70 €	YES
8804000000438	TUBE	67	0.16 €	YES
8804000000439	ELBOW CONNECTOR	68	1.41 €	YES
8804000000440	CHECK VALVE	69	11.04 €	YES
8804000000441	HEX NUT	70	0.19 €	YES
8804000000442	EXHAUST PIPE	71	8.93 €	YES
8804000000443	OBSERVATION HOLE PLUG	72	0.47 €	YES
8804000000444	TANK (200L)	73	219.00 €	YES
8804000000445	U-SHAPE HANDLE	74	11.75 €	YES
8804000000446	HEX NUT	75	0.23 €	YES
8804000000447	FLAT WASHER	76	0.19 €	YES
8804000000448	WHEEL	77	8.22 €	YES
8804000000449	HEX SCREW	78	0.23 €	YES
8804000000450	DRAIN VALVE	79	1.41 €	YES
8804000000451	UNIVERSAL WHEEL (3")	80	5.88 €	YES
8804000000452	FLAT WASHER	81	0.19 €	YES
8804000000453	SPRING WASHER	82	0.19 €	YES
8804000000454	HEX NUT	83	0.19 €	YES
8804000000455	SCREW	84	0.23 €	YES
8804000000456	FLAT WASHER	85	0.19 €	YES
8804000000457	SPRING WASHER	86	0.19 €	YES
8804000000458	NUT	87	0.19 €	YES
8804000000459	OBSERVATION HOLE PLUG	88	0.47 €	YES
8804000000460	ITALY TYPE REGULATOR	89	16.45 €	YES
8804000000461	PRESSURE GAUGE (40 MM)	90	1.65 €	YES
8804000000462	QUICK CONNECTOR	91	2.12 €	YES

Product Data

CE declaration

EN user manual
