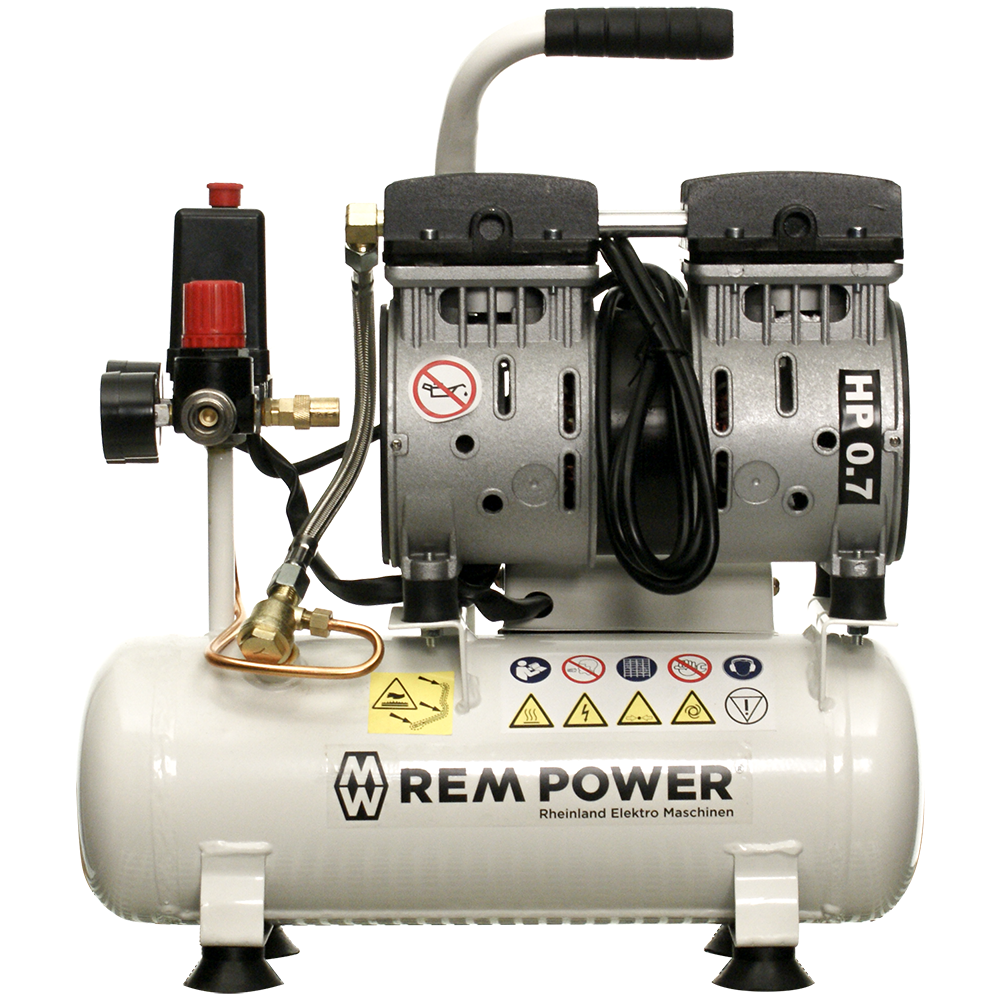

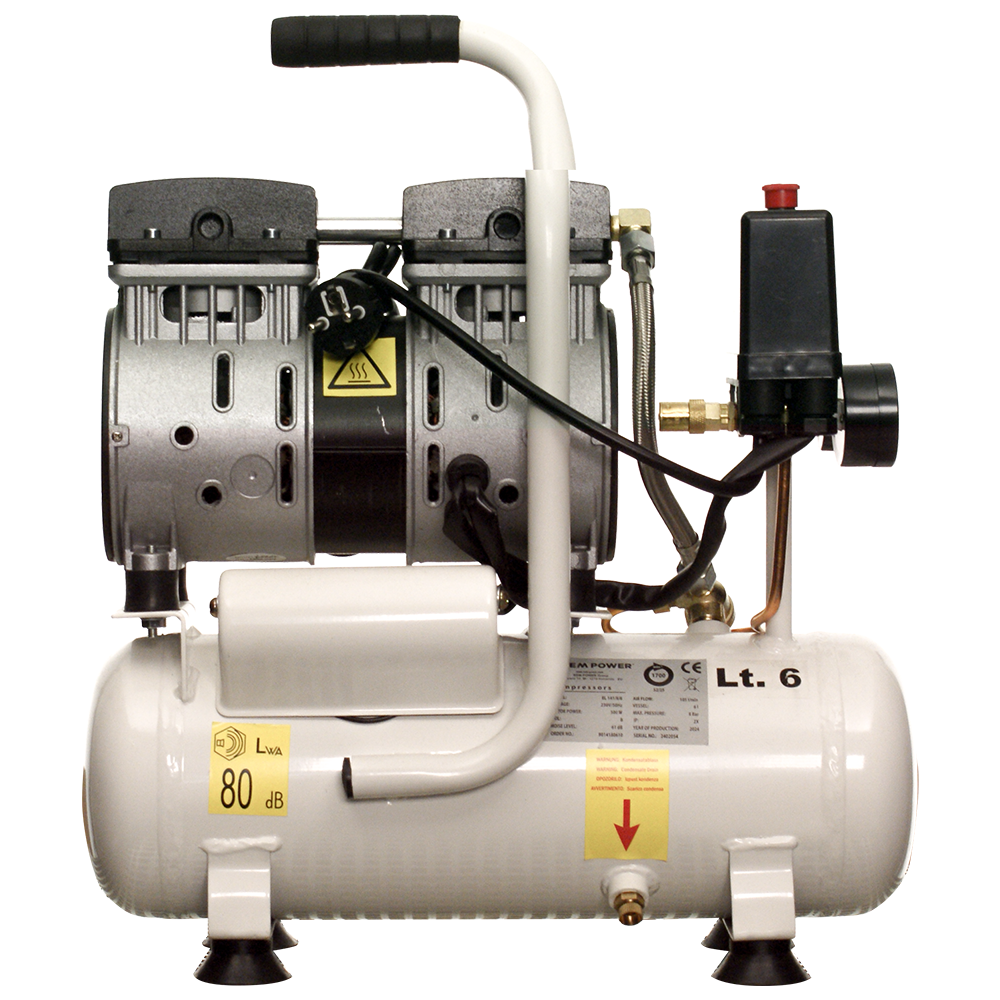

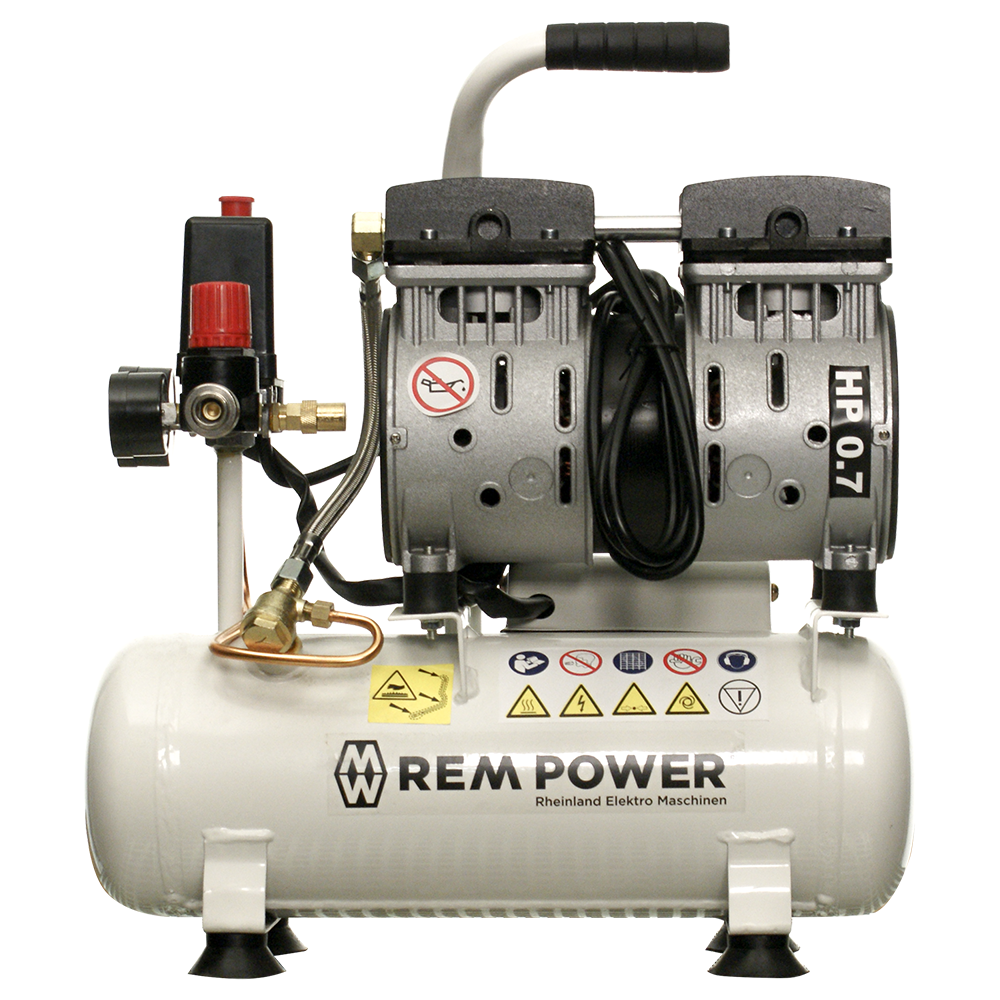

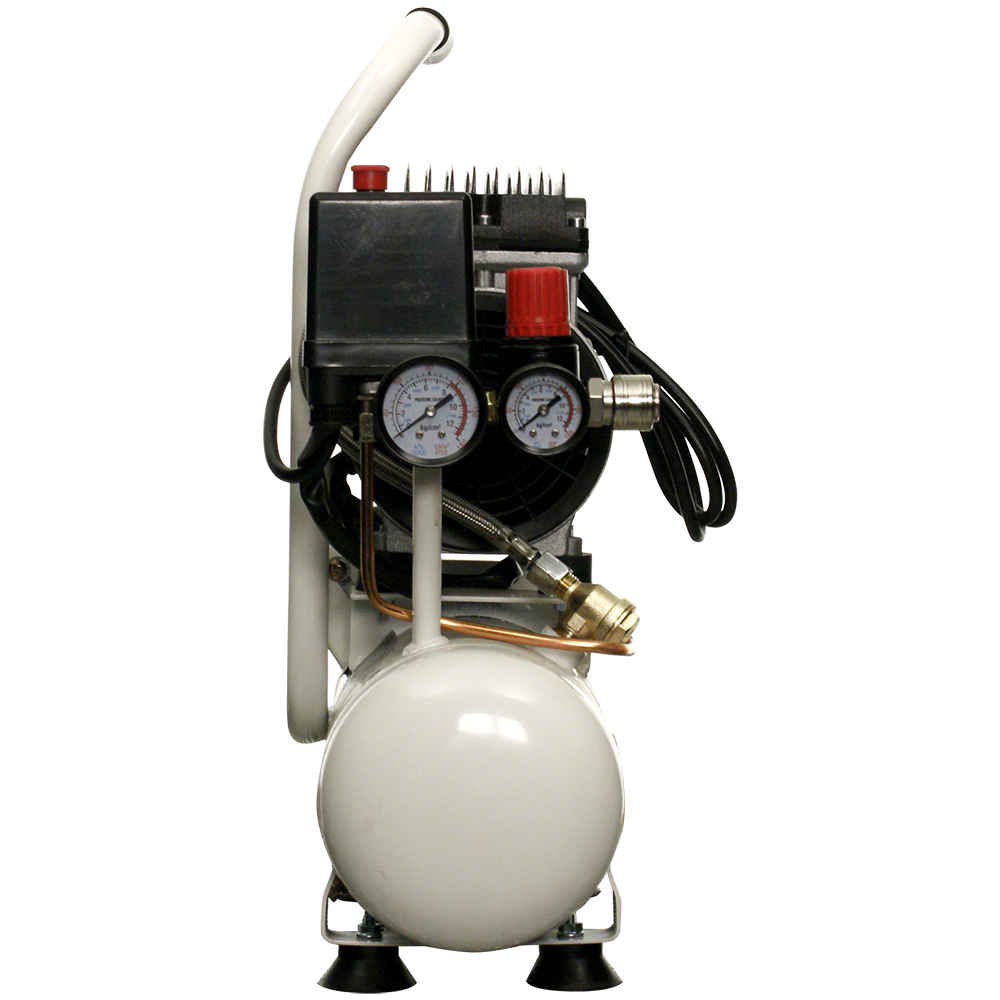

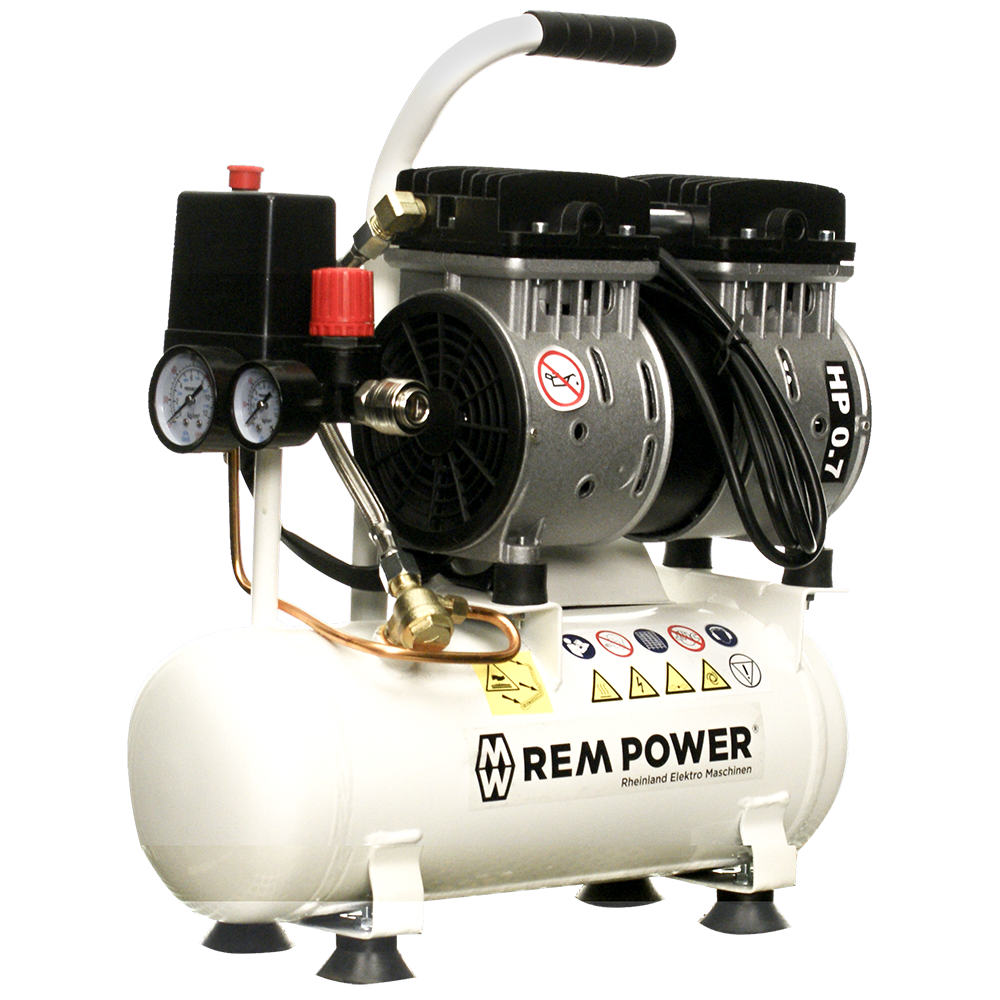

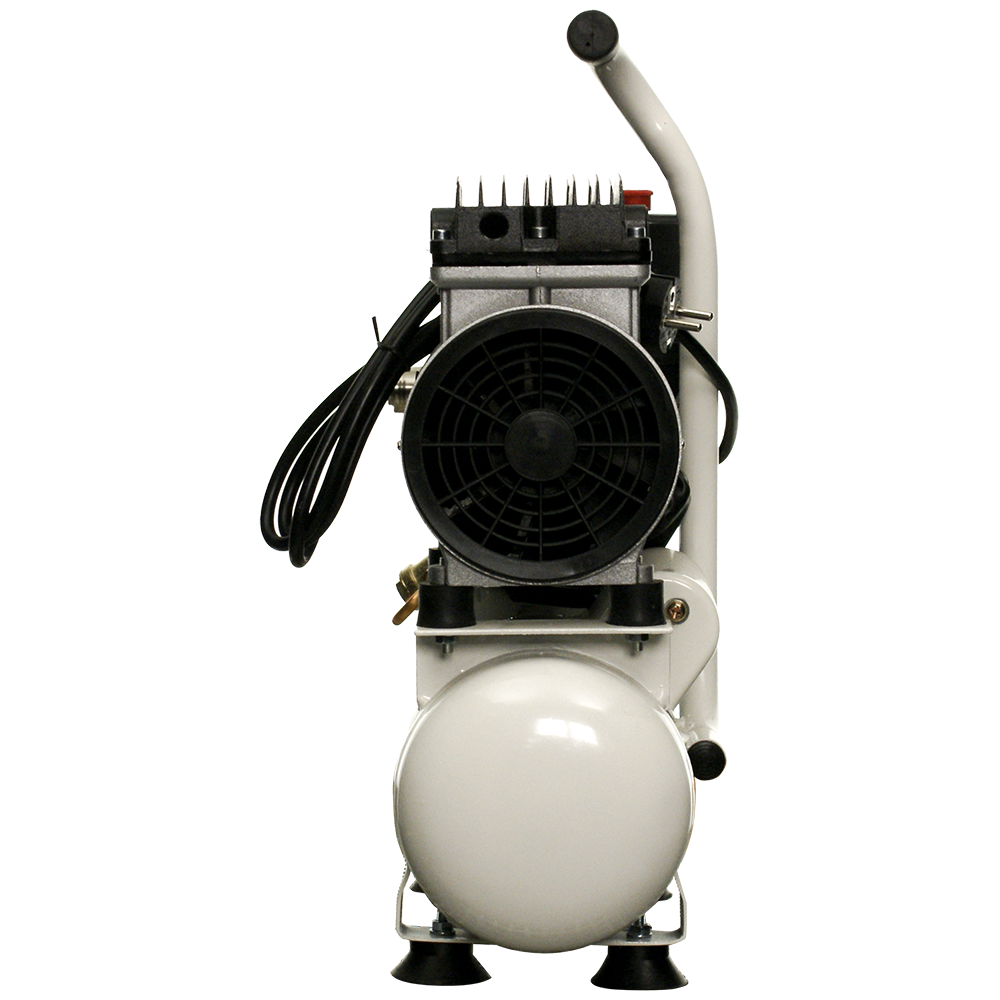

EL 141/8/6 Piston compressor

SKU: 9014180610 Categories: , Brand:

EL 141/8/6, SILENT 105 L/min, 8 bar, 6L, 500W, 230V

Advantages:

• Silent compressor with noise level less than 62 dB (A)
• Two cylinder oil free compressor pump
• Direct drive
• Pressure regulator with gauge and fast coupling
• Induction motor
• Handy shape with handle for easier transport
• Suction cups for operational stability
• Air receiver volume 6l with condensation drain

In stock

13 People watching this product now!

Payment:

Air output (l/min)

105

Number of cylinders

2

Pressure (bar)

8

Motor power (kW)

0.50

RPM (rpm)

1700

Number of stages

1

Tank capacity (l)

6

Voltage (V)

230

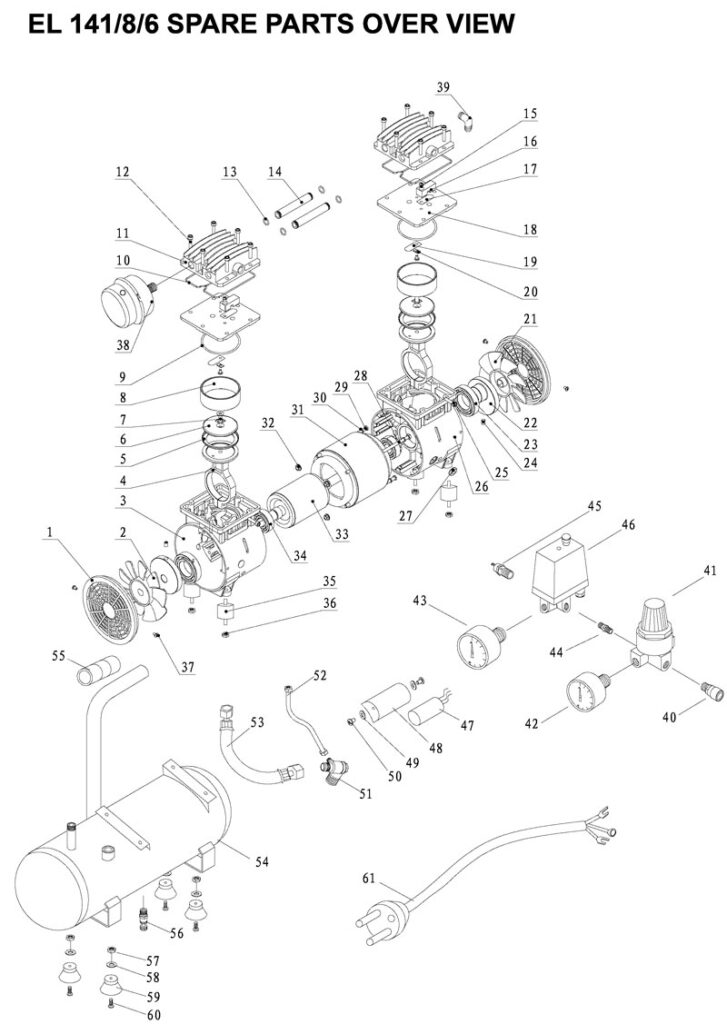

REM Code Name Position Price Stock Order
8804000000522
  • COVERY
  • LEFT FAN
  • LEFT CRANKCASE
  • SHAFT SEAL
  • BEARING 6006-2Z
  • BOLT
  • BEARING 6203-2Z
  • SELF TAPPING
  • 1
  • 2
  • 3
  • 22
  • 23
  • 24
  • 34
  • 37
30.02 €YES
8804000000523
  • RIGHT FAN
  • BOLT
  • RIGHT CRANKCASE
  • PROTECTION RING
  • BOLT
  • BOLT
  • SPRING
  • NUT
  • 21
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 32
21.40 €YES
8804000000524
  • CYLINDER HEAD
  • BOLT
  • 11
  • 12
6.14 €YES
8804000000525
  • OBTURATING RING
  • OBTURATING RING
  • BOLT
  • LIMITED BLOCK
  • VALVE
  • VALVE PLATE
  • VALVE
  • washer
  • 9
  • 10
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
14.21 €YES
8804000000526
  • CONNECTING ROD
  • PISTON CUP
  • BINDER PLATE
  • BOLT
  • CYLINDER
  • 4
  • 5
  • 6
  • 7
  • 8
16.71 €YES
8804000000527
  • OBTURATING RING
  • CONNECTING PIPE
  • 13
  • 14
1.60 €YES
8804000000528
  • VIBRATION COLNMN
  • SPRING
  • 35
  • 36
0.90 €YES
8804000000529
  • STATOR
  • ROTATOR
  • 31
  • 33
59.63 €YES
8804000000530
  • capacitor cover
  • WASHER
  • bolt
  • 48
  • 49
  • 50
1.62 €YES
8804000000531
  • NUT
  • WASHER
  • CUSHION FOOT
  • BOLT
  • 57
  • 58
  • 59
  • 60
0.87 €YES
8804000000532
  • DEFLATION VALVE
  • REGULATOR
  • 40GAUGE
  • 50GAUGE
  • CONNECT
  • SAFETY VALVE
  • PRESSURE SWITCH
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
24.21 €YES
8804000000533
  • AIR FILTER
  • 38
2.35 €YES
8804000000534
  • ELBOW
  • 39
1.88 €YES
8804000000535
  • CAPACITOR
  • 47
4.70 €YES
8804000000536
  • CHECK VALVE
  • 51
2.47 €YES
8804000000537
  • UNLOADING TUBE
  • 52
1.88 €YES
8804000000538
  • PIPE
  • 53
4.70 €YES
8804000000539
  • TANK
  • 54
30.00 €YES
8804000000540
  • HANDLE SLEEVE
  • 55
0.70 €YES
8804000000541
  • DRAIN COCK
  • 56
1.88 €YES
8804000000542
  • PLUG
  • 61
4.70 €YES
