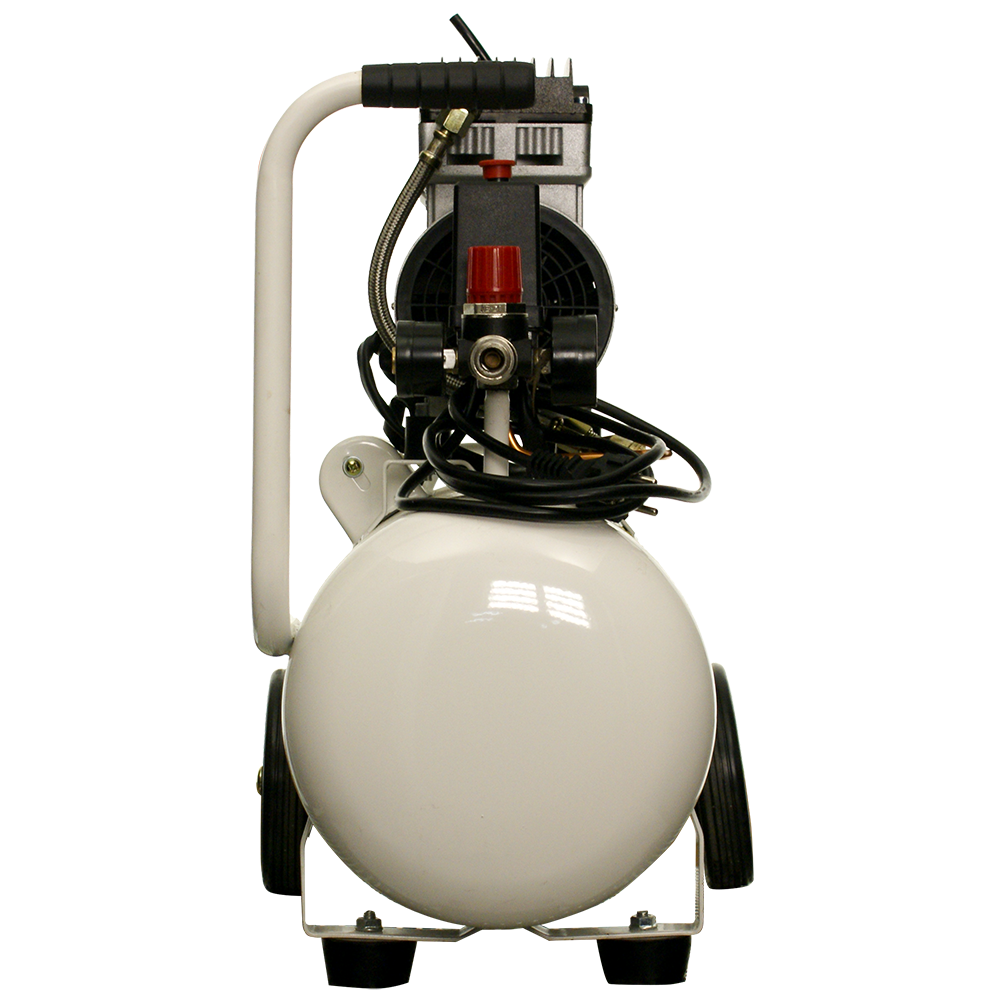

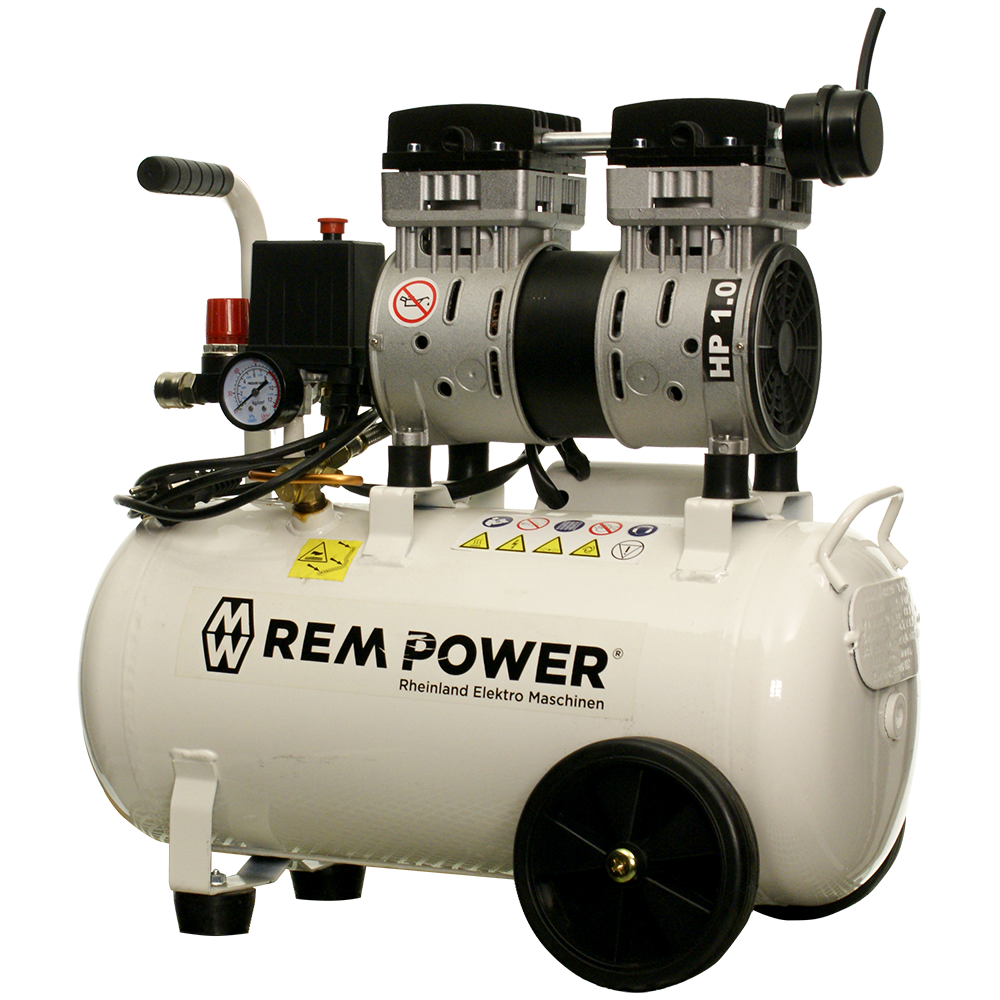

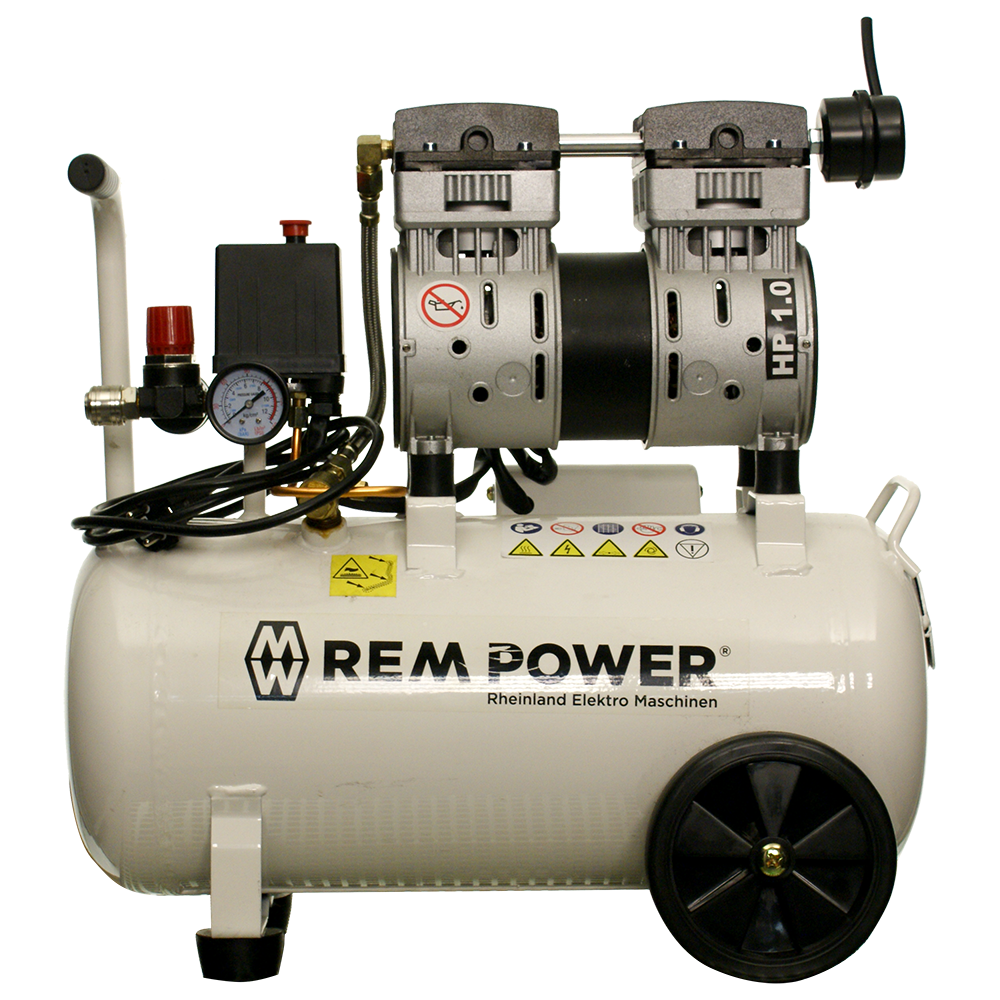

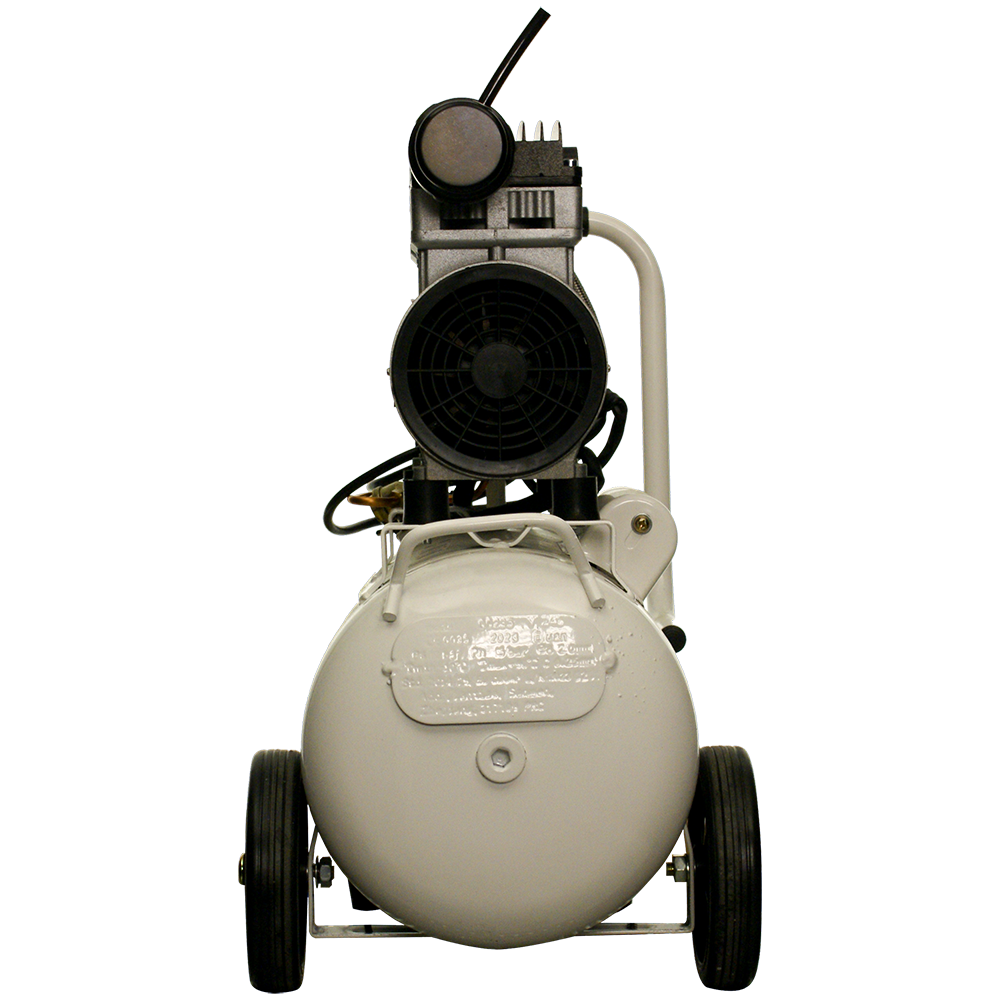

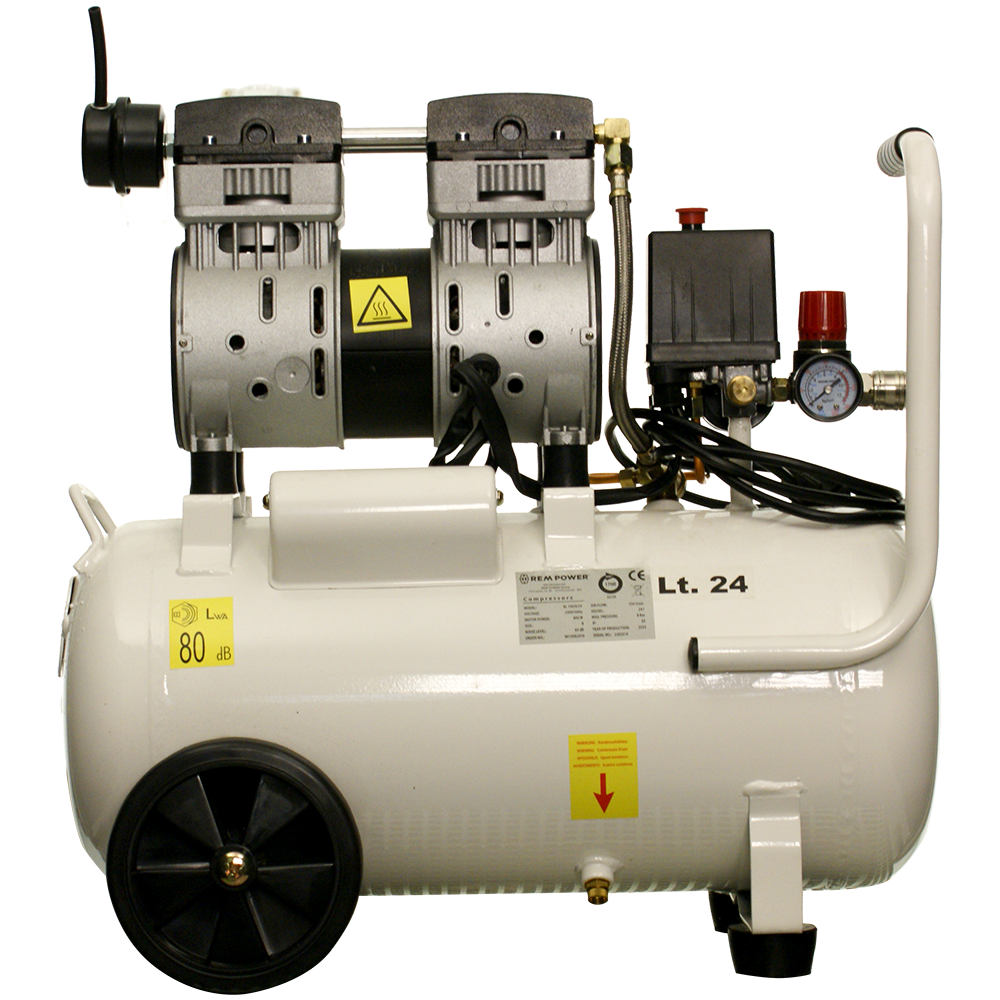

EL 150/8/24 Piston compressor

SKU: 9015082410 Categories: , Brand:

EL 150/8/24, SILENT 150 L/min, 8 bar, 24L, 800W, 230V

Advantages:

•  Silent compressor with noise level less than 66 dB (A)
•  Two cylinder oil free compressor pump
•  Direct drive
•  Pressure regulator with gauge and fast coupling
•  Induction motor
•  Handy shape with handle for easier transport
•  Wheels for easier transport
•  Air receiver volume 24l with condensation drain

In stock

13 People watching this product now!

Payment:

Air output (l/min)

126

Number of cylinders

2

Pressure (bar)

8

Motor power (kW)

0.8

RPM (rpm)

1700

Number of stages

1

Tank capacity (l)

24

Voltage (V)

230

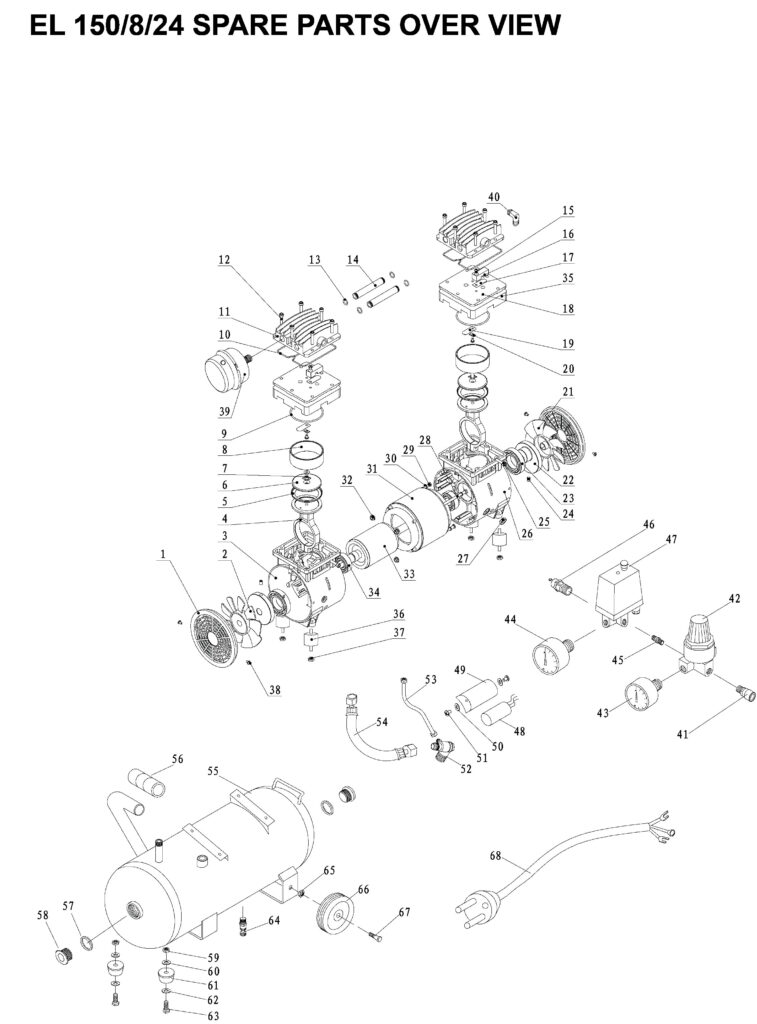

REM Code Name Position Price Stock Order
8804000000528
  • VIBRATIONCOLNMN
  • SPRING
  • 36
  • 37
0.89 €YES
8804000000530
  • CAPACITOR COVER
  • WASHER
  • BOLT
  • 49
  • 50
  • 51
1.61 €YES
8804000000532
  • DEFLATION VALVE
  • REGULATOR
  • 40GAUGE
  • 50GAUGE
  • CONNECT
  • SAFETY VALVE
  • PRESSURE SWITCH
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
25.16 €YES
8804000000533
  • AIR FILTER
  • 39
2.35 €YES
8804000000534
  • ELBOW
  • 40
1.88 €YES
8804000000536
  • CHECK VALVE
  • 52
2.47 €YES
8804000000540
  • SHAFT SEAL
  • 56
0.70 €YES
8804000000543
  • COVERY
  • LEFT FAN
  • LEFT CRANKCASE
  • SHAFT SEAL
  • BEARING 6006-2Z
  • BOLT
  • BEARING 6203-2Z
  • SELF TAPPING
  • 1
  • 2
  • 3
  • 22
  • 23
  • 24
  • 34
  • 38
29.12 €YES
8804000000544
  • RIGHT FAN
  • BOLT
  • RIGHT CRANKCASE
  • PROTECTION RING
  • BOLT
  • BOLT
  • SPRING
  • NUT
  • 21
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 32
18.38 €YES
8804000000545
  • CYLINDER HEAD
  • BOLT
  • ABJUSTING WASHER
  • 11
  • 12
  • 35
8.49 €YES
8804000000546
  • OBTURATING RING
  • OBTURATING RING
  • BOLT
  • LIMITED BLOCK
  • VALVE
  • VALVE PLATE
  • VALVE
  • washer
  • 9
  • 10
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
14.21 €YES
8804000000547
  • CONNECTING ROD
  • PISTON CUP
  • BINDER PLATE
  • BOLT
  • CYLINDER
  • 4
  • 5
  • 6
  • 7
  • 8
16.71 €YES
8804000000548
  • OBTURATING RING
  • CONNECTING PIPE
  • 13
  • 14
1.83 €YES
8804000000549
  • STATOR
  • ROTATOR
  • 31
  • 33
69.20 €YES
8804000000550
  • NUT
  • WASHER
  • CUSHION FOOT
  • WASHER
  • BOLT
  • DRAIN COCK
  • NUT
  • WHEEL
  • BOLT
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
6.15 €YES
8804000000551
  • TANK
  • CHOKE PLUG
  • HANDLE SLEEVE
  • 55
  • 57
  • 58
60.92 €YES
8804000000552
  • capacitor
  • 48
4.70 €YES
8804000000553
  • UNLOADING TUBE
  • 53
1.88 €YES
8804000000554
  • PIPE
  • 54
5.17 €YES
8804000000555
  • PLUG
  • 68
4.70 €YES
