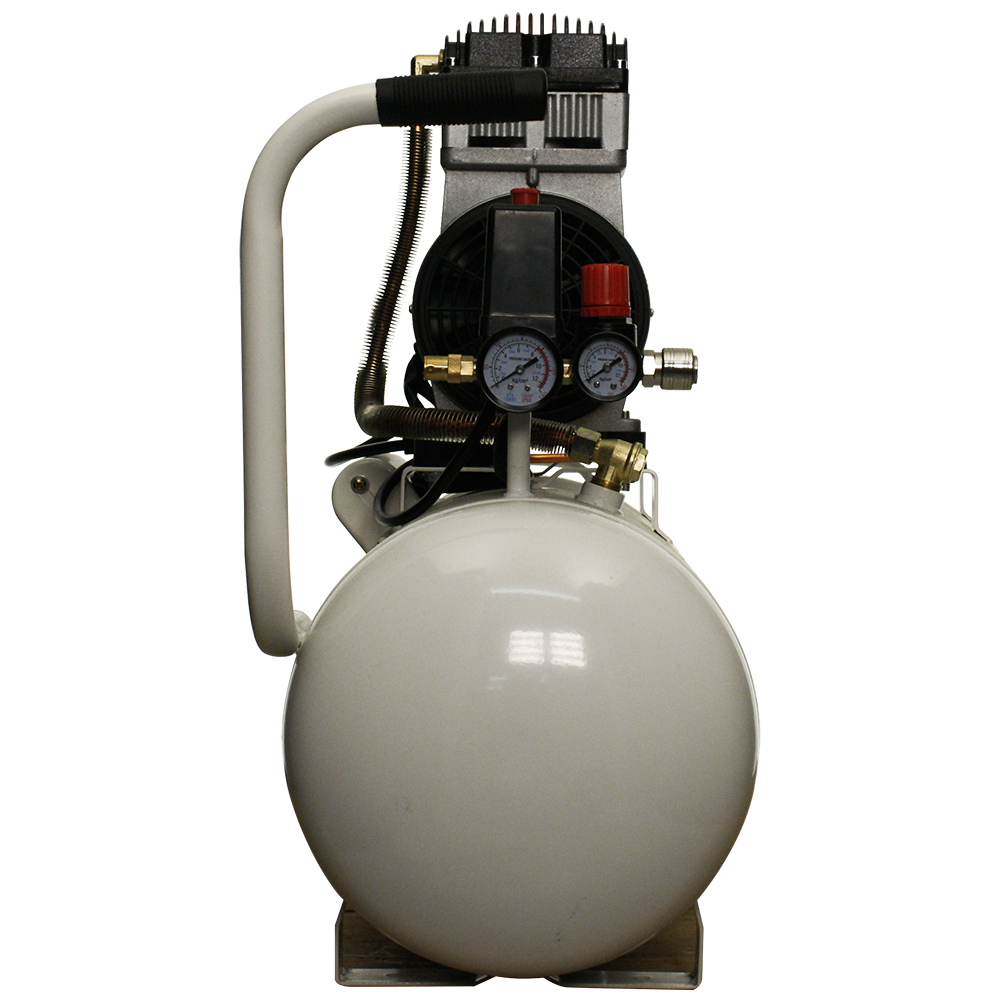

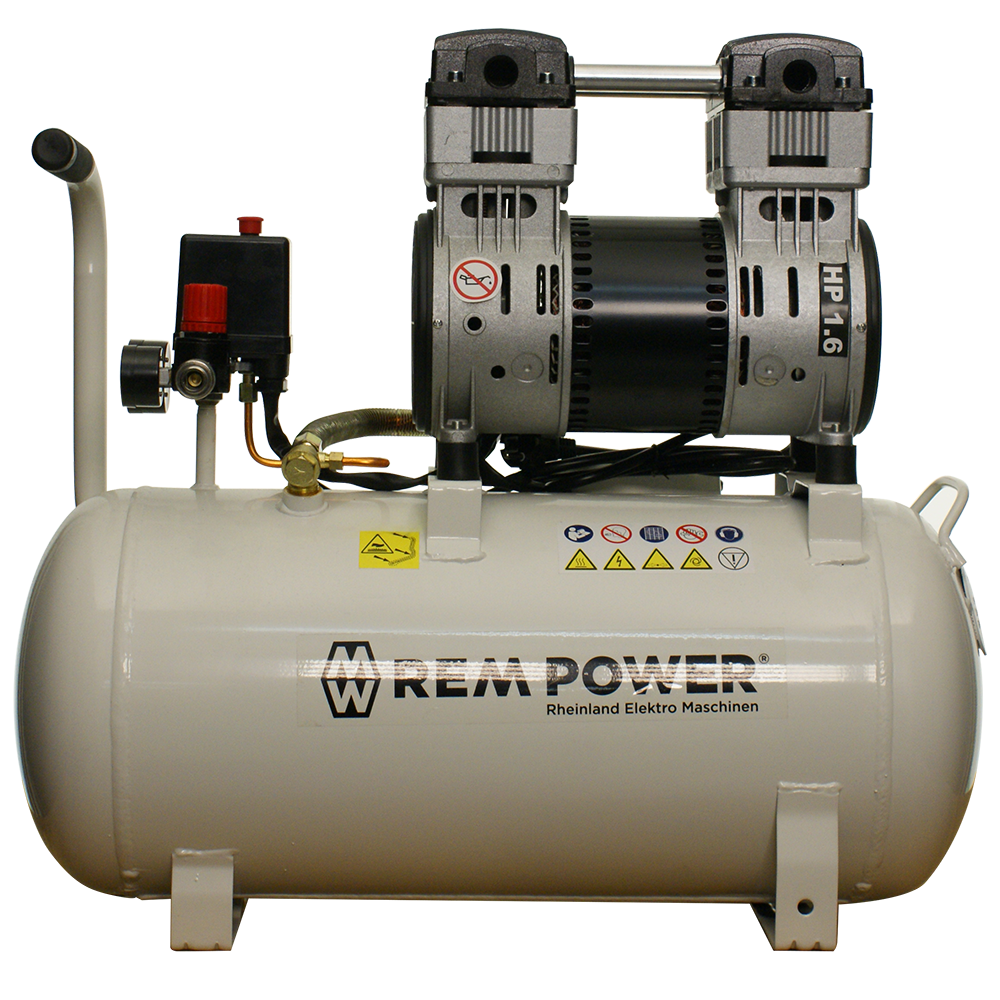

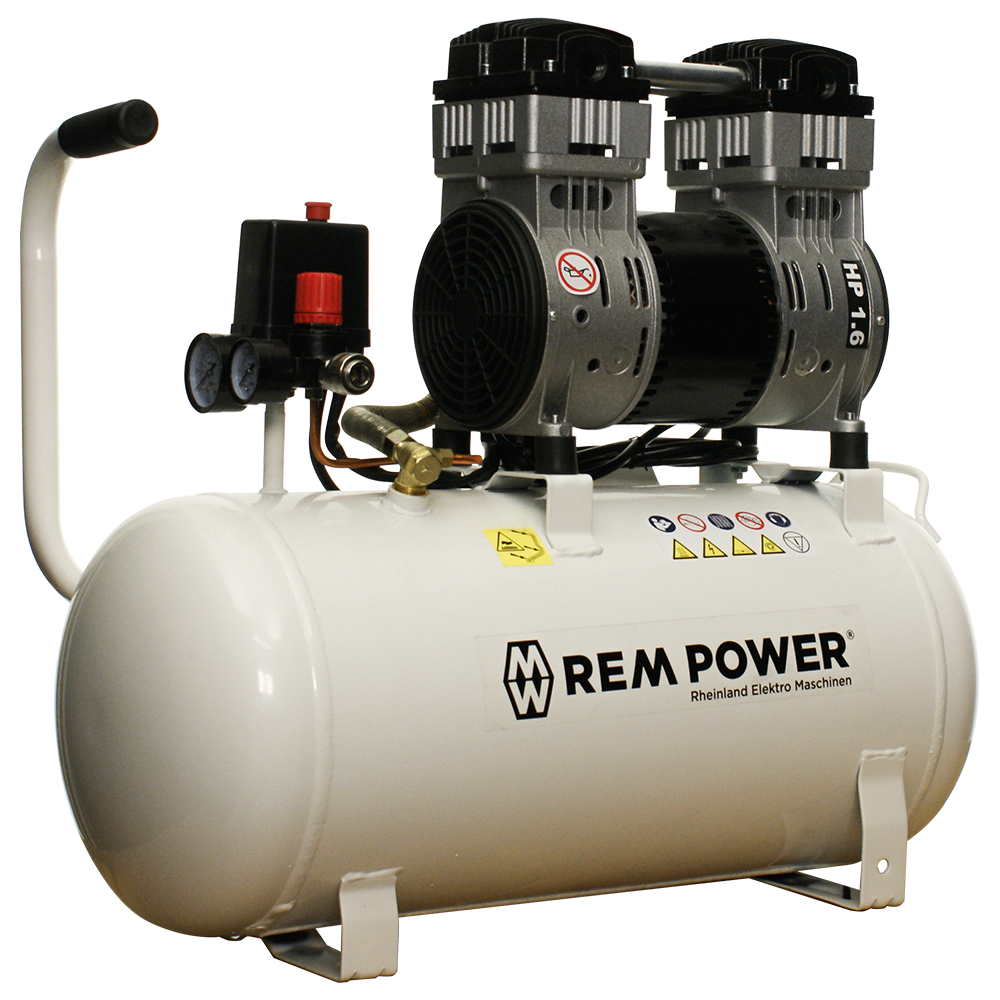

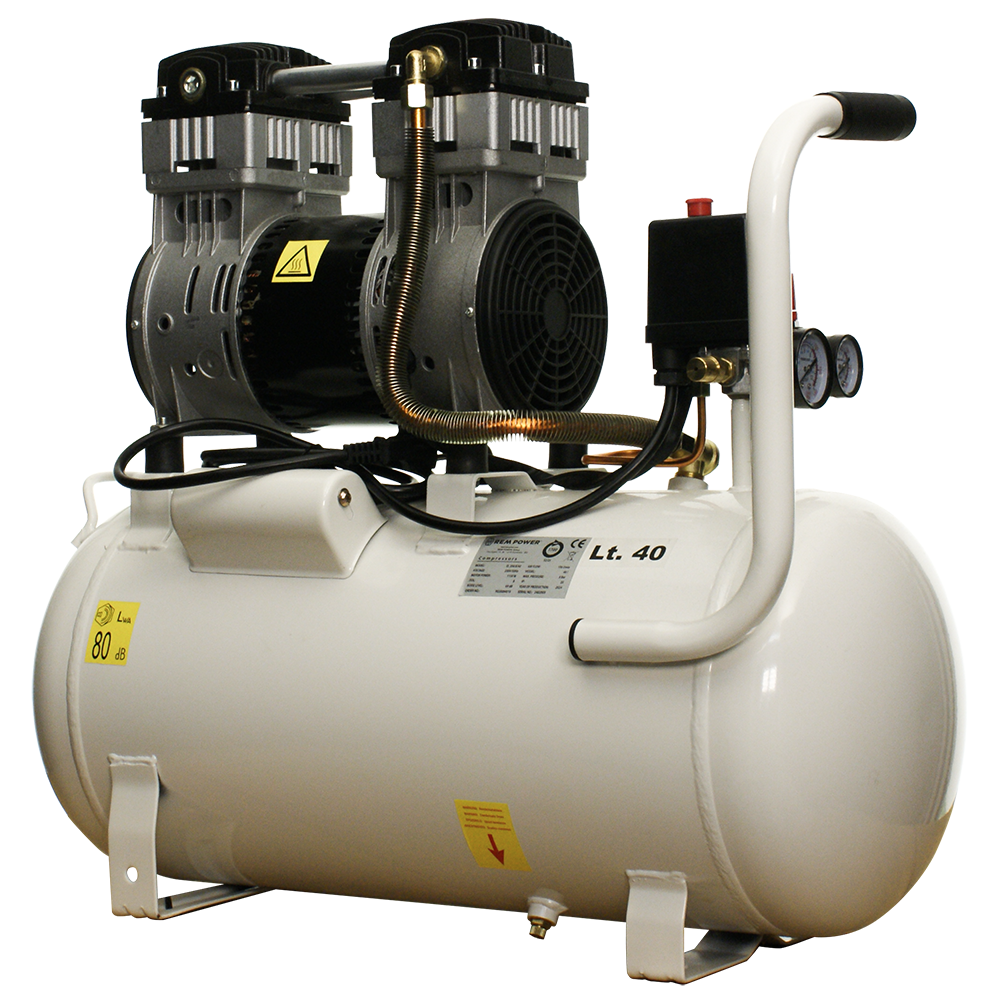

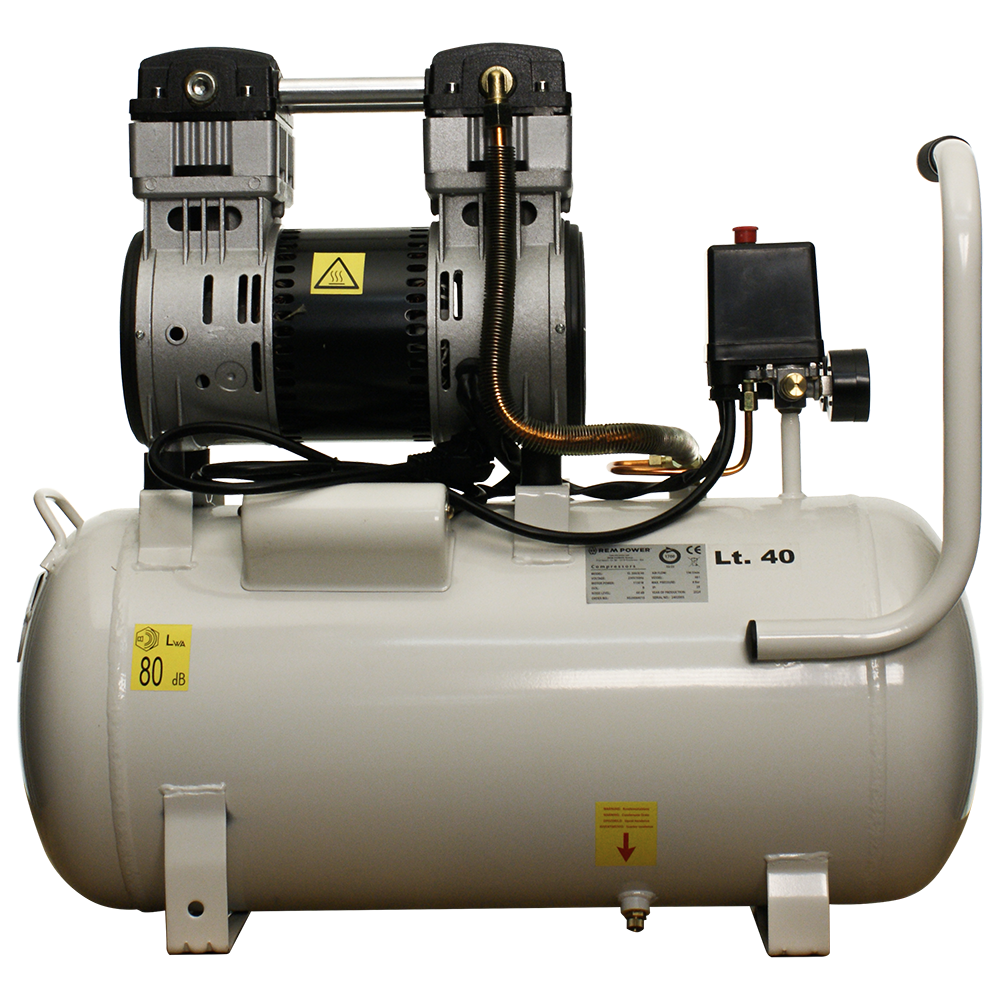

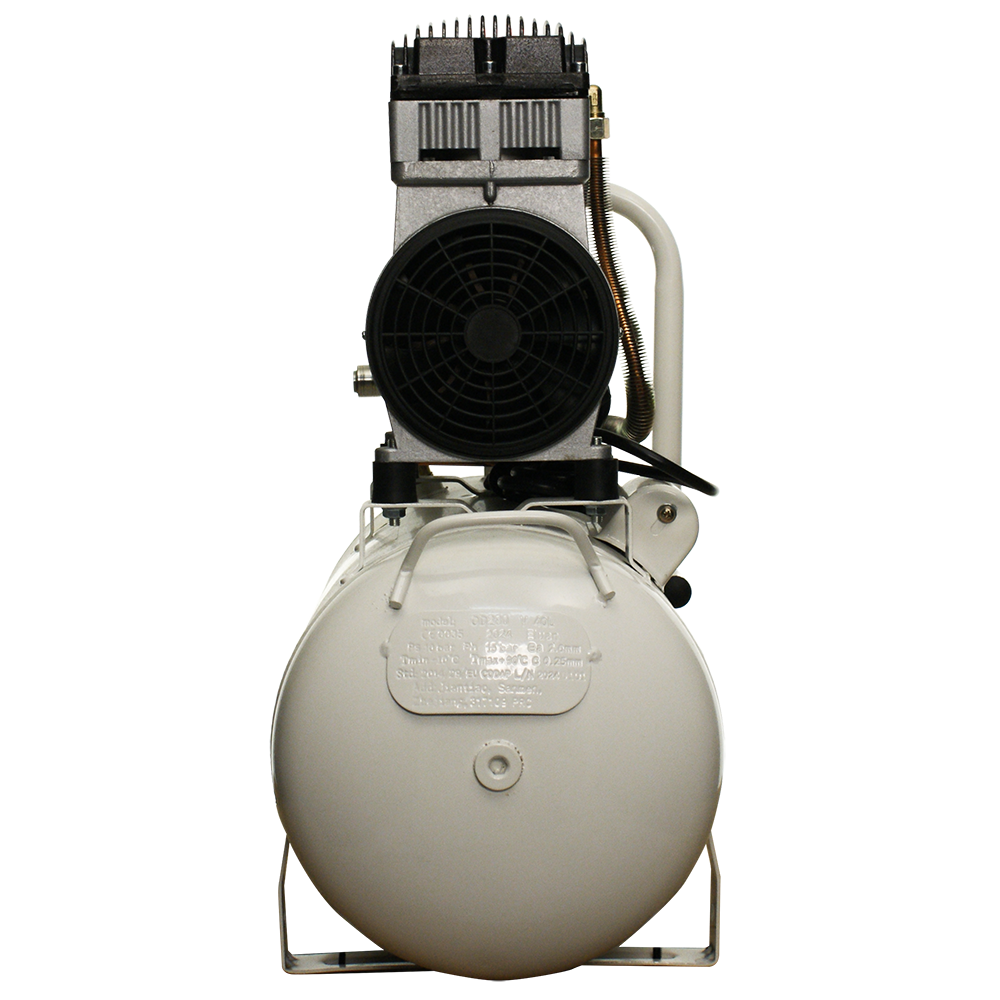

EL 200/8/40 Piston compressor

SKU: 9020084010 Categories: , Brand:

EL 200/8/40, SILENT 200L/min, 8 bar, 40L, 1150W, 230V

Advantages:

• Silent compressor with noise level less than 70 dB (A)
• Two cylinder oil free compressor pump
• Direct drive
• Pressure regulator with gauge and fast coupling
• Induction motor
• Handy shape with handle for easier transport
• Wheels for easier transport
• Air receiver volume 40l with condensation drain

In stock

14 People watching this product now!

Payment:

Air output (l/min)

245

Number of cylinders

4

Pressure (bar)

8

Motor power (kW)

1.4

RPM (rpm)

1700

Number of stages

1

Tank capacity (l)

40

Voltage (V)

230

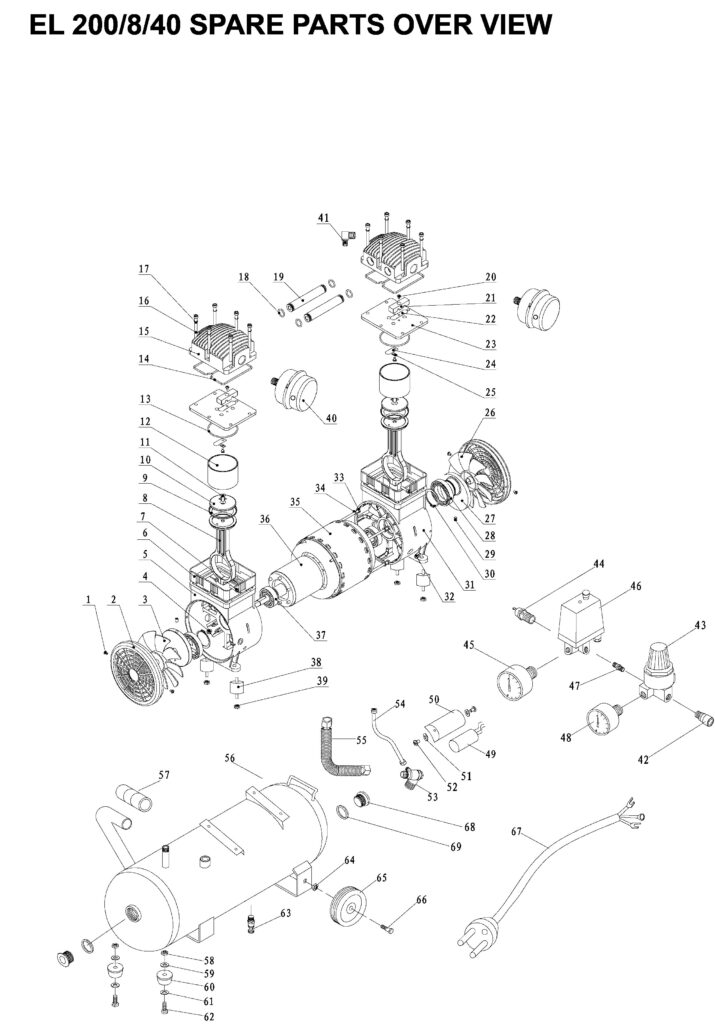

REM Code Name Position Price Stock Order
8804000000530
  • capacitor cover
  • washer
  • bolt
  • 50
  • 51
  • 52
1.62 €YES
8804000000532
  • deflation valve
  • regulator
  • safety valve
  • 50gauge
  • pressure switch
  • connect
  • 40gauge
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
25.16 €YES
8804000000541
  • drain cock
  • 63
1.88 €YES
8804000000556
  • self tapping
  • covery
  • left fan
  • nut
  • left crankcase
  • abjusting washer
  • BOLT
  • shaft seal
  • bearing6908-2Z
  • BOLT
  • washer
  • bearing6204-2Z
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 27
  • 28
  • 29
  • 30
  • 37
33.83 €YES
8804000000557
  • right fan
  • right crankcase
  • protection ring
  • bolt
  • spring
  • 26
  • 31
  • 32
  • 33
  • 34
17.15 €YES
8804000000558
  • cylinder head
  • bolt
  • spring
  • 15
  • 16
  • 17
6.33 €YES
8804000000559
  • obturating ring
  • obturating ring
  • bolt
  • limited block
  • valve
  • valve plate
  • valve
  • washer
  • 13
  • 14
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
16.24 €YES
8804000000560
  • connecting rod
  • piston cup
  • binder plate
  • bolt
  • cylinder
  • 8
  • 9
  • 10
  • 11
  • 12
19.06 €YES
8804000000561
  • obturating ring
  • connecting pipe
  • 18
  • 19
2.07 €YES
8804000000562
  • vibration colnmn
  • spring
  • 38
  • 39
0.90 €YES
8804000000563
  • stator
  • ratator
  • 35
  • 36
105.00 €YES
8804000000564
  • nut
  • washer
  • cushion foot
  • washer
  • bolt
  • nut
  • wheel
  • bolt
  • 58
  • 59
  • 60
  • 61
  • 62
  • 64
  • 65
  • 66
3.82 €YES
8804000000565
  • tank
  • choke plug
  • handle sleeve
  • 56
  • 68
  • 69
64.97 €YES
8804000000566
  • air filter
  • 40
2.35 €YES
8804000000567
  • elbow
  • 41
1.88 €YES
8804000000568
  • capacitor
  • 49
4.70 €YES
8804000000569
  • check valve
  • 53
2.47 €YES
8804000000570
  • unloading tube
  • 54
1.88 €YES
8804000000571
  • pipe
  • 55
5.88 €YES
8804000000572
  • shaft seal
  • 57
0.70 €YES
8804000000573
  • plug
  • 67
5.88 €YES
