    GSEm 7000 SDE, el.start

    SKU: 39070000601 Categories: ,

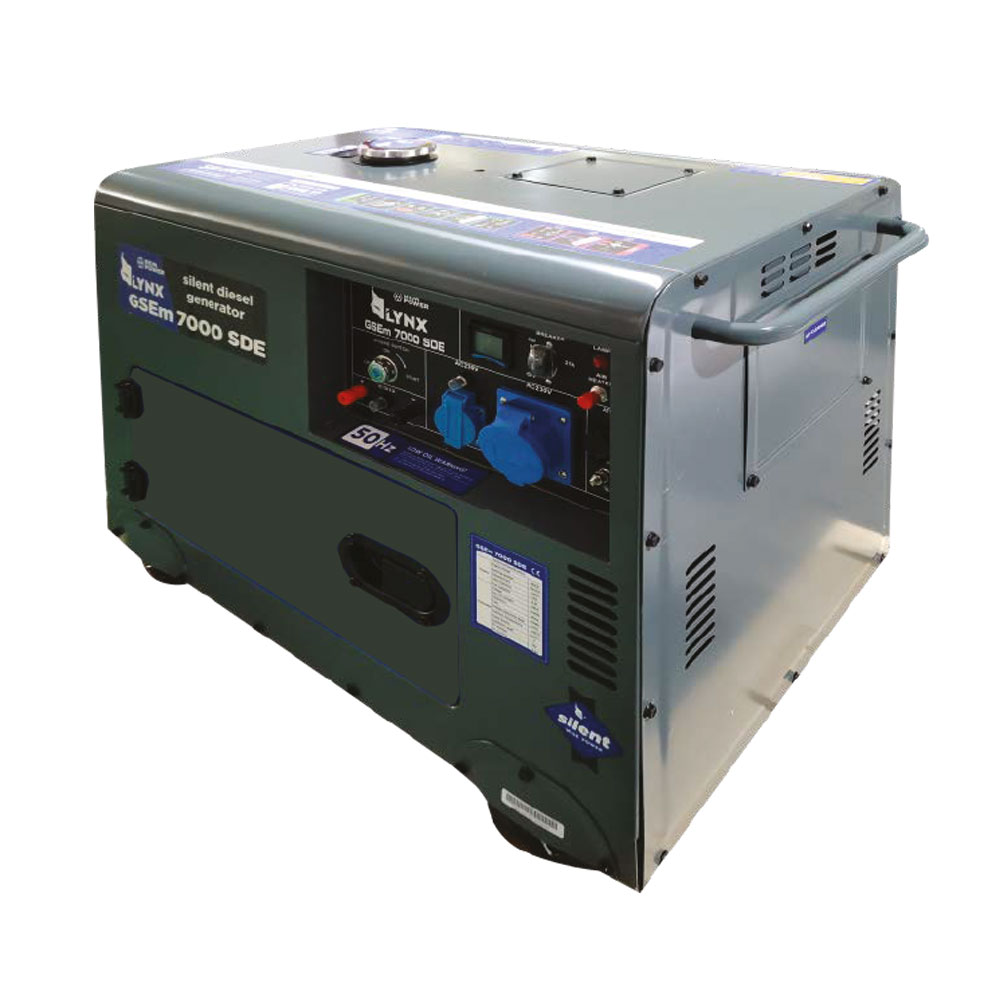

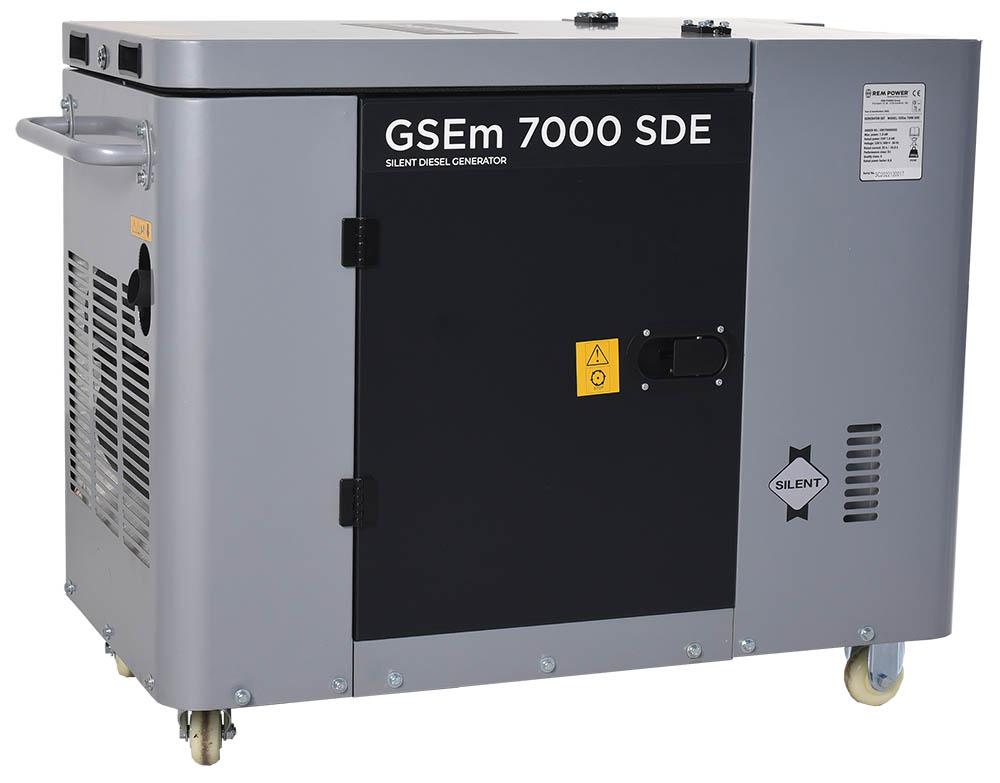

    GSEm 7000 SDE is a Diesel Generator, with output max power of 6.5kW, 230V

    Advantages:

    • High quality diesel engine
    • EURO 5 for engine
    • Silent design through sound isolation
    • Compact design, wheels, handle
    • Automatic start
    • ATS ready
    • Automatic low engine oil warning
    • Over voltage protection
    • Info display
    • Displacement> 498 CC

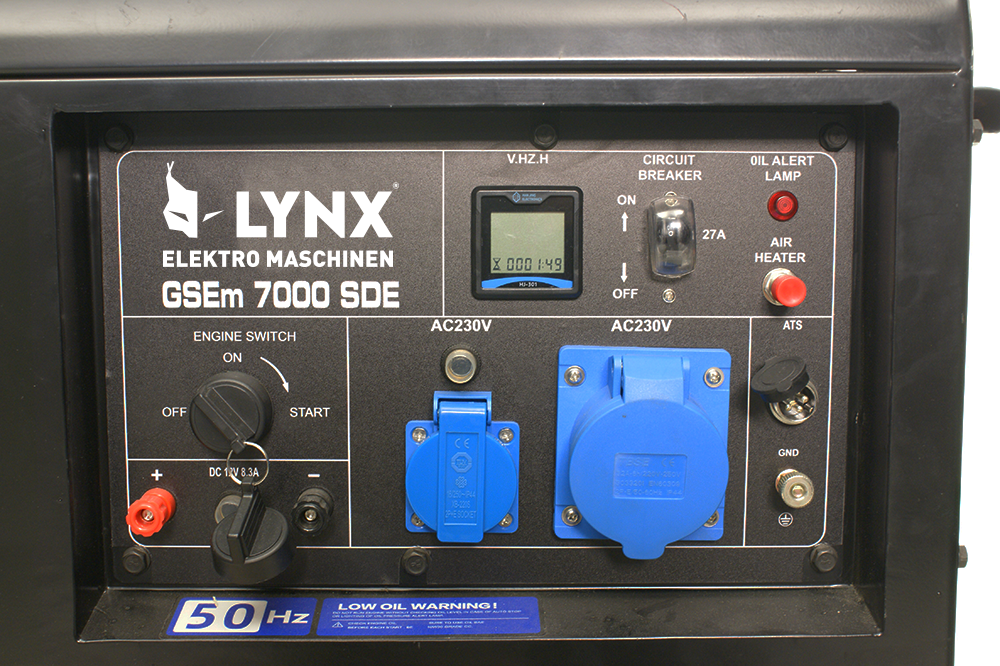

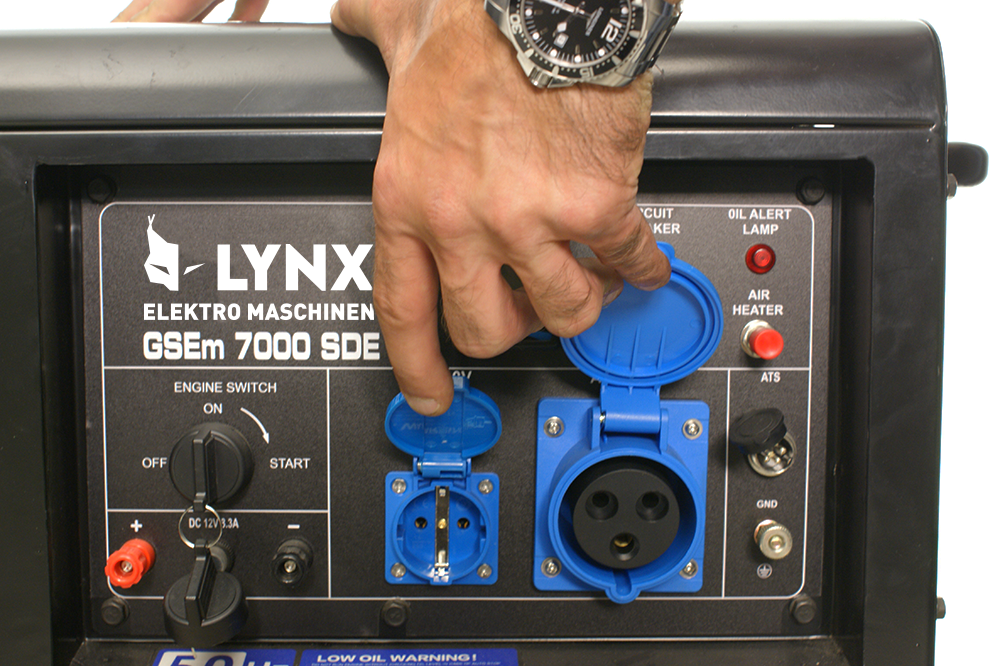

    • Single phase control panel with two sockets:
    – 230V/ 16A – output 3.68 kW
    – 230V/32A – output 6.0 kW

    Out of stock

    Add to compare
    Add to wishlist
    12 People watching this product now!

    Payment:

    Displacement (cm3)

    498
    Fuel tank (l)

    12.5
    Oil capacity (l)

    1.65
    Engine power (HP)

    10
    Max. power, 230V (kW)

    3.68/6.5
    Max. continus running time (h)

    11
    Voltage (V)

    230

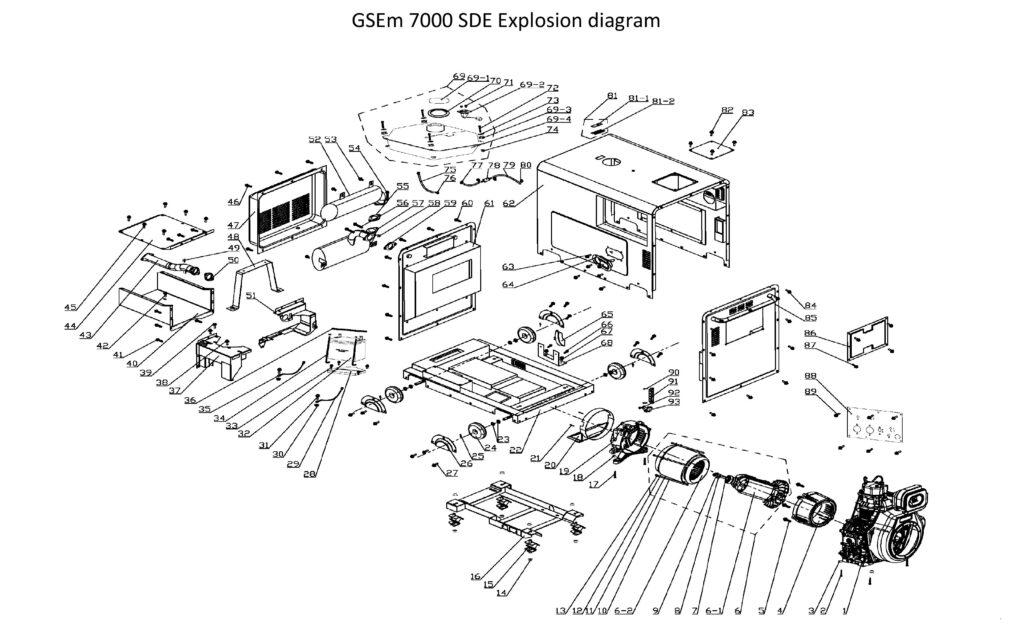

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    39070000601S001
    • Engine
    • 1
    		479.40 €Pre-Order
    39070000601S002
    • bolt
    • 2
    		0.33 €Pre-Order
    39070000601S003
    • Nut
    • 3
    		0.17 €Pre-Order
    39070000601S004
    • Generator cover
    • 4
    		16.94 €Pre-Order
    39070000601S005
    • bolt
    • 5
    		0.26 €Pre-Order
    39070000601S006
    • generator
    • 6
    		197.40 €Pre-Order
    39070000601S0061
    • Generator rotor
    • 6-1
    		112.80 €Pre-Order
    39070000601S0062
    • Generator stator
    • 6-2
    		112.80 €Pre-Order
    39070000601S007
    • bolt
    • 7
    		0.94 €Pre-Order
    39070000601S008
    • Flat pad
    • 8
    		0.19 €Pre-Order
    39070000601S009
    • Spring cushion
    • 9
    		0.18 €Pre-Order
    39070000601S010
    • bolt
    • 10
    		0.47 €Pre-Order
    39070000601S011
    • Flat pad
    • 11
    		0.19 €Pre-Order
    39070000601S012
    • Spring cushion
    • 12
    		0.18 €Pre-Order
    39070000601S014
    • Nut
    • 14
    		0.17 €Pre-Order
    39070000601S015
    • Shock absorber
    • 15
    		2.56 €Pre-Order
    39070000601S016
    • bracket
    • 16
    		19.48 €Pre-Order
    39070000601S017
    • bolt
    • 17
    		0.33 €Pre-Order
    39070000601S018
    • Nut
    • 18
    		0.17 €Pre-Order
    39070000601S019
    • Motor bracket
    • 19
    		18.61 €Pre-Order
    39070000601S020
    • Motor tail cover
    • 20
    		3.24 €Pre-Order
    39070000601S021
    • bolt
    • 21
    		0.26 €Pre-Order
    39070000601S022
    • Box base
    • 22
    		78.11 €Pre-Order
    39070000601S023
    • Axle gasket
    • 23
    		0.24 €Pre-Order
    39070000601S024
    • wheel
    • 24
    		4.02 €Pre-Order
    39070000601S025
    • Locating pin lock clamp
    • 25
    		0.14 €Pre-Order
    39070000601S026
    • Wheel guard
    • 26
    		0.94 €Pre-Order
    39070000601S027
    • bolt
    • 27
    		0.26 €Pre-Order
    39070000601S028
    • Battery mounting plate
    • 28
    		3.88 €Pre-Order
    39070000601S029
    • Battery positive wire
    • 29
    		5.88 €Pre-Order
    39070000601S030
    • Nut
    • 30
    		0.17 €Pre-Order
    39070000601S031
    • bolt
    • 31
    		0.26 €Pre-Order
    39070000601S032
    • Battery
    • 32
    		65.61 €Pre-Order
    39070000601S033
    • bolt
    • 33
    		0.26 €Pre-Order
    39070000601S034
    • L type bolt
    • 34
    		0.66 €Pre-Order
    39070000601S035
    • Battery negative wire
    • 35
    		2.66 €Pre-Order
    39070000601S036
    • Battery pressure plate
    • 36
    		0.87 €Pre-Order
    39070000601S037
    • Rear air deflector
    • 37
    		7.40 €Pre-Order
    39070000601S038
    • bolt
    • 38
    		0.26 €Pre-Order
    39070000601S039
    • bolt
    • 39
    		0.26 €Pre-Order
    39070000601S040
    • Wind channel
    • 40
    		10.25 €Pre-Order
    39070000601S041
    • bolt
    • 41
    		0.26 €Pre-Order
    39070000601S042
    • bolt
    • 42
    		0.26 €Pre-Order
    39070000601S043
    • Bellows
    • 43
    		18.78 €Pre-Order
    39070000601S044
    • Wind channel cover
    • 44
    		13.16 €Pre-Order
    39070000601S045
    • bolt
    • 45
    		0.26 €Pre-Order
    39070000601S046
    • bolt
    • 46
    		0.26 €Pre-Order
    39070000601S047
    • Muffler guard plate
    • 47
    		29.07 €Pre-Order
    39070000601S048
    • Air duct support plate
    • 48
    		4.18 €Pre-Order
    39070000601S049
    • Nut
    • 49
    		0.17 €Pre-Order
    39070000601S050
    • Muffler gasket
    • 50
    		0.54 €Pre-Order
    39070000601S051
    • Front wind deflector
    • 51
    		7.07 €Pre-Order
    39070000601S052
    • silencer-2
    • 52
    		37.46 €Pre-Order
    39070000601S053
    • bolt
    • 53
    		0.26 €Pre-Order
    39070000601S054
    • /
    • 54
    		—Pre-Order
    39070000601S055
    • /
    • 55
    		—Pre-Order
    39070000601S056
    • bolt
    • 56
    		0.26 €Pre-Order
    39070000601S057
    • silencer-1
    • 57
    		—Pre-Order
    39070000601S058
    • /
    • 58
    		—Pre-Order
    39070000601S059
    • Muffler gasket
    • 59
    		0.54 €Pre-Order
    39070000601S060
    • bolt
    • 60
    		0.26 €Pre-Order
    39070000601S061
    • Muffler side panel
    • 61
    		51.02 €Pre-Order
    39070000601S062
    • Box body
    • 62
    		140.41 €Pre-Order
    39070000601S063
    • bolt
    • 63
    		0.26 €Pre-Order
    39070000601S064
    • Door lock
    • 64
    		4.93 €Pre-Order
    39070000601S065
    • A.V.R.
    • 65
    		14.55 €Pre-Order
    39070000601S066
    • bolt
    • 66
    		0.26 €Pre-Order
    39070000601S067
    • bolt
    • 67
    		0.26 €Pre-Order
    39070000601S068
    • A.V.R. Mounting plate
    • 68
    		1.57 €Pre-Order
    39070000601S069
    • Fuel tank
    • 69
    		28.11 €Pre-Order
    39070000601S071
    • bolt
    • 71
    		0.26 €Pre-Order
    39070000601S072
    • bolt
    • 72
    		0.26 €Pre-Order
    39070000601S074
    • /
    • 74
    		—Pre-Order
    39070000601S075
    • Fuel return pipe
    • 75
    		2.54 €Pre-Order
    39070000601S076
    • Clamp
    • 76
    		0.24 €Pre-Order
    39070000601S077
    • Clamp
    • 77
    		0.24 €Pre-Order
    39070000601S078
    • Diesel filter
    • 78
    		1.79 €Pre-Order
    39070000601S079
    • Fuel inlet pipe
    • 79
    		13.98 €Pre-Order
    39070000601S080
    • Clamp
    • 80
    		0.24 €Pre-Order
    39070000601S081
    • /
    • 81
    		—Pre-Order
    39070000601S0811
    • glass
    • 81-1
    		2.00 €Pre-Order
    39070000601S0812
    • Rubber gasket
    • 81-2
    		0.61 €Pre-Order
    39070000601S082
    • bolt
    • 82
    		0.26 €Pre-Order
    39070000601S083
    • Pressure reducing valve cover
    • 83
    		2.61 €Pre-Order
    39070000601S084
    • bolt
    • 84
    		0.26 €Pre-Order
    39070000601S085
    • Power side panel
    • 85
    		38.96 €Pre-Order
    39070000601S086
    • Air filter access door
    • 86
    		6.25 €Pre-Order
    39070000601S087
    • bolt
    • 87
    		0.26 €Pre-Order
    39070000601S088
    • Control panel assembly
    • 88
    		108.10 €Pre-Order
    39070000601S0881
    • Start switch
    • 88-1
    		4.91 €Pre-Order
    39070000601S0882
    • Type 30-1P circuit breaker
    • 88-2
    		—Pre-Order
    39070000601S0883
    • DC binding post/red
    • 88-3
    		—Pre-Order
    39070000601S0884
    • DC binding post/black
    • 88-4
    		—Pre-Order
    39070000601S0885
    • Blue/European industrial/32A/220V-250V
    • 88-5
    		7.47 €Pre-Order
    39070000601S0886
    • Blue/European industrial/16A/250V
    • 88-6
    		—Pre-Order
    39070000601S0887
    • three-in-one watch
    • 88-7
    		—Pre-Order
    39070000601S0888
    • Oil warning light
    • 88-8
    		—Pre-Order
    39070000601S089
    • bolt
    • 89
    		0.26 €Pre-Order
    39070000601S090
    • bolt
    • 90
    		0.26 €Pre-Order
    39070000601S091
    • Wiring board assembly
    • 91
    		0.60 €Pre-Order
    39070000601S092
    • bolt
    • 92
    		0.26 €Pre-Order
    39070000601S093
    • Carbon brush
    • 93
    		1.01 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products
    Add to compare
    Quick view
    Add to wishlist

    ATS three

    ,

    Out of stock

    Read more
    SKU: 39070000699
    Add to compare
    Quick view
    Add to wishlist

    GSEm 8500 TDE, el.start

    ,

    In stock

    Read more
    SKU: 39085200611
    Displacement (cm3)

    633
    Fuel tank (l)

    15
    Oil capacity (l)

    1.65
    Engine power (HP)

    12
    Max. power, 230V (kW)

    3.68/7.5
    Max. power, 400V (kW)

    7.5
    Max. continus running time (h)

    6.5
    Voltage (V)

    230/400
    Add to compare
    Quick view
    Add to wishlist

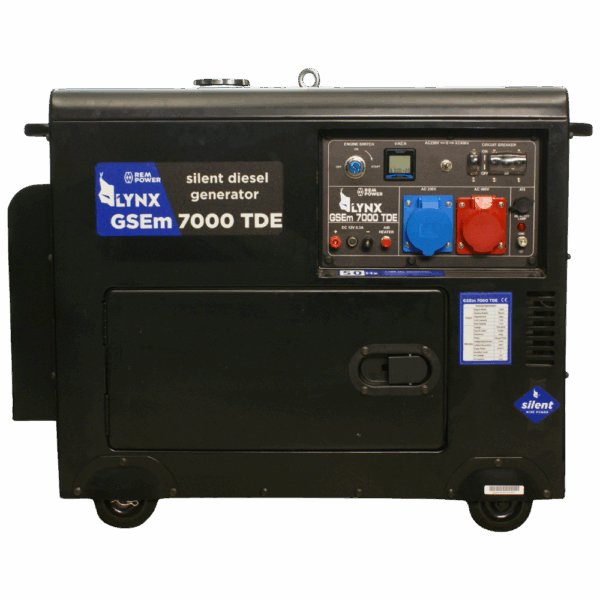

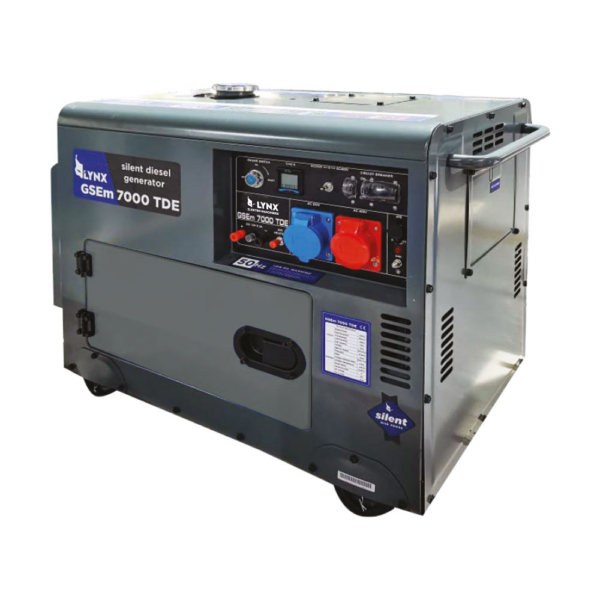

    GSEm 7000 TDE, el.start

    ,

    Out of stock

    Read more
    SKU: 39070000611
    Displacement (cm3)

    498
    Fuel tank (l)

    12.5
    Oil capacity (l)

    1.65
    Engine power (HP)

    10
    Max. power, 230V (kW)

    6.5
    Max. power, 400V (kW)

    6.5
    Max. continus running time (h)

    11
    Voltage (V)

    230/400
    Add to compare
    Quick view
    Add to wishlist

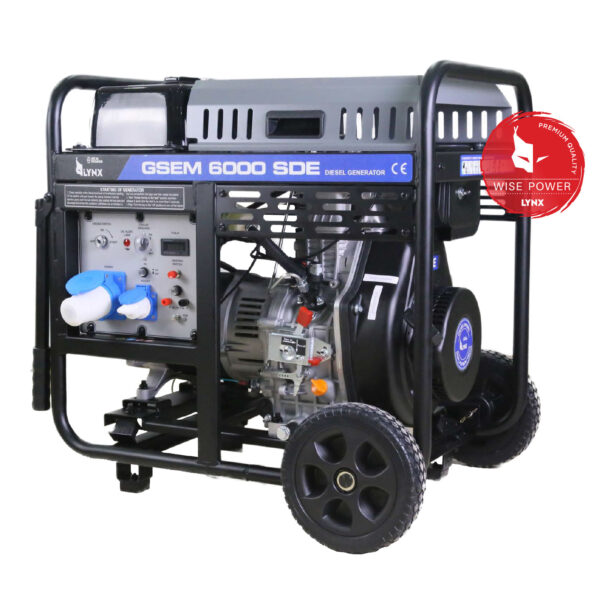

    GSEm 6000 SDE, el strat

    ,
