GSEm 7000 TDE, el.start

SKU: 39070000611 Categories: ,

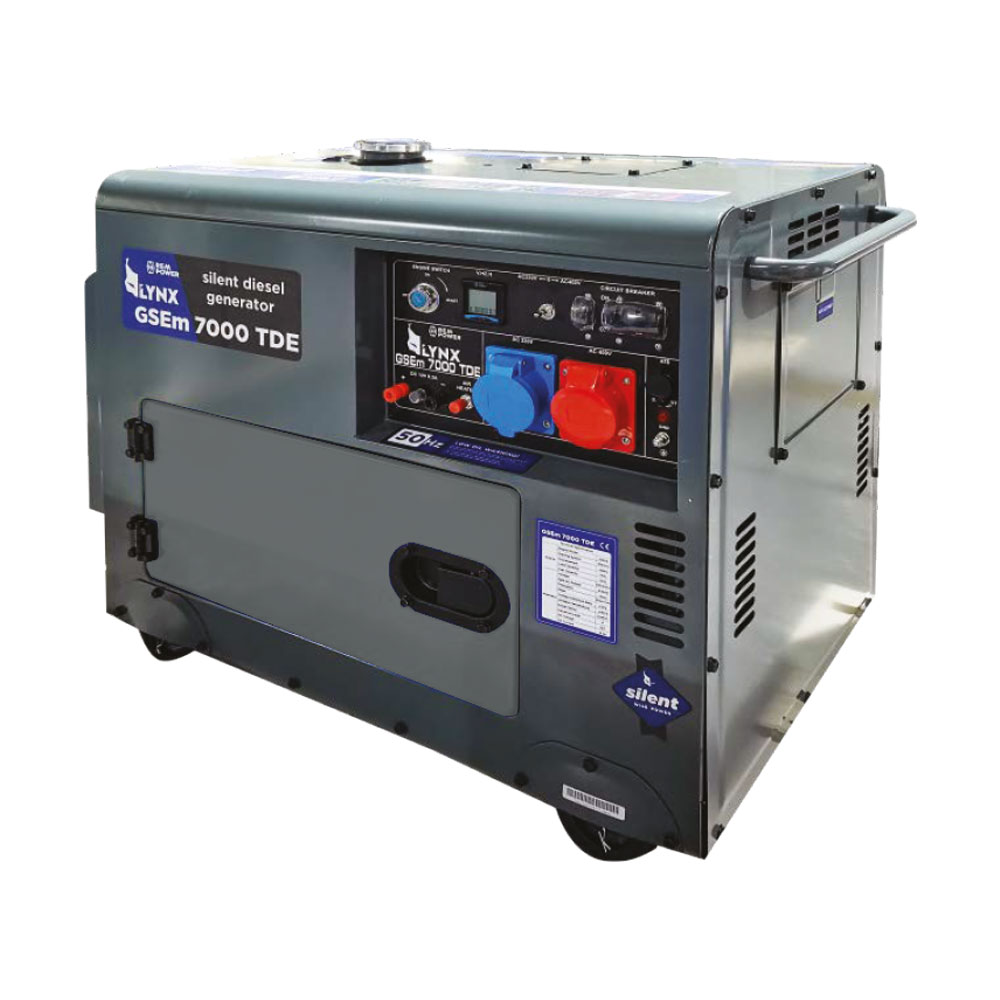

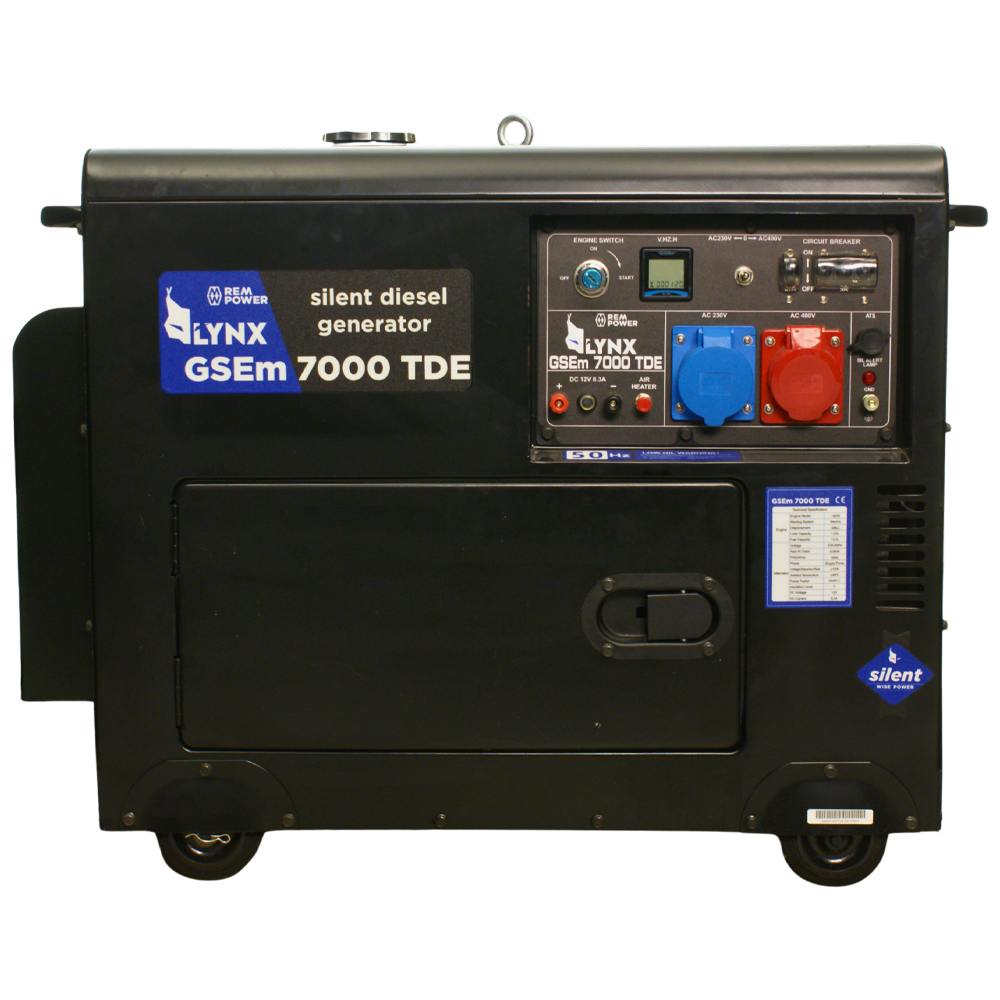

GSEm 7000 TDE is a Diesel Generator, with output max power of 6.5kW, 400V

Standard equipment:

• High quality diesel engine
• EURO 5 for engine
• Silent design through sound isolation
• Compact design, wheels, handle
• Automatic start
• ATS ready
• Automatic low engine oil warning
• Over voltage protection
• Info display
• Displacement> 498 CC

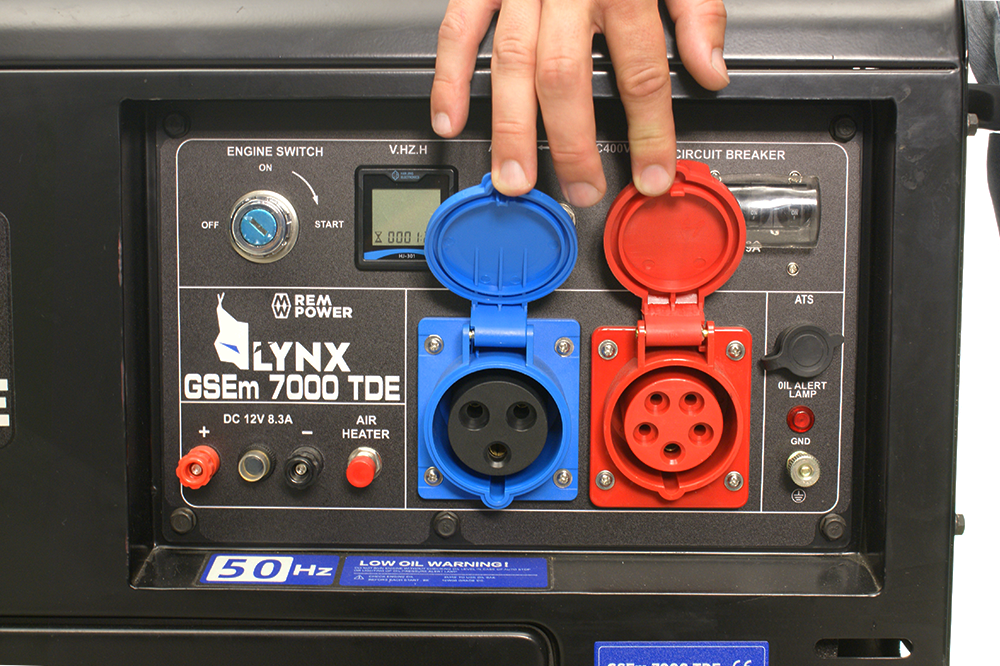

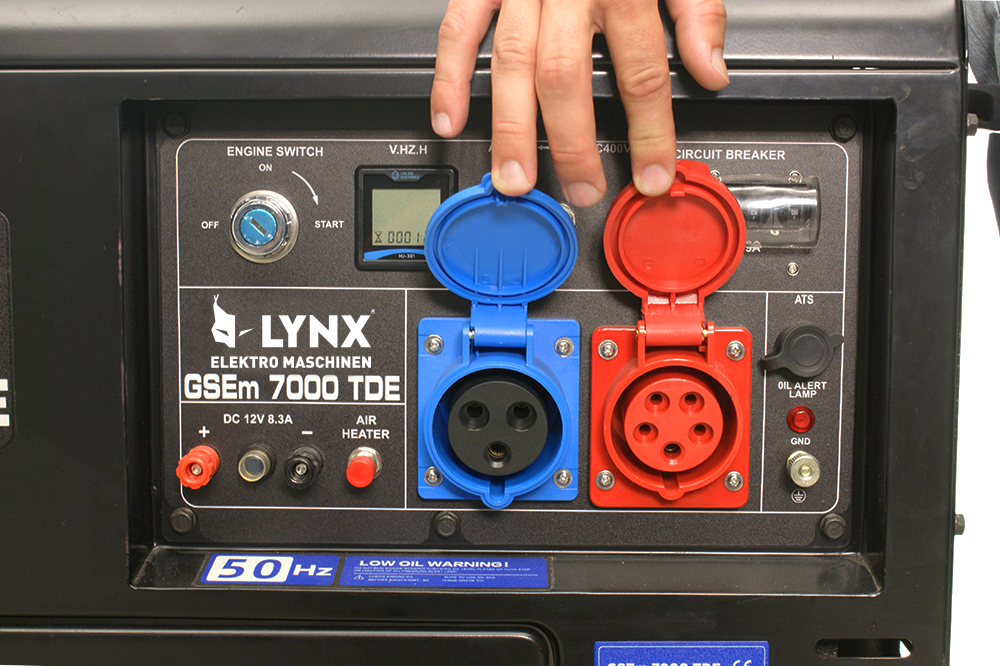

• Single phase control panel with two sockets:
– 230V/ 32A – output 6.5 kW
– 400V/16A – output 6.5 kW

Out of stock

19 People watching this product now!

Payment:

Displacement (cm3)

498

Fuel tank (l)

12.5

Oil capacity (l)

1.65

Engine power (HP)

10

Max. power, 230V (kW)

6.5

Max. power, 400V (kW)

6.5

Max. continus running time (h)

11

Voltage (V)

230/400

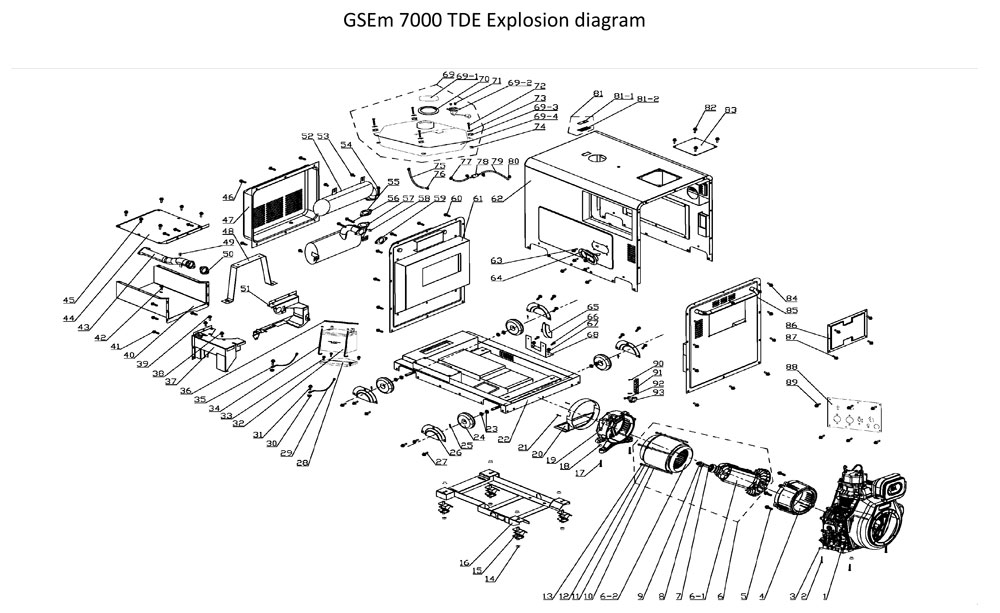

REM Code Name Position Price Stock Order
39070000611S001
  • Engine
  • 1
479.40 €Pre-Order
39070000611S002
  • bolt
  • 2
0.33 €Pre-Order
39070000611S003
  • Nut
  • 3
0.17 €Pre-Order
39070000611S004
  • Generator cover
  • 4
16.94 €Pre-Order
39070000611S005
  • bolt
  • 5
0.26 €Pre-Order
39070000611S006
  • Generator
  • 6
385.40 €Pre-Order
39070000611S0061
  • Generator rotor
  • 6-1
197.40 €Pre-Order
39070000611S0062
  • Generator stator
  • 6-2
197.40 €Pre-Order
39070000611S007
  • bolt
  • 7
0.87 €Pre-Order
39070000611S008
  • Flat pad
  • 8
0.24 €Pre-Order
39070000611S009
  • Spring cushion
  • 9
0.18 €Pre-Order
39070000611S010
  • bolt
  • 10
0.42 €Pre-Order
39070000611S011
  • Flat pad
  • 11
0.24 €Pre-Order
39070000611S012
  • Spring cushion
  • 12
0.18 €Pre-Order
39070000611S014
  • Nut
  • 14
0.17 €Pre-Order
39070000611S015
  • Shock absorber
  • 15
2.56 €Pre-Order
39070000611S016
  • bracket
  • 16
19.48 €Pre-Order
39070000611S017
  • bolt
  • 17
0.33 €Pre-Order
39070000611S018
  • Nut
  • 18
0.17 €Pre-Order
39070000611S019
  • Motor bracket
  • 19
18.61 €Pre-Order
39070000611S020
  • Motor tail cover
  • 20
3.24 €Pre-Order
39070000611S021
  • bolt
  • 21
0.26 €Pre-Order
39070000611S022
  • Box base
  • 22
78.11 €Pre-Order
39070000611S023
  • Axle gasket
  • 23
0.24 €Pre-Order
39070000611S024
  • wheel
  • 24
4.02 €Pre-Order
39070000611S025
  • Locating pin lock clamp
  • 25
0.14 €Pre-Order
39070000611S026
  • Wheel guard
  • 26
0.92 €Pre-Order
39070000611S027
  • bolt
  • 27
0.26 €Pre-Order
39070000611S028
  • Battery mounting plate
  • 28
3.88 €Pre-Order
39070000611S029
  • Battery positive wire
  • 29
5.88 €Pre-Order
39070000611S030
  • Nut
  • 30
0.17 €Pre-Order
39070000611S031
  • bolt
  • 31
0.26 €Pre-Order
39070000611S032
  • Battery
  • 32
65.61 €Pre-Order
39070000611S033
  • bolt
  • 33
0.26 €Pre-Order
39070000611S034
  • L type bolt
  • 34
0.66 €Pre-Order
39070000611S035
  • Battery negative wire
  • 35
2.66 €Pre-Order
39070000611S036
  • Battery pressure plate
  • 36
0.87 €Pre-Order
39070000611S037
  • Rear air deflector
  • 37
7.40 €Pre-Order
39070000611S038
  • bolt
  • 38
0.26 €Pre-Order
39070000611S039
  • bolt
  • 39
0.26 €Pre-Order
39070000611S040
  • Wind channel
  • 40
10.25 €Pre-Order
39070000611S041
  • bolt
  • 41
0.26 €Pre-Order
39070000611S042
  • bolt
  • 42
0.26 €Pre-Order
39070000611S043
  • Bellows
  • 43
18.78 €Pre-Order
39070000611S044
  • Wind channel cover
  • 44
13.16 €Pre-Order
39070000611S045
  • bolt
  • 45
0.26 €Pre-Order
39070000611S046
  • bolt
  • 46
0.26 €Pre-Order
39070000611S047
  • Muffler guard plate
  • 47
29.07 €Pre-Order
39070000611S048
  • Air duct support plate
  • 48
4.18 €Pre-Order
39070000611S049
  • Nut
  • 49
0.17 €Pre-Order
39070000611S050
  • Muffler gasket
  • 50
0.54 €Pre-Order
39070000611S051
  • Front wind deflector
  • 51
7.07 €Pre-Order
39070000611S052
  • silencer-2
  • 52
37.46 €Pre-Order
39070000611S053
  • bolt
  • 53
0.26 €Pre-Order
39070000611S054
  • /
  • 54
0.05 €Pre-Order
39070000611S055
  • /
  • 55
0.54 €Pre-Order
39070000611S056
  • bolt
  • 56
0.26 €Pre-Order
39070000611S057
  • silencer-1
  • 57
0.00 €Pre-Order
39070000611S058
  • /
  • 58
0.00 €Pre-Order
39070000611S059
  • Muffler gasket
  • 59
0.54 €Pre-Order
39070000611S060
  • bolt
  • 60
0.26 €Pre-Order
39070000611S061
  • Muffler side panel
  • 61
51.02 €Pre-Order
39070000611S062
  • Box body
  • 62
140.41 €Pre-Order
39070000611S063
  • bolt
  • 63
0.26 €Pre-Order
39070000611S064
  • Door lock
  • 64
4.93 €Pre-Order
39070000611S065
  • A.V.R.
  • 65
17.70 €Pre-Order
39070000611S066
  • bolt
  • 66
0.26 €Pre-Order
39070000611S067
  • bolt
  • 67
0.26 €Pre-Order
39070000611S068
  • A.V.R. Mounting plate
  • 68
1.57 €Pre-Order
39070000611S069
  • Fuel tank
  • 69
28.50 €Pre-Order
39070000611S071
  • bolt
  • 71
0.26 €Pre-Order
39070000611S072
  • bolt
  • 72
0.23 €Pre-Order
39070000611S075
  • Fuel return pipe
  • 75
2.54 €Pre-Order
39070000611S076
  • Clamp
  • 76
0.24 €Pre-Order
39070000611S077
  • Clamp
  • 77
0.24 €Pre-Order
39070000611S078
  • Diesel filter
  • 78
1.79 €Pre-Order
39070000611S079
  • Fuel inlet pipe
  • 79
13.98 €Pre-Order
39070000611S080
  • Clamp
  • 80
0.24 €Pre-Order
39070000611S081
  • /
  • 81
2.00 €Pre-Order
39070000611S0811
  • glass
  • 81-1
2.00 €Pre-Order
39070000611S0812
  • Rubber gasket
  • 81-2
0.61 €Pre-Order
39070000611S082
  • bolt
  • 82
0.26 €Pre-Order
39070000611S083
  • Pressure reducing valve cover
  • 83
2.61 €Pre-Order
39070000611S084
  • bolt
  • 84
0.26 €Pre-Order
39070000611S085
  • Power side panel
  • 85
38.96 €Pre-Order
39070000611S086
  • Air filter access door
  • 86
6.25 €Pre-Order
39070000611S087
  • bolt
  • 87
0.26 €Pre-Order
39070000611S088
  • Control panel assembly
  • 88
139.38 €Pre-Order
39070000611S0881
  • Start switch
  • 88-1
4.91 €Pre-Order
39070000611S0882
  • Rubber gasket
  • 88-2
1.17 €Pre-Order
39070000611S0883
  • DC binding post/red
  • 88-3
1.14 €Pre-Order
39070000611S0884
  • DC binding post/black
  • 88-4
1.14 €Pre-Order
39070000611S0885
  • Blue/European industrial/32A/220V-250V
  • 88-5
7.47 €Pre-Order
39070000611S0887
  • three-in-one watch
  • 88-7
1.86 €Pre-Order
39070000611S0888
  • Oil warning light
  • 88-8
1.73 €Pre-Order
39070000611S089
  • bolt
  • 89
0.26 €Pre-Order
39070000611S090
  • bolt
  • 90
0.26 €Pre-Order
39070000611S091
  • Wiring board assembly
  • 91
0.61 €Pre-Order
39070000611S092
  • bolt
  • 92
0.26 €Pre-Order
39070000611S093
  • Carbon brush
  • 93
1.01 €Pre-Order
