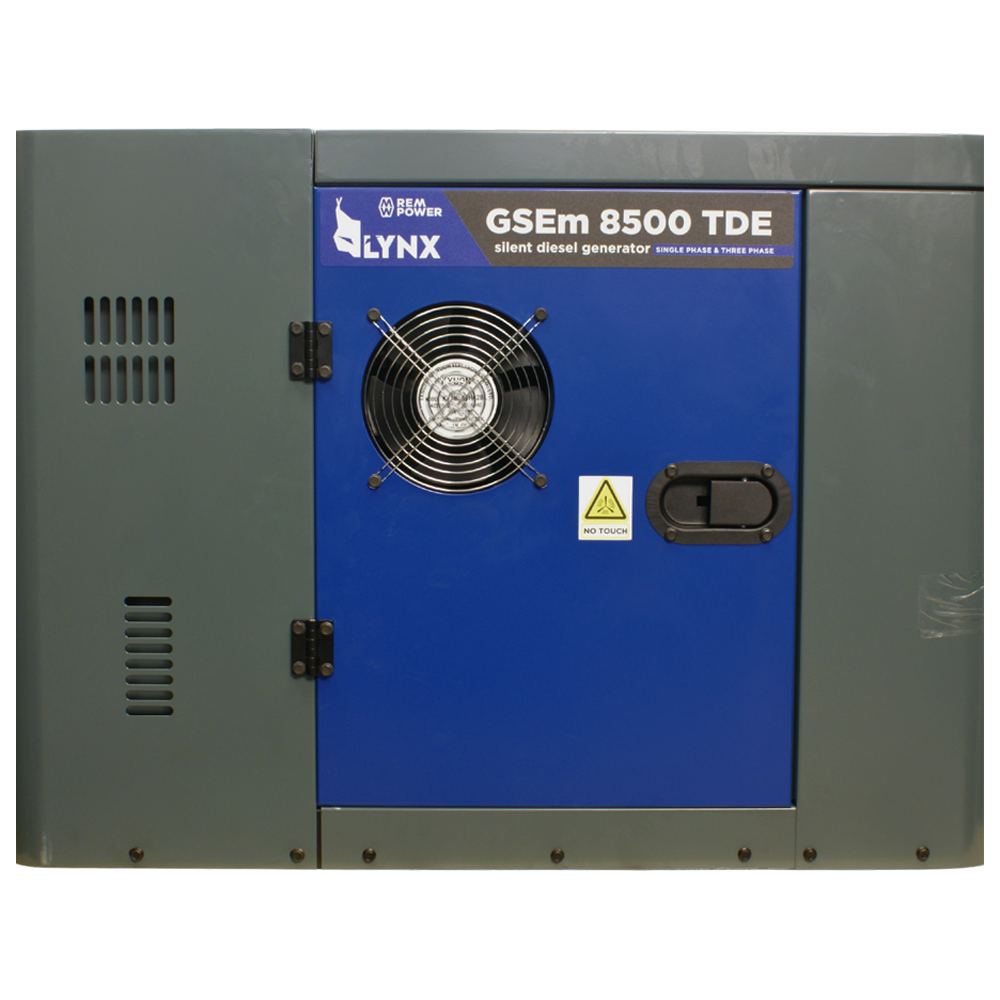

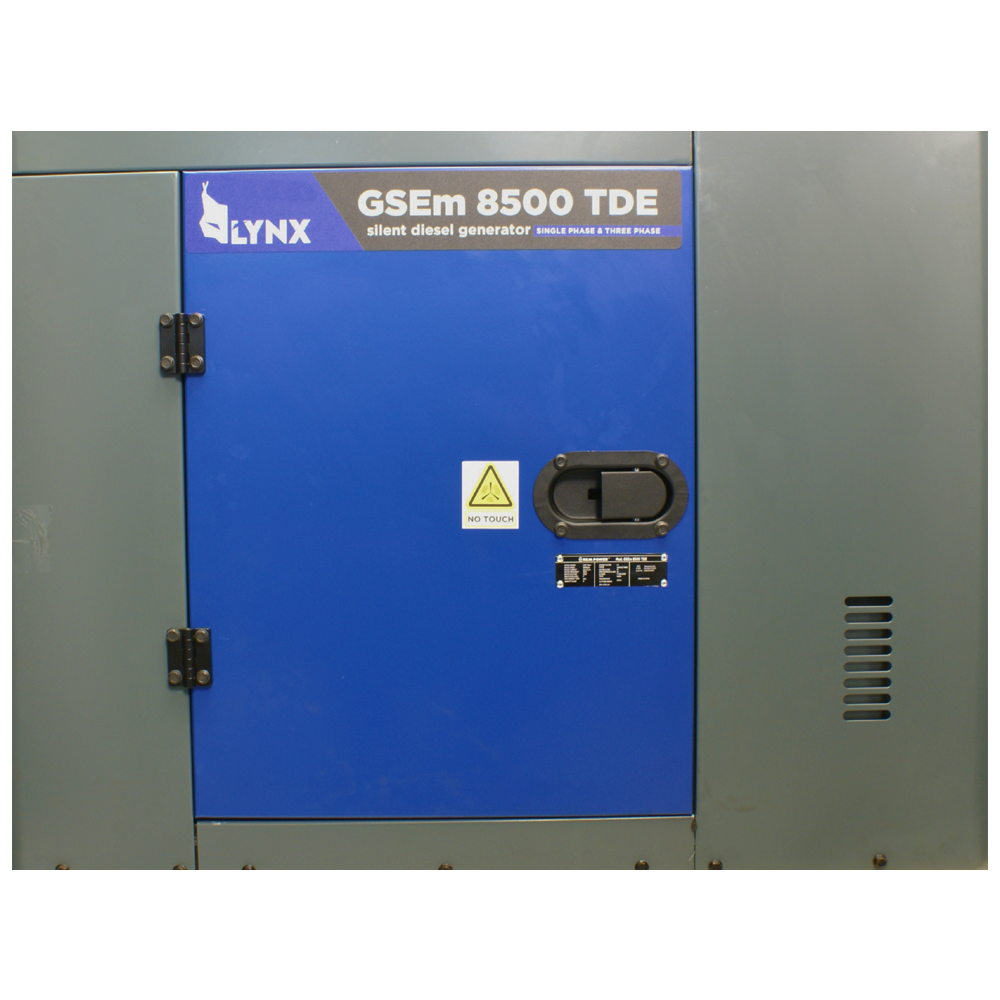

GSEm 8500 TDE, el.start

SKU: 39085200611 Categories: ,

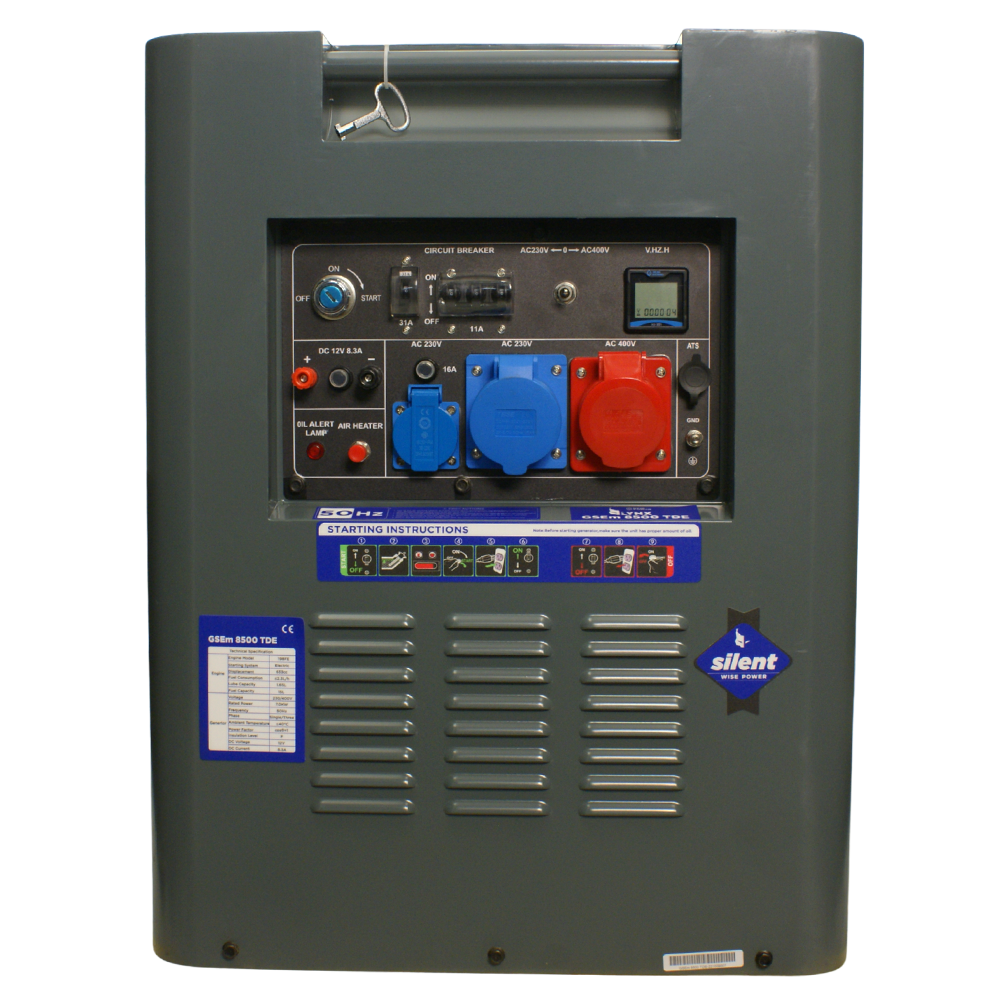

GSEm 8500 TDE is a Diesel Generator, with output max power of 7.5kW, 400V

Standard equipment:

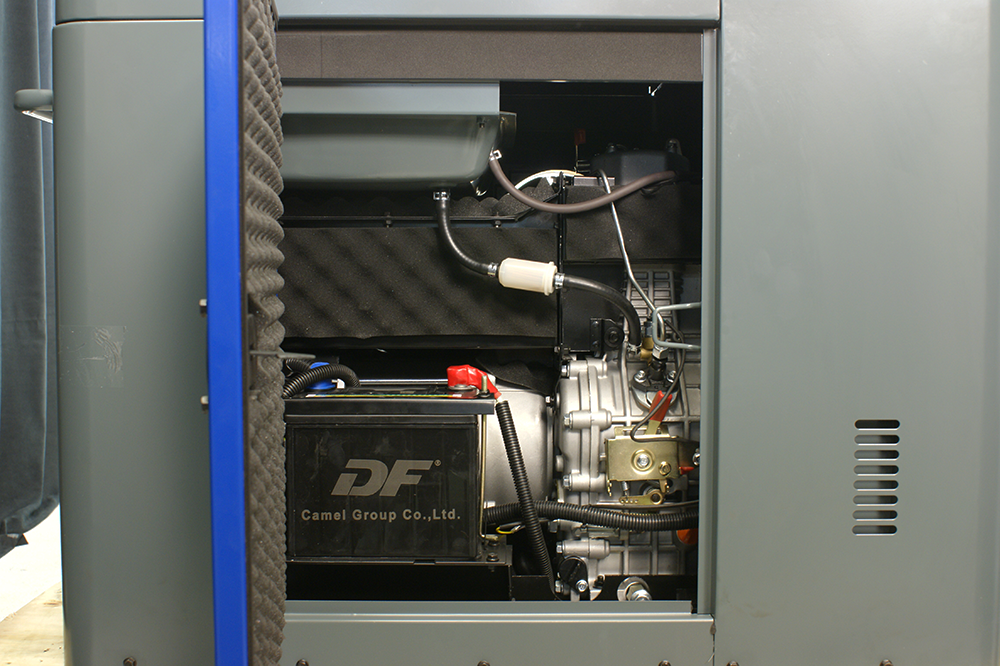

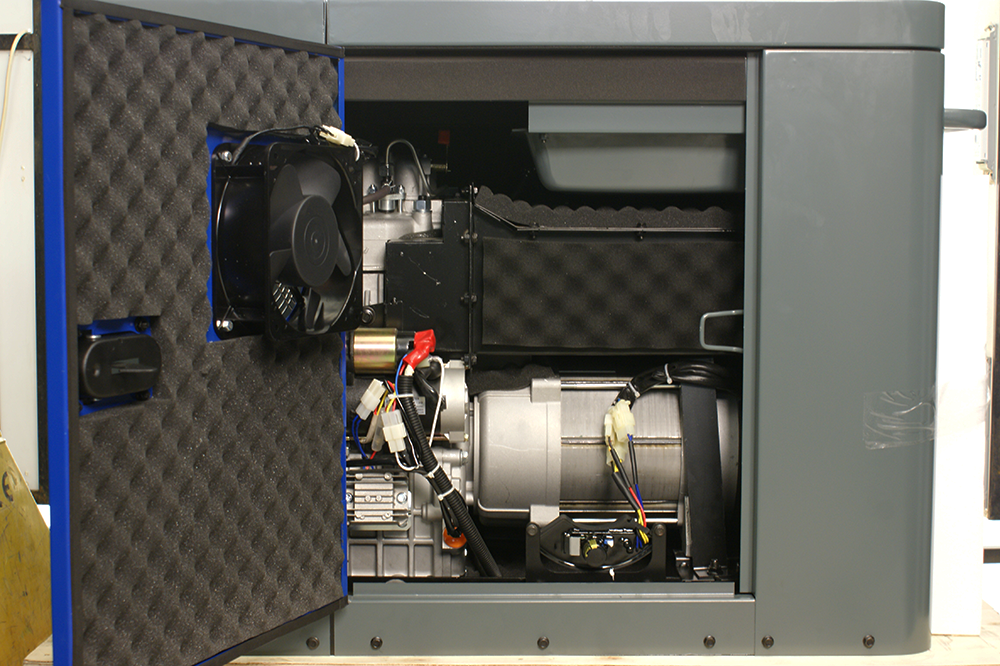

• High quality diesel engine
• EURO 5 for engine

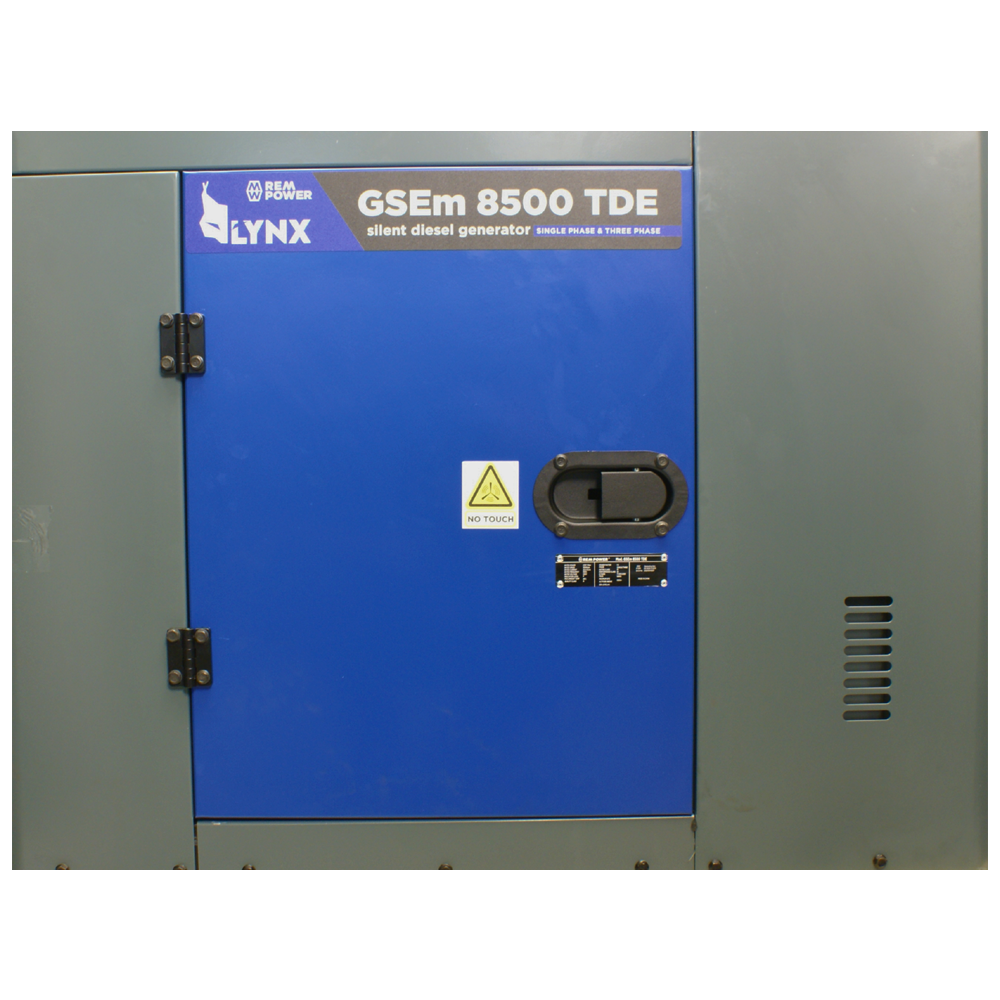

• Silent design through sound isolation
• Compact design, wheels, handle
• Automatic start

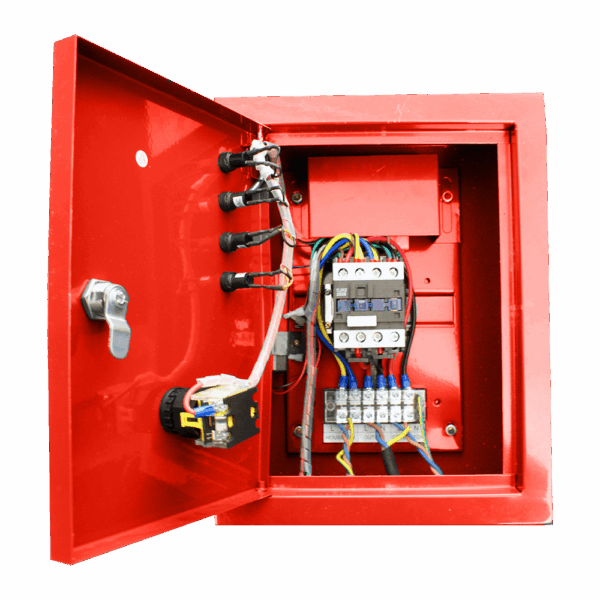

• ATS ready
• Automatic low engine oil warning
• Over voltage protection

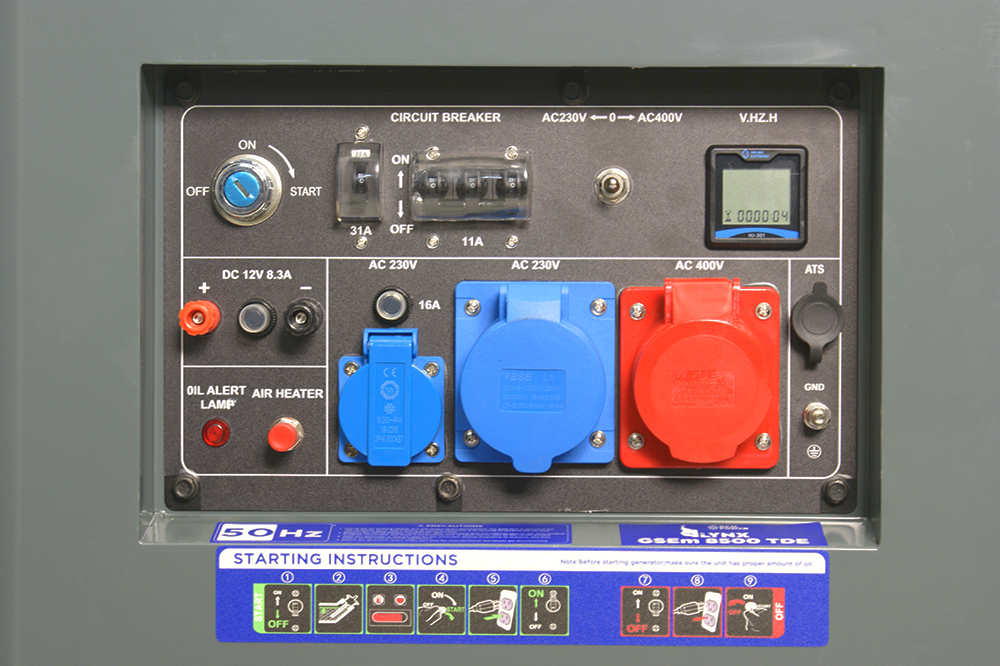

• Info display
• Displacement: 633CC
• Rotating speed: 3000 RPM

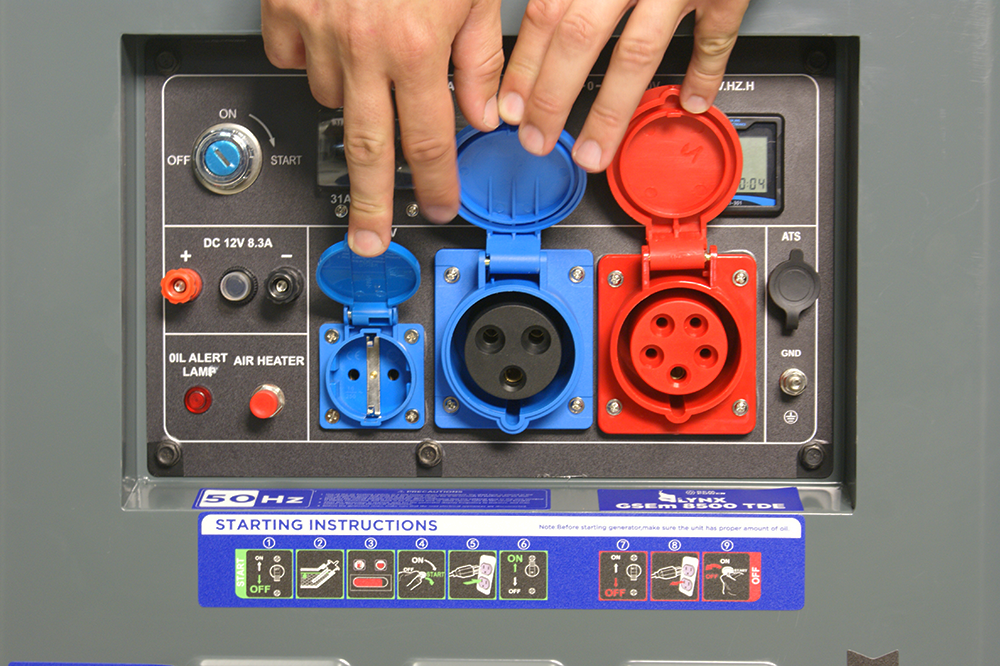

• Working temperature: <40C° • Single three-phase equal power with three sockets: – 230V/16A – output 3.68 kW – 230V/32A – output 7 kW – 400V/16A – output 7.5 kW

In stock

16 People watching this product now!

Payment:

Displacement (cm3)

633

Fuel tank (l)

15

Oil capacity (l)

1.65

Engine power (HP)

12

Max. power, 230V (kW)

3.68/7.5

Max. power, 400V (kW)

7.5

Max. continus running time (h)

6.5

Voltage (V)

230/400

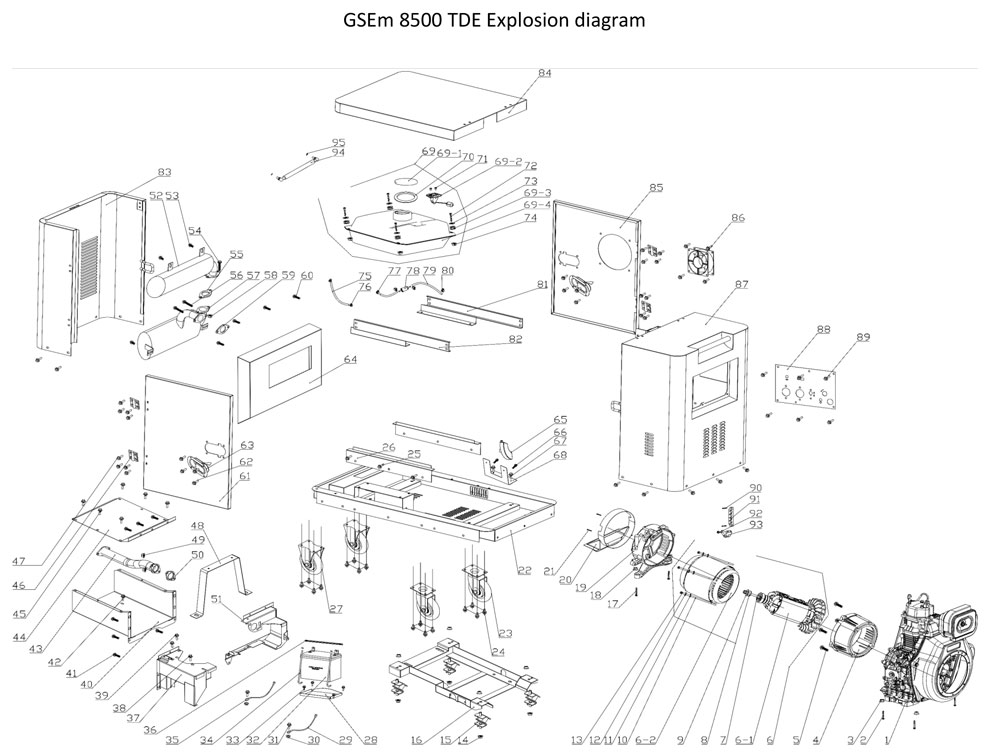

REM Code Name Position Price Stock Order
39085200611S001
  • Engine
  • 1
611.00 €Pre-Order
39085200611S002
  • bolt
  • 2
0.26 €Pre-Order
39085200611S003
  • Nut
  • 3
0.17 €Pre-Order
39085200611S004
  • Generator cover
  • 4
22.80 €Pre-Order
39085200611S005
  • bolt
  • 5
0.26 €Pre-Order
39085200611S006
  • generator
  • 6
329.00 €Pre-Order
39085200611S0061
  • Generator rotor
  • 6-1
141.00 €Pre-Order
39085200611S0062
  • Generator stator
  • 6-2
141.00 €Pre-Order
39085200611S007
  • bolt
  • 7
0.94 €Pre-Order
39085200611S008
  • Flat pad
  • 8
0.18 €Pre-Order
39085200611S009
  • Spring cushion
  • 9
0.17 €Pre-Order
39085200611S010
  • bolt
  • 10
0.54 €Pre-Order
39085200611S011
  • Flat pad
  • 11
0.18 €Pre-Order
39085200611S012
  • Spring cushion
  • 12
0.17 €Pre-Order
39085200611S013
  • /
  • 13
—Pre-Order
39085200611S014
  • Nut
  • 14
0.17 €Pre-Order
39085200611S015
  • Shock absorber
  • 15
2.56 €Pre-Order
39085200611S016
  • bracket
  • 16
39.60 €Pre-Order
39085200611S017
  • bolt
  • 17
0.26 €Pre-Order
39085200611S018
  • Nut
  • 18
0.17 €Pre-Order
39085200611S019
  • Motor bracket
  • 19
25.94 €Pre-Order
39085200611S020
  • Motor tail cover
  • 20
4.18 €Pre-Order
39085200611S021
  • bolt
  • 21
0.26 €Pre-Order
39085200611S022
  • Box base
  • 22
90.59 €Pre-Order
39085200611S023
  • steering wheel
  • 23
6.72 €Pre-Order
39085200611S024
  • bolt
  • 24
0.26 €Pre-Order
39085200611S025
  • Trim panel
  • 25
1.97 €Pre-Order
39085200611S026
  • bolt
  • 26
0.26 €Pre-Order
39085200611S027
  • Directional wheel
  • 27
4.70 €Pre-Order
39085200611S028
  • Battery mounting plate
  • 28
1.18 €Pre-Order
39085200611S029
  • Battery positive wire
  • 29
7.24 €Pre-Order
39085200611S030
  • Nut
  • 30
0.17 €Pre-Order
39085200611S031
  • bolt
  • 31
0.26 €Pre-Order
39085200611S032
  • Battery
  • 32
93.25 €Pre-Order
39085200611S033
  • bolt
  • 33
0.26 €Pre-Order
39085200611S034
  • L type bolt
  • 34
0.66 €Pre-Order
39085200611S035
  • Battery negative wire
  • 35
5.08 €Pre-Order
39085200611S036
  • Battery pressure plate
  • 36
1.18 €Pre-Order
39085200611S037
  • Rear air deflector
  • 37
5.85 €Pre-Order
39085200611S038
  • bolt
  • 38
0.26 €Pre-Order
39085200611S039
  • bolt
  • 39
0.26 €Pre-Order
39085200611S040
  • Wind channel
  • 40
12.48 €Pre-Order
39085200611S041
  • bolt
  • 41
0.26 €Pre-Order
39085200611S042
  • bolt
  • 42
0.26 €Pre-Order
39085200611S043
  • Bellows
  • 43
1.83 €Pre-Order
39085200611S044
  • Wind channel cover
  • 44
6.56 €Pre-Order
39085200611S045
  • bolt
  • 45
0.26 €Pre-Order
39085200611S046
  • Hinge
  • 46
2.96 €Pre-Order
39085200611S047
  • bolt
  • 47
0.26 €Pre-Order
39085200611S048
  • Air duct support plate
  • 48
5.55 €Pre-Order
39085200611S049
  • Nut
  • 49
0.17 €Pre-Order
39085200611S050
  • Muffler gasket
  • 50
1.36 €Pre-Order
39085200611S051
  • Front wind deflector
  • 51
7.43 €Pre-Order
39085200611S052
  • silencer-2
  • 52
90.24 €Pre-Order
39085200611S053
  • bolt
  • 53
0.26 €Pre-Order
39085200611S054
  • bolt
  • 54
0.26 €Pre-Order
39085200611S055
  • Muffler gasket
  • 55
1.58 €Pre-Order
39085200611S056
  • bolt
  • 56
0.26 €Pre-Order
39085200611S057
  • silencer-1
  • 57
1.82 €Pre-Order
39085200611S058
  • Nut
  • 58
0.17 €Pre-Order
39085200611S059
  • Muffler gasket
  • 59
1.36 €Pre-Order
39085200611S060
  • bolt
  • 60
0.26 €Pre-Order
39085200611S061
  • door plank-1
  • 61
31.02 €Pre-Order
39085200611S062
  • bolt
  • 62
0.26 €Pre-Order
39085200611S063
  • Door lock
  • 63
4.93 €Pre-Order
39085200611S064
  • Muffler mounting chamber
  • 64
31.91 €Pre-Order
39085200611S065
  • A.V.R.
  • 65
18.71 €Pre-Order
39085200611S066
  • bolt
  • 66
0.26 €Pre-Order
39085200611S067
  • bolt
  • 67
0.26 €Pre-Order
39085200611S068
  • A.V.R. Mounting plate
  • 68
2.09 €Pre-Order
39085200611S069
  • Fuel tank
  • 69
28.60 €Pre-Order
39085200611S0691
  • Fuel tank cap
  • 69-1
2.35 €Pre-Order
39085200611S0692
  • Fuel level gauge
  • 69-2
1.97 €Pre-Order
39085200611S0693
  • /
  • 69-3
—Pre-Order
39085200611S0694
  • Fuel tank cavity
  • 69-4
2.16 €Pre-Order
39085200611S070
  • Damping washer
  • 70
2.91 €Pre-Order
39085200611S071
  • bolt
  • 71
0.70 €Pre-Order
39085200611S072
  • bolt
  • 72
0.26 €Pre-Order
39085200611S073
  • Fuel tank gasket
  • 73
0.40 €Pre-Order
39085200611S074
  • /
  • 74
—Pre-Order
39085200611S075
  • Fuel return pipe
  • 75
2.56 €Pre-Order
39085200611S076
  • Clamp
  • 76
0.80 €Pre-Order
39085200611S077
  • Clamp
  • 77
0.70 €Pre-Order
39085200611S078
  • Diesel filter
  • 78
1.79 €Pre-Order
39085200611S079
  • Fuel inlet pipe
  • 79
13.98 €Pre-Order
39085200611S080
  • Clamp
  • 80
0.70 €Pre-Order
39085200611S081
  • Oil tank lug-1
  • 81
5.40 €Pre-Order
39085200611S082
  • Oil tank lug-2
  • 82
5.92 €Pre-Order
39085200611S083
  • Muffler side plate
  • 83
52.92 €Pre-Order
39085200611S084
  • Top cover
  • 84
49.94 €Pre-Order
39085200611S085
  • door plank-2
  • 85
27.10 €Pre-Order
39085200611S086
  • Axial fan
  • 86
3.57 €Pre-Order
39085200611S087
  • Power side panel
  • 87
104.03 €Pre-Order
39085200611S088
  • Control panel assembly
  • 88
2.35 €Pre-Order
39085200611S089
  • bolt
  • 89
0.26 €Pre-Order
39085200611S090
  • bolt
  • 90
0.26 €Pre-Order
39085200611S091
  • Wiring board assembly
  • 91
2.73 €Pre-Order
39085200611S092
  • bolt
  • 92
0.26 €Pre-Order
39085200611S093
  • Carbon brush
  • 93
0.96 €Pre-Order
39085200611S094
  • Hydraulic ejector rod
  • 94
9.07 €Pre-Order
