    LSEm 7001

    SKU: 500700123010 Categories: , Brand:

    LSEm 7001 is a Log Splitter, with a motor power of 3kW, splitting force of 7t

    Advantages:

    • Induction motor
    • Transport wheels
    • Complete metal construction
    • Support table with extension
    • adjustable log claws

    Out of stock

    Add to compare
    Add to wishlist
    18 People watching this product now!

    Payment:

    MOTOR POWER (kW S6 40%)

    3
    VOLTAGE (V/Hz)

    230/50
    MAX. SPLITTING FORCE (t)

    7
    SPLITTING LIFT (mm)

    495
    WOOD Ø MAX. (cm)

    30
    WOOD LENGTH MAX. (cm)

    55
    HYDRAULIC PRESSURE (bar)

    252
    HYDRAULIC OIL CAPACITY (l)

    3.5
    PROTECTION CLASS

    IP54

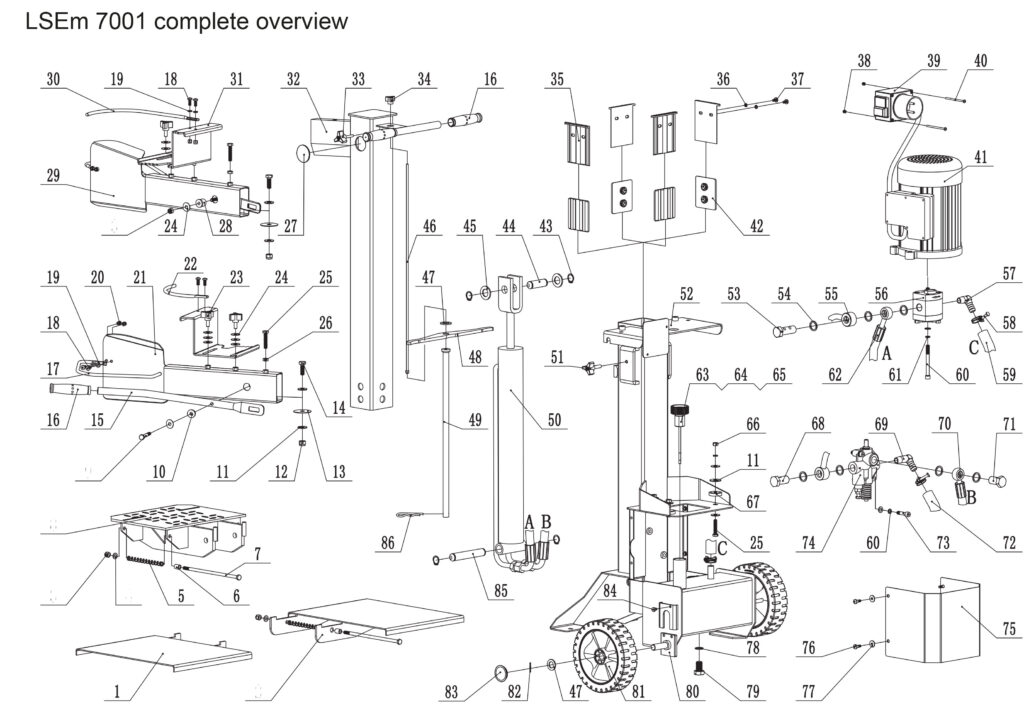

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8805000001836
    • Locknut M8
    • Screw M6x16
    • Washer 6
    • Big Washer 8
    • Bush 1
    • Left Armguard G5
    • Retainer 2
    • Clamp
    • 3
    • 18
    • 19
    • 24
    • 28
    • 29
    • 30
    • 31
    		33.25 €Pre-Order
    8805000001837
    • Bolt 8.8 M8x60
    • Bush 2
    • Big Washer 10
    • Locknut M10
    • Washer L
    • Bolt 8.8 M10x25
    • Handle C1
    • Handgrip
    • Guard Ring C1
    • Locknut M6
    • Right Armguard G5
    • Retainer 1
    • Star Knob
    • Bolt 8.8 M8x45
    • Nut M8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 20
    • 21
    • 22
    • 23
    • 25
    • 26
    		32.65 €Pre-Order
    8805000001838
    • Cap
    • Splitting Pipe G5
    • Star Knob M6
    • Star nut M5(black)
    • 27
    • 32
    • 33
    • 34
    		85.49 €Pre-Order
    8805000001839
    • Upper Lining Plate G1
    • Spring Washer 6
    • Screw M6x8
    • Lower Lining Plate G
    • 35
    • 36
    • 37
    • 42
    		2.40 €Pre-Order
    8805000001840
    • Pull Rod G5
    • Washer 16
    • Lever C1
    • Tube KG
    • Clip 4
    • 46
    • 47
    • 48
    • 49
    • 86
    		11.75 €Pre-Order
    8805000001841
    • Circlip 20
    • Short Shaft G
    • Washer 20
    • Cylinder G5
    • Long Shaft G
    • 43
    • 44
    • 45
    • 50
    • 85
    		127.83 €Pre-Order
    8805000001842
    • Wheel
    • Cotter Pin 2x20
    • Wheel Cap
    • 81
    • 82
    • 83
    		38.26 €Pre-Order
    8805000001843
    • Gear Pump G5
    • Screw M8x90
    • Spring Washer 8
    • Screw M8x35
    • Valve
    • 56
    • 60
    • 61
    • 73
    • 74
    		269.09 €Pre-Order
    8805000001844
    • Oil Hose C1
    • Nozzle H
    • Hose Clamp 20-26
    • Oil Hose 16
    • Oil Hose 16
    • Oil Hose G5
    • Nozzle A4
    • Oil Hose G5
    • 55
    • 57
    • 58
    • 59
    • 72
    • 62
    • 69
    • 70
    		286.57 €Pre-Order
    8805000001845
    • Washer Groupware 20
    • 54
    		0.35 €Pre-Order
    8805000001846
    • Oil Plug G5
    • Oil Plug A2
    • Oil Plug G1
    • 53
    • 68
    • 71
    		23.50 €Pre-Order
    8805000001847
    • Locknut M4
    • Switch
    • Screw M4x60
    • 38
    • 39
    • 40
    		34.88 €Pre-Order
    8805000001848
    • Motor
    • 41
    		229.30 €Pre-Order
    8805000001849
    • Star Knob (black)
    • Main Frame G5
    • Nut M8
    • Motor Support
    • Washer Groupware 16
    • Bolt M16x25
    • Wheel Axle G5
    • Bolt 8.8 M6x8
    • 51
    • 52
    • 66
    • 67
    • 78
    • 79
    • 80
    • 84
    		180.08 €Pre-Order
    8805000001850
    • Side Log Support 2
    • Side Log Support 1
    • Washer 8
    • Spring
    • Bush
    • Bolt 8.8 M8x210
    • Log Support G5
    • 1
    • 2
    • 4
    • 5
    • 6
    • 7
    • 8
    		92.75 €Pre-Order
    8805000001851
    • Oil Cap K
    • Oil Dipstick K6
    • O-Ring 25x2.65
    • 63
    • 64
    • 65
    		7.52 €Pre-Order
    8805000001852
    • Shield G5
    • Screw M6x12
    • Big Washer 6
    • 75
    • 76
    • 77
    		63.88 €Pre-Order

    Product Data

    CE declaration

    EN user manual
