SPG 20502 DR

SKU: 35020521152 Categories: , Brand:

SPG 20502 DR is a Dirty water submersible pump, with motor power of 1150W,max flow rate of 20000

Advantages:

• Stainless steel housing
• Floater switch
• Carrying handle
• PVC tube connector
• Stainless inlet protection
• Deactivation of pump when no water

Out of stock

16 People watching this product now!

Payment:

MOTOR POWER (W)

1150

VOLTAGE (V/Hz)

230/50

MAX DELIVERY HEIGHT (m)

9

MAX SUBMERSIBLE DEPTH (m)

5

MAX FLOW RATE (l/h)

20000

DISCARGE PORT (mm/”)

50/2

LENGHT OF ELECTRIC CABLE (m)

10

LIQUID PH VALUE

4-10

INSULATION CLASS

F

PROTECTION CLASS

IPX8

MAX WATER TEMPERATURE (°C)

35

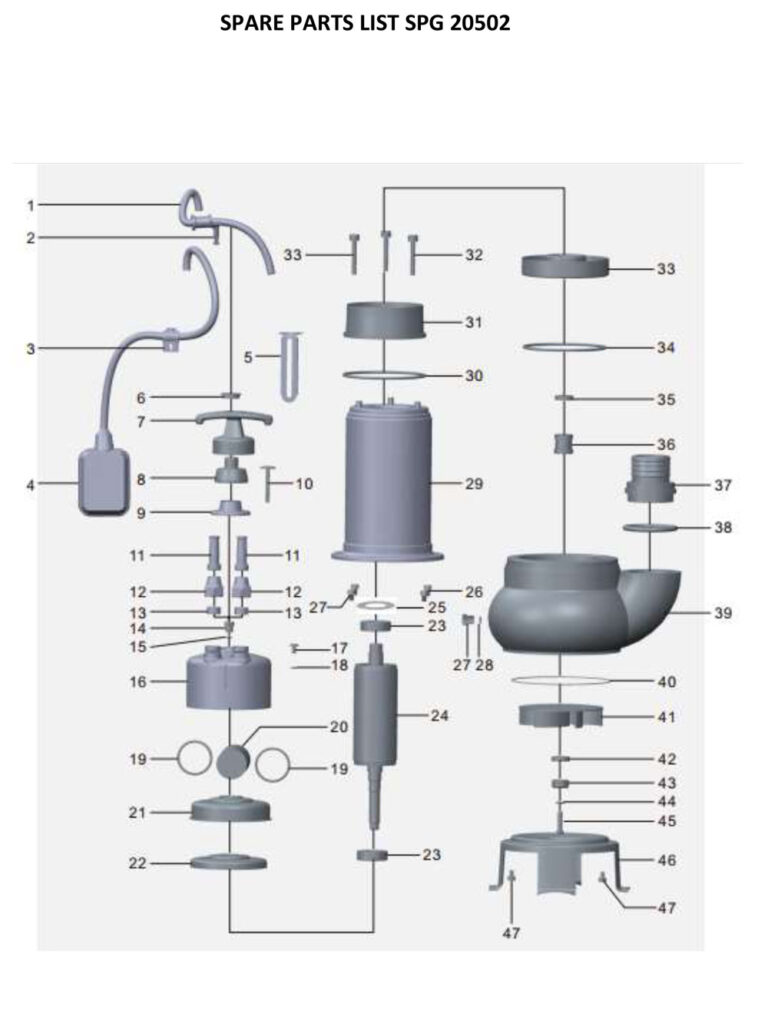

REM Code Name Position Price Stock Order
8806000001275
  • thermal protector
  • 27
4.27 €Pre-Order
8806000001276
  • capacitor
  • 19
5.89 €Pre-Order
8806000001279
  • cable protector
  • 14
0.88 €Pre-Order
8806000001282
  • Floating Switch
  • 47
7.36 €Pre-Order
8806000001288
  • bearing 6201
  • 32
2.59 €Pre-Order
8806000001291
  • bearing 6303
  • 34
2.59 €Pre-Order
8806000001295
  • o-ring 118*2.65
  • o-ring 118*2.65
  • 28
  • 29
0.51 €Pre-Order
8806000001300
  • o-ring 32*3.1
  • 20
0.21 €Pre-Order
8806000001303
  • o-ring 60*3.1
  • 38
1.47 €Pre-Order
8806000001307
  • nuts
  • 8
0.18 €Pre-Order
8806000001311
  • bolt m6*12
  • bolt m6*12
  • 10
  • 46
0.26 €Pre-Order
8806000001312
  • bolt m8*10
  • 15
0.26 €Pre-Order
8806000001317
  • Bolt m6*200
  • 1
2.10 €Pre-Order
8806000001320
  • michnical seal
  • 36
4.86 €Pre-Order
8806000001323
  • screw m5*12
  • 12
0.26 €Pre-Order
8806000001327
  • screw m4*8
  • screw m4*8
  • 6
  • 22
0.26 €Pre-Order
8806000001329
  • washer4
  • 23
0.18 €Pre-Order
8806000001330
  • nuts m8
  • 42
0.26 €Pre-Order
8806000001332
  • spring washer6
  • 2
0.18 €Pre-Order
8806000001333
  • wash6
  • 3
0.17 €Pre-Order
8806000001334
  • washer4
  • 7
0.17 €Pre-Order
8806000001335
  • washer6
  • 11
0.17 €Pre-Order
8806000001336
  • washer4
  • 24
0.17 €Pre-Order
8806000001337
  • washer6
  • 45
0.17 €Pre-Order
8806000001344
  • oil seal
  • 40
0.74 €Pre-Order
8806000001348
  • wave washer
  • 31
0.18 €Pre-Order
8806000001350
  • stator
  • 30
83.89 €Pre-Order
8806000001351
  • rotor
  • 33
38.27 €Pre-Order
8806000001352
  • impeller
  • 41
7.36 €Pre-Order
8806000001353
  • lower cover
  • 35
2.59 €Pre-Order
8806000001354
  • pump cover
  • 43
7.21 €Pre-Order
8806000001355
  • base plate
  • 44
5.30 €Pre-Order
8806000001356
  • pump body
  • 39
29.44 €Pre-Order
8806000001357
  • outlet connnector
  • 37
7.36 €Pre-Order
8806000001361
  • flange
  • 13
0.38 €Pre-Order
8806000001362
  • line protector
  • 25
0.28 €Pre-Order
8806000001363
  • protector
  • 4
0.15 €Pre-Order
8806000001378
  • wiring cable with plug
  • 17
16.19 €Pre-Order
8806000001380
  • handle
  • 9
2.50 €Pre-Order
8806000001381
  • capacitor cover
  • 18
8.24 €Pre-Order
8806000001382
  • gasket seal
  • 21
1.10 €Pre-Order
8806000001383
  • upper cover
  • 26
4.86 €Pre-Order
8806000001384
  • cable press plate
  • 5
1.77 €Pre-Order
8806000001386
  • o-ring
  • 16
0.21 €Pre-Order
