    STEm 7713 EJPT

    SKU: 38077130515 Category: Brand:

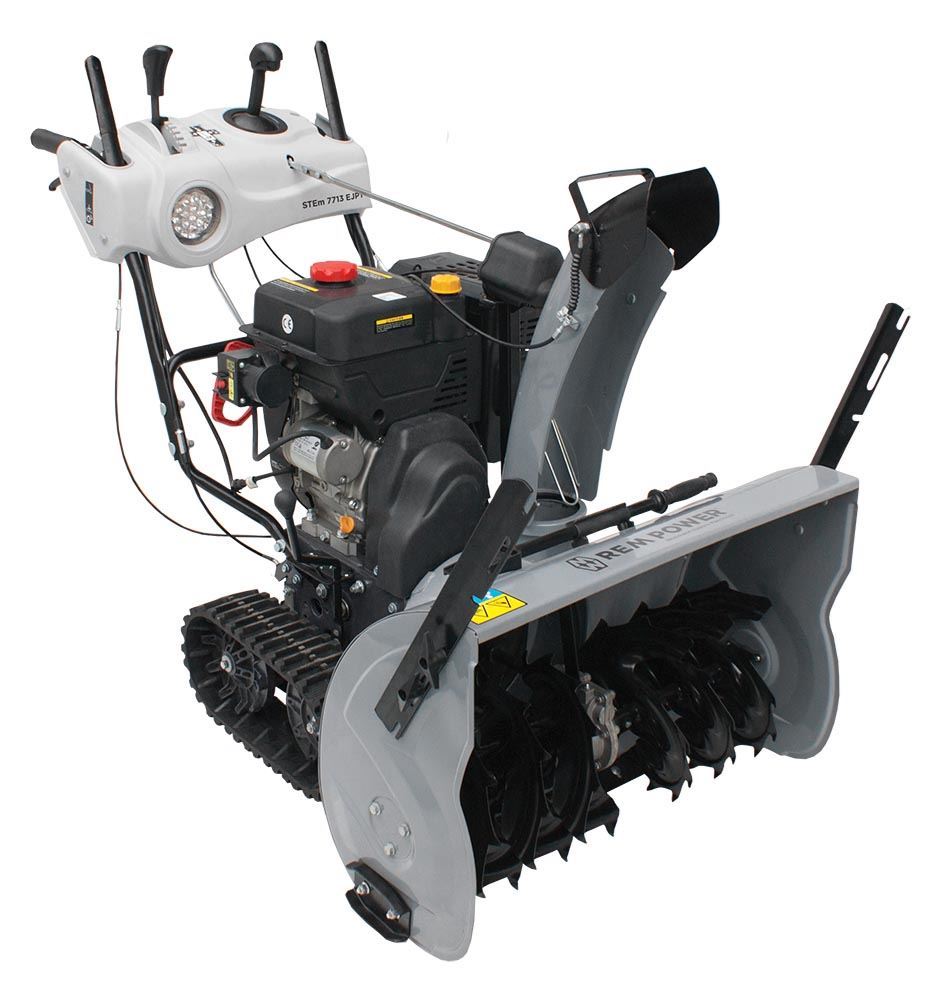

    STEm 7713 EJPT is a Snow thrower, with engine power of 13 HP

    Advantages:

    • Auger blade diameter: 30 cm
    • Two stage throwing operation
    • Throwing distance: 12 – 13 m
    • Track drive, best for all surface types, including gravel and ice, selfpropelled
    • 8 gears: 6 forward and 2 reverse
    • Adjustable throwing direction
    • Big transparent Control panel
    • Adjustable height of snow clearing from the ground
    • LED headlight + 230 V Electric start
    • Heated handles
    • Drift cutters

    Out of stock

    Add to compare
    Add to wishlist
    20 People watching this product now!

    Payment:

    ENGINE POWER (HP)

    13
    DISPLACEMENT (cm3)

    375
    CLEARING WIDTH (cm)

    77
    INTAKE HEIGHT (cm)

    53.5
    THROWING OPERATION

    Two stage
    THROWING DIRECTION

    60-180 degrees
    DRIVE SYSTEM

    Track drive
    FORWARD (SHIFT)

    6
    REVERSE (SHIFT)

    2
    ENGINE STARTING

    230 V AC Electric & Manua
    HEATED HANDLES

    Yes
    STEERING CONTROL

    Yes
    FUEL TYPE

    Unleaded
    FUEL CAPACITY (l)

    5.5
    WEIGHT (kg)

    111

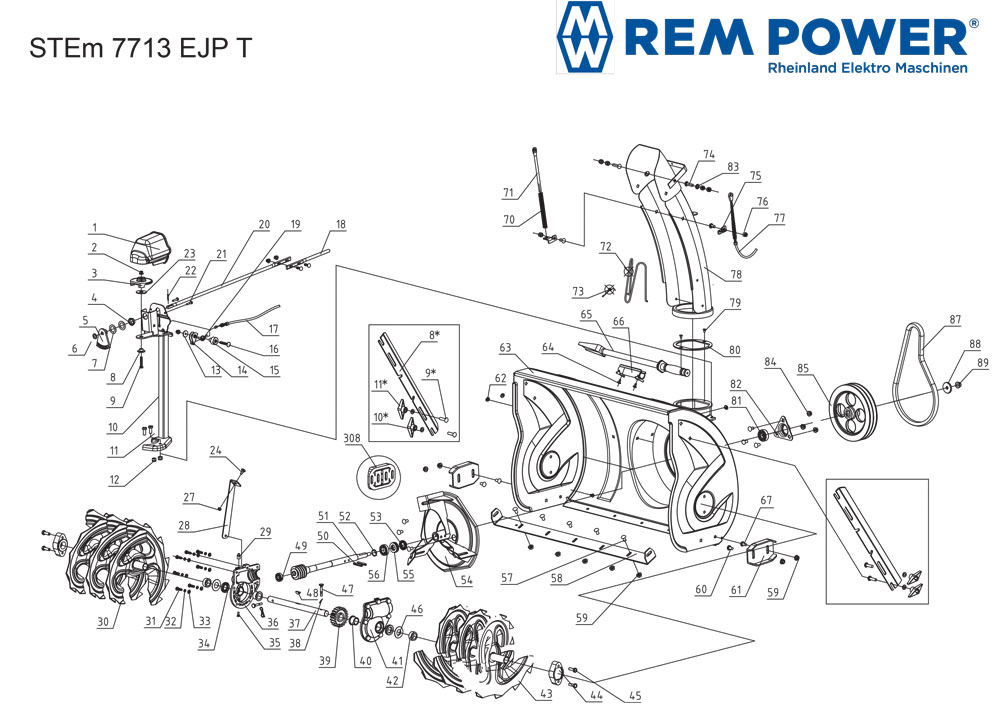

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8810000001363
    • Oil Seal M10x1
    • 29
    		0.26 €Pre-Order
    8810000001364
    • Spiral Assembly RH
    • 30
    		12.71 €Pre-Order
    8810000001365
    • Bolt M6x20
    • 31
    		0.26 €Pre-Order
    8810000001366
    • Spring Washer 6
    • 32
    		0.18 €Pre-Order
    8810000001367
    • Flat Washer 6
    • 33
    		0.18 €Pre-Order
    8810000001368
    • Seal B20x35x7
    • 34
    		0.52 €Pre-Order
    8810000001369
    • Screw M5x12
    • 35
    		0.26 €Pre-Order
    8810000001370
    • Auger Gearcase Housing RH
    • 36
    		5.34 €Pre-Order
    8810000001371
    • Auger Shaft
    • 37
    		5.00 €Pre-Order
    8810000001373
    • Worm Wheel
    • 39
    		24.81 €Pre-Order
    8810000001374
    • Shaft Sleeve
    • 40
    		0.51 €Pre-Order
    8810000001375
    • Auger Gearcase Housing LH
    • 41
    		5.16 €Pre-Order
    8810000001376
    • Washer
    • 42
    		0.18 €Pre-Order
    8810000001377
    • Spiral Assembly LH
    • 43
    		12.71 €Pre-Order
    8810000001378
    • Bearing Housing 6005
    • 44
    		1.15 €Pre-Order
    8810000001379
    • Ball Bearing 6005-2RS
    • 44a
    		2.22 €Pre-Order
    8810000001380
    • Screw ST8x20
    • 45
    		0.26 €Pre-Order
    8810000001381
    • Big Washer
    • 46
    		0.18 €Pre-Order
    8810000001382
    • Key 5x7.5x19
    • 48
    		0.28 €Pre-Order
    8810000001383
    • Ball Bearing 6001-2RS
    • 49
    		1.09 €Pre-Order
    8810000001384
    • Roll Pin 6x37
    • 50
    		0.40 €Pre-Order
    8810000001385
    • Impeller Shaft
    • 51
    		13.59 €Pre-Order
    8810000001386
    • Washer
    • 52
    		0.18 €Pre-Order
    8810000001387
    • Seal B20x35x7
    • 53
    		0.52 €Pre-Order
    8810000001388
    • Impeller Assembly
    • 54
    		10.28 €Pre-Order
    8810000001389
    • Thrust Bearing 51104
    • 55
    		1.12 €Pre-Order
    8810000001390
    • Ball Bearing 61904-2RS
    • 56
    		2.02 €Pre-Order
    8810000001391
    • Bolt M8x16
    • 57
    		0.26 €Pre-Order
    8810000001392
    • Shave Plate
    • 58
    		3.40 €Pre-Order
    8810000001393
    • Lock Nut M8
    • 59
    		0.17 €Pre-Order
    8810000001394
    • Bolt M8x20
    • 60
    		0.26 €Pre-Order
    8810000001395
    • Skid Shoe
    • 61
    		1.51 €Pre-Order
    8810000001396
    • Plug
    • 62
    		0.19 €Pre-Order
    8810000001397
    • Auger Housing Assy.
    • 63
    		62.02 €Pre-Order
    8810000001398
    • Screw ST5.5x13
    • 64
    		0.26 €Pre-Order
    8810000001399
    • Chute Clean-Out Tool
    • 65
    		1.58 €Pre-Order
    8810000001400
    • Clean-Out Tool Mounting Bracket
    • 66
    		0.28 €Pre-Order
    8810000001401
    • Bolt M8x25
    • 67
    		0.26 €Pre-Order
    8810000001402
    • Gear Assembly, Ring
    • 71
    		1.54 €Pre-Order
    8810000001403
    • Block Pin
    • 72
    		0.75 €Pre-Order
    8810000001404
    • Torsional Spring
    • 73
    		0.19 €Pre-Order
    8810000001405
    • Discharge Chute
    • 74
    		17.28 €Pre-Order
    8810000001406
    • FT Bolt M6x30
    • 75
    		0.26 €Pre-Order
    8810000001407
    • Chute Flange Keeper
    • 76
    		0.23 €Pre-Order
    8810000001408
    • Flange Lock Nut M6
    • 77
    		0.17 €Pre-Order
    8810000001409
    • Screw M5x6
    • 79
    		0.26 €Pre-Order
    8810000001410
    • Discharge Chute Washer
    • 80
    		0.33 €Pre-Order
    8810000001411
    • Ball Bearing 6203-2RS
    • 81
    		1.79 €Pre-Order
    8810000001412
    • Bearing Housing
    • 82
    		0.87 €Pre-Order
    8810000001413
    • Lock Washer
    • 83
    		0.18 €Pre-Order
    8810000001414
    • Hex. Flange Nut M8
    • 84
    		0.17 €Pre-Order
    8810000001415
    • Auger Pulley
    • 85
    		7.37 €Pre-Order
    8810000001416
    • Auger Belt 4LXP885
    • 87
    		11.23 €Pre-Order
    8810000001417
    • Flat Washer 10
    • 88
    		0.18 €Pre-Order
    8810000001418
    • Flange Lock Nut M10
    • 89
    		0.17 €Pre-Order
    8810000001419
    • Wheel RH
    • 90
    		21.31 €Pre-Order
    8810000001420
    • Flat Washer 8
    • 91
    		0.18 €Pre-Order
    8810000001421
    • Auger Idler
    • 92
    		1.86 €Pre-Order
    8810000001422
    • Spacer
    • 93
    		0.61 €Pre-Order
    8810000001423
    • FT Bolt M8x35
    • 94
    		0.26 €Pre-Order
    8810000001424
    • Pivot Bolt
    • 95
    		0.56 €Pre-Order
    8810000001425
    • Flange Bolt M8x20
    • 96
    		0.26 €Pre-Order
    8810000001426
    • Auger Idler Bracket
    • 97
    		0.33 €Pre-Order
    8810000001427
    • Extension Spring
    • 98
    		0.31 €Pre-Order
    8810000001428
    • Auger Idler Mounting Bracket
    • 99
    		0.28 €Pre-Order
    8810000001429
    • Flat Washer 8
    • 100
    		0.18 €Pre-Order
    8810000001430
    • Chute Adjustable Cable
    • 101
    		2.18 €Pre-Order
    8810000001431
    • Big Gear
    • 102
    		11.53 €Pre-Order
    8810000001432
    • Pin A6x35
    • 103
    		0.19 €Pre-Order
    8810000001433
    • Frame Cover 1
    • 104
    		4.47 €Pre-Order
    8810000001434
    • Frame Cover 2
    • 105
    		18.59 €Pre-Order
    8810000001435
    • Screw M8x16
    • 106
    		0.26 €Pre-Order
    8810000001436
    • Wheel Shaft
    • 107
    		4.74 €Pre-Order
    8810000001437
    • Shaft Bushing
    • 108
    		1.44 €Pre-Order
    8810000001438
    • Shaft Spacer
    • 109
    		0.27 €Pre-Order
    8810000001439
    • Wahser
    • 110
    		0.18 €Pre-Order
    8810000001440
    • Lock Pin 8
    • 111
    		0.59 €Pre-Order
    8810000001441
    • Wheel LH
    • 112
    		21.31 €Pre-Order
    8810000001442
    • Pin 6x36
    • 113
    		0.23 €Pre-Order
    8810000001443
    • Auger Cable Holder1
    • 114
    		0.66 €Pre-Order
    8810000001444
    • ST Screw M8x16
    • 115
    		0.26 €Pre-Order
    8810000001445
    • Shift Arm
    • 116
    		0.74 €Pre-Order
    8810000001446
    • Ball Bearing 6007
    • 116a
    		3.57 €Pre-Order
    8810000001447
    • Flat Screw 3x6
    • 116b
    		0.26 €Pre-Order
    8810000001448
    • FT Bolt M6x10
    • 117
    		0.26 €Pre-Order
    8810000001449
    • Friction Wheel Side Plate
    • 118
    		1.31 €Pre-Order
    8810000001450
    • Rubber Ring
    • 119
    		4.61 €Pre-Order
    8810000001451
    • Snap Ring 15
    • 120
    		0.19 €Pre-Order
    8810000001452
    • Ball Bearing 6203-2RSn
    • 121
    		1.37 €Pre-Order
    8810000001453
    • Friction Wheel Hub
    • 122
    		5.37 €Pre-Order
    8810000001454
    • Clevis Pin 3
    • 123
    		0.21 €Pre-Order
    8810000001455
    • Pin 6x25
    • 124
    		0.21 €Pre-Order
    8810000001456
    • Spring Return Bracket
    • 125
    		1.07 €Pre-Order
    8810000001457
    • Gear Shifting Lever
    • 126
    		2.17 €Pre-Order
    8810000001458
    • Gear Shifting Lever Knob
    • 127
    		0.45 €Pre-Order
    8810000001459
    • Screw M6x16
    • 128
    		0.26 €Pre-Order
    8810000001460
    • Fork Bracket
    • 129
    		0.58 €Pre-Order
    8810000001461
    • Fork Assembly
    • 130
    		0.41 €Pre-Order
    8810000001462
    • Circlip 35
    • 131
    		0.26 €Pre-Order
    8810000001463
    • Hex Shaft
    • 132
    		6.13 €Pre-Order
    8810000001464
    • Circlip 40
    • 133
    		0.22 €Pre-Order
    8810000001465
    • Cable Support Bracket 2
    • 134
    		0.55 €Pre-Order
    8810000001466
    • Cable Roller
    • 135
    		0.23 €Pre-Order
    8810000001467
    • Bolt
    • 136
    		0.46 €Pre-Order
    8810000001468
    • Driven Pulley Bracket
    • 137
    		7.41 €Pre-Order
    8810000001469
    • Friction Wheel Retaining Spring
    • 138
    		0.21 €Pre-Order
    8810000001470
    • Flange Lock Nut M16
    • 139
    		0.23 €Pre-Order
    8810000001471
    • Locating Knot
    • 140
    		0.26 €Pre-Order
    8810000001472
    • Locating Shaft
    • 141
    		2.24 €Pre-Order
    8810000001473
    • Lock Nut M10
    • 142
    		0.17 €Pre-Order
    8810000001474
    • Engine Belt Cover
    • 143
    		4.63 €Pre-Order
    8810000001475
    • Driven Pulley Hub
    • 144
    		1.57 €Pre-Order
    8810000001476
    • Ball Bearing 6006-2RS
    • 145
    		3.00 €Pre-Order
    8810000001477
    • Engine Pulley
    • 146
    		9.85 €Pre-Order
    8810000001478
    • Drive Belt V10x835,
    • 147
    		8.64 €Pre-Order
    8810000001479
    • Key 6X6X45
    • 148
    		0.23 €Pre-Order
    8810000001480
    • Spring Washer 8
    • 150
    		0.17 €Pre-Order
    8810000001481
    • Washer
    • 151
    		0.23 €Pre-Order
    8810000001482
    • Belt Pulley
    • 152
    		7.30 €Pre-Order
    8810000001483
    • Drive Clutch Idler
    • 153
    		1.78 €Pre-Order
    8810000001484
    • Bushing
    • 154
    		0.56 €Pre-Order
    8810000001485
    • Bolt M8x25
    • 155
    		0.26 €Pre-Order
    8810000001486
    • Drive Clutch Idler Bracket
    • 156
    		0.80 €Pre-Order
    8810000001487
    • FT Bolt
    • 157
    		0.26 €Pre-Order
    8810000001488
    • Spacer
    • 158
    		0.76 €Pre-Order
    8810000001489
    • Engine
    • 159
    		285.64 €Pre-Order
    8810000001490
    • Engine Washer
    • 160
    		0.17 €Pre-Order
    8810000001491
    • Belt Blocker
    • 161
    		0.80 €Pre-Order
    8810000001492
    • Extension Spring
    • 162
    		0.23 €Pre-Order
    8810000001493
    • Jam Nut M8
    • 163
    		0.17 €Pre-Order
    8810000001494
    • Lock Nut M6
    • 164
    		0.17 €Pre-Order
    8810000001495
    • Bolt M6x30
    • 165
    		0.26 €Pre-Order
    8810000001496
    • Nut M6
    • 166
    		0.17 €Pre-Order
    8810000001497
    • FT Bolt M6x25
    • 167
    		0.26 €Pre-Order
    8810000001498
    • Drive/Auger Clutch Lever
    • 168
    		2.70 €Pre-Order
    8810000001499
    • Bolt M10x55
    • 169
    		0.26 €Pre-Order
    8810000001500
    • Auger Clutch Cable
    • 170
    		1.97 €Pre-Order
    8810000001501
    • Friction Wheel Cable
    • 171
    		2.31 €Pre-Order
    8810000001502
    • Handle
    • 172
    		12.04 €Pre-Order
    8810000001503
    • Clutch Lever Bracket
    • 173
    		0.41 €Pre-Order
    8810000001504
    • Lock Nut M6
    • 174
    		0.17 €Pre-Order
    8810000001505
    • Bolt Sleeve
    • 175
    		0.19 €Pre-Order
    8810000001506
    • Screw M6x60
    • 176
    		0.26 €Pre-Order
    8810000001507
    • Big Flat Washer 6
    • 177
    		0.26 €Pre-Order
    8810000001508
    • Bolt M6x40
    • 178
    		0.26 €Pre-Order
    8810000001509
    • Gear Shifting Panel
    • 179
    		2.95 €Pre-Order
    8810000001510
    • Arc Washer 8
    • 180
    		0.19 €Pre-Order
    8810000001511
    • Flat Washer 10
    • 181
    		0.18 €Pre-Order
    8810000001512
    • Circlip 10
    • 187
    		0.17 €Pre-Order
    8810000001513
    • Chute Crank Lever Knob
    • 188
    		0.24 €Pre-Order
    8810000001514
    • Chute Crank Lever
    • 189
    		3.51 €Pre-Order
    8810000001515
    • Chute Bracket
    • 190
    		0.95 €Pre-Order
    8810000001516
    • Rubber Spacer
    • 191
    		0.24 €Pre-Order
    8810000001517
    • Flat Washer 10
    • 192
    		0.18 €Pre-Order
    8810000001518
    • FT Bolt M10x20
    • 215
    		0.26 €Pre-Order
    8810000001519
    • FT Bolt M10x40
    • 216
    		0.26 €Pre-Order
    8810000001520
    • Arc Washer 10
    • 228
    		0.18 €Pre-Order
    8810000001521
    • Bolt M8x35
    • 301
    		0.26 €Pre-Order
    8810000001522
    • Handle Knob Assembly
    • 302
    		0.27 €Pre-Order
    8810000001523
    • Flange Nut
    • 303
    		0.18 €Pre-Order
    8810000001524
    • Chute Linkage Plate
    • 304
    		0.41 €Pre-Order
    8810000001525
    • Bolt M8x20
    • 305
    		0.26 €Pre-Order
    8810000001526
    • Bushing
    • 306
    		0.22 €Pre-Order
    8810000001527
    • Chute Crank Bracket
    • Screw M6x16
    • Battery Cover
    • Battery
    • Battery Supporter
    • Lock Nut M6
    • Bolt M8x16
    • Lock Nut M8
    • Drift Cutter
    • Bolt M8x20
    • Flat Washer 8
    • Handle Knob Assembly
    • Led Light
    • Bolt M8x20
    • Flat Washer 10
    • Flange Lock Nut M6
    • Bolt M6x40
    • Light Mounting Bracket
    • Spring Washer 8
    • Nut M8
    • Switch
    • Clevis Pin 1.8
    • Shear Pin
    • 307
    • 1*
    • 2*
    • 3*
    • 4*
    • 5*
    • 6*
    • 7*
    • 8*
    • 9*
    • 10*
    • 11*
    • 12*
    • 13*
    • 14*
    • 15*
    • 16*
    • 17*
    • 18*
    • 19*
    • 20*
    • 38
    • 47
    		0.91 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products

    Add to compare
    Quick view
    Add to wishlist

    STEm 12015 EJP

    Out of stock

    Read more
    SKU: 38120150515
    ENGINE POWER (HP)

    15
    DISPLACEMENT (cm3)

    420
    CLEARING WIDTH (cm)

    115.5
    INTAKE HEIGHT (cm)

    58.5
    THROWING OPERATION

    Two stage
    THROWING DIRECTION

    60-180 degrees
    DRIVE SYSTEM

    AWD, self-propelled
    FORWARD (SHIFT)

    6
    REVERSE (SHIFT)

    2
    ENGINE STARTING

    230 V AC Electric & Manual
    HEATED HANDLES

    Yes
    STEERING CONTROL

    Yes
    FUEL TYPE

    Unleaded
    FUEL CAPACITY (l)

    4
    WEIGHT (kg)

    169
    Add to compare
    Quick view
    Add to wishlist

    STEm 6770 JPT

    Out of stock

    Read more
    SKU: 38062700501
    Drive system

    Track drive
    Engine starting

    Manual start
    Heated handles

    No
    One hand operation

    No
    Steering control

    Yes
    Throwing direction (°)

    60-180
    Throwing operation

    Two stage
    Fuel type

    Petrol
    Add to compare
    Quick view
    Add to wishlist

    STEm 6770 J

    Out of stock

    Read more
    SKU: 38067700501
    ENGINE POWER (HP)

    7
    DISPLACEMENT (cm3)

    208
    CLEARING WIDTH (cm)

    67
    INTAKE HEIGHT (cm)

    53.5
    THROWING OPERATION

    Two stage
    THROWING DIRECTION

    60-180 degrees
    DRIVE SYSTEM

    AWD, self-propelled
    FORWARD (SHIFT)

    6
    REVERSE (SHIFT)

    2
    ENGINE STARTING

    Manual start
    HEATED HANDLES

    No
    STEERING CONTROL

    No
    FUEL TYPE

    Unleaded
    FUEL CAPACITY (l)

    2
    WEIGHT (kg)

    84
    Add to compare
    Quick view
    Add to wishlist

    STEm 5765

    In stock

    Read more
    SKU: 38057650102
    Drive system

    self-propelled, AWD
    Engine starting

    Manual start
    Heated handles

    No
    One hand operation

    No
    Steering control

    No
    Throwing direction (°)

    60-180
    Throwing operation

    Two stage
    Fuel type

    Petrol

    Customer Review
