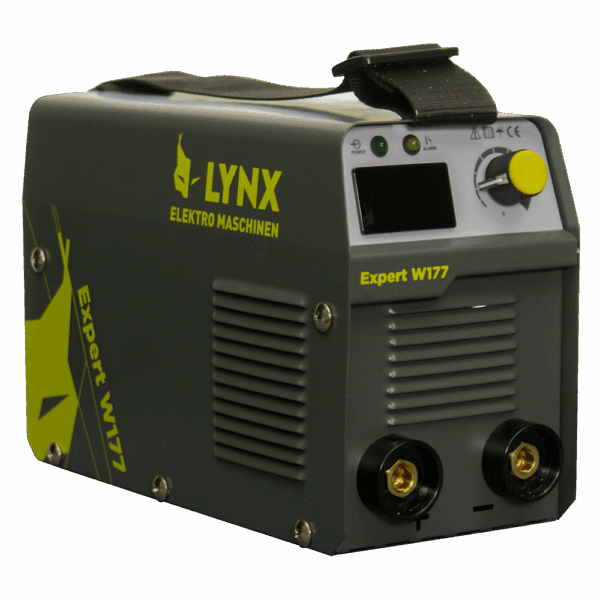

WMEm 177 Expert line
WMEm 177 Expert line
Click to enlarge

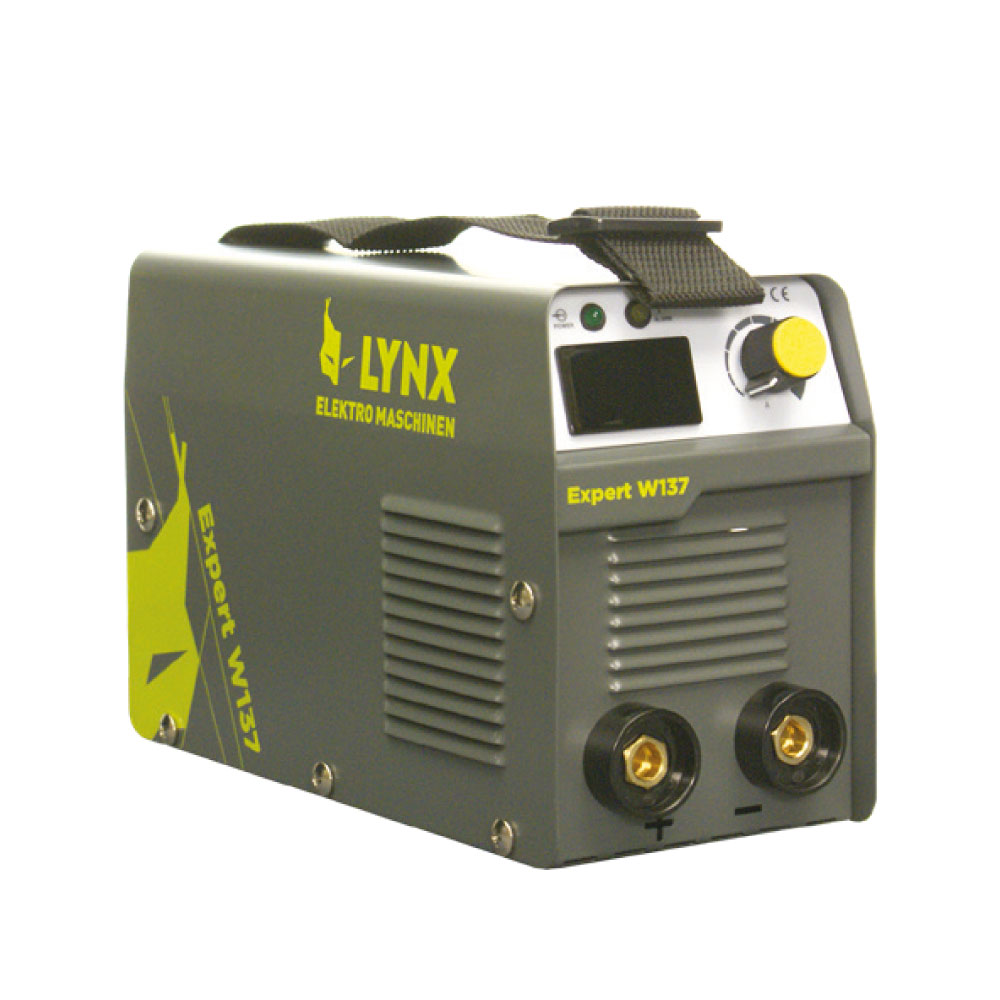

    WMEm 137 Expert line

    SKU: 301202032 Categories: ,

    WMEm 137 Expert line is a Welding inverter, equiped with Compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding,
    • Durable and impact resistance design,
    • Easy to operate – only current setting needed,
    • Digital Ampere meter shows the welding current,
    • Welds most electrodes from a 1,6 – 3,2 mm,
    • Capable to work on generator power source,
    • Over current protection / Over voltage protection,
    • Automatic hot start,
    • Automatic ars force,
    • Automatic anti stick function,

    Standard equipment:

    • welding cable
    • returne cable

    In stock

    Add to compare
    Add to wishlist
    14 People watching this product now!

    Payment:

    Main Supply (V/Ph Hz)

    230V, 50Hz
    Input Voltage Tolerance (%)

    ±15
    Input Power (kVA)

    6.6
    Setting Range (A)

    20–160
    Max. Output at 20% Duty Cycle (A, MMA)

    160
    Max. Output at 60% Duty Cycle (A, MMA)

    80
    Max. Output at 100% Duty Cycle (A, MMA)

    62
    Open-Circuit Voltage (V)

    66V
    Electrode Sizes (mm)

    2.0–4.0 mm
    Dimensions (mm)

    247 × 111.5 × 161
    Weight (kg)

    5.0

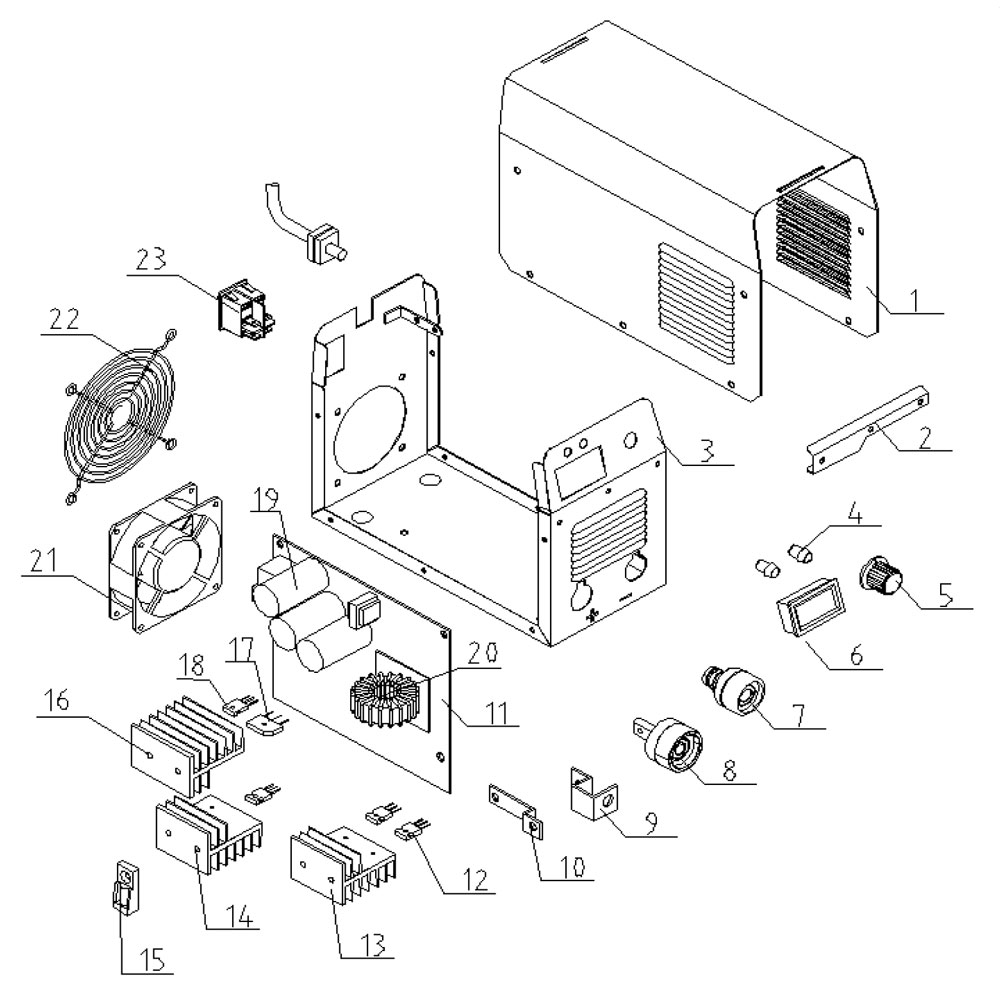

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    301202032S001
    • Shell
    • 1
    		1.65 €Pre-Order
    301202032S002
    • Decorative cover plate
    • 2
    		0.08 €Pre-Order
    301202032S003
    • Bottom plate metal
    • 3
    		1.08 €Pre-Order
    301202032S004
    • Indicator light socket
    • 4
    		0.04 €Pre-Order
    301202032S005
    • Potentiometer knob
    • 5
    		0.21 €Pre-Order
    301202032S006
    • Digital display meter
    • 6
    		1.98 €Pre-Order
    301202032S007
    • Quick socket rubber wood base
    • 7
    		0.51 €Pre-Order
    301202032S008
    • Quick socket copper core
    • 8
    		0.80 €Pre-Order
    301202032S009
    • Output aluminum bar
    • 9
    		0.08 €Pre-Order
    301202032S010
    • Output aluminum bar 2
    • 10
    		0.13 €Pre-Order
    301202032S011
    • Main board, with a few componenets
    • 11
    		27.53 €Pre-Order
    301202032S012
    • Fast recovery diode
    • 12
    		1.03 €Pre-Order
    301202032S013
    • Quick recovery tube radiator
    • 13
    		1.58 €Pre-Order
    301202032S014
    • IGBT radiator
    • 14
    		1.44 €Pre-Order
    301202032S015
    • Plastic support column 2
    • 15
    		0.04 €Pre-Order
    301202032S016
    • IGBT radiator
    • 16
    		1.44 €Pre-Order
    301202032S017
    • Rectifier bridge
    • 17
    		0.65 €Pre-Order
    301202032S018
    • IGBT
    • 18
    		1.46 €Pre-Order
    301202032S019
    • Electrolytic capacitor
    • 19
    		0.87 €Pre-Order
    301202032S020
    • Intermediate frequency transformer
    • 20
    		2.94 €Pre-Order
    301202032S021
    • DC fan
    • 21
    		1.37 €Pre-Order
    301202032S022
    • Fan mesh cover
    • 22
    		0.23 €Pre-Order
    301202032S023
    • Rocker switch
    • 23
    		0.57 €Pre-Order
