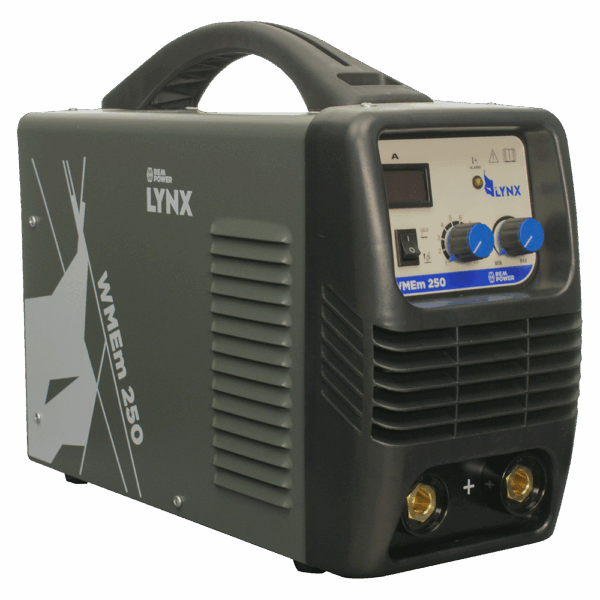

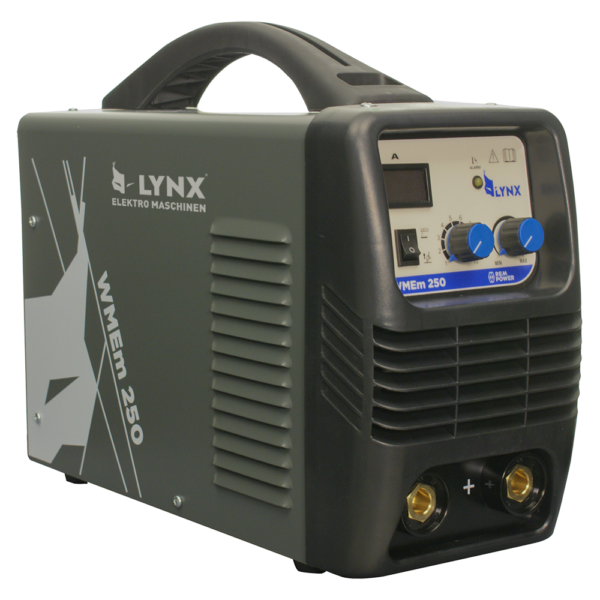

WMEm 250 Lynx
WMEm 250 Lynx
Click to enlarge

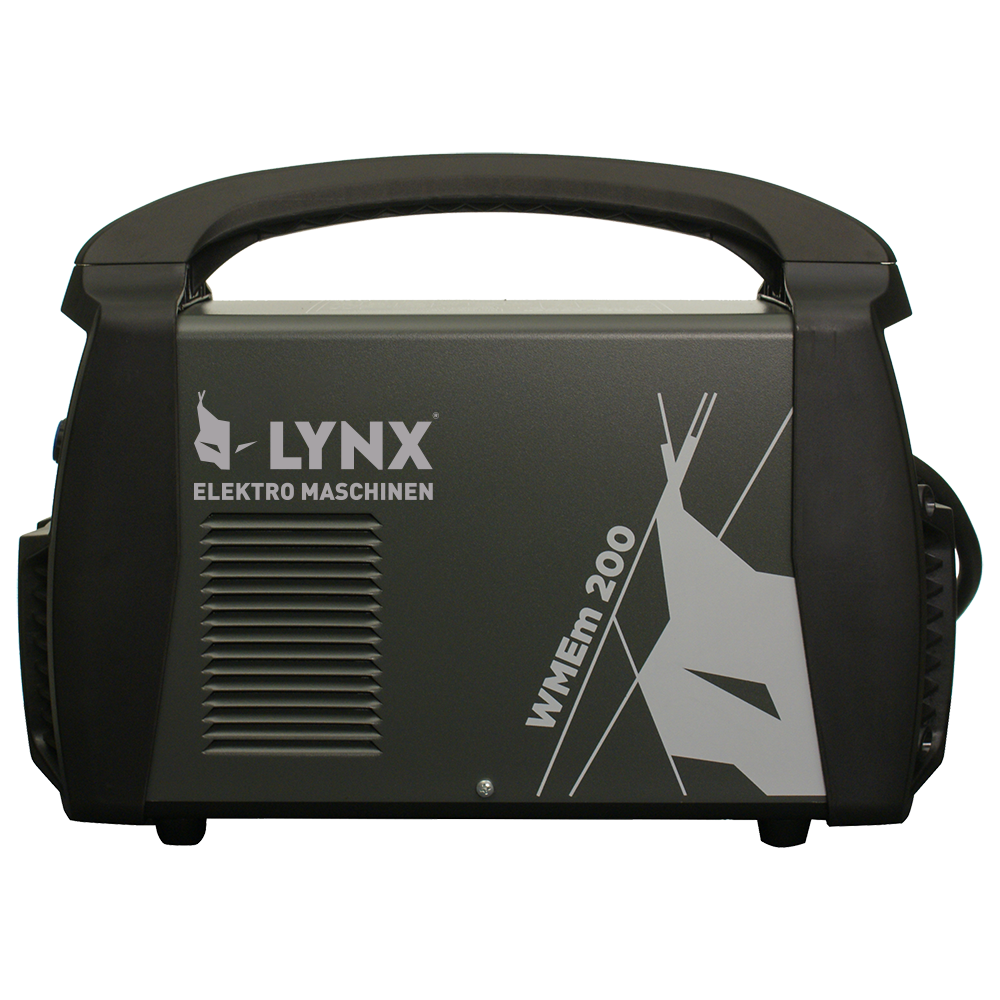

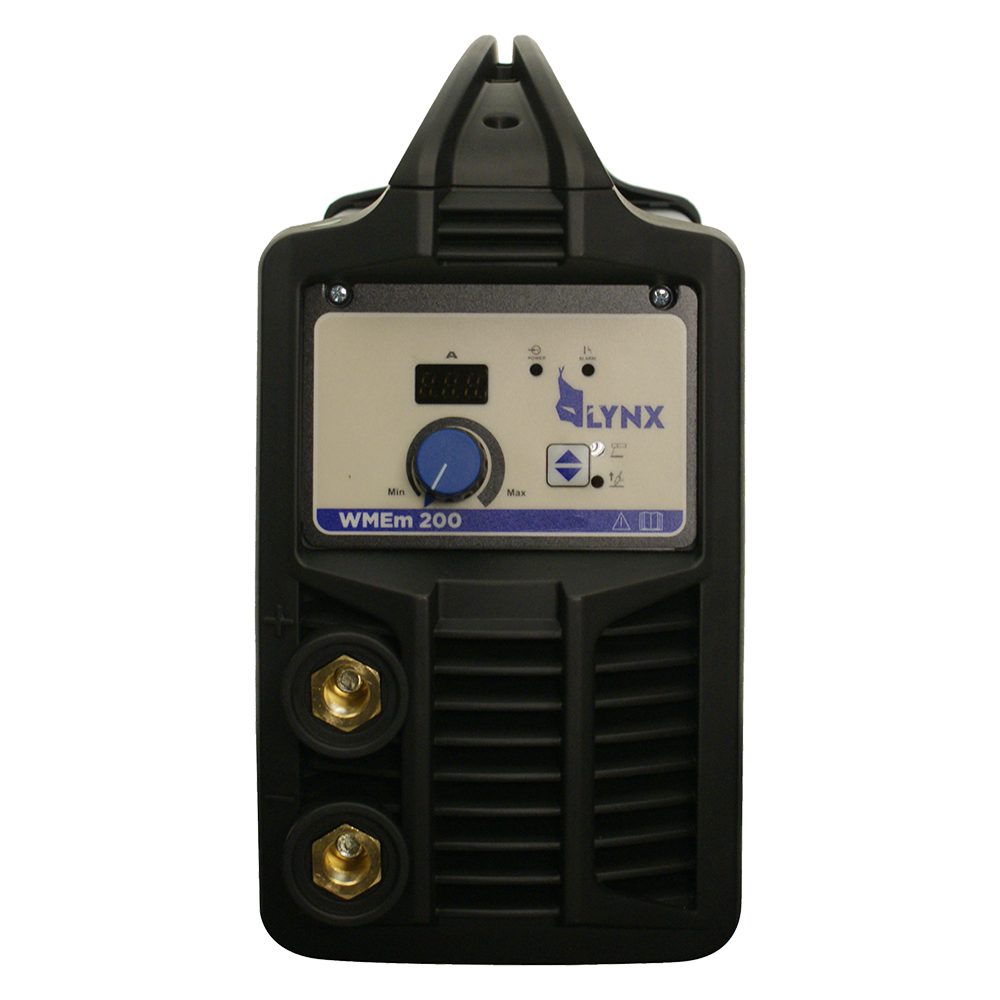

    WMEm 200i Lynx

    SKU: 0302003503 Categories: ,

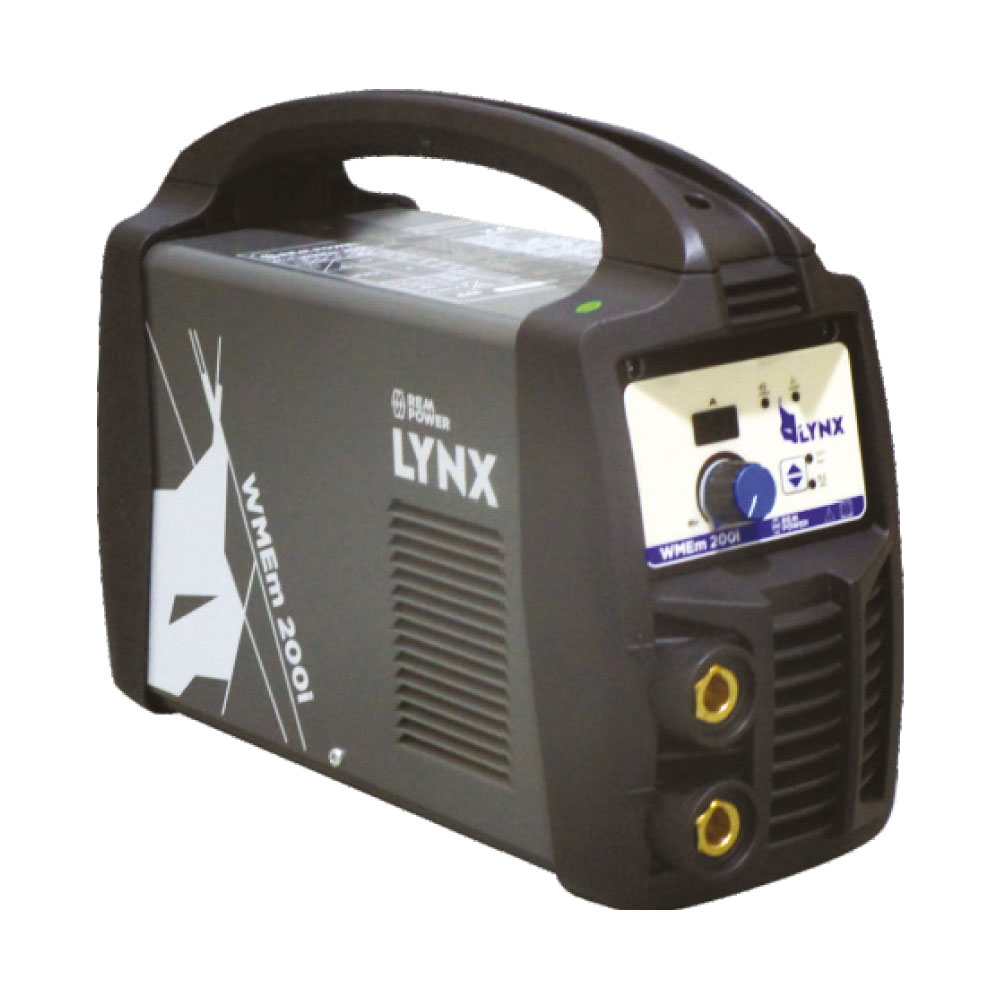

    WMEm 200i Lynx is a Welding inverter, equiped with compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding
    • Durable and impact resistance design
    • Easy to operate – only current setting needed
    • PFC technology
    • Digital Ampere meter shows the welding current
    • Welds most electrodes from a 1,6 – 5,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Automatic hot start
    • Automatic arc force
    • Automatic anti-stick function

    Standard equipment:

    • Welding cable
    • Mask & brush
    • Returne cable

    Out of stock

    Add to compare
    Add to wishlist
    20 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    5
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    78
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    89
    Max. outputs at 20% duty cycle, (MMA) (А)

    200
    Max. outputs at 60% duty cycle, (MMA) (А)

    115
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    200
    Min. welding current, (MMA) (А)

    25

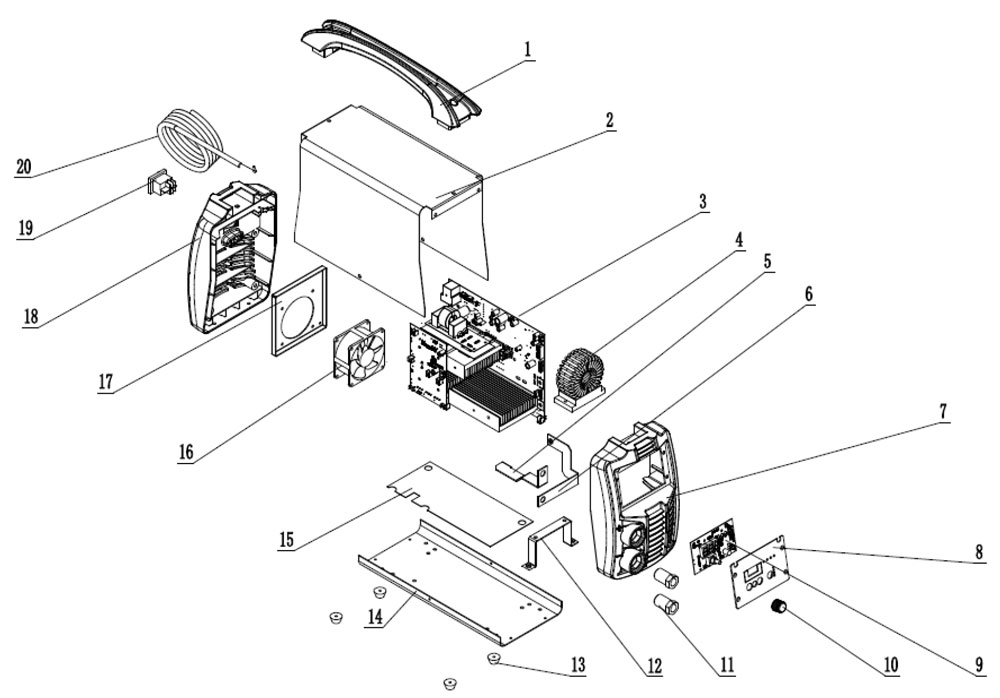

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0302003503S001
    • handle
    • 1
    		2.89 €Pre-Order
    0302003503S002
    • shell
    • 2
    		9.70 €Pre-Order
    0302003503S003
    • main control board
    • 3
    		516.64 €Pre-Order
    0302003503S004
    • inductance
    • 4
    		20.74 €Pre-Order
    0302003503S005
    • Positive busbar
    • 5
    		1.69 €Pre-Order
    0302003503S006
    • Negative busbar
    • 6
    		2.00 €Pre-Order
    0302003503S007
    • plastic front plate
    • 7
    		5.80 €Pre-Order
    0302003503S008
    • panel fixing plate
    • 8
    		12.11 €Pre-Order
    0302003503S009
    • panel control
    • 9
    		1.03 €Pre-Order
    0302003503S010
    • potentiometer knob
    • 10
    		0.23 €Pre-Order
    0302003503S011
    • quick socket
    • 11
    		2.19 €Pre-Order
    0302003503S012
    • Inductive bracket
    • 12
    		0.12 €Pre-Order
    0302003503S013
    • machine foot
    • 13
    		4.68 €Pre-Order
    0302003503S014
    • chassis
    • 14
    		0.41 €Pre-Order
    0302003503S015
    • Bottom insulation board
    • 15
    		46.42 €Pre-Order
    0302003503S016
    • fan
    • 16
    		6.56 €Pre-Order
    0302003503S017
    • Fan fixing plate
    • 17
    		0.43 €Pre-Order
    0302003503S018
    • rear plastic panel
    • 18
    		6.21 €Pre-Order
    0302003503S019
    • rocker switch
    • 19
    		1.13 €Pre-Order
    0302003503S020
    • power cable
    • 20
    		13.21 €Pre-Order
