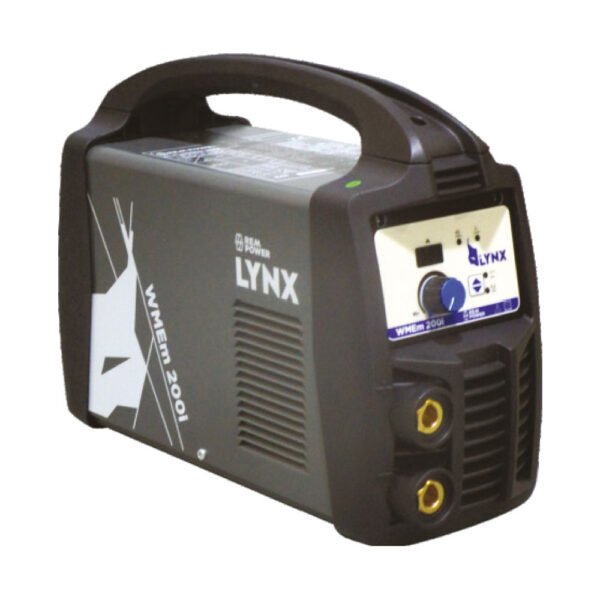

WMEm 200i Lynx
WMEm 200i Lynx
Back to products

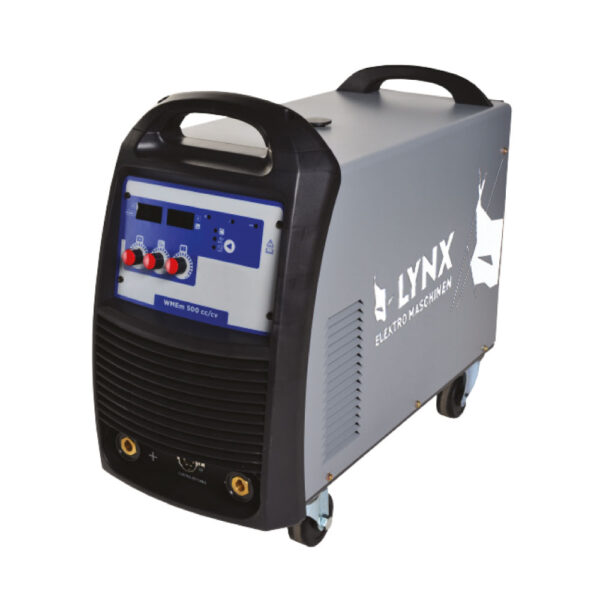

WMEM 501
WMEM 501
Click to enlarge

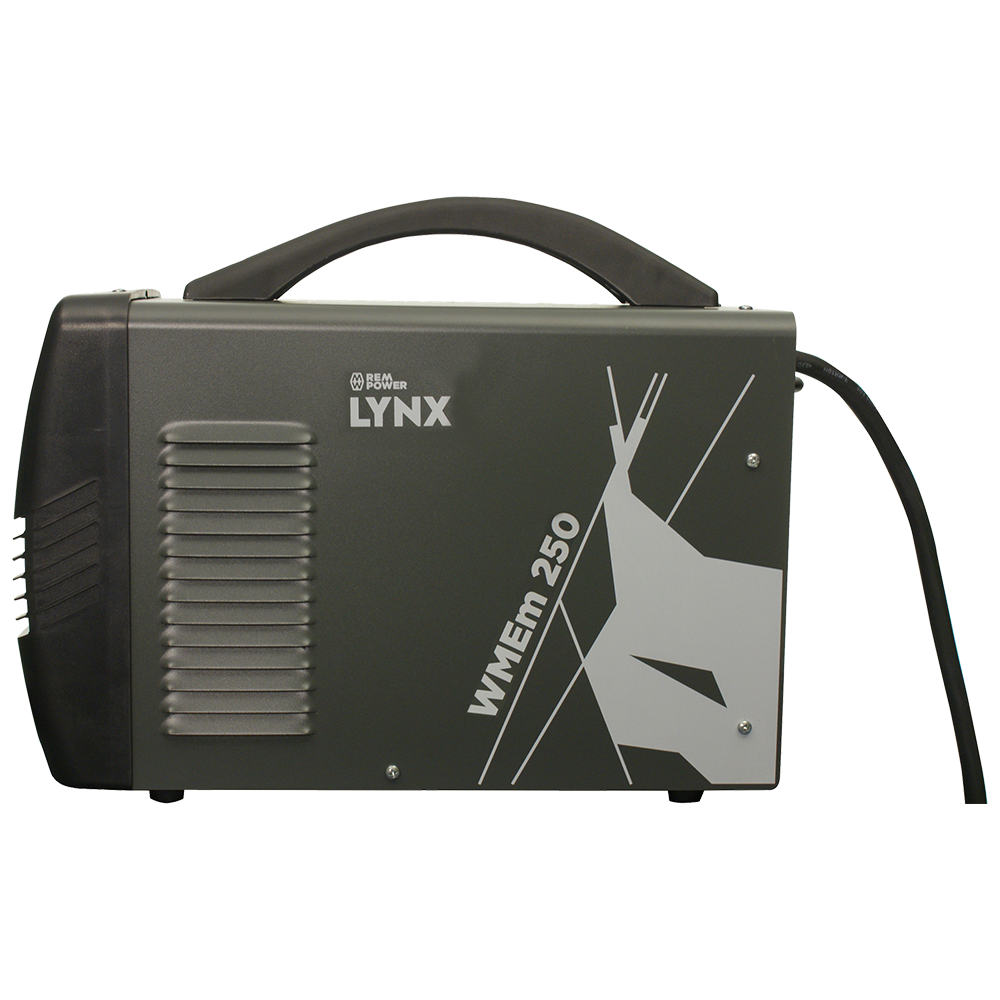

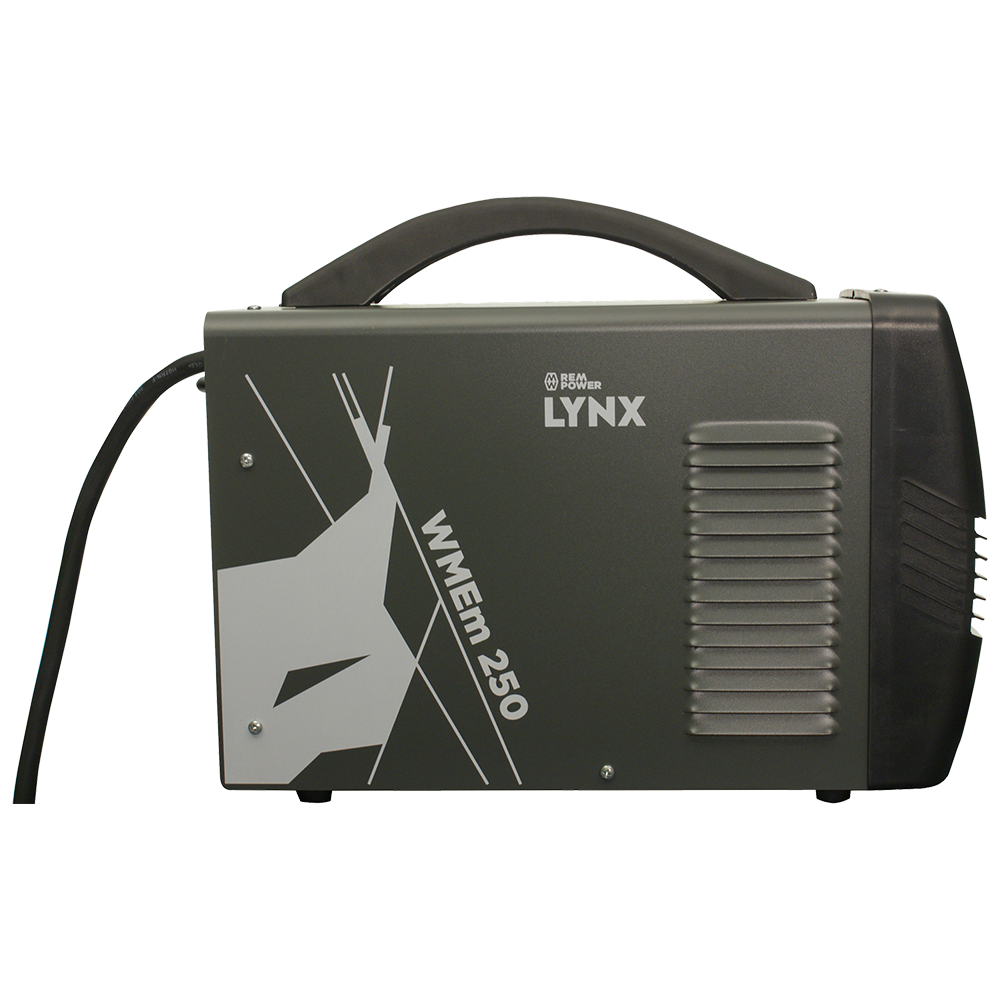

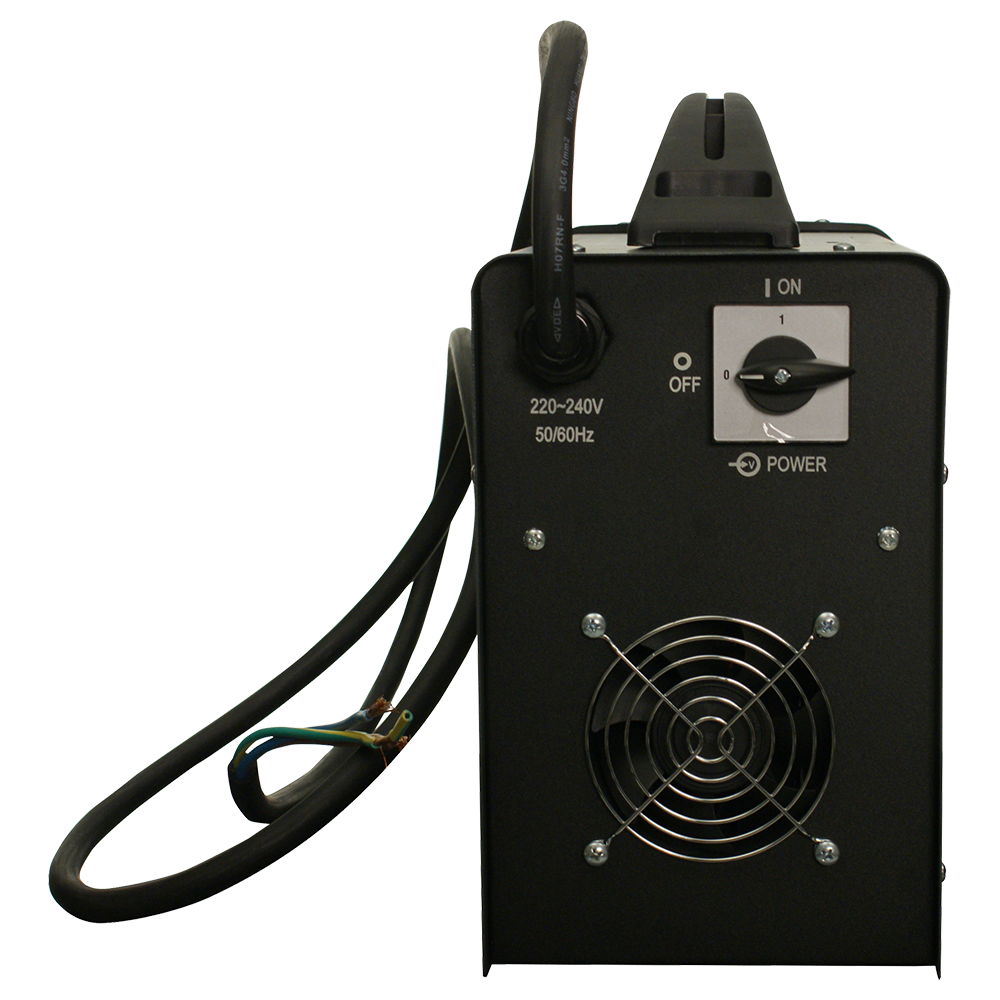

    WMEm 250 Lynx

    SKU: 0302503503 Categories: ,

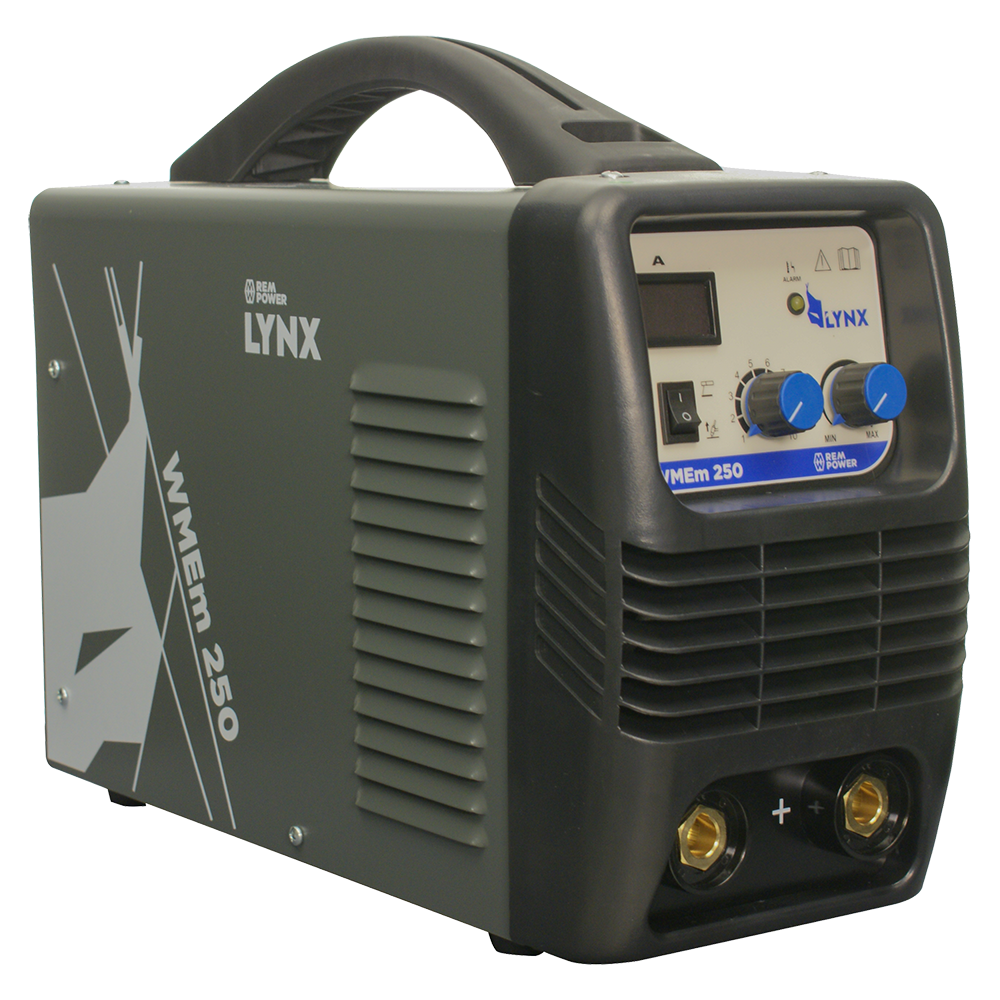

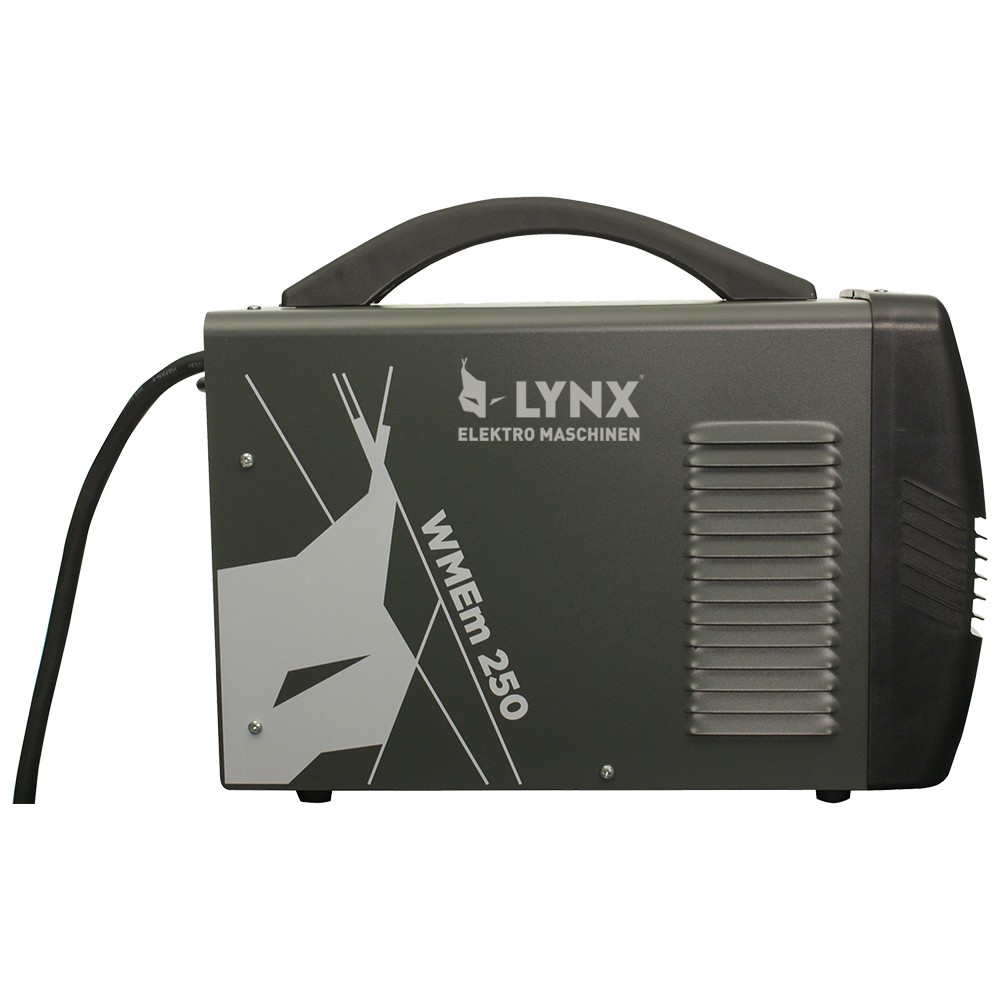

    WMEm 250 Lynx is a Welding inverter, equiped with compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding
    • Durable and impact resistance design
    • Easy to operate – only current setting needed
    • Digital Ampere meter shows the welding current
    • Welds most electrodes from ∅ 1,6 – 5,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Automatic hot start
    • Automatic arc force
    • Automatic anti-stick function

    Standard equipment:

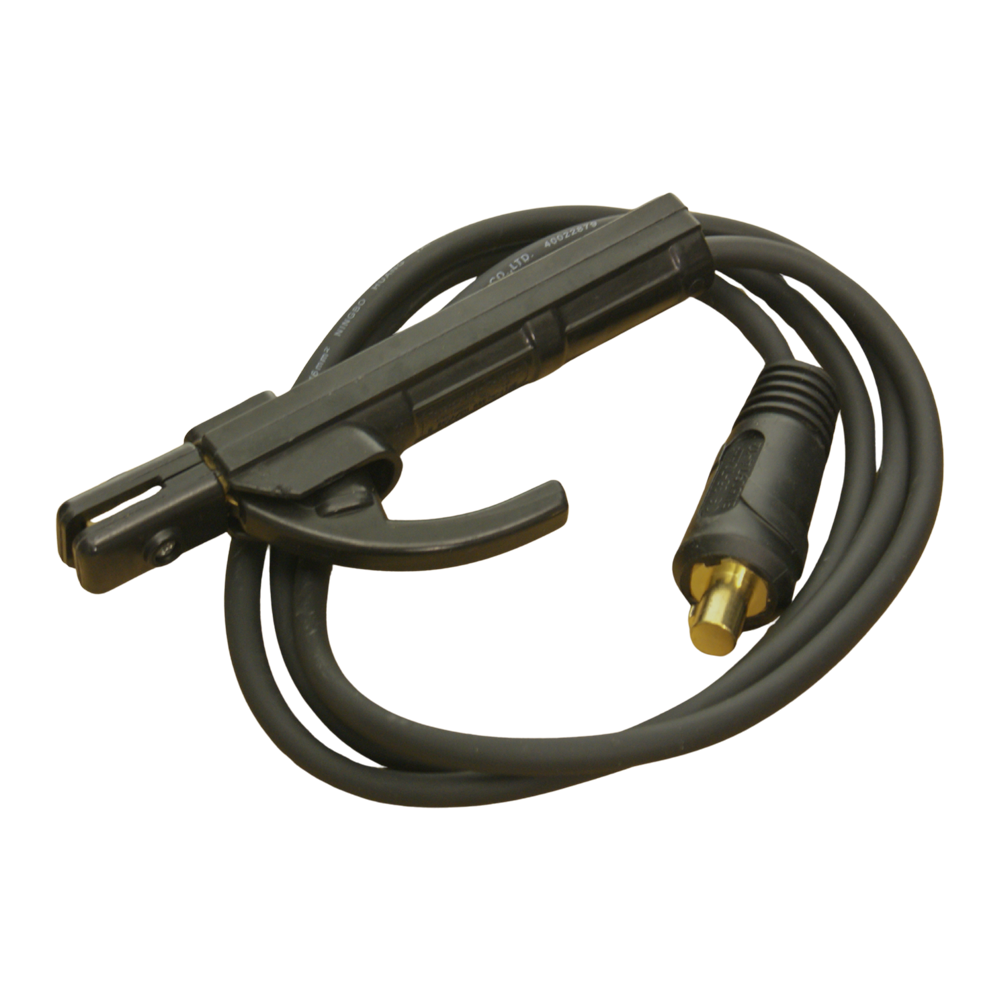

    • Welding cable
    • Mask & brush

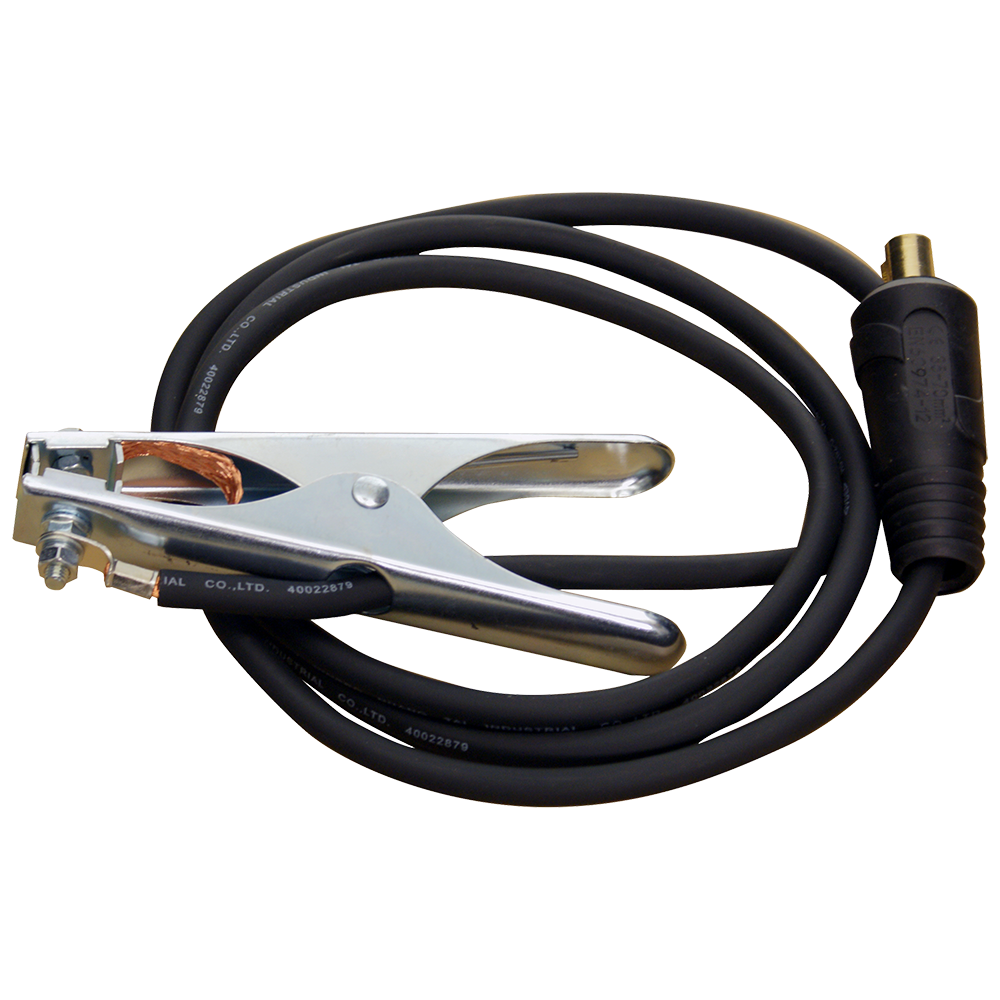

    • Returne cable

    Out of stock

    Add to compare
    Add to wishlist
    18 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    5
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    80
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    112
    Max. outputs at 20% duty cycle, (MMA) (А)

    250
    Max. outputs at 60% duty cycle, (MMA) (А)

    114
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    250
    Min. welding current, (MMA) (А)

    30

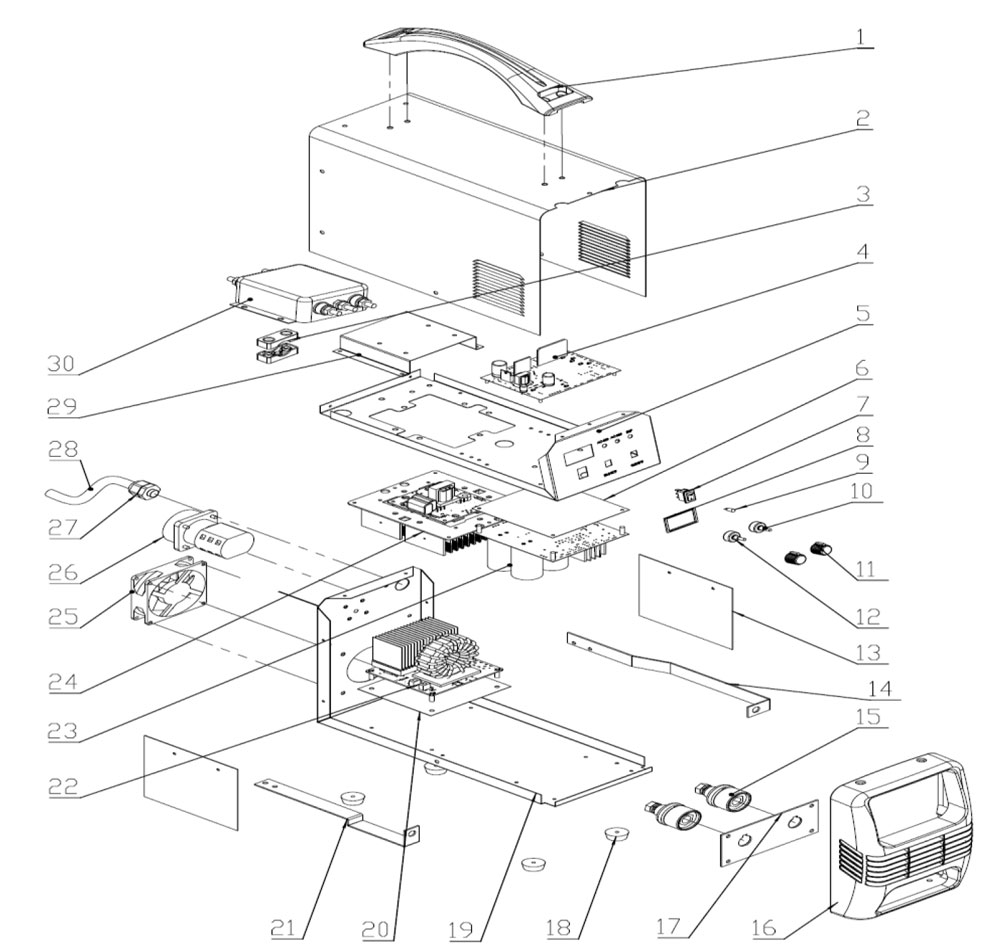

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0302503503S001
    • handle
    • 1
    		1.07 €Pre-Order
    0302503503S002
    • shell
    • 2
    		10.13 €Pre-Order
    0302503503S003
    • Clamping plate
    • 3
    		0.14 €Pre-Order
    0302503503S004
    • main control board
    • 4
    		49.72 €Pre-Order
    0302503503S005
    • mounting plate
    • 5
    		6.30 €Pre-Order
    0302503503S006
    • Power board insulation board
    • 6
    		0.33 €Pre-Order
    0302503503S007
    • Welding mode switch harness
    • 7
    		0.56 €Pre-Order
    0302503503S008
    • digital display
    • 8
    		1.63 €Pre-Order
    0302503503S009
    • Overheat Indicator Harness
    • 9
    		0.39 €Pre-Order
    0302503503S010
    • Welding Potentiometer Harness
    • 10
    		0.89 €Pre-Order
    0302503503S011
    • potentiometer knob
    • 11
    		0.23 €Pre-Order
    0302503503S012
    • Potentiometer Harness
    • 12
    		1.26 €Pre-Order
    0302503503S013
    • Left and right wind deflectors
    • 13
    		0.37 €Pre-Order
    0302503503S014
    • Positive busbar
    • 14
    		1.57 €Pre-Order
    0302503503S015
    • quick socket
    • 15
    		2.23 €Pre-Order
    0302503503S016
    • plastic panel
    • 16
    		2.74 €Pre-Order
    0302503503S017
    • output fixing plate
    • 17
    		4.62 €Pre-Order
    0302503503S018
    • machine foot
    • 18
    		0.06 €Pre-Order
    0302503503S019
    • bottom back plate
    • 19
    		7.76 €Pre-Order
    0302503503S020
    • Rectifier board insulation board
    • 20
    		0.31 €Pre-Order
    0302503503S021
    • Negative busbar
    • 21
    		1.94 €Pre-Order
    0302503503S022
    • rectifier plate
    • 22
    		98.45 €Pre-Order
    0302503503S023
    • Power Board
    • 23
    		78.51 €Pre-Order
    0302503503S024
    • Inverter board radiator assembly
    • 24
    		102.18 €Pre-Order
    0302503503S025
    • Fan wiring harness
    • 25
    		13.35 €Pre-Order
    0302503503S026
    • Universal transfer switch
    • 26
    		21.03 €Pre-Order
    0302503503S027
    • External force cable gland
    • 27
    		0.89 €Pre-Order
    0302503503S028
    • Power cord harness
    • 28
    		17.89 €Pre-Order
    0302503503S029
    • Filter fixing plate
    • 29
    		3.65 €Pre-Order
    0302503503S030
    • filter
    • 30
    		48.60 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products
    Add to compare
    Quick view
    Add to wishlist

    WMEm MIG 180 Series II

    ,

    In stock

    Read more
    SKU: 0311802503
    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    68
    Max. outputs at 100% duty cycle, (MIG) (А)

    80
    Max. outputs at 100% duty cycle, (MMA) (А)

    67
    Max. outputs at 60% duty cycle, (MIG) (А)

    104
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    150
    Min. welding current, (MMA) (А)

    30
    Max wire Ø, unall. solid (mm)

    1
    Add to compare
    Quick view
    Add to wishlist

    WMEm TIG 200i Lynx AC/DC

    ,

    In stock

    Read more
    SKU: 0302006018
    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    72
    Max. outputs at 100% duty cycle, (TIG) (А)

    89
    Max. outputs at 20% duty cycle, (MMA) (А)

    160
    Max. outputs at 20% duty cycle, (TIG) (А)

    200
    Max. outputs at 60% duty cycle, (MMA) (А)

    92
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    160
    Min. welding current, (MMA) (А)

    10
    Max. welding current, (TIG) (А)

    200
    Min. welding current, (TIG) (А)

    10
    Add to compare
    Quick view
    Add to wishlist

    WMEm TIG 180, Lynx

    ,

    In stock

    Read more
    SKU: 0302006016
    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    99
    Max. outputs at 100% duty cycle, (TIG) (А)

    99
    Max. outputs at 30% duty cycle, (MMA) (А)

    180
    Max. outputs at 30% duty cycle, (TIG) (А)

    180
    Max. outputs at 60% duty cycle, (MMA) (А)

    127
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    180
    Min. welding current, (MMA) (А)

    10
    Max. welding current, (TIG) (А)

    180
    Min. welding current, (TIG) (А)

    10
    Add to compare
    Quick view
    Add to wishlist

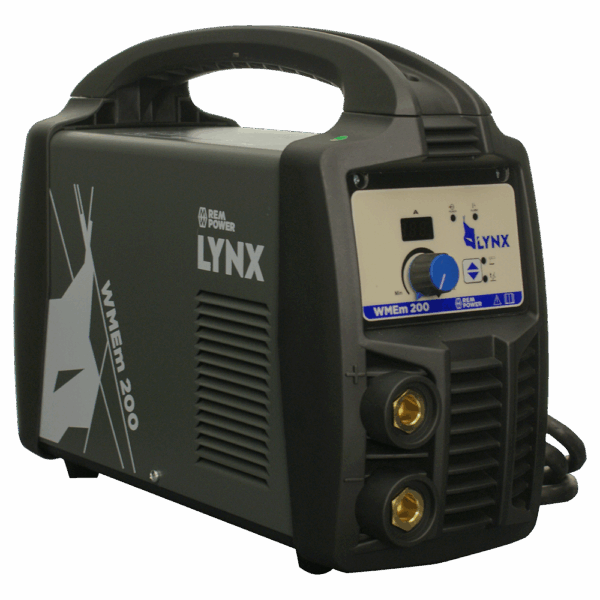

    WMEm 200 Lynx

    ,
