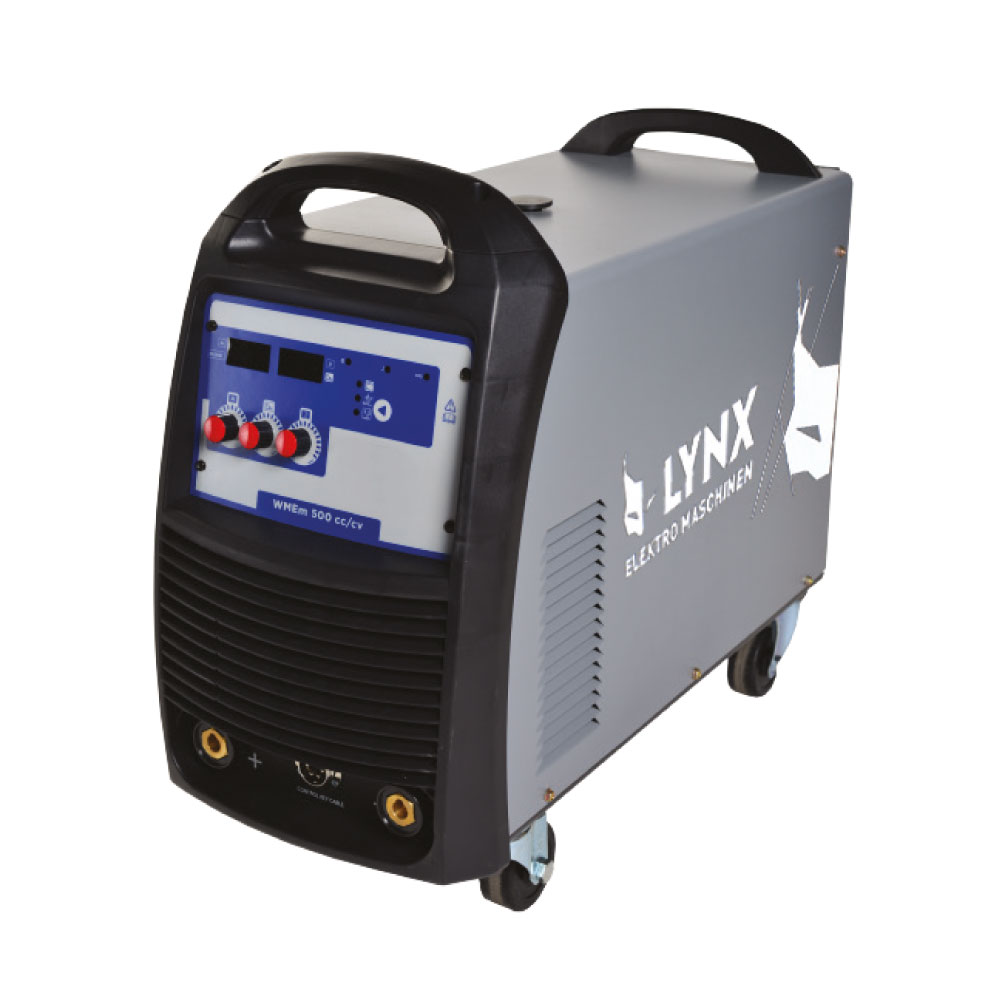

    WMEM 501

    SKU: 0305014005 Categories: ,

    WMEM 501 is a Welding inverter, equiped with compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding
    • Durable and impact resistance design
    • Easy to operate – only current setting needed
    • Digital Ampere meter shows the welding current
    • Welds most electrodes from ∅ 1,6 – 5,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Automatic hot start
    • Automatic arc force
    • Automatic anti-stick function

    Standard equipment:

    • Welding cable
    • Mask & brush
    • Returne cable

    Out of stock

    Add to compare
    Add to wishlist
    18 People watching this product now!

    Payment:

    Frequency (Hz)

    50/60
    Setting range (A)

    15–500
    Output max @ 60% duty cycle (MIG)

    500 A / 39.0 V
    Output max @ 100% duty cycle (MIG)

    387 A / 33.4 V
    Output max @ 60% duty cycle (MMA)

    490 A / 39.6 V
    Output max @ 100% duty cycle (MMA)

    380 A / 35.2 V
    Output max @ 60% duty cycle (TIG)

    490 A / 29.6 V
    Output max @ 100% duty cycle (TIG)

    380 A / 25.2 V
    Open circuit voltage (V)

    65 V
    Electrode diameter (mm)

    1.6–4.0

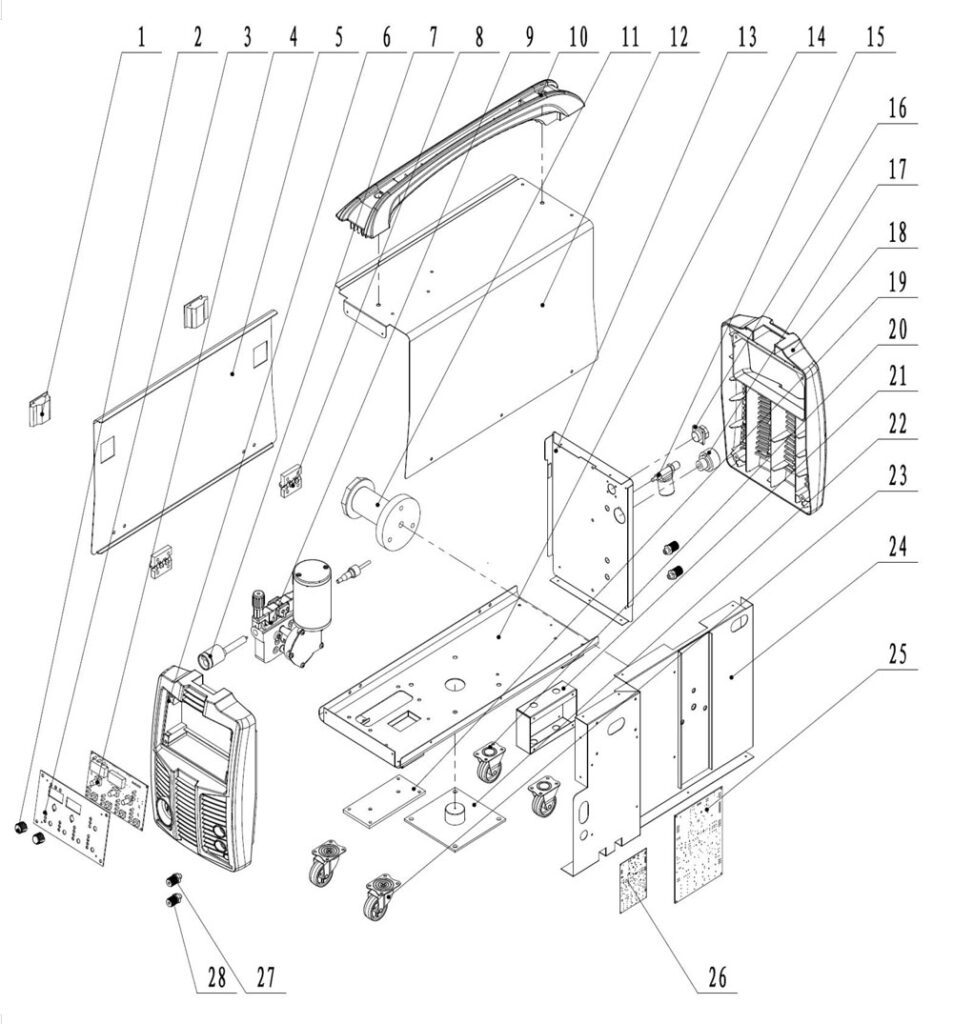

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0305014005S001
    • Power input cable
    • 1
    		—Pre-Order
    0305014005S002
    • Main power switch
    • 2
    		—Pre-Order
    0305014005S003
    • Back panel
    • 3
    		—Pre-Order
    0305014005S004
    • Water pressure sensor
    • 4
    		—Pre-Order
    0305014005S005
    • Plastic front/back panel
    • 5
    		—Pre-Order
    0305014005S006
    • Bracket for power cable
    • 6
    		—Pre-Order
    0305014005S007
    • Fan
    • 7
    		—Pre-Order
    0305014005S008
    • Metal shell
    • 8
    		—Pre-Order
    0305014005S009
    • Plastic handle
    • 9
    		—Pre-Order
    0305014005S010
    • Bracket for capacitor
    • 10
    		—Pre-Order
    0305014005S011
    • Power transformer
    • 11
    		—Pre-Order
    0305014005S012
    • Filtering capacitor
    • 12
    		—Pre-Order
    0305014005S013
    • EMI filter
    • 13
    		—Pre-Order
    0305014005S014
    • Mutual reactor
    • 14
    		—Pre-Order
    0305014005S015
    • Bracket for EMC filter
    • 15
    		—Pre-Order
    0305014005S016
    • Three phase rectifier
    • 16
    		—Pre-Order
    0305014005S017
    • Driving PCB
    • 17
    		—Pre-Order
    0305014005S018
    • NTC resistor
    • 18
    		—Pre-Order
    0305014005S019
    • IGBT busbar
    • 19
    		—Pre-Order
    0305014005S020
    • IGBT module
    • 20
    		—Pre-Order
    0305014005S021
    • Conversional PCB
    • 21
    		—Pre-Order
    0305014005S022
    • Main control PCB
    • 22
    		—Pre-Order
    0305014005S023
    • Bracket for fan
    • 23
    		—Pre-Order
    0305014005S024
    • Assembling panel
    • 24
    		—Pre-Order
    0305014005S025
    • Water control PCB
    • 25
    		—Pre-Order
    0305014005S026
    • Insulating frame for heat sink
    • 26
    		—Pre-Order
    0305014005S027
    • Heat sink
    • 27
    		—Pre-Order
    0305014005S028
    • Air channel
    • 28
    		—Pre-Order
    0305014005S029
    • Filtering reactor
    • 29
    		—Pre-Order
    0305014005S030
    • Main transformer
    • 30
    		—Pre-Order
    0305014005S031
    • Heat sink
    • 31
    		—Pre-Order
    0305014005S032
    • Insulating frame for heat sink
    • 32
    		—Pre-Order
    0305014005S033
    • Output inductance
    • 33
    		—Pre-Order
    0305014005S034
    • Bracket for heat sink
    • 34
    		—Pre-Order
    0305014005S035
    • Bracket for PCB
    • 35
    		—Pre-Order
    0305014005S036
    • Pump
    • 36
    		—Pre-Order
    0305014005S037
    • Output absorbing PCB
    • 37
    		—Pre-Order
    0305014005S038
    • Hall sensor
    • 38
    		—Pre-Order
    0305014005S039
    • Output busbar
    • 39
    		—Pre-Order
    0305014005S040
    • Rocker switch
    • 40
    		—Pre-Order
    0305014005S041
    • Front control PCB
    • 41
    		—Pre-Order
    0305014005S042
    • Potentiometer knob
    • 42
    		—Pre-Order
    0305014005S043
    • Connector for signal cable
    • 43
    		—Pre-Order
    0305014005S044
    • Bottom panel
    • 44
    		—Pre-Order
    0305014005S045
    • Euro quick connector
    • 45
    		—Pre-Order
    0305014005S046
    • Back wheel
    • 46
    		—Pre-Order
    0305014005S047
    • Front wheel
    • 47
    		—Pre-Order
