    WMEm 501 cc/cv + WFEm 4i + conn 10m

    SKU: 0315014030 Categories: ,

    WMEm 501 cc/cv + WFEm 4i + 10m connection is a machine designed for professional use, equipped with water cooling. The unit comes complete with a transport cart and a 10-meter connection cable. It also features a Synergic function.

    Advantages:

    • Premium welding behaviour – on CV MIG & Stick welding
    • Variable inductance control
    • Synergic capability
    • Job control – with limits secured by a password.
    • Continuous control of wire feed speed and voltage.
    • Easy-to-assemble cooling unit for
    • high current water-cooled applications
    • Easy-to-assemble trolley and wheel kits

    Standard equipment:

    • MIG TORCH: 3 m
    • CLAMP: Ø7
    • GAS HOSE: Ø5.5 x 8 (0.75m)
    • RETURN CABLE: 3 m

    Out of stock

    Add to compare
    Add to wishlist
    15 People watching this product now!

    Payment:

    Frequency (Hz)

    50/60
    Setting range (A)

    15-500
    Output max at 100% duty cycle, (MIG)

    387 A/33,4 V
    Output max at 100% duty cycle, (MMA)

    380 A/35,2 V
    Output max at 100% duty cycle, (TIG)

    380 A/25,2 V
    Open circuit voltage (V)

    65
    Electrode diameter (mm)

    1,6-4,0

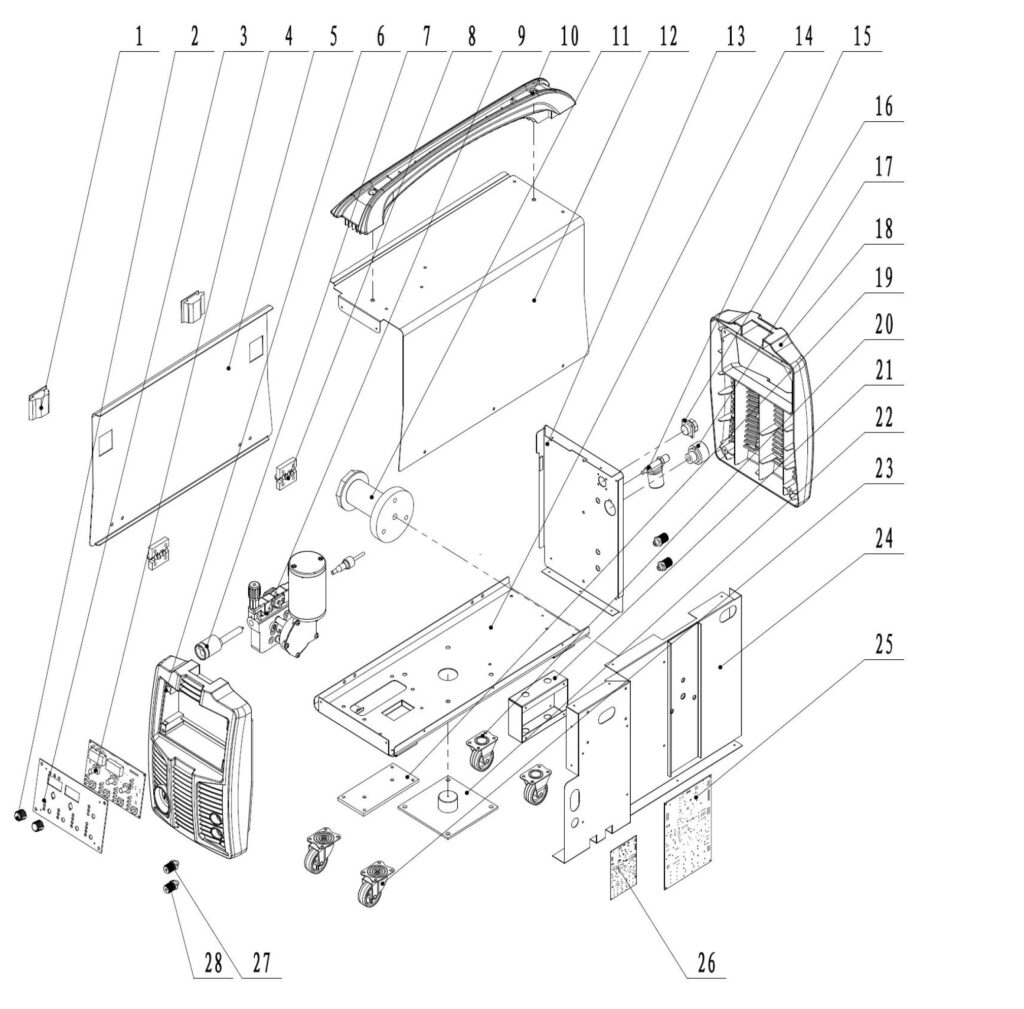

    PDF Spear Parts

    REM Code Name Position Stock Order
    11010011181
    • Case of wire feeder
    • 12
    		Pre-Order
    11010030630
    • Rear panel of wire feeder
    • 13
    		Pre-Order
    11010040884
    • Wire feeder chassis
    • 14
    		Pre-Order
    11010060761
    • Fixed bushing welding
    • 22
    		Pre-Order
    11020011997
    • Wire feeder turning plate
    • 5
    		Pre-Order
    11020014033
    • Support board
    • 3
    		Pre-Order
    11020014034
    • Medium plate wire feeder
    • 24
    		Pre-Order
    11020014035
    • Spot timer feeding board
    • 21
    		Pre-Order
    11020014382
    • Wire feeder plate
    • 19
    		Pre-Order
    11050070186
    • Control panel
    • 4
    		Pre-Order
    11050110550
    • Wire feeder board
    • 25
    		Pre-Order
    11050110745
    • Adapter plate
    • 26
    		Pre-Order
    12070024163
    • Harness of air valve
    • 15
    		Pre-Order
    12070024164
    • European torch socket harness
    • 7
    		Pre-Order
    20030301109
    • Wire feeder aviation socket harness
    • 16
    		Pre-Order
    20050050120
    • Spool holder
    • 11
    		Pre-Order
    20050050270
    • Door lock
    • 1
    		Pre-Order
    20050050427
    • Plastic panel/front
    • 6
    		Pre-Order
    20050050449
    • Plastic frame
    • 18
    		Pre-Order
    20050051024
    • Plastic handle
    • 10
    		Pre-Order
    20050070039
    • Wheel
    • 20
    		Pre-Order
    20050070040
    • Universal wheel
    • 23
    		Pre-Order
    20050170009
    • Plastic hinge
    • 8
    		Pre-Order
    20070110111
    • Potentiometer knob
    • 2
    		Pre-Order
    20070400405
    • Permanent magnet machine
    • 9
    		Pre-Order
    20070570062
    • Quick socket
    • 17
    		Pre-Order
    20070570403
    • Quick water outlet
    • 27
    		Pre-Order
    20070570404
    • Quick water outlet
    • 28
    		Pre-Order
    315014030SM01
    • Power input harness
    • 1
    		Pre-Order
    315014030SM02
    • Water flow detection harness
    • 2
    		Pre-Order
    315014030SM03
    • Universal change-over switch
    • 3
    		Pre-Order
    315014030SM04
    • Rear panel
    • 4
    		Pre-Order
    315014030SM05
    • Plastic panel/front and rear
    • 5
    		Pre-Order
    315014030SM06
    • Fan
    • 6
    		Pre-Order
    315014030SM07
    • Main engine cover
    • 7
    		Pre-Order
    315014030SM08
    • Wire feeder fixed plate
    • 8
    		Pre-Order
    315014030SM09
    • Wire feeder fixed shaft
    • 9
    		Pre-Order
    315014030SM10
    • Capacitor fixing plate
    • 10
    		Pre-Order
    315014030SM11
    • Power transformer
    • 11
    		Pre-Order
    315014030SM12
    • Filter capacitance
    • 12
    		Pre-Order
    315014030SM13
    • EMI filter
    • 13
    		Pre-Order
    315014030SM14
    • Transformer harness
    • 14
    		Pre-Order
    315014030SM15
    • Filter fixing plate
    • 15
    		Pre-Order
    315014030SM16
    • Handle
    • 16
    		Pre-Order
    315014030SM17
    • Three phase rectifier bridge
    • 17
    		Pre-Order
    315014030SM18
    • Driver plate
    • 18
    		Pre-Order
    315014030SM19
    • NTC resistance harness
    • 19
    		Pre-Order
    315014030SM20
    • IGBT busbar 1
    • 20
    		Pre-Order
    315014030SM21
    • IGBT module
    • 21
    		Pre-Order
    315014030SM22
    • Tank control panel
    • 22
    		Pre-Order
    315014030SM23
    • Main control PCB
    • 23
    		Pre-Order
    315014030SM24
    • Fan fixing plate
    • 24
    		Pre-Order
    315014030SM25
    • Radiator insulating plate
    • 25
    		Pre-Order
    315014030SM26
    • Mounting plate
    • 26
    		Pre-Order
    315014030SM27
    • Radiator
    • 27
    		Pre-Order
    315014030SM28
    • Filter inductance/2
    • 28
    		Pre-Order
    315014030SM29
    • Main transformer
    • 29
    		Pre-Order
    315014030SM30
    • Left and right windshield
    • 30
    		Pre-Order
    315014030SM31
    • Radiator
    • 31
    		Pre-Order
    315014030SM32
    • Fast recovery radiator insulation board
    • 32
    		Pre-Order
    315014030SM33
    • Fast recovery radiator support
    • 33
    		Pre-Order
    315014030SM34
    • Output reactor assembly
    • 34
    		Pre-Order
    315014030SM35
    • Printing board support board
    • 35
    		Pre-Order
    315014030SM36
    • Output absorber plate
    • 36
    		Pre-Order
    315014030SM37
    • Hall harness
    • 37
    		Pre-Order
    315014030SM38
    • Output busbar
    • 38
    		Pre-Order
    315014030SM39
    • Mode switching harness
    • 39
    		Pre-Order
    315014030SM40
    • Control panel
    • 40
    		Pre-Order
    315014030SM41
    • Potentiometer knob
    • 41
    		Pre-Order
    315014030SM42
    • Bottom panel
    • 42
    		Pre-Order
    315014030SM43
    • Quick socket
    • 43
    		Pre-Order
    315014030SM44
    • Aviation socket wiring harness
    • 44
    		Pre-Order
    315014030SM45
    • Water tank connecting plate
    • 45
    		Pre-Order
    315014030SM46
    • Host connecting board
    • 46
    		Pre-Order
    315014030SM47
    • Water tank top cover welding
    • 47
    		Pre-Order
    315014030SM48
    • Tank right panel
    • 48
    		Pre-Order
    315014030SM49
    • Water pump harness
    • 49/50
    		Pre-Order
    315014030SM51
    • Tank support plate
    • 51
    		Pre-Order
    315014030SM52
    • Water tank bucket
    • 52
    		Pre-Order
    315014030SM53
    • Plastic frame
    • 53
    		Pre-Order
    315014030SM54
    • Bucket support
    • 54
    		Pre-Order
    315014030SM55
    • Rocker switch
    • 55
    		Pre-Order
    315014030SM56
    • Fuse holder
    • 56
    		Pre-Order
    315014030SM57
    • Tank chassis welding
    • 57
    		Pre-Order
    315014030SM58
    • Trolley chassis welding
    • 58
    		Pre-Order
    315014030SM59
    • Tank left panel
    • 59
    		Pre-Order
    315014030SM60
    • Universal wheel
    • 60
    		Pre-Order
    315014030SM61
    • Iron core rubber wheel
    • 61
    		Pre-Order
    315014030SM62
    • Gas cylinder support
    • 62
    		Pre-Order
    315014030SM63
    • Heat sink strip
    • 63
    		Pre-Order
    315014030SM64
    • Tank rear panel
    • 64
    		Pre-Order
    315014030SM65
    • Quick water outlet
    • 65
    		Pre-Order
    315014030SM66
    • Quick water outlet
    • 66
    		Pre-Order
    315014030SM67
    • Water flow switch harness
    • 67
    		Pre-Order
    315014030SM68
    • Power input harness
    • 68
    		Pre-Order
    315014030SM69
    • Accessories hanging rack
    • 69
    		Pre-Order
    315014030SM70
    • Water pump power supply harness 1
    • 70
    		Pre-Order
    315014030SM71
    • Adapter plate
    • 71
    		Pre-Order
    315014030SM72
    • Clamping plate
    • 72
    		Pre-Order

    Product Data

    CE declaration

    EN user manual
