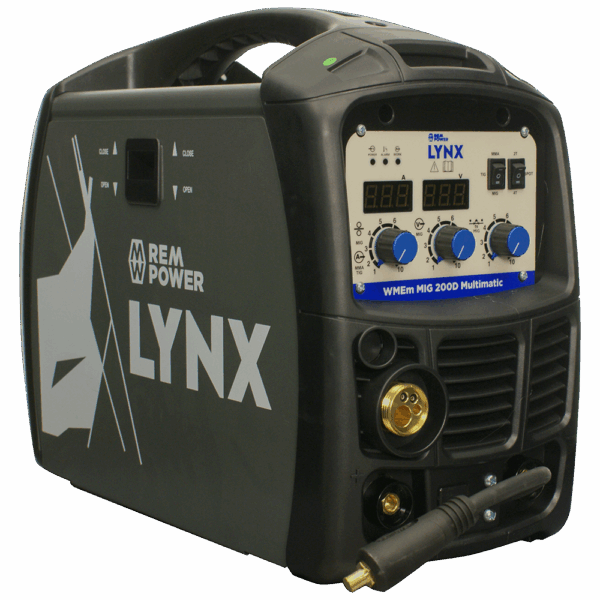

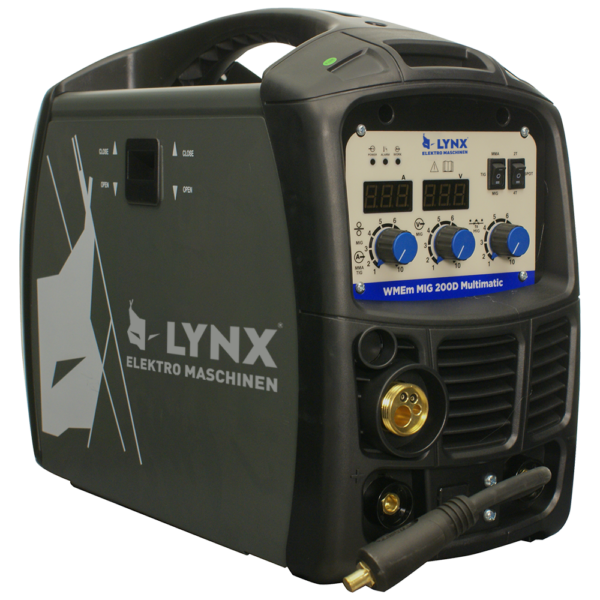

WMEm MIG 200D
WMEm MIG 200D
Click to enlarge

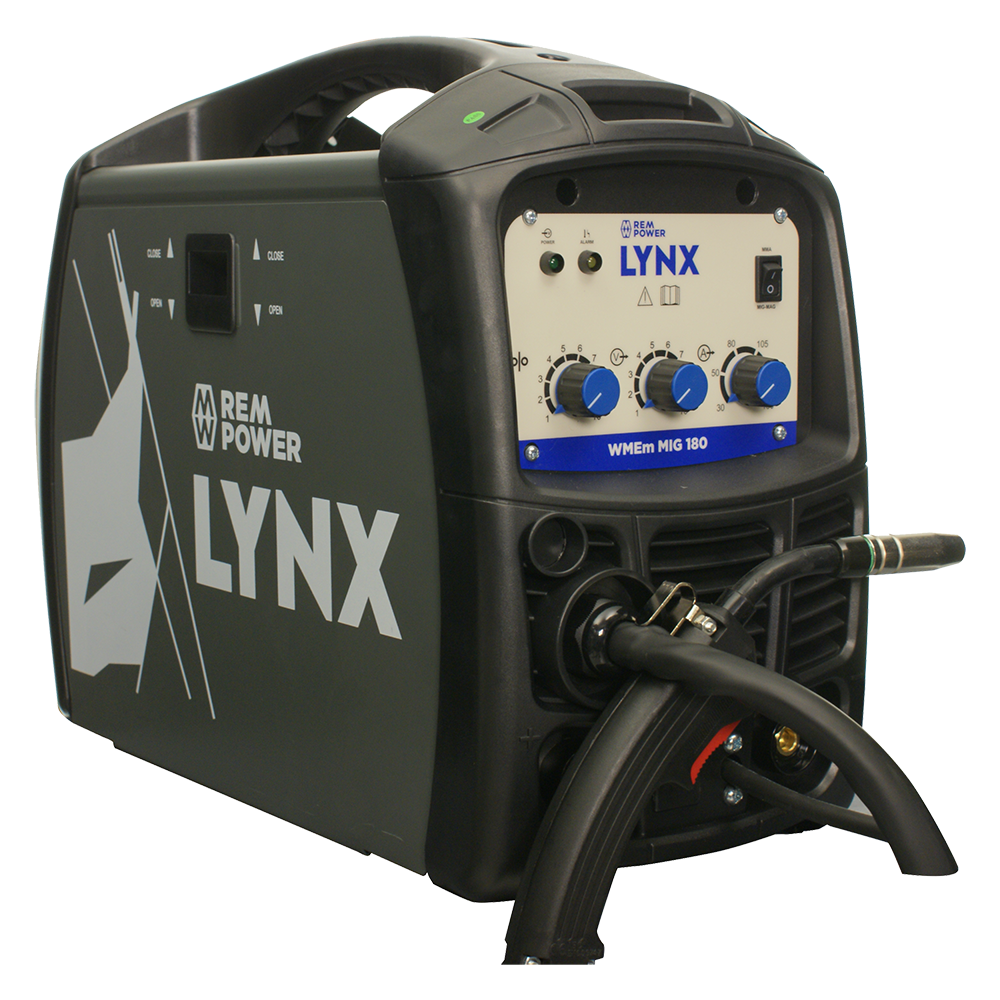

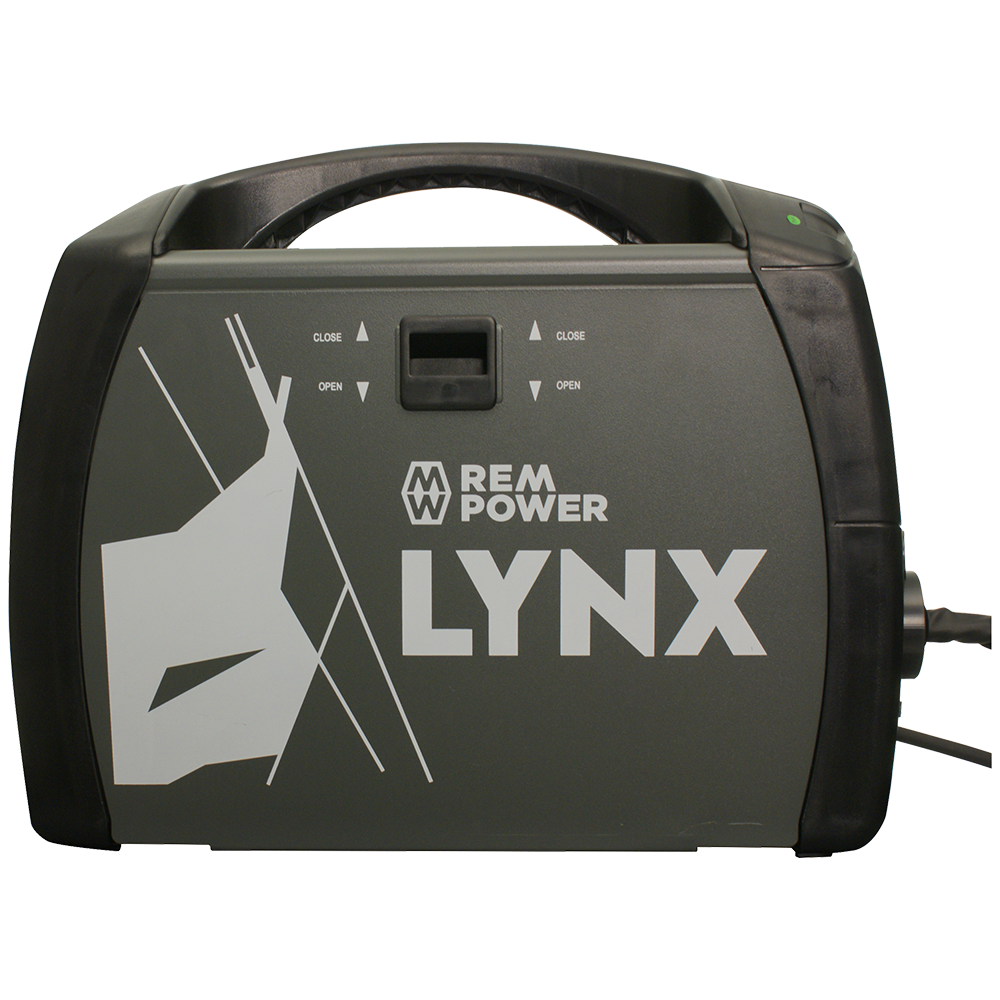

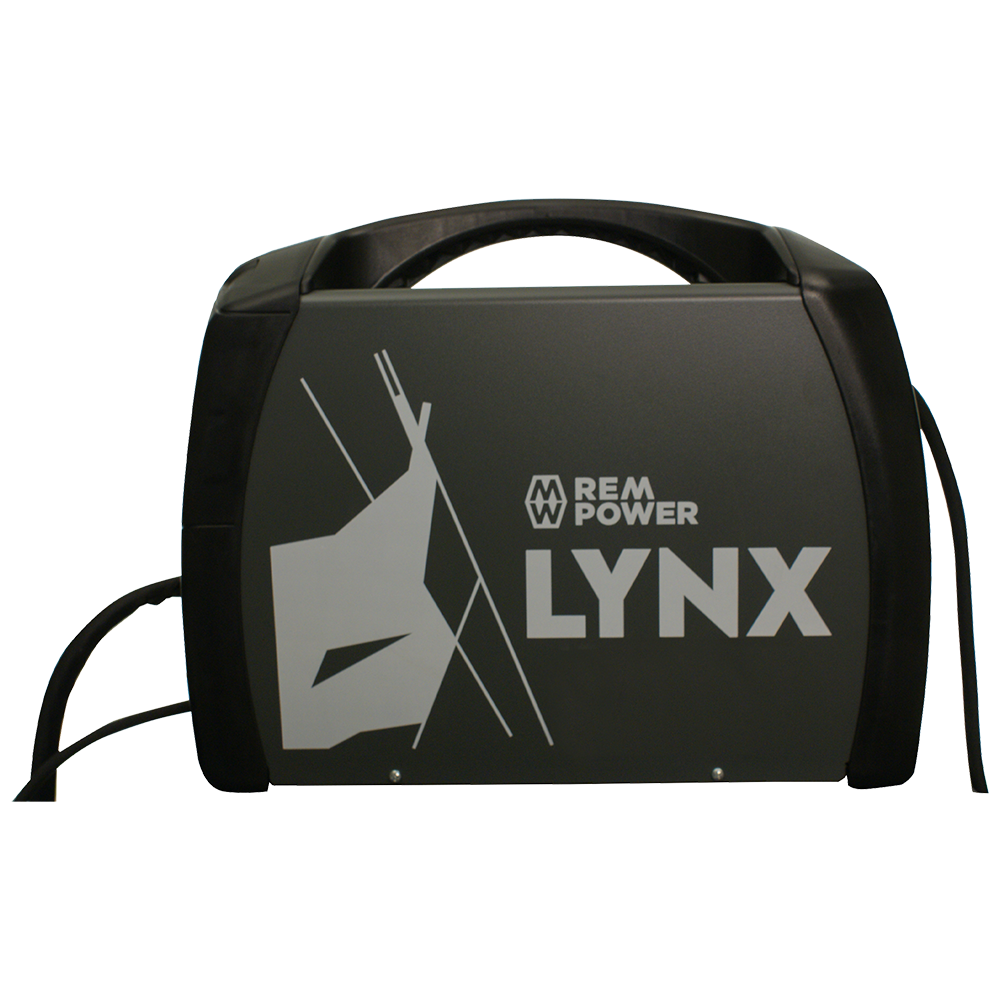

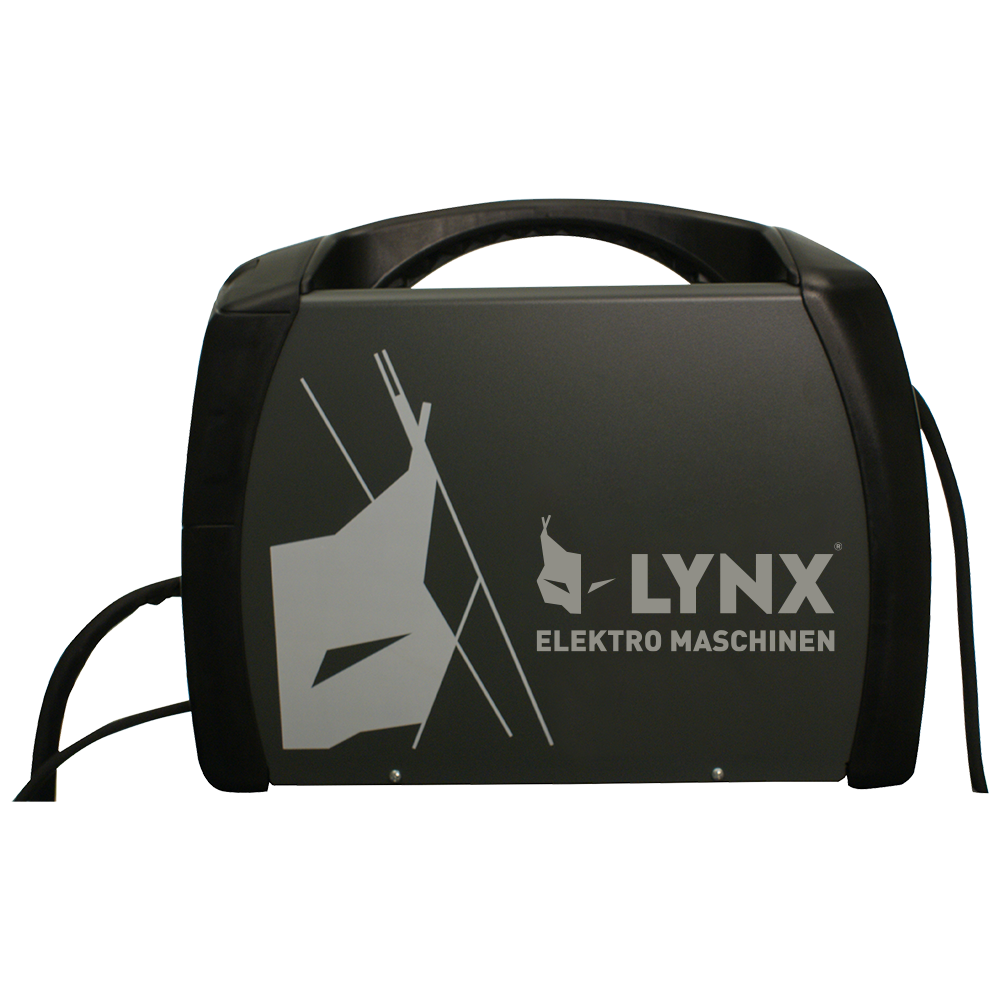

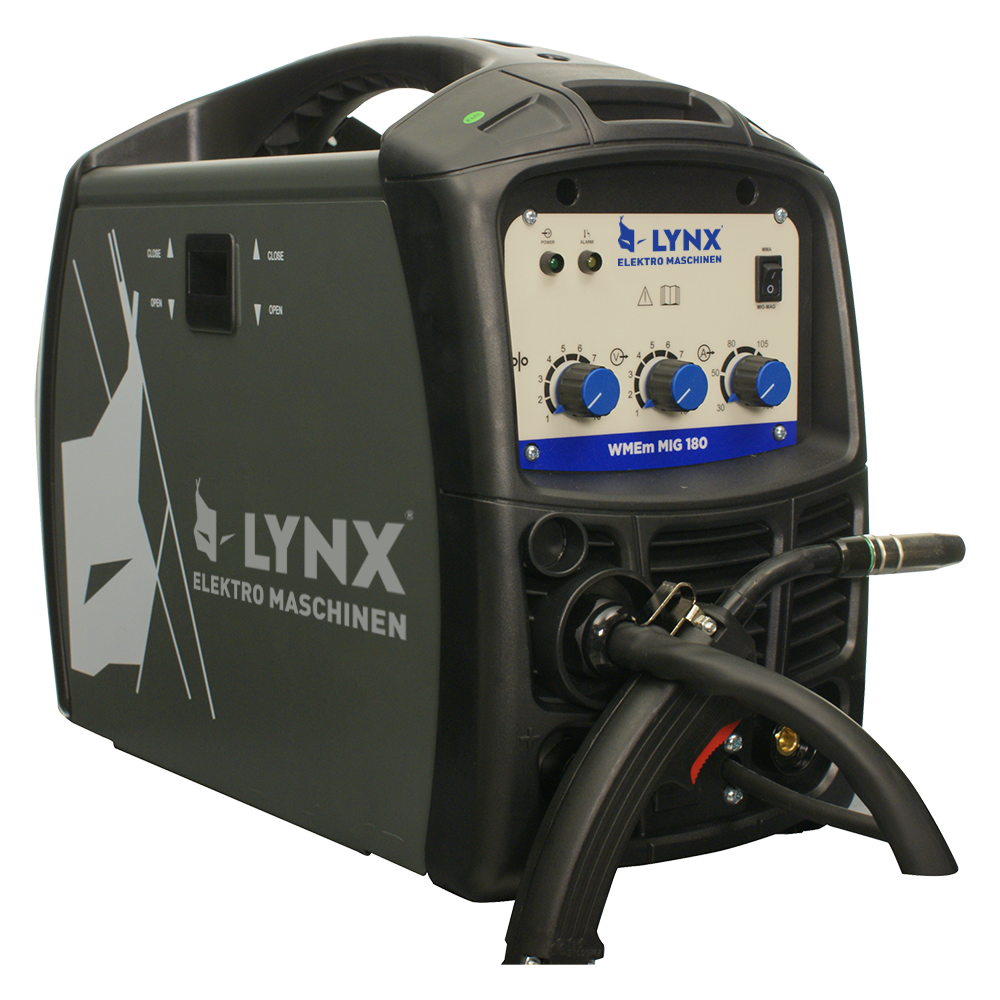

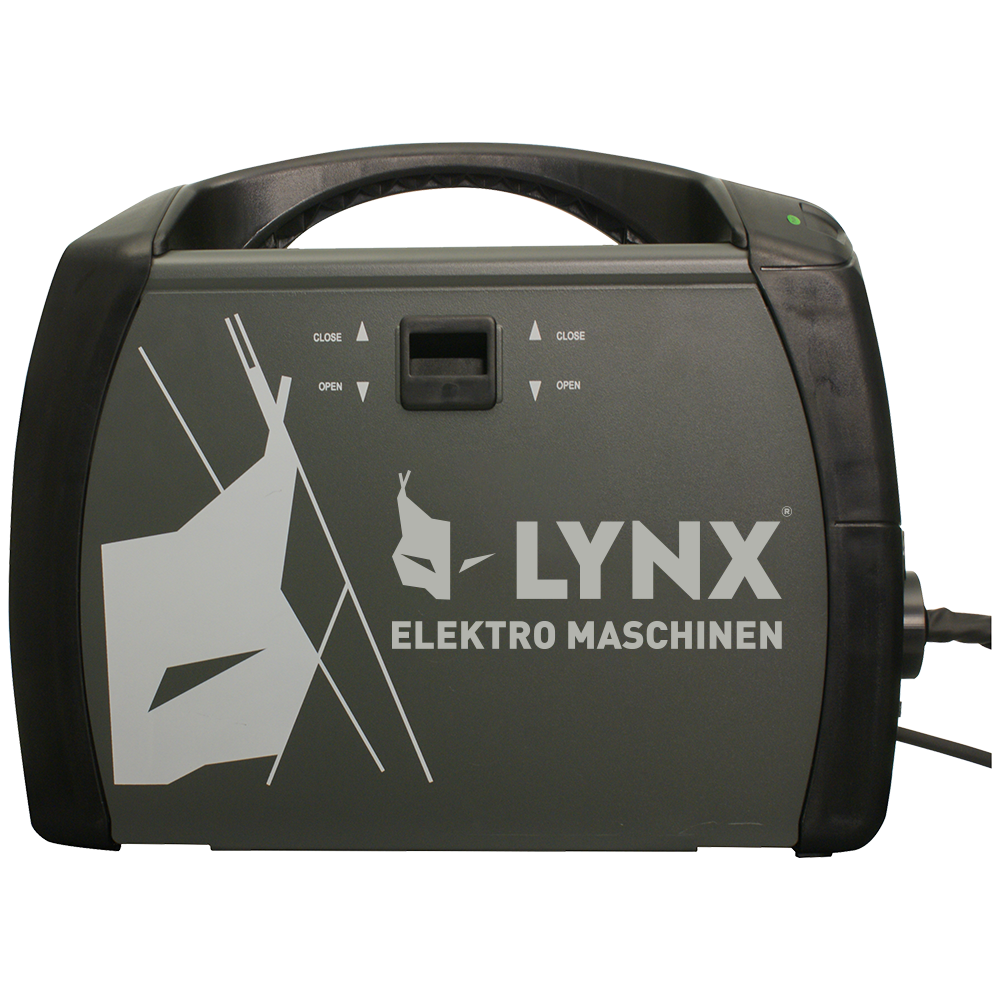

    WMEm MIG 180 Series II

    SKU: 0311802503 Categories: ,

    WMEm MIG 180 Series II is a machine designed for professional use, offering both MIG and MMA welding capabilities. It can operate with wire from 0.6 to 0.8 mm and electrodes up to 3.2 mm.

    Advantages:

    • Compact and portable inverter for MIG welding
    • Durable and impact resistence design
    • Fix mounted cables with polarity change possibility (FLUX welding)
    • Easy to operate – only current setting needed
    • LED indicator for power and failure indication
    • Welds wire from ø 0,6 – 1,0 mm
    • Capable to work on generator power source
    • Termal protection / Over voltage protection

    Standard equipment:

    • Welding cable with torch 2,7m

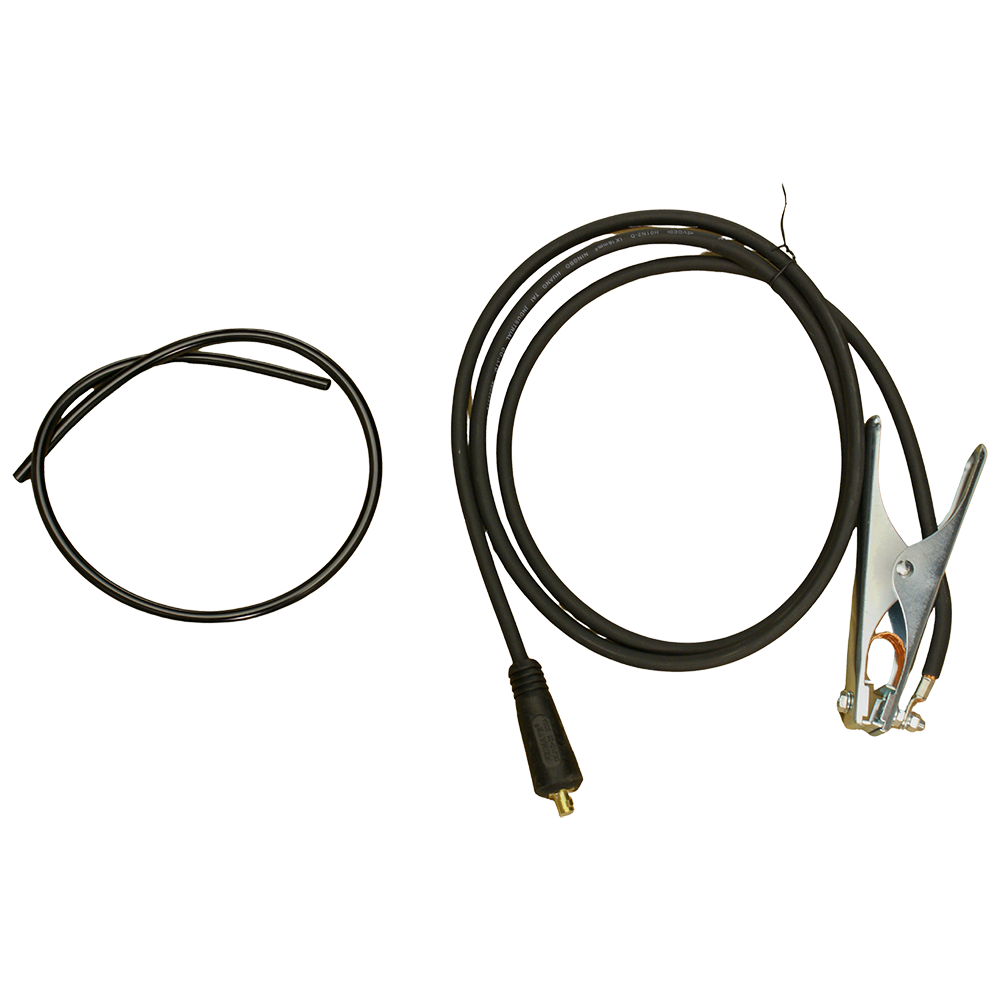

    • Returne cable kit (16 mm2) 2,1m
    • Gas hose ø 5,5 x 8 mm
    • Clamp ø 7 mm 2 pcs

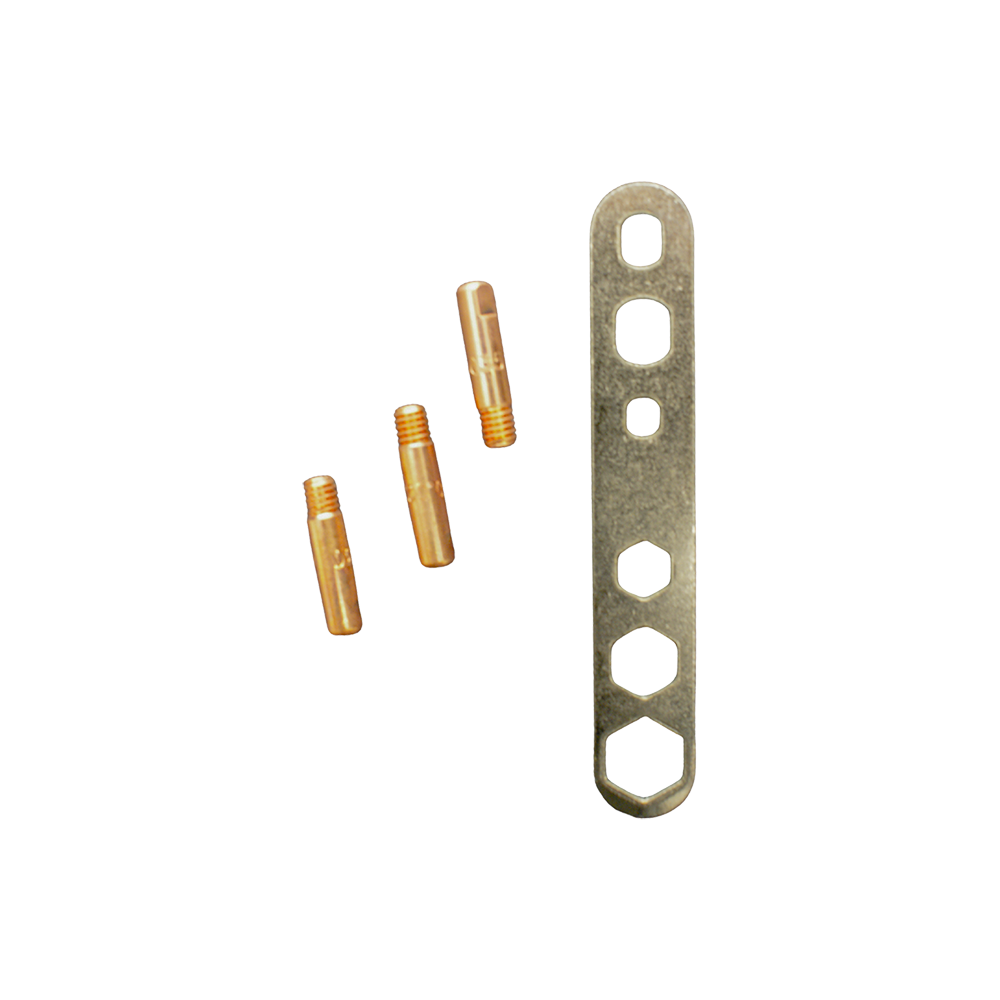

    • Tip ø 0,6; 0,8; 0,9

    In stock

    Add to compare
    Add to wishlist
    11 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    68
    Max. outputs at 100% duty cycle, (MIG) (А)

    80
    Max. outputs at 100% duty cycle, (MMA) (А)

    67
    Max. outputs at 60% duty cycle, (MIG) (А)

    104
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    150
    Min. welding current, (MMA) (А)

    30
    Max wire Ø, unall. solid (mm)

    1

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0311802503S001
    • handle
    • 1
    		1.78 €Pre-Order
    0311802503S002
    • enclosure
    • 2
    		11.83 €Pre-Order
    0311802503S003
    • power line
    • 3
    		16.00 €Pre-Order
    0311802503S004
    • solenoid valve
    • 4
    		0.78 €Pre-Order
    0311802503S005
    • Rocker Switch
    • 5
    		1.51 €Pre-Order
    0311802503S006
    • back panel
    • 6
    		4.89 €Pre-Order
    0311802503S007
    • Fan support
    • 7
    		0.43 €Pre-Order
    0311802503S008
    • fan
    • 8
    		6.63 €Pre-Order
    0311802503S009
    • main control board
    • 9
    		201.84 €Pre-Order
    0311802503S010
    • Emc board
    • 10
    		16.61 €Pre-Order
    0311802503S011
    • control board
    • 11
    		28.58 €Pre-Order
    0311802503S012
    • median septum
    • 12
    		5.01 €Pre-Order
    0311802503S013
    • wire feeder
    • 13
    		7.74 €Pre-Order
    0311802503S014
    • baseboard
    • 14
    		4.37 €Pre-Order
    0311802503S015
    • wire feeder support
    • 15
    		0.00 €Pre-Order
    0311802503S016
    • torch socket
    • 16
    		0.00 €Pre-Order
    0311802503S017
    • front panel
    • 17
    		5.98 €Pre-Order
    0311802503S018
    • polarity conversion cable
    • 18
    		4.62 €Pre-Order
    0311802503S019
    • Euro quick socket
    • 19
    		0.95 €Pre-Order
    0311802503S020
    • Ground cable
    • 20
    		0.00 €Pre-Order
    0311802503S021
    • MIG gun
    • 21
    		39.05 €Pre-Order
    0311802503S022
    • Contact tube
    • 22
    		0.00 €Pre-Order
    0311802503S023
    • nozzle
    • 23
    		0.00 €Pre-Order
    0311802503S024
    • Welding mode change-over switch
    • 24
    		0.93 €Pre-Order
    0311802503S025
    • Potentiometer knob
    • 25
    		0.23 €Pre-Order
    0311802503S026
    • Panel support panel
    • 26
    		2.66 €Pre-Order
    0311802503S027
    • Wire potentiometer wire harness
    • 27
    		0.95 €Pre-Order
    0311802503S028
    • Welding voltage potentiometer wire harness
    • 28
    		1.13 €Pre-Order
    0311802503S029
    • Lamp holder
    • 29
    		0.06 €Pre-Order
    0311802503S030
    • side panel
    • 30
    		11.83 €Pre-Order
    0311802503S031
    • spool holder
    • 31
    		0.85 €Pre-Order
    0311802503S032
    • door latch
    • 32
    		0.29 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products
    Add to compare
    Quick view
    Add to wishlist

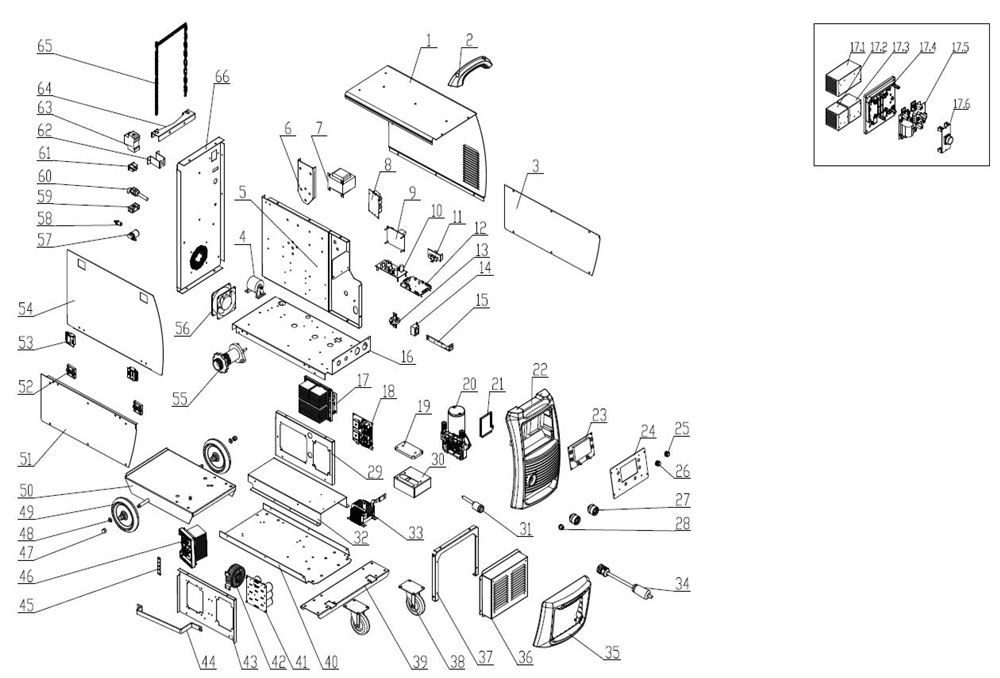

    WMEm MIG 250Di

    ,
