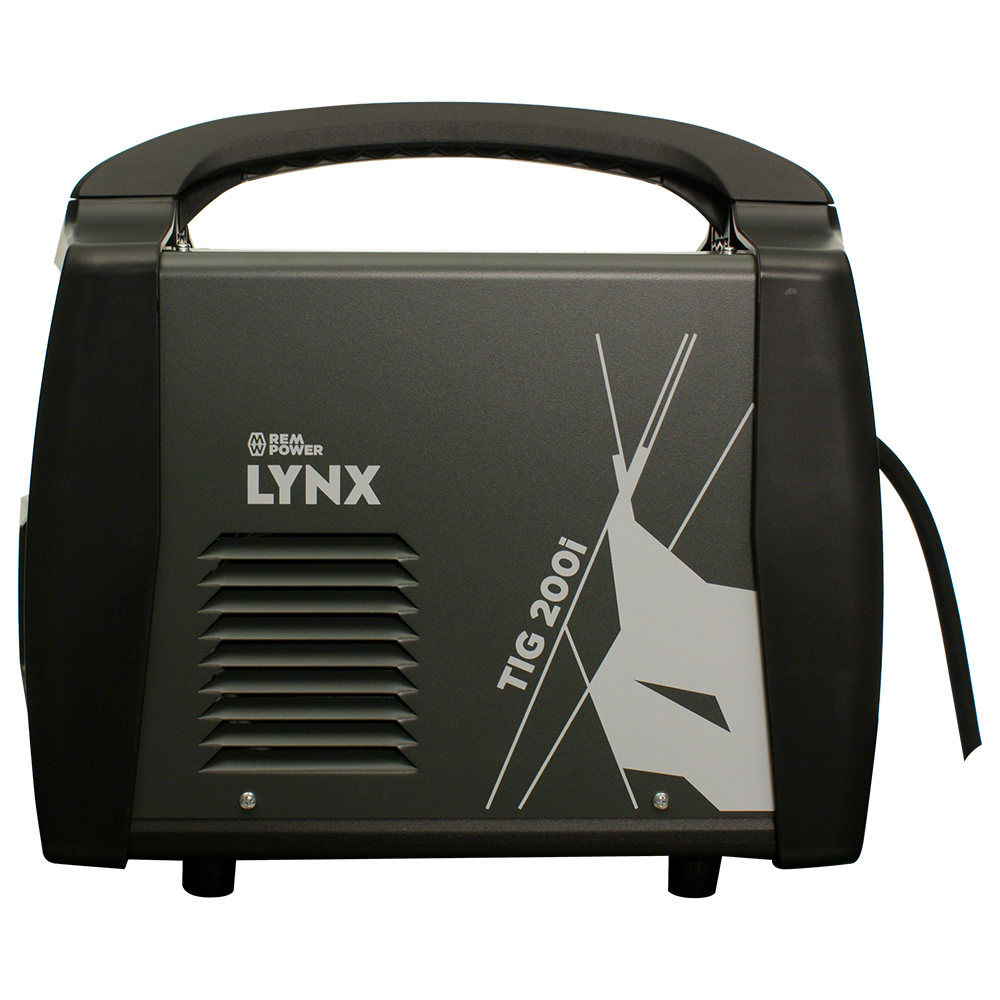

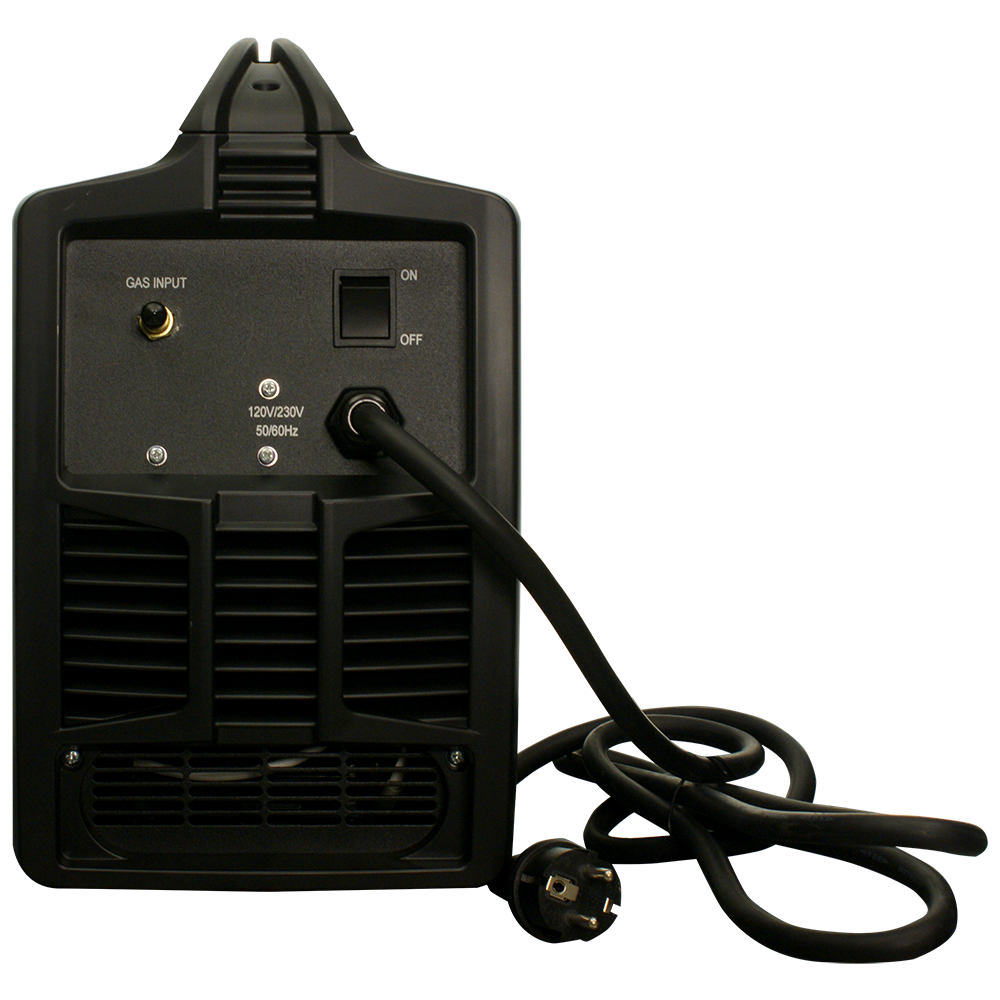

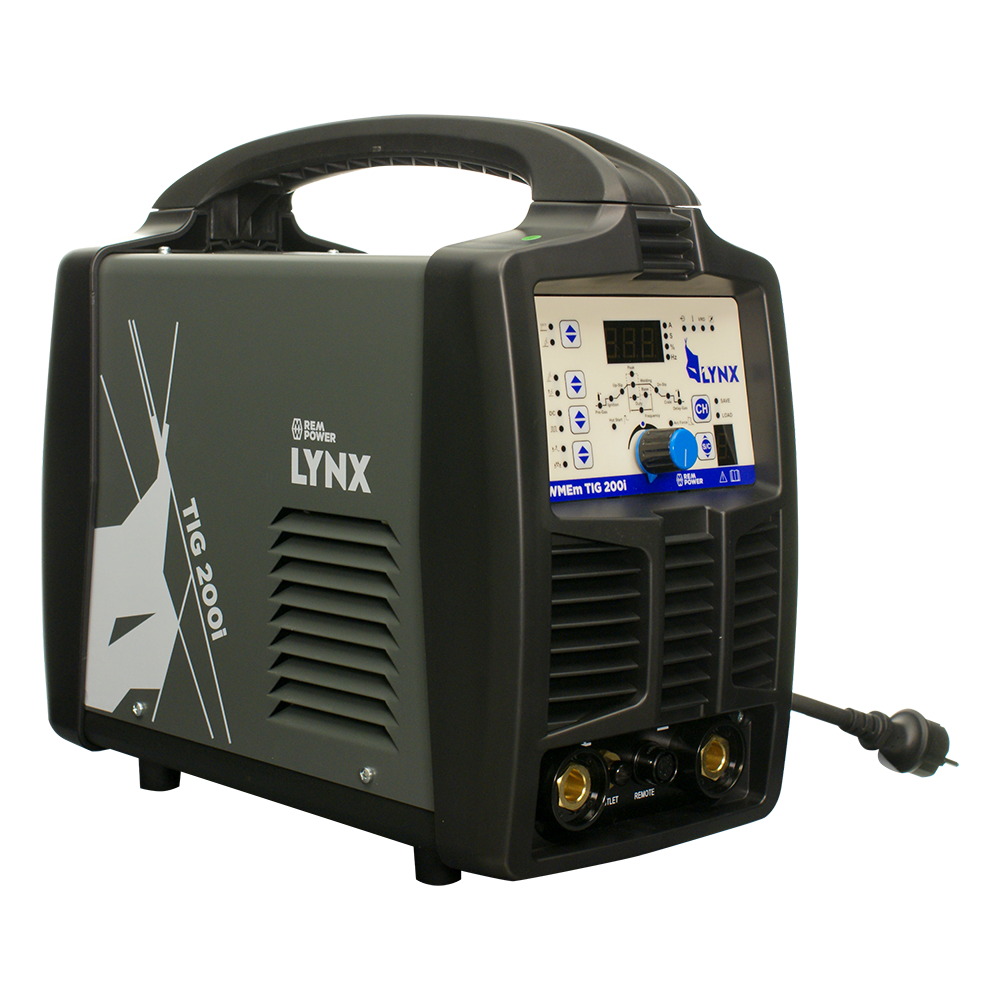

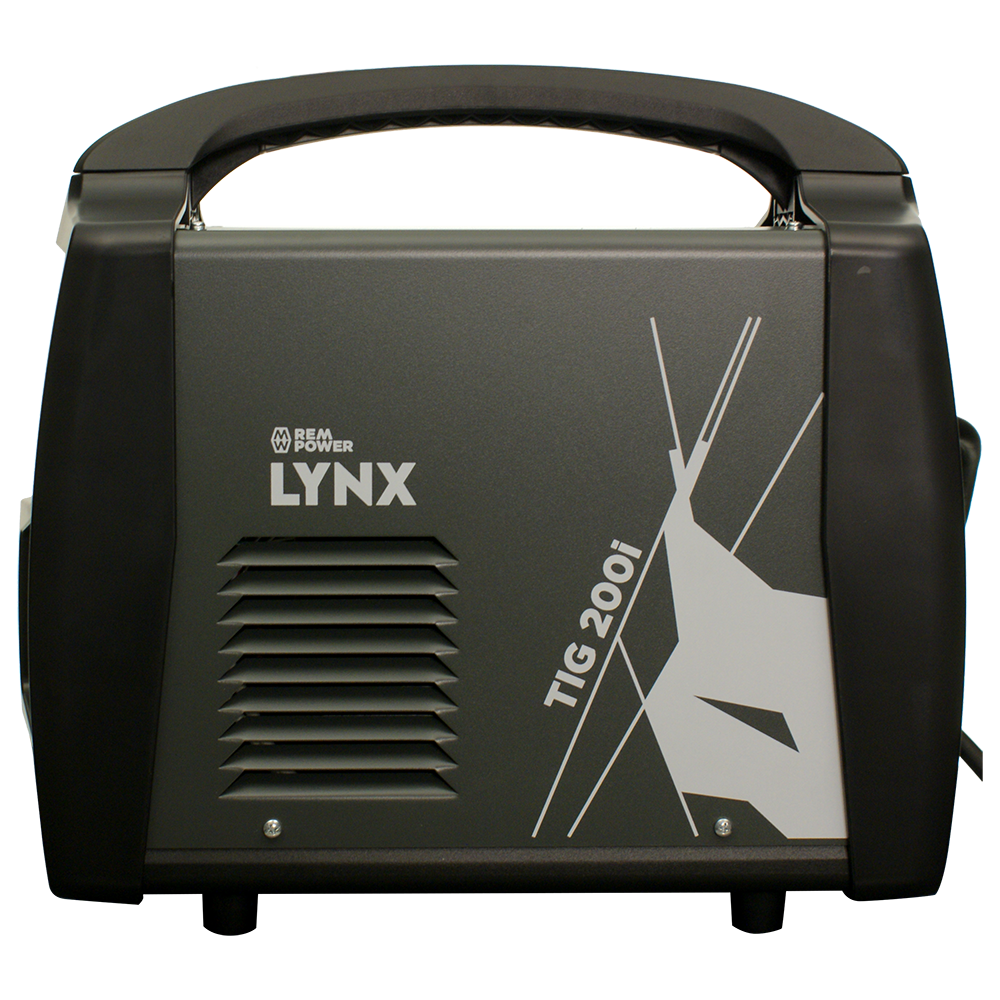

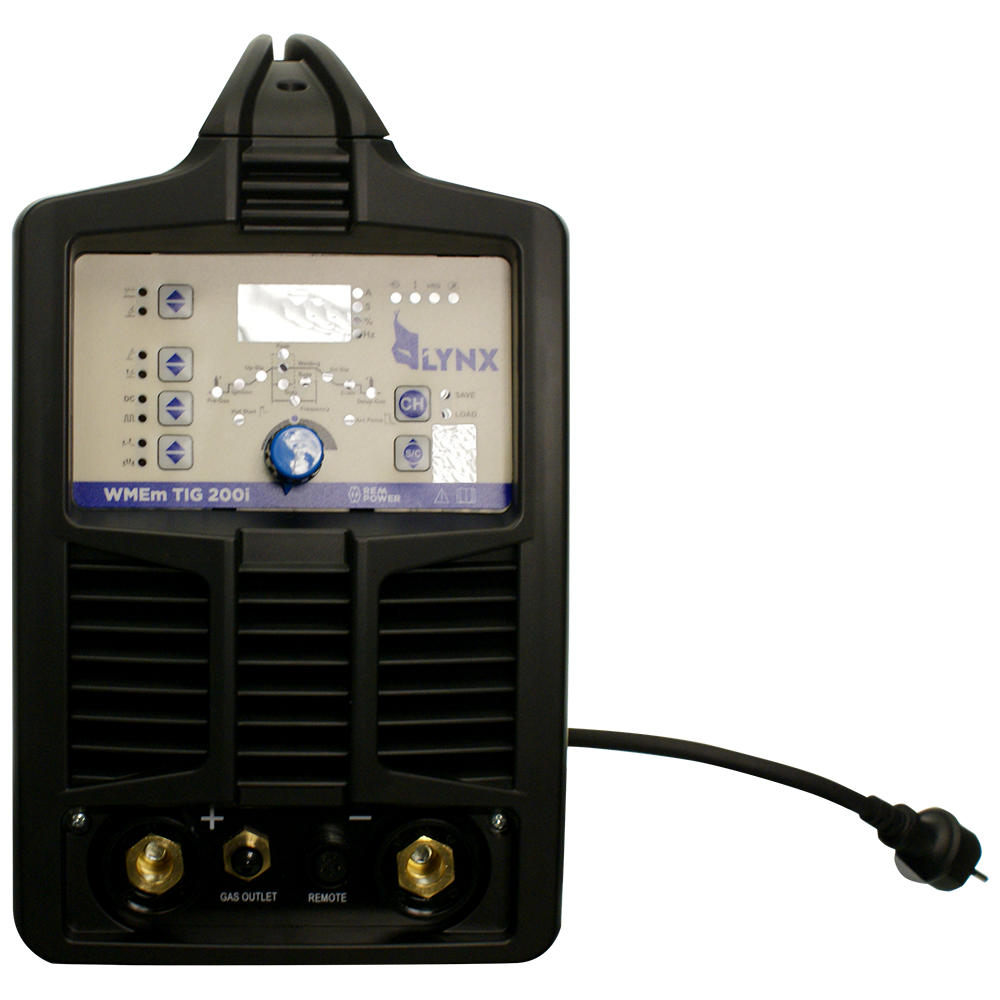

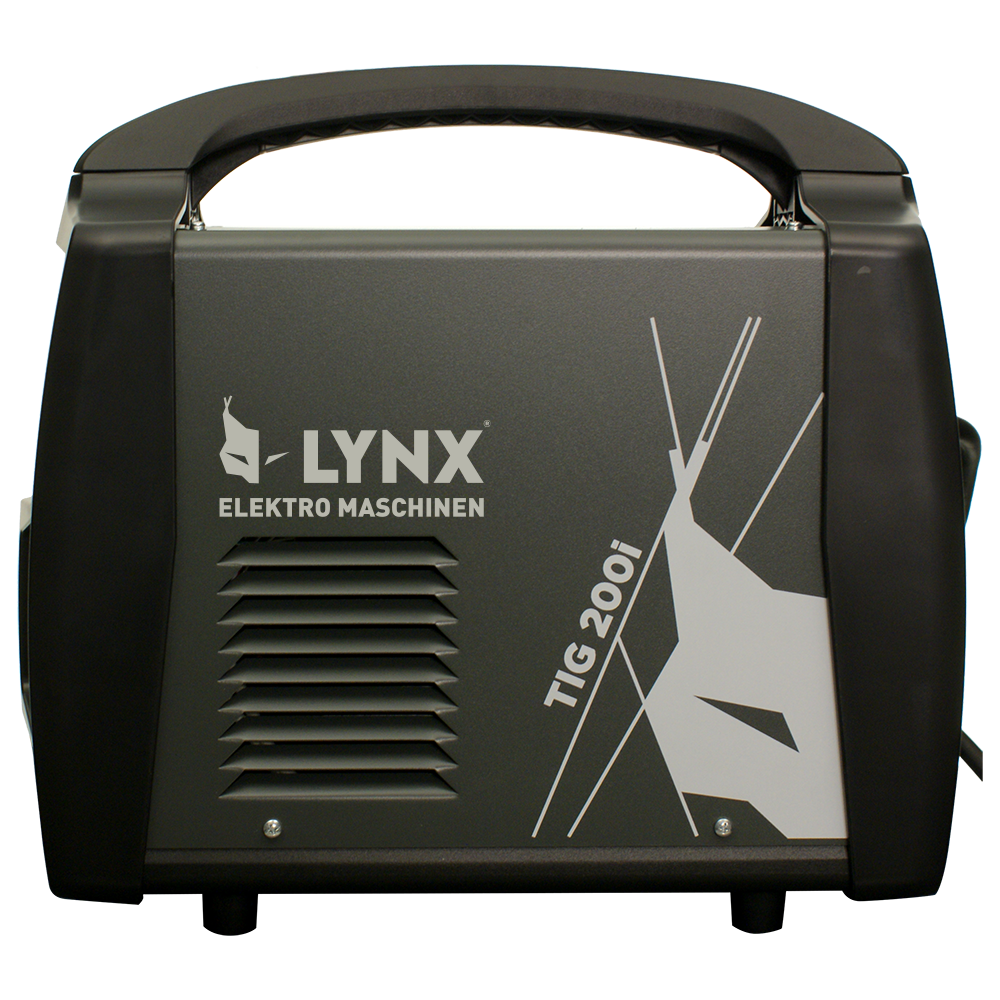

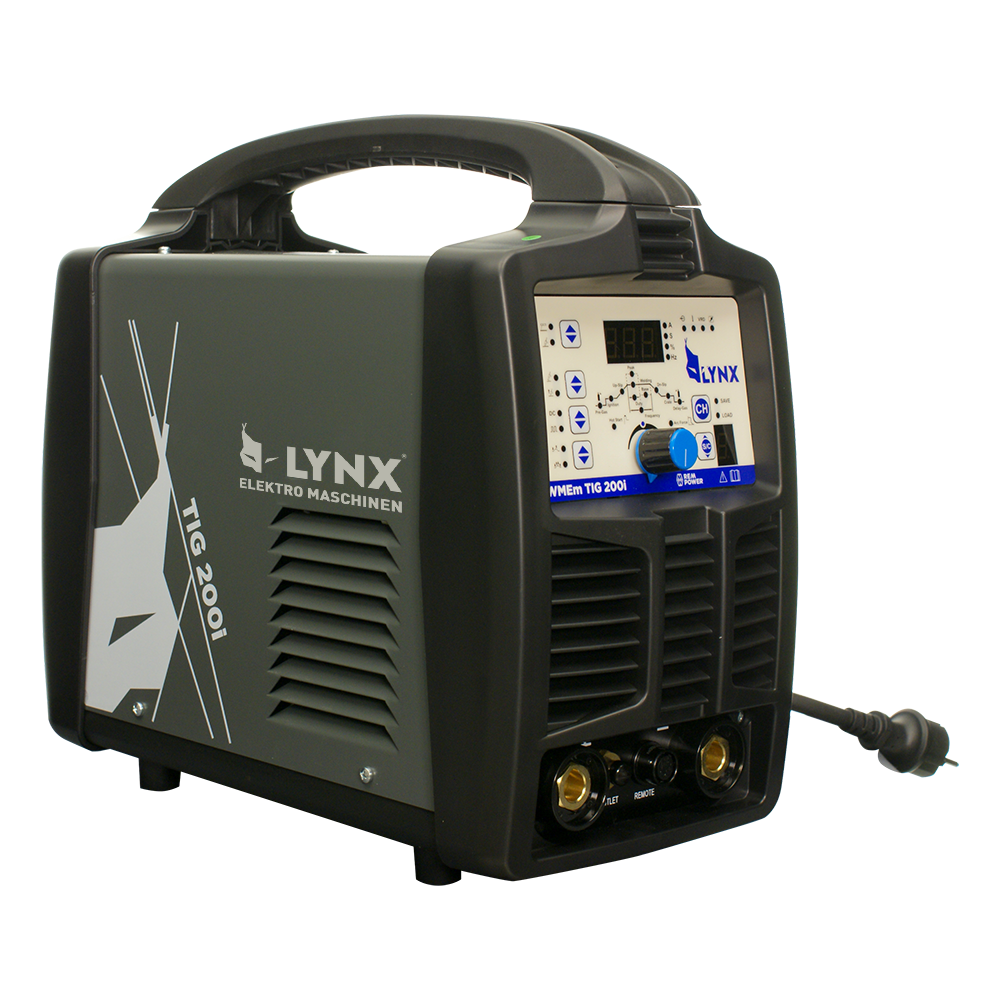

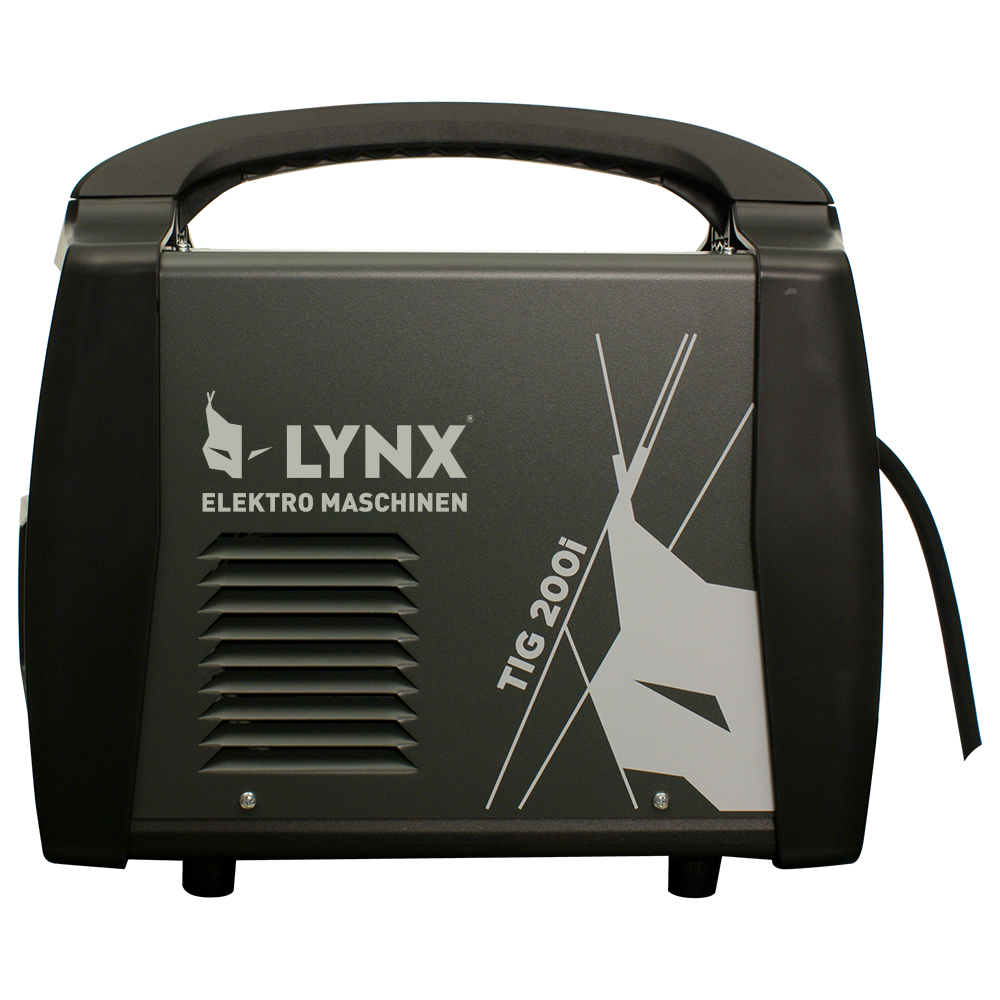

WMEm TIG 200i Lynx
WMEm TIG 200i is TIG welding inverter, it is capable to work TIG and MMA welding, portable and easy to work with. Can work on generator. Strong and durable design. Have TIG pulse function. PFC tehnology
• Compact and portable digital inverter for TIG welding with HF or Lift arc start and MMA
• Self-saving and recalling function on welding data
• PFC technology
• Durable and impact resistance design
• Single knob and contact control panel, precise and adjustable welding data, easy to operate
• Welds electrodes from ø 1,6 – 4,0 mm
• Capable to work on generator power source
• Over current protection / Over voltage protection
• Adjustable slope up/down and gas pre/post flow to control starts and avoid cracks and oxidation at the end
• Pulsed TIG welding
In stock
Payment:
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
180 |
| Max. outputs at 100% duty cycle, (TIG) (А) |
200 |
| Max. outputs at 30% duty cycle, (MMA) (А) |
180 |
| Max. outputs at 30% duty cycle, (TIG) (А) |
200 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
127 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
180 |
| Min. welding current, (MMA) (А) |
10 |
| Max. welding current, (TIG) (А) |
200 |
| Min. welding current, (TIG) (А) |
10 |
Related products
WMEm MIG 220 DI
Out of stock
| MAIN SUPPLY (V/Ph Hz) |
230/1 15% 50/60 |
|---|---|
| MAX. PRIMARY CURRENT (A) |
36 |
| SETTING RANGE (A) |
40-200 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MIG) A/V |
89/18,5 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V |
80/23,2 |
| MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V |
80/13,2 |
| RATED WORKING VOLTAGE (V) |
16-24 |
| OPEN CIRCUIT VOLTAGE (V) |
69 |
| POWER FACTOR AT MAX. CURRENT |
0,75 |
| EFFICIENCY (ŋ/%) |
85 |
| DIAMETER OF ELECTRODES (mm) |
1,6-4,0 |
| DIAMETER OF WIRE (mm) |
0,6-1,0 |
| PROTECTION CLASS |
IP21S |
| INSULATION CLASS |
H |
| DIMENSIONS (LxBxH cm) |
50x22x38 |
| WEIGHT (kg) |
20 |
WMEm MIG 200D
In stock
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
68 |
| Max. outputs at 100% duty cycle, (MIG) (А) |
77 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
66 |
| Max. outputs at 60% duty cycle, (MIG) (А) |
100 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
170 |
| Min. welding current, (MMA) (А) |
30 |
| Max wire Ø, unall. solid (mm) |
1 |

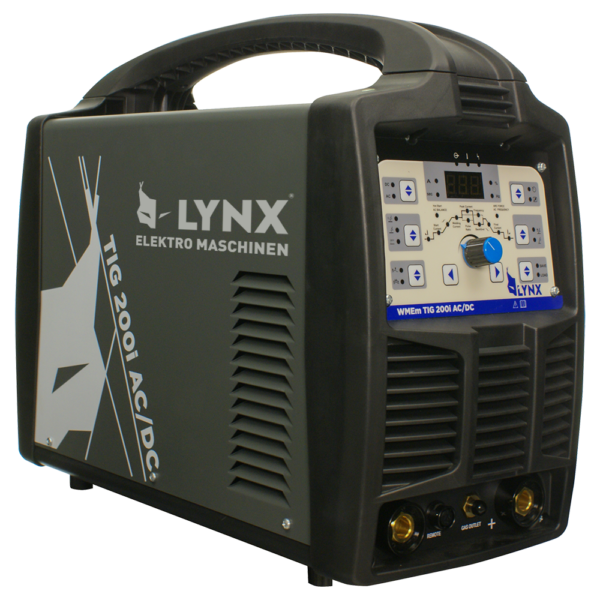

WMEm TIG 200i Lynx AC/DC
