Showing 1–12 of 19 resultsSorted by latest

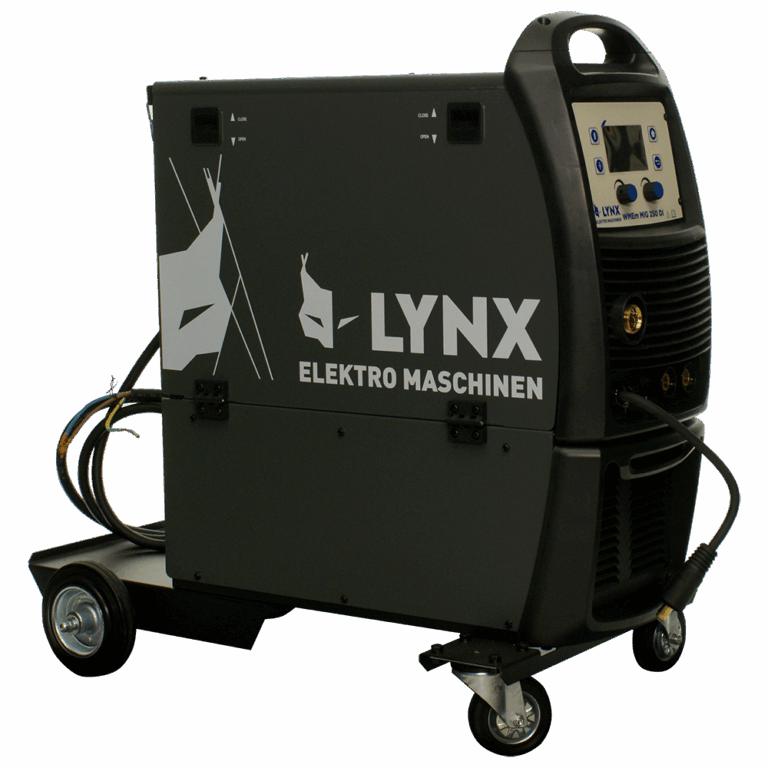

WMEm MIG 250Di
In stock
SKU:
312502001
| MAIN SUPPLY (V/Ph Hz) |
230/1 15% 50/60 |
|---|---|
| MAX. PRIMARY CURRENT (A) |
45 |
| SETTING RANGE (A) |
40-250 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MIG) A/V |
112/19,6 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V |
90/23,6 |
| MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V |
112/14,5 |
| RATED WORKING VOLTAGE (V) |
16-26,5 |
| OPEN CIRCUIT VOLTAGE (V) |
69 |
| POWER FACTOR AT MAX. CURRENT |
0,75 |
| EFFICIENCY (ŋ/%) |
85 |
| DIAMETER OF ELECTRODES (mm) |
1,6-4,0 |
| DIAMETER OF WIRE (mm) |
0,6-1,0 |
| PROTECTION CLASS |
IP21S |
| INSULATION CLASS |
H |
| DIMENSIONS (LxBxH cm) |
95x49x89 |
| WEIGHT (kg) |
50 |
WMEm MIG 220 DI
Out of stock
SKU:
312202001
| MAIN SUPPLY (V/Ph Hz) |
230/1 15% 50/60 |
|---|---|
| MAX. PRIMARY CURRENT (A) |
36 |
| SETTING RANGE (A) |
40-200 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MIG) A/V |
89/18,5 |
| MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V |
80/23,2 |
| MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V |
80/13,2 |
| RATED WORKING VOLTAGE (V) |
16-24 |
| OPEN CIRCUIT VOLTAGE (V) |
69 |
| POWER FACTOR AT MAX. CURRENT |
0,75 |
| EFFICIENCY (ŋ/%) |
85 |
| DIAMETER OF ELECTRODES (mm) |
1,6-4,0 |
| DIAMETER OF WIRE (mm) |
0,6-1,0 |
| PROTECTION CLASS |
IP21S |
| INSULATION CLASS |
H |
| DIMENSIONS (LxBxH cm) |
50x22x38 |
| WEIGHT (kg) |
20 |

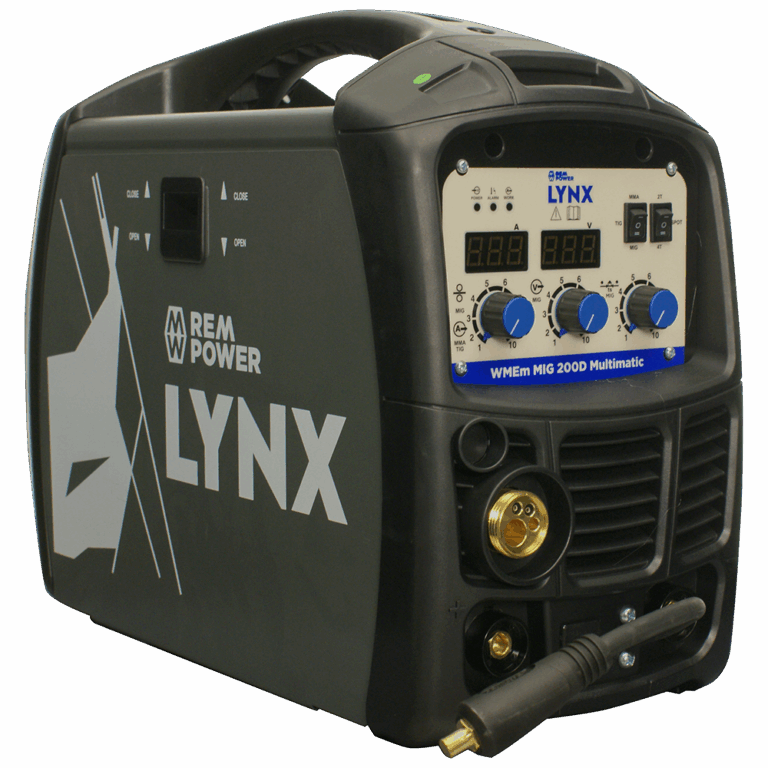

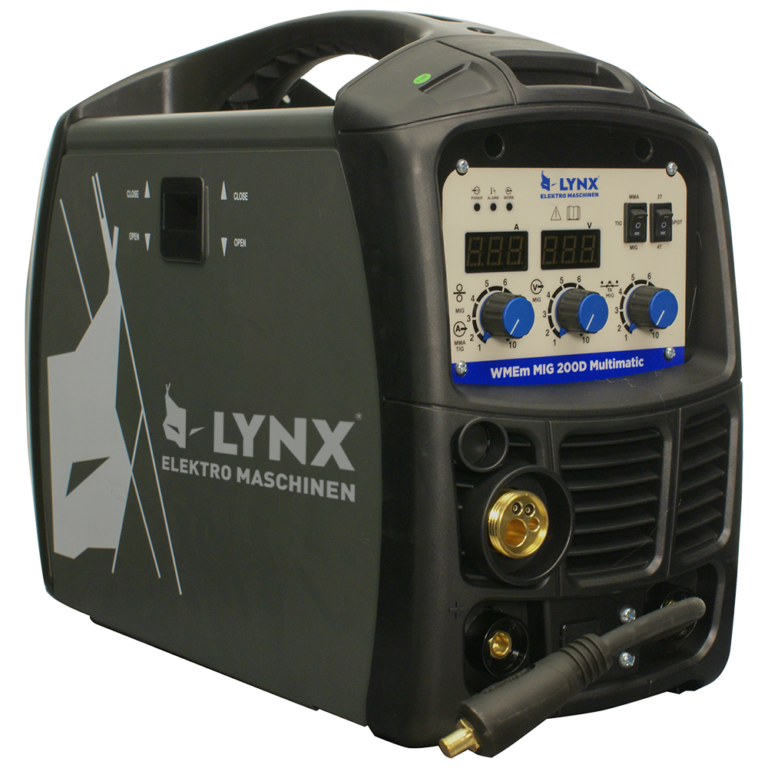

WMEm MIG 200D
In stock
SKU:
0312002502
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
68 |
| Max. outputs at 100% duty cycle, (MIG) (А) |
77 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
66 |
| Max. outputs at 60% duty cycle, (MIG) (А) |
100 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
170 |
| Min. welding current, (MMA) (А) |
30 |
| Max wire Ø, unall. solid (mm) |
1 |

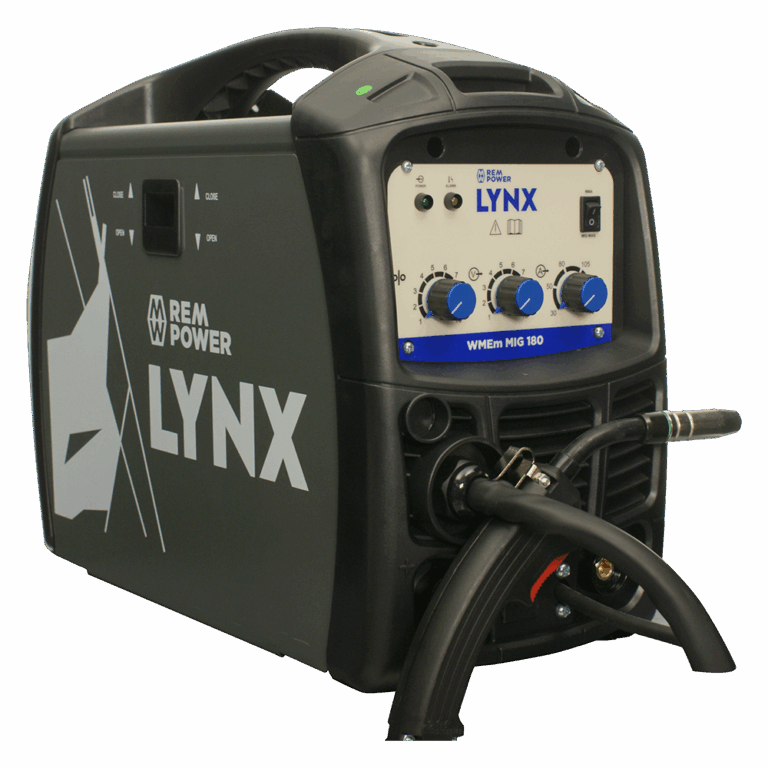

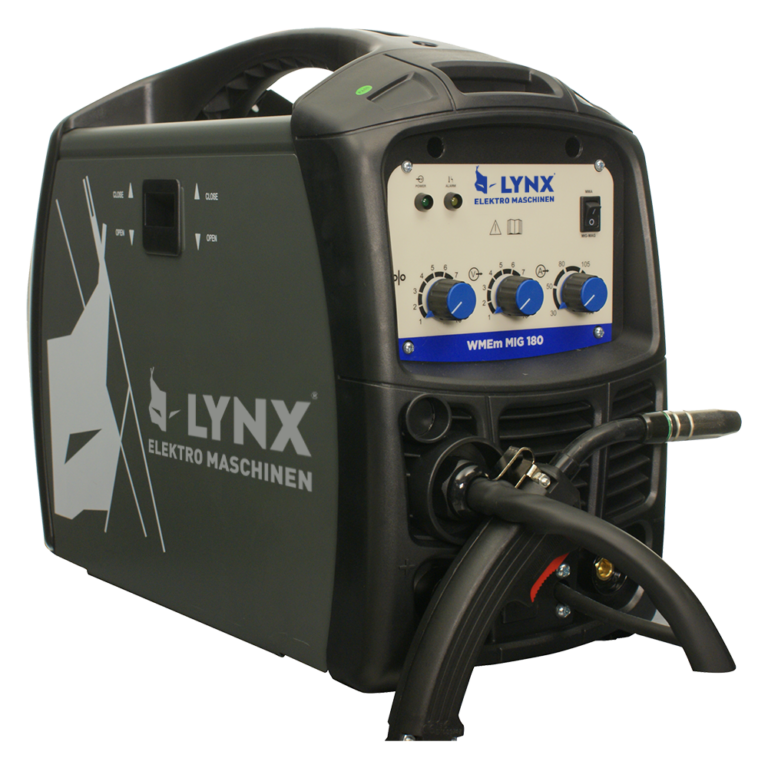

WMEm MIG 180 Series II
In stock
SKU:
0311802503
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
68 |
| Max. outputs at 100% duty cycle, (MIG) (А) |
80 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
67 |
| Max. outputs at 60% duty cycle, (MIG) (А) |
104 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
150 |
| Min. welding current, (MMA) (А) |
30 |
| Max wire Ø, unall. solid (mm) |
1 |

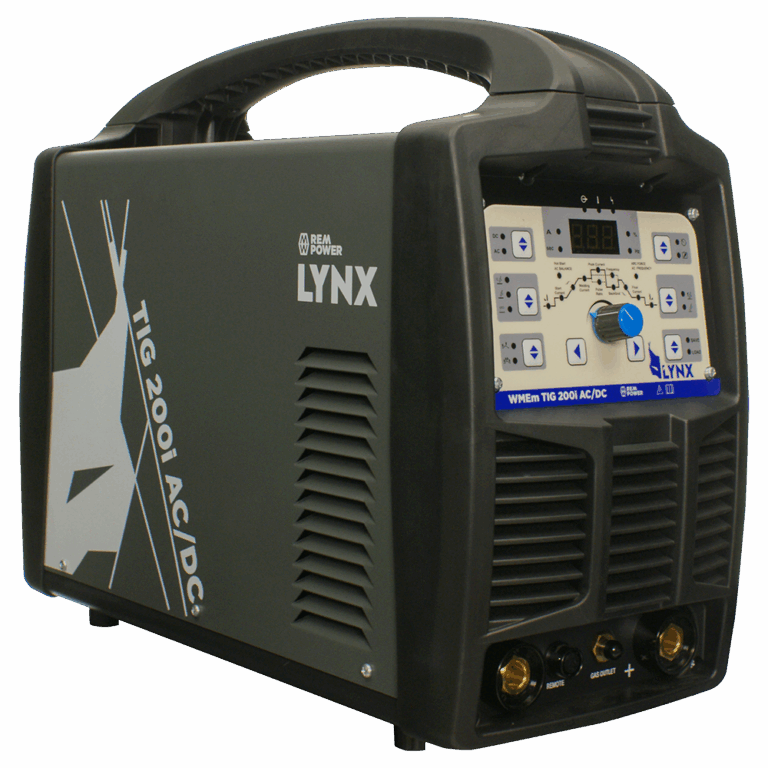

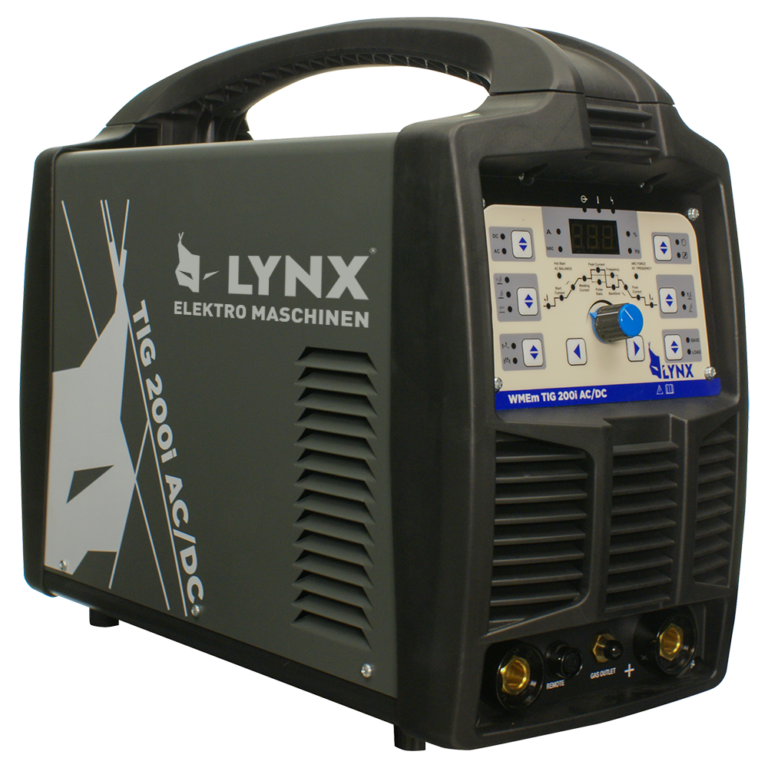

WMEm TIG 200i Lynx AC/DC
In stock
SKU:
0302006018
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
72 |
| Max. outputs at 100% duty cycle, (TIG) (А) |
89 |
| Max. outputs at 20% duty cycle, (MMA) (А) |
160 |
| Max. outputs at 20% duty cycle, (TIG) (А) |
200 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
92 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
160 |
| Min. welding current, (MMA) (А) |
10 |
| Max. welding current, (TIG) (А) |
200 |
| Min. welding current, (TIG) (А) |
10 |

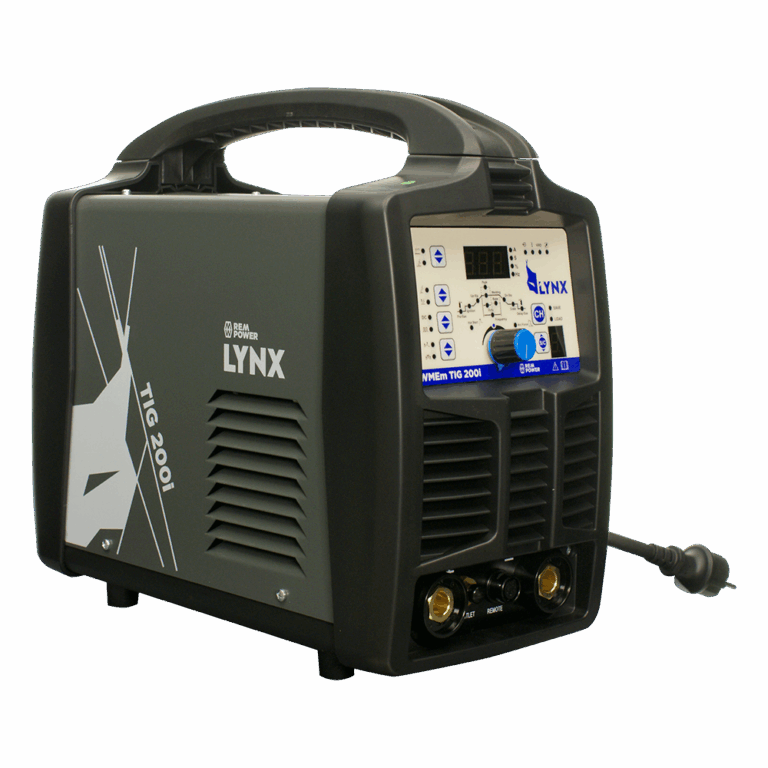

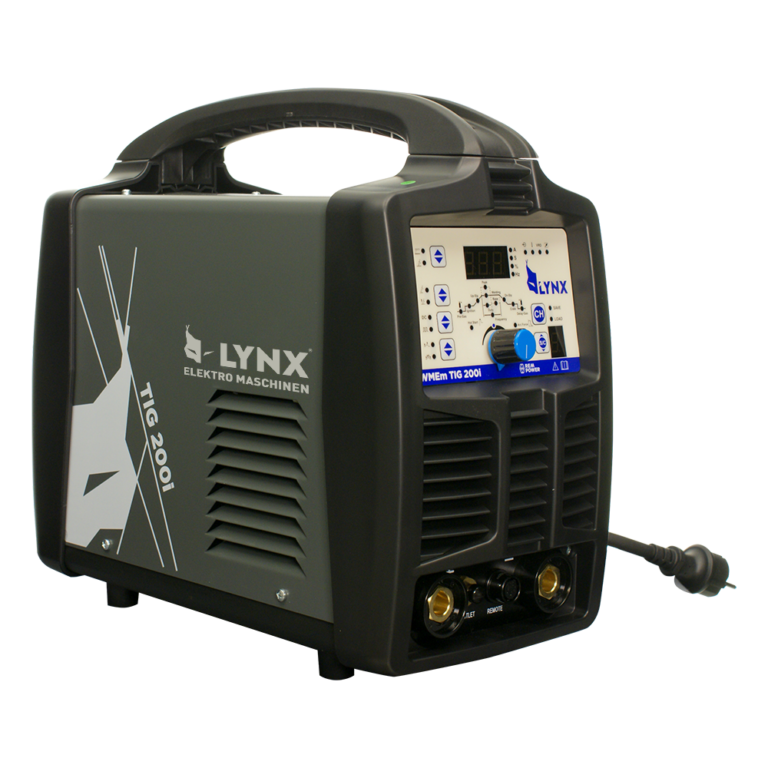

WMEm TIG 200i Lynx
In stock
SKU:
0302006017
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
180 |
| Max. outputs at 100% duty cycle, (TIG) (А) |
200 |
| Max. outputs at 30% duty cycle, (MMA) (А) |
180 |
| Max. outputs at 30% duty cycle, (TIG) (А) |
200 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
127 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
180 |
| Min. welding current, (MMA) (А) |
10 |
| Max. welding current, (TIG) (А) |
200 |
| Min. welding current, (TIG) (А) |
10 |

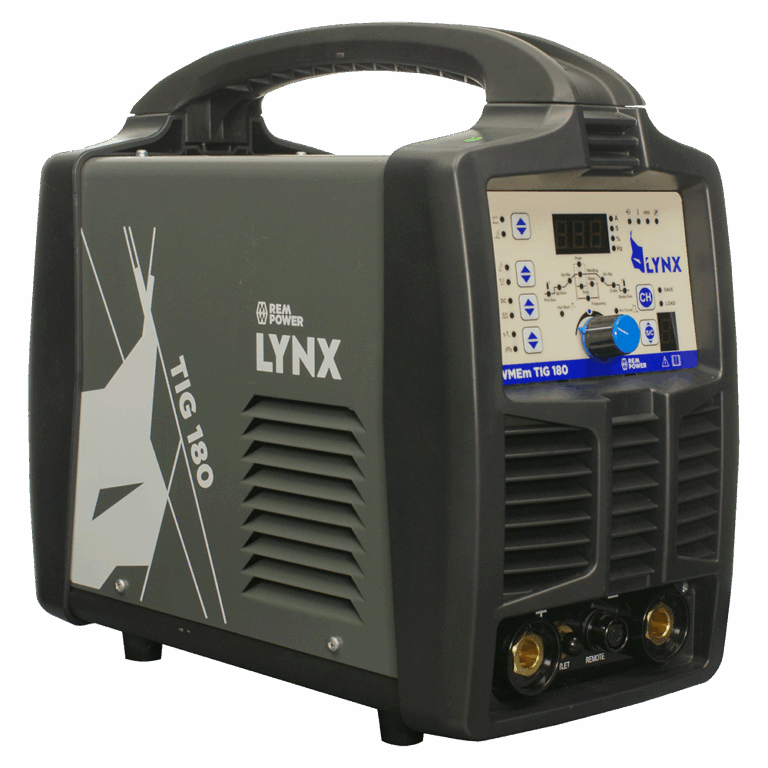

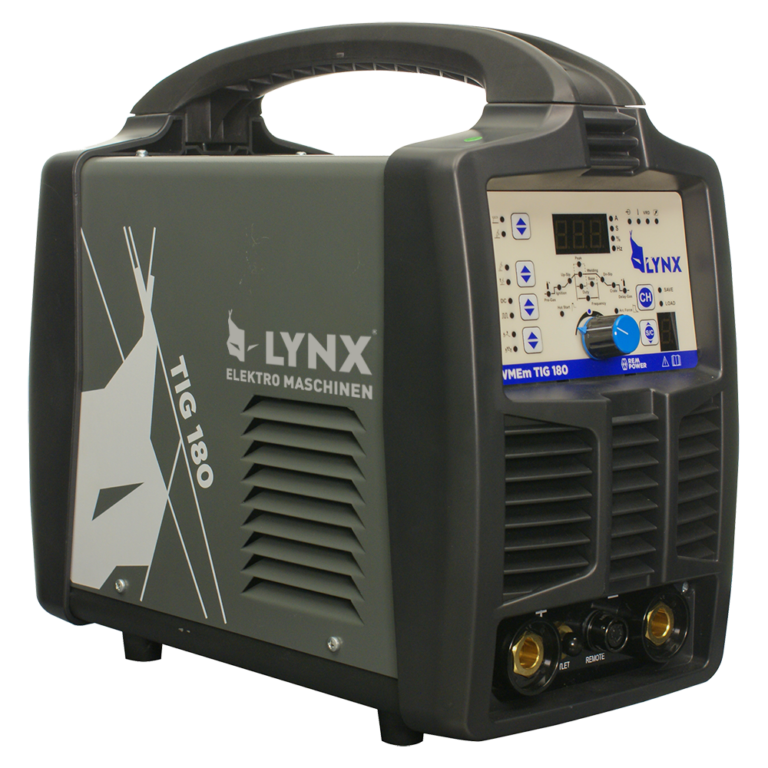

WMEm TIG 180, Lynx
In stock
SKU:
0302006016
| Max. diameter of electrdoe (mm) |
4 |
|---|---|
| Fuse, slow (А) |
16 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
99 |
| Max. outputs at 100% duty cycle, (TIG) (А) |
99 |
| Max. outputs at 30% duty cycle, (MMA) (А) |
180 |
| Max. outputs at 30% duty cycle, (TIG) (А) |
180 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
127 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
180 |
| Min. welding current, (MMA) (А) |
10 |
| Max. welding current, (TIG) (А) |
180 |
| Min. welding current, (TIG) (А) |
10 |

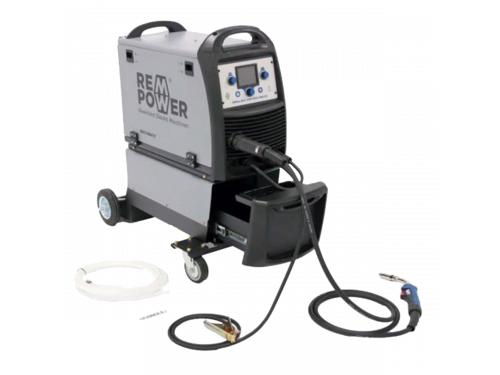

WMEM 501
Out of stock
SKU:
0305014005
| Frequency (Hz) |
50/60 |
|---|---|
| Setting range (A) |
15–500 |
| Output max @ 60% duty cycle (MIG) |
500 A / 39.0 V |
| Output max @ 100% duty cycle (MIG) |
387 A / 33.4 V |
| Output max @ 60% duty cycle (MMA) |
490 A / 39.6 V |
| Output max @ 100% duty cycle (MMA) |
380 A / 35.2 V |
| Output max @ 60% duty cycle (TIG) |
490 A / 29.6 V |
| Output max @ 100% duty cycle (TIG) |
380 A / 25.2 V |
| Open circuit voltage (V) |
65 V |
| Electrode diameter (mm) |
1.6–4.0 |

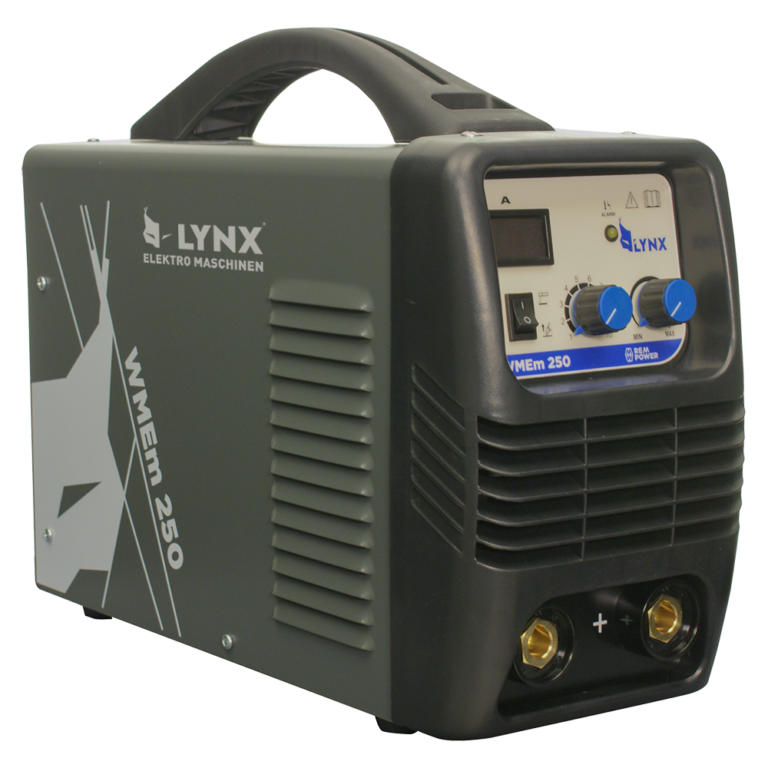

WMEm 250 Lynx
Out of stock
SKU:
0302503503
| Max. diameter of electrdoe (mm) |
5 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
80 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
112 |
| Max. outputs at 20% duty cycle, (MMA) (А) |
250 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
114 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
250 |
| Min. welding current, (MMA) (А) |
30 |

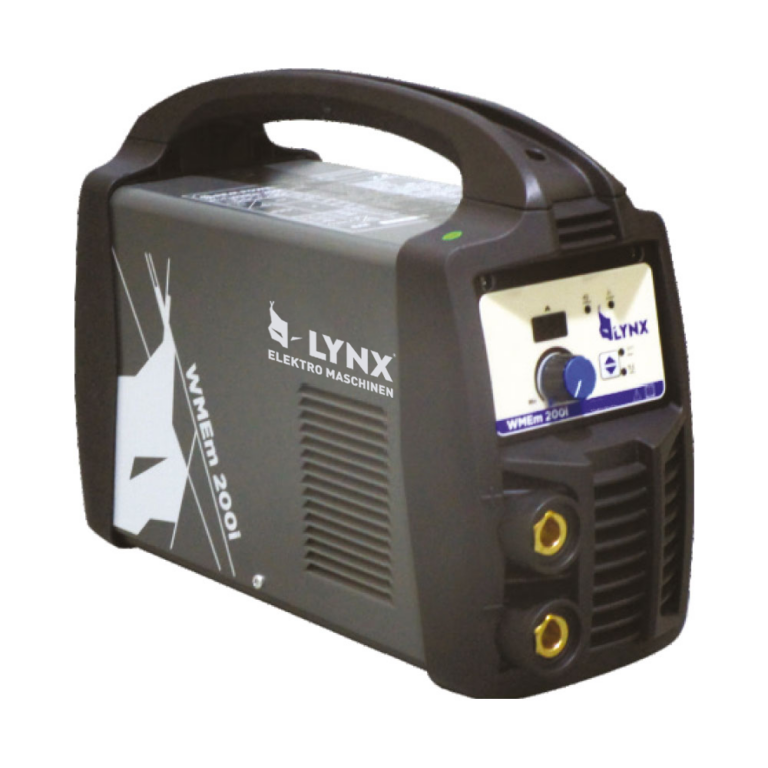

WMEm 200i Lynx
Out of stock
SKU:
0302003503
| Max. diameter of electrdoe (mm) |
5 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
78 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
89 |
| Max. outputs at 20% duty cycle, (MMA) (А) |
200 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
115 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
200 |
| Min. welding current, (MMA) (А) |
25 |

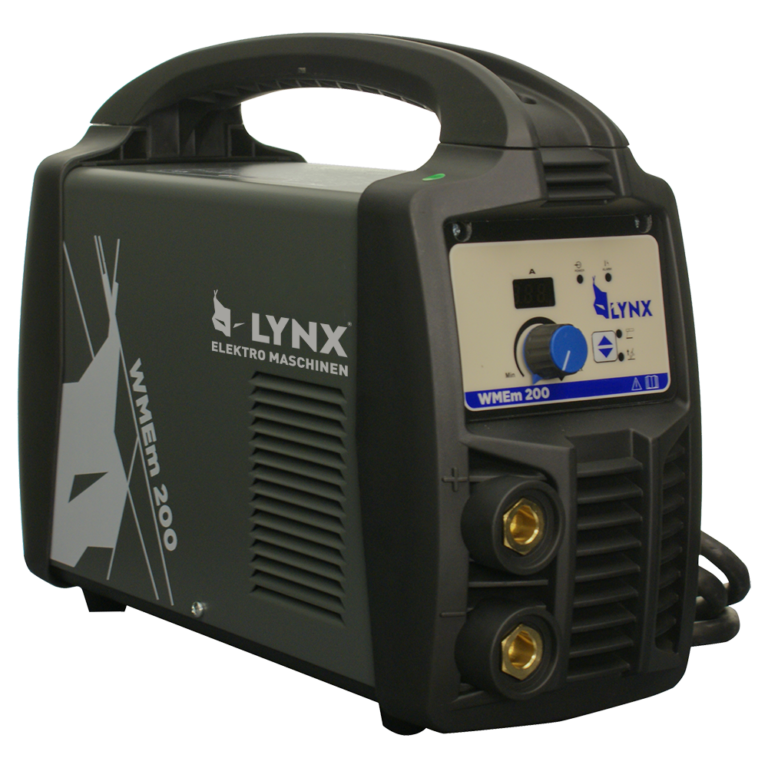

WMEm 200 Lynx
Out of stock
SKU:
0302003502
| Max. diameter of electrdoe (mm) |
5 |
|---|---|
| Fuse, slow (А) |
16 |
| Open circuit voltage (V) |
82 |
| OKC |
50 |
| Max. outputs at 100% duty cycle, (MMA) (А) |
77 |
| Max. outputs at 15% duty cycle, (MMA) (А) |
200 |
| Max. outputs at 60% duty cycle, (MMA) (А) |
100 |
| Voltage (V) |
230 |
| Max. welding current, (MMA) (А) |
200 |
| Min. welding current, (MMA) (А) |
20 |
