GSEM 3300 SB

SKU: 39033000102 Categories: Generators/Petrol, Portable Standard

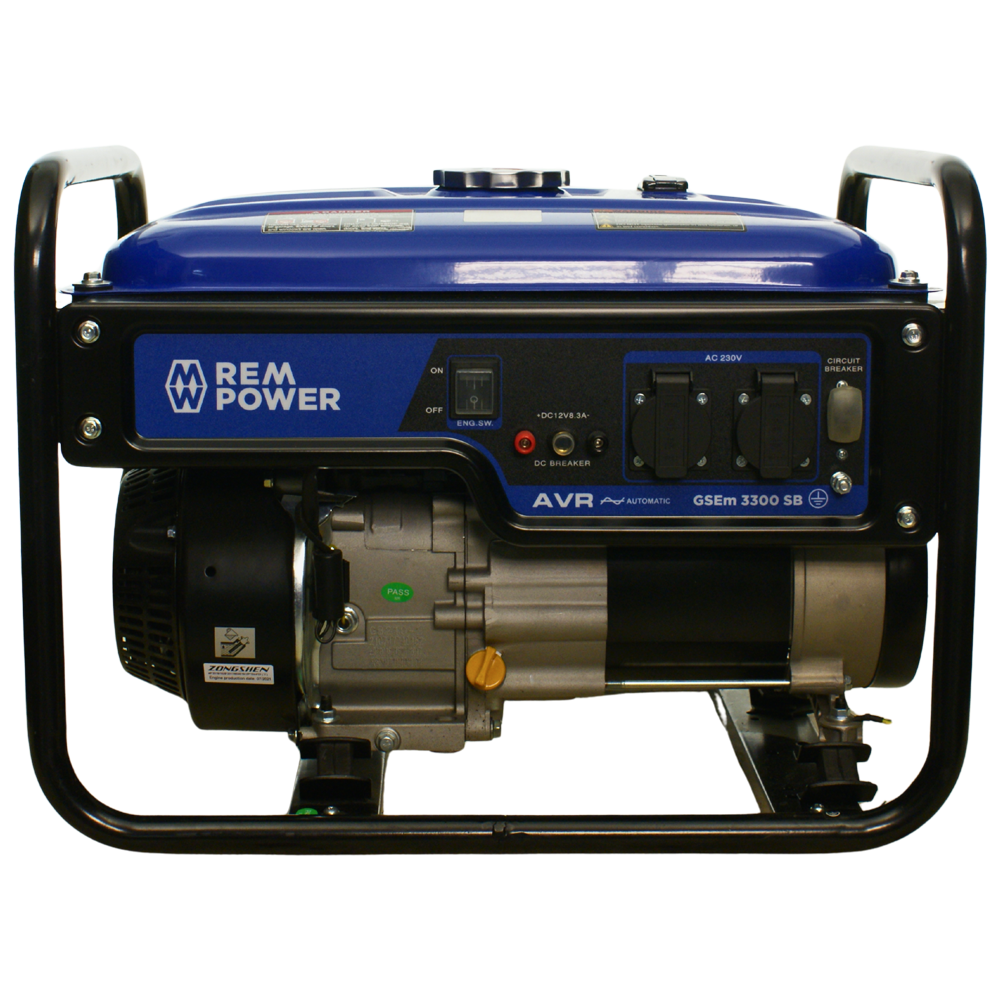

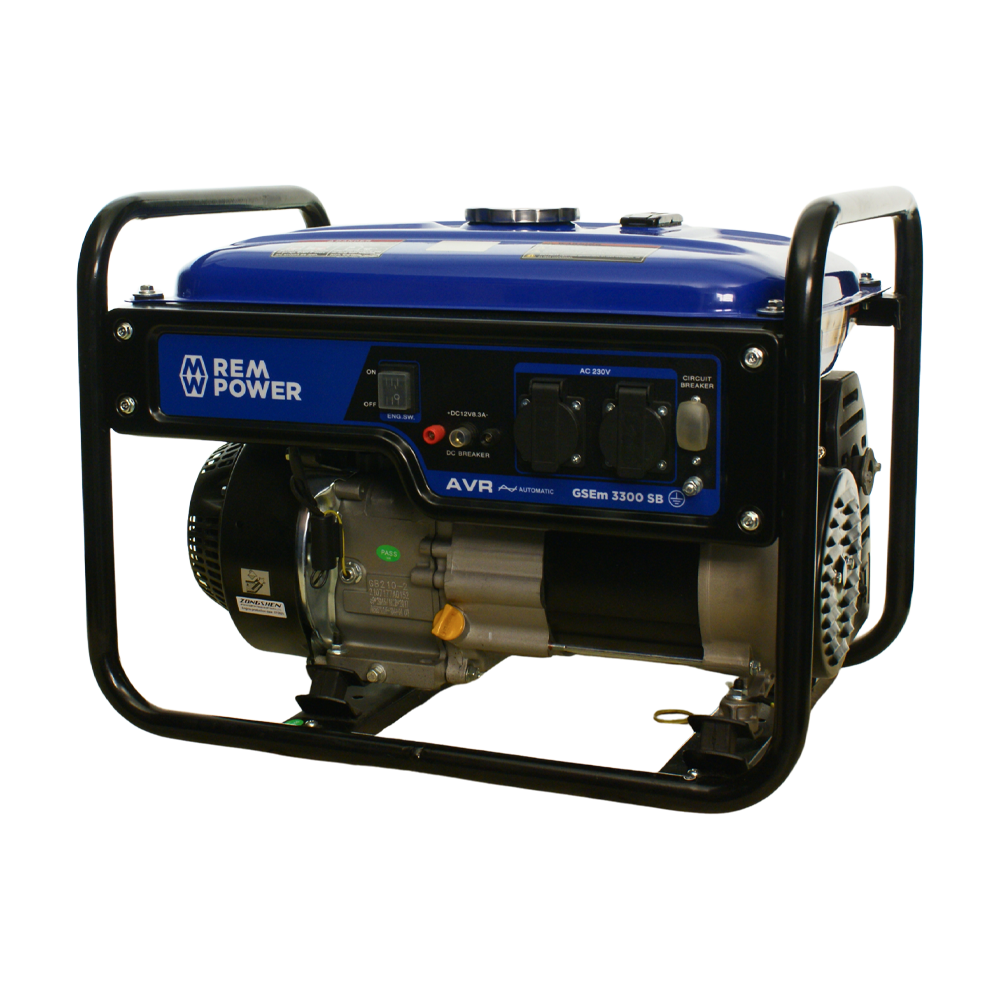

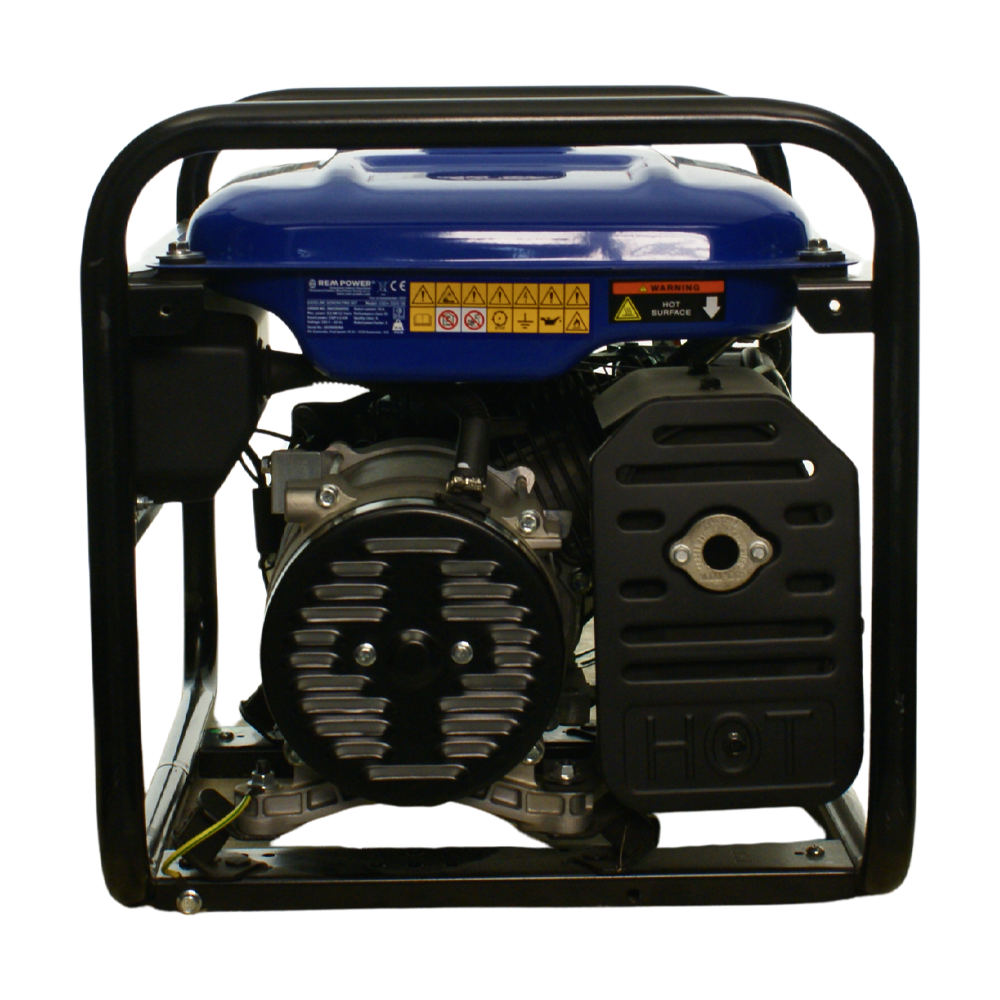

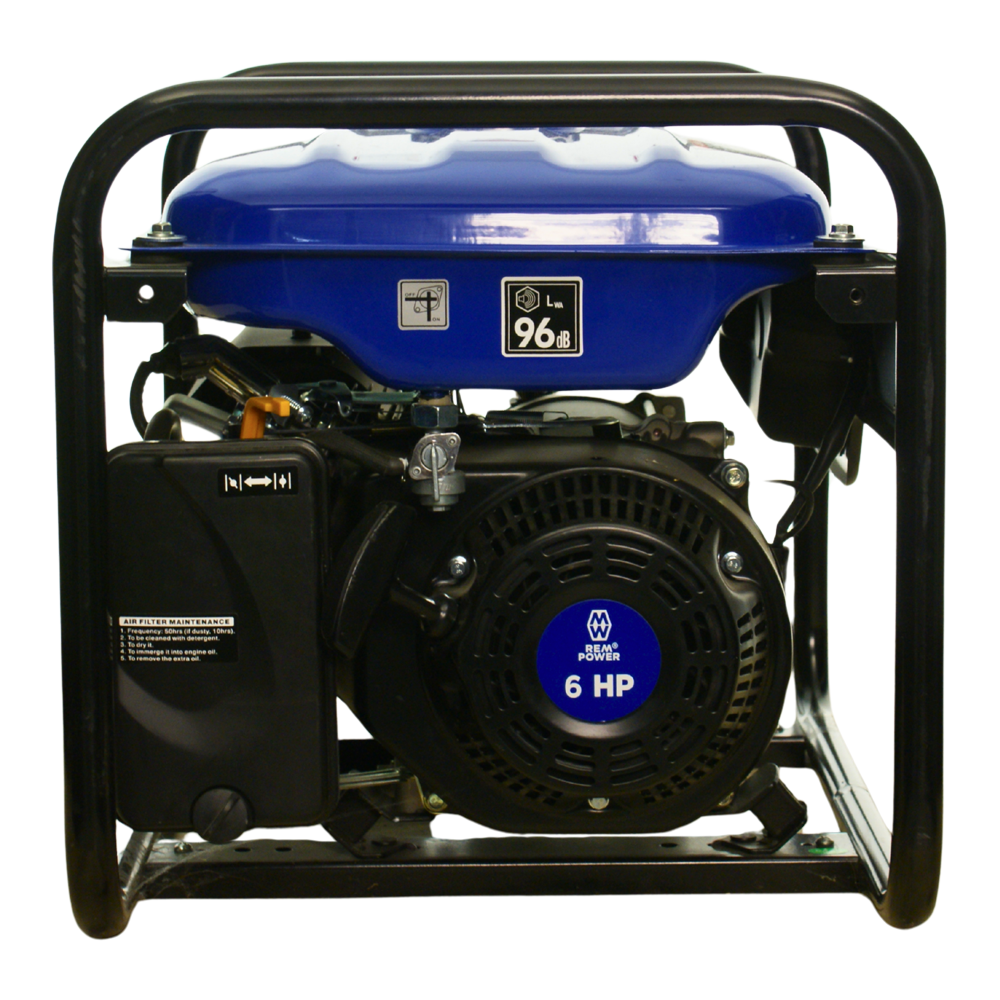

GSEm 3300 is Petrol Generator, with output max power of 3.3kW, 230V

Standard equipment:

• EURO 5 engine
• Heavy-duty, Strong frame
• Manual start
• AVR System
• Big fuel tank
• Low-oil level shutdown – automatic engine protection

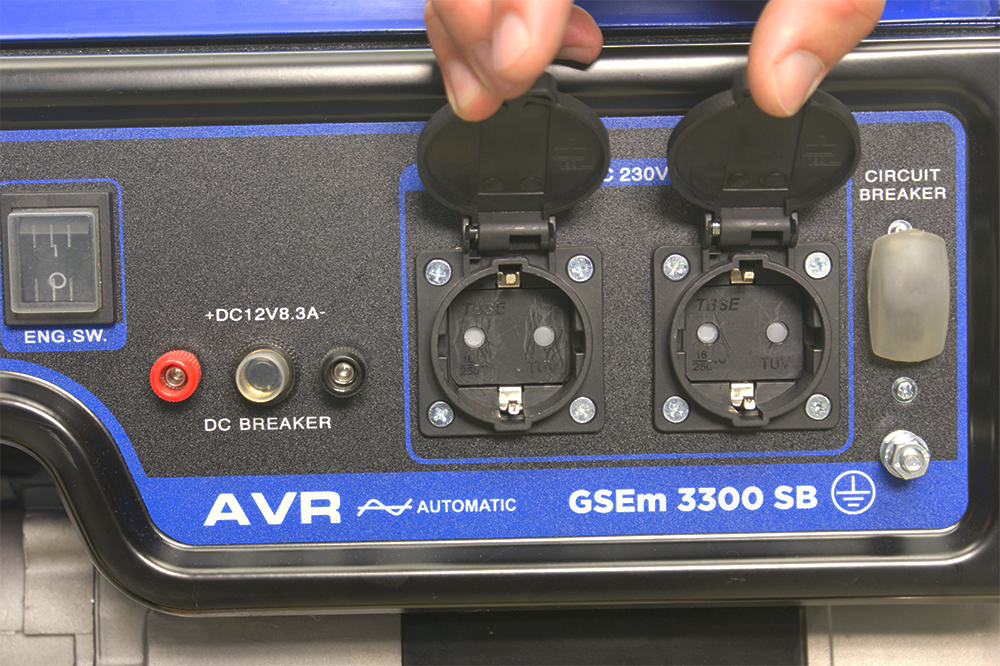

• Control panel with two 230V/16A AC sockets

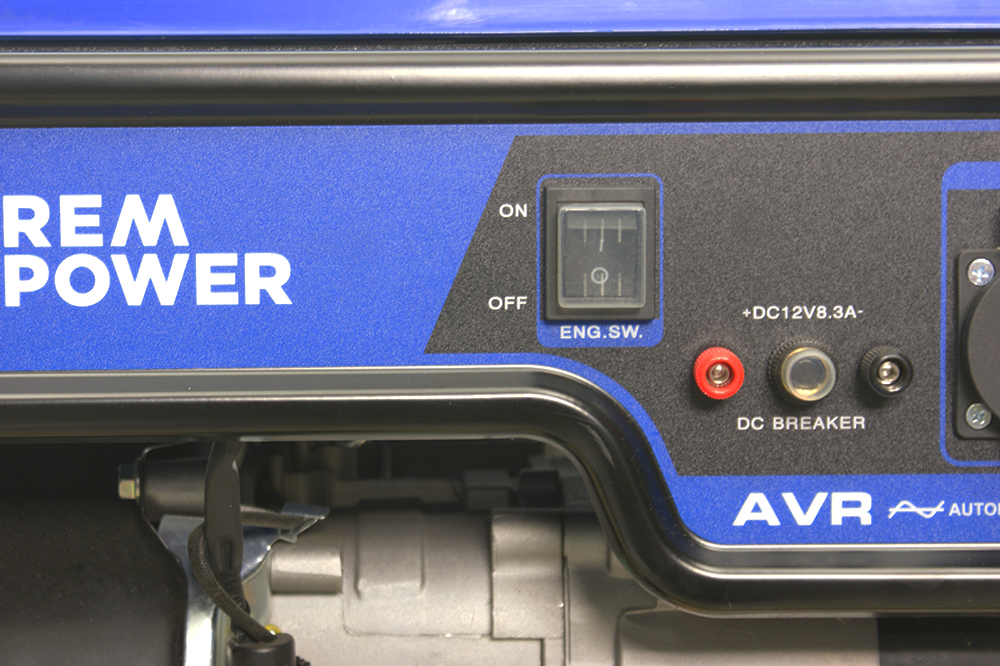

• 12 V / DC output
• Circuit breaker Control

Out of stock

Add to compare

Add to wishlist

18 People watching this product now!

Payment:

Displacement (cm3)	208
Fuel tank (l)	13
Oil capacity (l)	0.6
Engine power (HP)	6
Max. power, 230V (kW)	3.3
Rated power, 230V (kW)	3
Voltage (V)	230

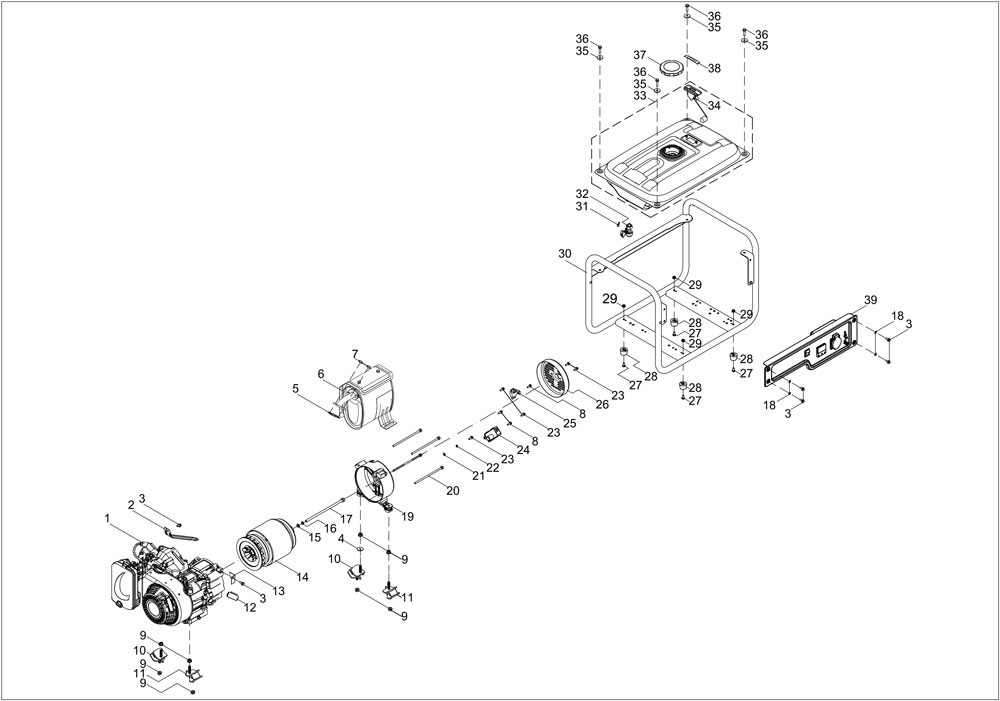

PDF Spear Parts

REM Code	Name	Position	Stock
8811000001002	Air Filter Bracket	2	Pre-Order
8811000001003	Bolt, M6×12	3	Pre-Order
8811000001004	Washer, φ8×2×φ24	4	Pre-Order
8811000001005	Gasket, Muffler	5	Pre-Order
8811000001006	Muffler	6	Pre-Order
8811000001007	Nut, M8	7	Pre-Order
8811000001008	Bolt, M5×18	8	Pre-Order
8811000001009	Nut, M8	9	Pre-Order
8811000001010	Damping Pad	10	Pre-Order
8811000001011	Damping Pad	11	Pre-Order
8811000001012	Clip	12	Pre-Order
8811000001013	Support Block	13	Pre-Order
8811000001014	Alternator	14	Pre-Order
8811000001015	Washer, φ8	15	Pre-Order
8811000001016	Washer, φ8	16	Pre-Order
8811000001017	Bolt, M8×1×220	17	Pre-Order
8811000001018	Gasket, Drain Bolt	18	Pre-Order
8811000001019	Rear Bracket	19	Pre-Order
8811000001020	Bolt, M6×165	20	Pre-Order
8811000001021	Washer, φ5	21	Pre-Order
8811000001022	Washer, φ5	22	Pre-Order
8811000001023	Bolt, M5×14	23	Pre-Order
8811000001024	Voltage Regulator	24	Pre-Order
8811000001025	Brush	25	Pre-Order
8811000001026	End Cover	26	Pre-Order
8811000001027	Screw, M6×12	27	Pre-Order
8811000001028	Damping Pad	28	Pre-Order
8811000001029	Nut, M6	29	Pre-Order
8811000001030	Frame Assembly	30	Pre-Order
8811000001031	Clamp	31	Pre-Order
8811000001032	Fuel Switch	32	Pre-Order
8811000001033	Fuel Tank	33	Pre-Order
8811000001034	Fuel Meter	34	Pre-Order
8811000001035	Washer, φ6.5×2×φ25	35	Pre-Order
8811000001036	Bolt, M6×25	36	Pre-Order
8811000001037	Fuel Cap	37	Pre-Order
8811000001038	Oily Sense Clip	38	Pre-Order
8811000001039	Control Panel	39	Pre-Order
8811000001040	Bolt, M6×16	1	Pre-Order
8811000001041	Valve Cover	2	Pre-Order
8811000001042	Breather Hose	3	Pre-Order
8811000001043	Gasket, Valve Cover	4	Pre-Order
8811000001044	Rocker Arm Assembly	5	Pre-Order
8811000001045	Rocker Arm Base	6	Pre-Order
8811000001046	Bolt, M6×10	7	Pre-Order
8811000001047	Shroud	8	Pre-Order
8811000001048	Valve Locker	9	Pre-Order
8811000001049	Valve Spring Seat	10	Pre-Order
8811000001050	Valve Spring	11	Pre-Order
8811000001051	Intake Valve Seal	12	Pre-Order
8811000001052	Bolt, M8×60	13	Pre-Order
8811000001053	Cylinder Head	14	Pre-Order
8811000001054	Stud, M8×35	15	Pre-Order
8811000001055	Spark Plug	16	Pre-Order
8811000001056	Stud, M6×96	17	Pre-Order
8811000001057	Gasket, Carburetor Insulator	18	Pre-Order
8811000001058	Insulator	19	Pre-Order
8811000001059	Gasket, Carburetor	20	Pre-Order
8811000001060	Carburetor	21	Pre-Order
8811000001061	Fuel Hose, φ4×φ10×126	22	Pre-Order
8811000001062	Clamp	23	Pre-Order
8811000001063	Gasket, Carburetor	24	Pre-Order
8811000001064	Air Filter Assembly	25	Pre-Order
8811000001065	Air Filter Base Assembly	26	Pre-Order
8811000001066	Air Filter Baffle	27	Pre-Order
8811000001067	Air Filter Element	28	Pre-Order
8811000001068	Air Filter Cover	29	Pre-Order
8811000001069	Bolt	30	Pre-Order
8811000001070	Nut, M6	31	Pre-Order
8811000001071	Gasket, Cylinder Head	32	Pre-Order
8811000001072	Pin, φ10×16	33	Pre-Order
8811000001073	Push Rod	34	Pre-Order
8811000001074	Tappet	35	Pre-Order
8811000001075	Exhaust Valve	36	Pre-Order
8811000001076	Intake Vavle	37	Pre-Order
8811000001077	Piston Ring Set	38	Pre-Order
8811000001078	Circlip	39	Pre-Order
8811000001079	Piston Pin	40	Pre-Order
8811000001080	Piston	41	Pre-Order
8811000001081	Connecting Rod Assembly	42	Pre-Order
8811000001082	Bolt, M8×32	43	Pre-Order
8811000001083	Oil Seal, φ25×φ41.25×6	44	Pre-Order
8811000001084	Crankcase Cover	45	Pre-Order
8811000001085	Gasket, Crankcase	46	Pre-Order
8811000001086	Pin,φ8×14	47	Pre-Order
8811000001087	Bearing, TM6205	48	Pre-Order
8811000001088	Camshaft	49	Pre-Order
8811000001089	Crankshaft	50	Pre-Order
8811000001090	Woodruff Key	51	Pre-Order
8811000001091	Oil Sensor	52	Pre-Order
8811000001092	O-Ring, φ15.8×2.5	53	Pre-Order
8811000001093	Dipstick	54	Pre-Order
8811000001094	Governor Gear	55	Pre-Order
8811000001095	Bolt, M6×12	56	Pre-Order
8811000001096	Governor Gear Bracket Assembly	57	Pre-Order
8811000001097	Governor Lever	58	Pre-Order
8811000001098	Cotter Pin	59	Pre-Order
8811000001099	O-Ring, φ5.2×1.9	60	Pre-Order
8811000001100	Governor Gear Shaft	61	Pre-Order
8811000001101	Governor Spring	62	Pre-Order
8811000001102	Throttle Linkage	63	Pre-Order
8811000001103	Idle Spring	64	Pre-Order
8811000001104	Crankcase	65	Pre-Order
8811000001105	Earth Bolt	66	Pre-Order
8811000001106	Washer, φ10×1.5×φ16	67	Pre-Order
8811000001107	Clip	68	Pre-Order
8811000001108	Ignition Module	69	Pre-Order
8811000001109	Bolt, M6×25	70	Pre-Order
8811000001110	Lower Shield	71	Pre-Order
8811000001111	Bolt, M6×20	72	Pre-Order
8811000001112	Oil Seal, φ25×φ41.25×6	73	Pre-Order
8811000001113	Flywheel	74	Pre-Order
8811000001114	Cooling Fan	75	Pre-Order
8811000001115	Starter Cup	76	Pre-Order
8811000001116	Nut, M14×1.5	77	Pre-Order
8811000001117	Recoil Starter	78	Pre-Order
8811000001118	Blower Housing	79	Pre-Order
8811000001119	Recoil Starter	80	Pre-Order
8811000001120	Washer, φ6	81	Pre-Order
8811000001121	Bolt, M6×10	82	Pre-Order
8811000001122	Bolt, M6×14	83	Pre-Order

Product Data

CE declaration

EN user manual

Related products

Add to compare

Quick view

Add to wishlist

GSEm 6002 TB Petrol Generator

Generators/Petrol, Portable Standard

Out of stock

SKU: 39060020101

Weight	83 kg
Model name	GSEm 6002 SB
Max Power	5500w
Rate Power	5000w
Dual power	Yes
Voltage	230V-400V
Socket	1x230Vx16A, 1x230Vx32A
ATS connector	No
Voltmeter	Digital display
Over Voltage Peotector	Yes
Displacement	389cc
Start System	Manual
Fuel Capacity	25L
Run Time(75% load)	10hr
LPG	NO
Packing Dimensions (L×W×H)	695525545mm
GW/NW	88/85 kg

Add to compare

Quick view

Add to wishlist

GSEm 4502 SBi Inverter Petrol Generator

Generators/Petrol, Inverter type

Out of stock

SKU: 39045020103

Weight	24 kg
Model name	GSEm 4502 SBI
Max Power	3500W
Rate Power	3000W
Dual power	No
Voltage	230V
Socket	2x230V, 1x12V, 2xUSB
ATS connector	No
Voltmeter	Digital display
Over Voltage Peotector	Yes
Displacement	149cc
Start System	Manual
Fuel Capacity	4L
Run Time(75% load)	3.5h
LPG	NO
Packing Dimensions (L×W×H)	540365490mm
GW/NW	23.5/21.5

Add to compare

Quick view

Add to wishlist

GSEm 2202 SBi Inverter Petrol Generator

Generators/Petrol, Inverter type

Out of stock

SKU: 39022020103

Weight	23 kg
Model name	GSEm 2202 SBI
Max Power	2000W
Rate Power	1800W
Dual power	No
Voltage	230V
Socket	2x230V, 1x12V, 2xUSB
ATS connector	No
Voltmeter	Digital display
Over Voltage Peotector	Yes
Displacement	79cc
Start System	Manual
Fuel Capacity	4L
Run Time(75% load)	4h
LPG	NO
Packing Dimensions (L×W×H)	540325490mm
GW/NW	23/21

Add to compare

Quick view

Add to wishlist

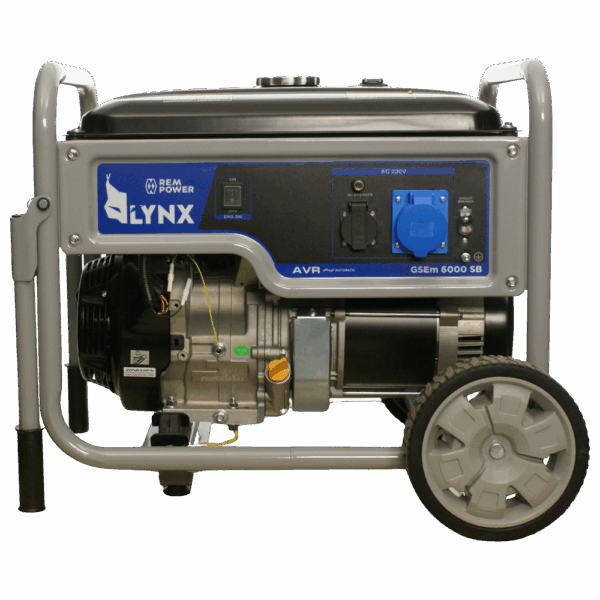

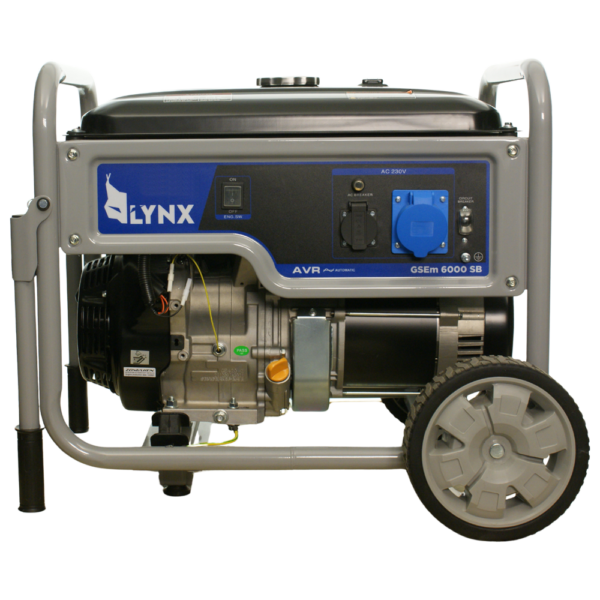

GSEM 6000 SB
