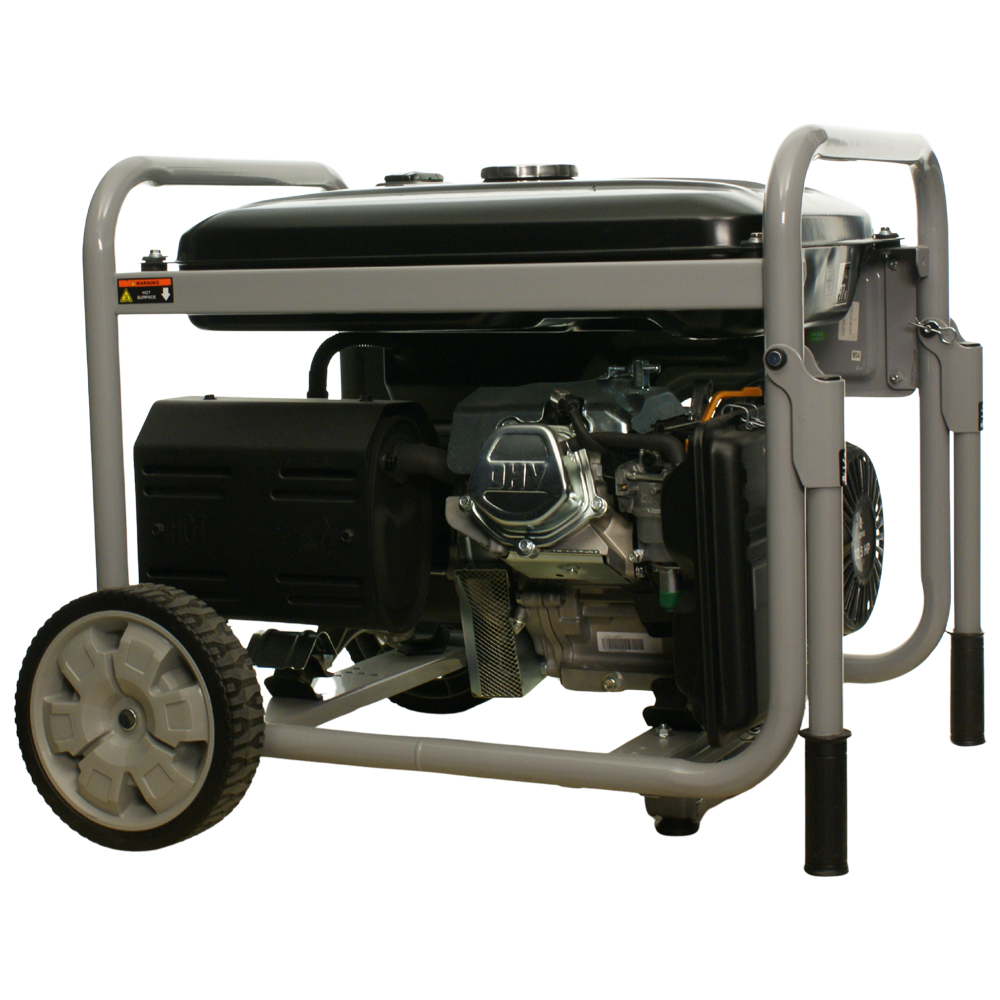

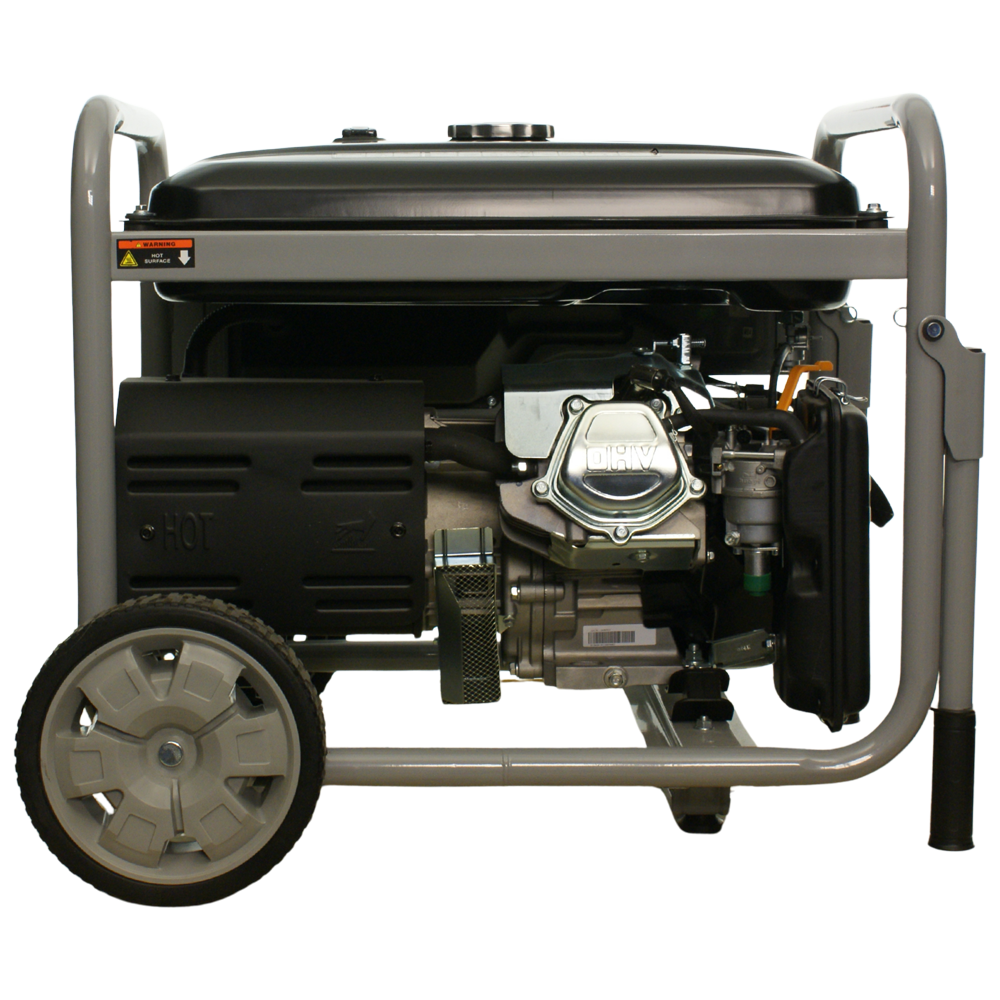

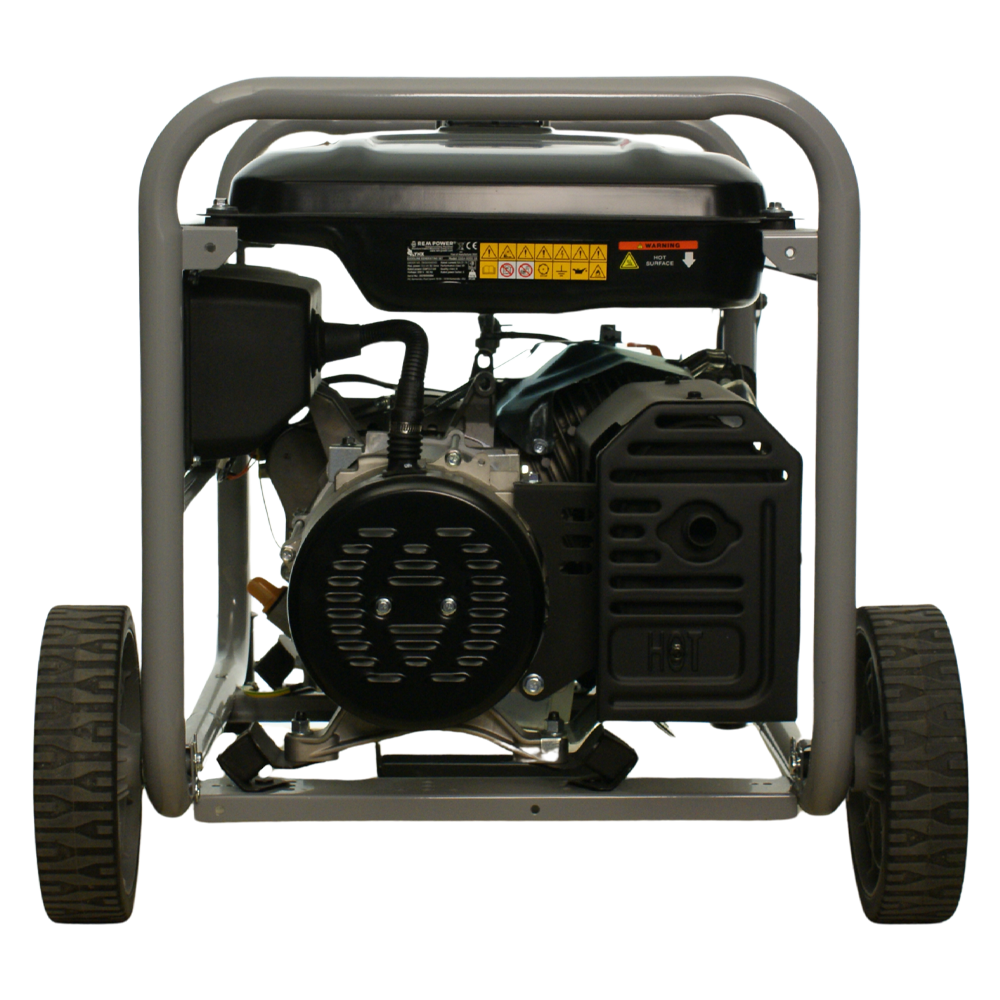

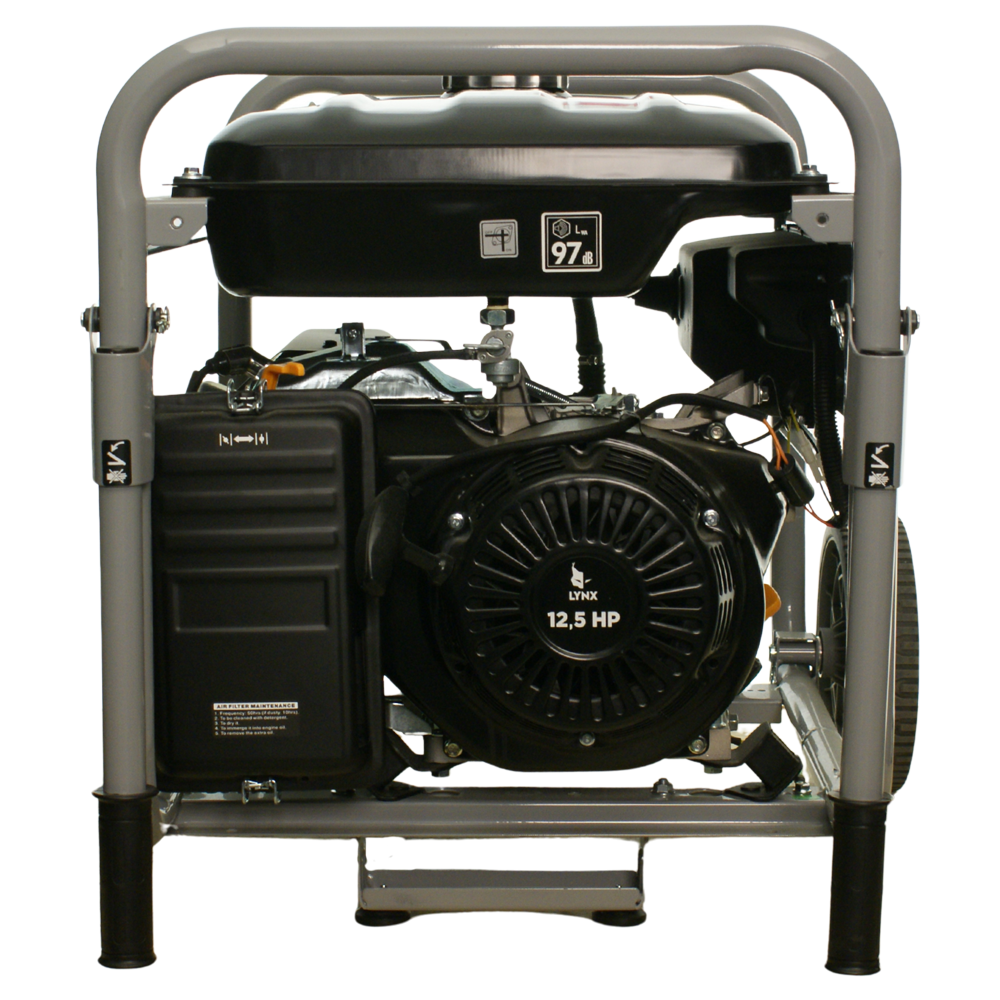

    GSEm 3300 is Petrol Generator, with output max power of 3.3kW, 230V

    Advantages:

    • EURO 5 engine
    • Heavy-duty, Strong frame, Wheels and handles
    • Manual start
    • AVR System
    • Big fuel tank
    • Fuel type unleaded
    • Low-oil level shutdown – automatic engine protection
    • Circuit breaker Control

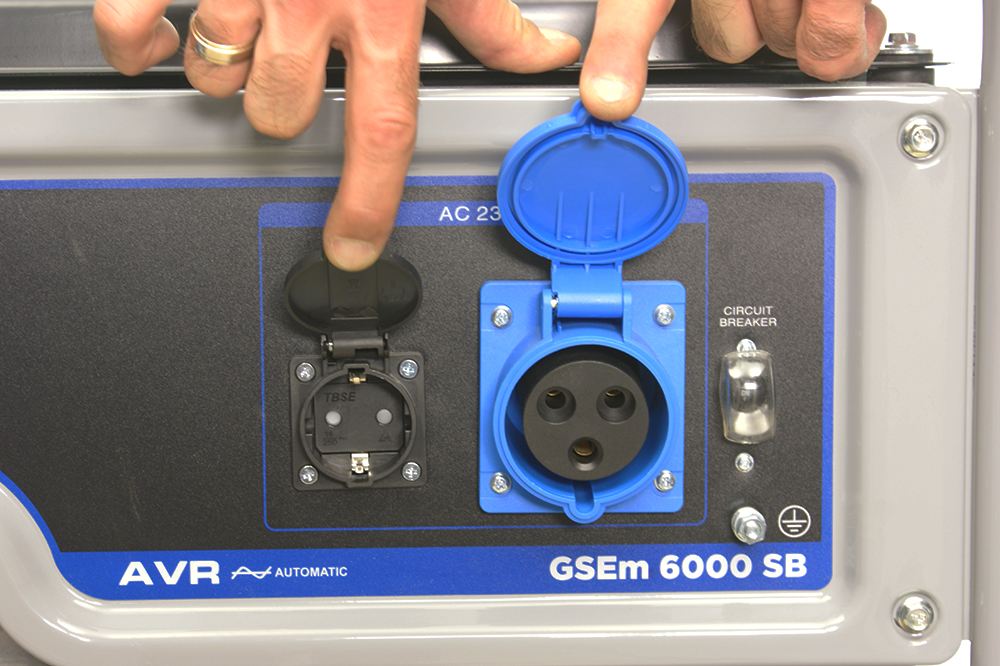

    • Control panel with two sockets:
    – 230V/ 16A – output 3.68 kW
    – 230V/32A – output 5.0 kW

    Out of stock

    Add to compare
    Add to wishlist
    15 People watching this product now!

    Payment:

    Displacement (cm3)

    420
    Fuel tank (l)

    23
    Oil capacity (l)

    1.1
    Engine power (HP)

    12.5
    Max. power, 230V (kW)

    3.68/5
    Max. continus running time (h)

    9
    Voltage (V)

    230

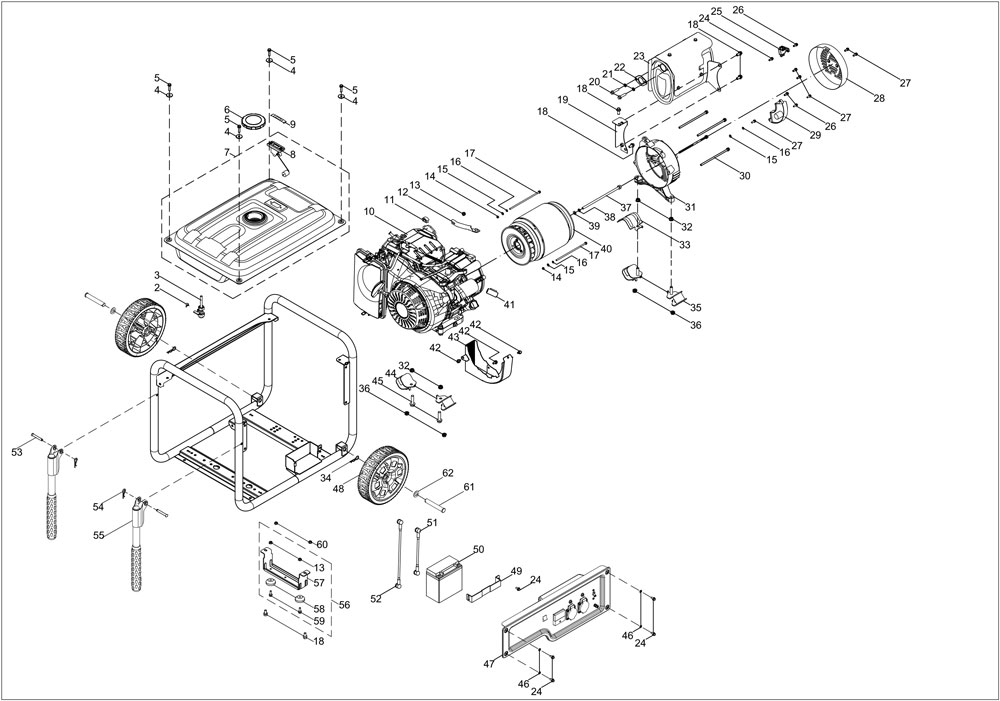

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8811000001123
    • Frame Assembly
    • 1
    		46.75 €Pre-Order
    8811000001124
    • Clamp
    • 2
    		0.11 €Pre-Order
    8811000001125
    • Fuel Switch
    • 3
    		2.56 €Pre-Order
    8811000001126
    • Washer, φ6.5×2×φ25
    • 4
    		0.03 €Pre-Order
    8811000001127
    • Bolt, M6×25
    • 5
    		0.06 €Pre-Order
    8811000001128
    • Fuel Cap
    • 6
    		3.38 €Pre-Order
    8811000001129
    • Fuel Tank
    • 7
    		38.23 €Pre-Order
    8811000001130
    • Fuel Meter
    • 8
    		1.90 €Pre-Order
    8811000001131
    • Oily Sense Clip
    • 9
    		0.55 €Pre-Order
    8811000001132
    • Engine
    • 10
    		—Pre-Order
    8811000001133
    • Plug
    • 11
    		0.11 €Pre-Order
    8811000001134
    • Air Filter Bracket
    • 12
    		0.47 €Pre-Order
    8811000001135
    • Nut, M6
    • 13
    		0.03 €Pre-Order
    8811000001136
    • Nut, M5
    • 14
    		0.03 €Pre-Order
    8811000001137
    • Washer, φ5
    • 15
    		0.03 €Pre-Order
    8811000001138
    • Washer, φ5
    • 16
    		0.03 €Pre-Order
    8811000001139
    • Bolt, M5×198
    • 17
    		0.94 €Pre-Order
    8811000001140
    • Bolt, M8×16
    • 18
    		0.08 €Pre-Order
    8811000001141
    • Muffler Support
    • 19
    		1.76 €Pre-Order
    8811000001142
    • Bolt, M8×32
    • 20
    		0.11 €Pre-Order
    8811000001143
    • Washer, φ8
    • 21
    		0.03 €Pre-Order
    8811000001144
    • Gasket, Muffler
    • 22
    		0.06 €Pre-Order
    8811000001145
    • Muffler
    • 23
    		21.64 €Pre-Order
    8811000001146
    • Bolt, M6×12
    • 24
    		0.03 €Pre-Order
    8811000001147
    • Brush
    • 25
    		1.38 €Pre-Order
    8811000001148
    • Bolt, M5×18
    • 26
    		0.03 €Pre-Order
    8811000001149
    • Bolt, M5×14
    • 27
    		0.03 €Pre-Order
    8811000001150
    • End Cover
    • 28
    		4.76 €Pre-Order
    8811000001151
    • Voltage Regulator
    • 29
    		13.42 €Pre-Order
    8811000001152
    • Bolt, M6×165
    • 30
    		0.44 €Pre-Order
    8811000001153
    • Rear Bracket
    • 31
    		15.98 €Pre-Order
    8811000001154
    • Nut, M10×1.25
    • 32
    		0.08 €Pre-Order
    8811000001155
    • Damping Pad Guard
    • 33
    		0.74 €Pre-Order
    8811000001156
    • Circlip
    • 34
    		0.17 €Pre-Order
    8811000001157
    • Damping Pad
    • 35
    		1.51 €Pre-Order
    8811000001158
    • Nut, M8
    • 36
    		0.06 €Pre-Order
    8811000001159
    • Bolt, M10×1.25×250
    • 37
    		1.04 €Pre-Order
    8811000001160
    • Washer, φ10
    • 38
    		0.03 €Pre-Order
    8811000001161
    • Washer, φ10
    • 39
    		0.06 €Pre-Order
    8811000001162
    • Alternator
    • 40
    		254.62 €Pre-Order
    8811000001163
    • Clip
    • 41
    		0.30 €Pre-Order
    8811000001164
    • Bolt, M5×10
    • 42
    		0.03 €Pre-Order
    8811000001165
    • Crankcase Cover Shield
    • 43
    		3.05 €Pre-Order
    8811000001166
    • Damping Pad
    • 44
    		1.43 €Pre-Order
    8811000001167
    • Bolt, M10×1.25×40
    • 45
    		0.22 €Pre-Order
    8811000001168
    • Gasket, Drain Bolt
    • 46
    		0.03 €Pre-Order
    8811000001169
    • Control Panel
    • 47
    		66.00 €Pre-Order
    8811000001170
    • Tire
    • 48
    		9.07 €Pre-Order
    8811000001171
    • Binder Plate
    • 49
    		1.46 €Pre-Order
    8811000001172
    • Battery
    • 50
    		39.85 €Pre-Order
    8811000001173
    • Anode Wire
    • 51
    		0.66 €Pre-Order
    8811000001174
    • Cathode Wire
    • 52
    		1.65 €Pre-Order
    8811000001175
    • Pin, φ8×55
    • 53
    		0.25 €Pre-Order
    8811000001176
    • Circlip
    • 54
    		0.14 €Pre-Order
    8811000001177
    • Handle
    • 55
    		6.05 €Pre-Order
    8811000001178
    • Support Base
    • 56
    		4.68 €Pre-Order
    8811000001179
    • Support Base
    • 57
    		2.89 €Pre-Order
    8811000001180
    • Damping Pad
    • 58
    		0.39 €Pre-Order
    8811000001181
    • Bolt, M6×18
    • 59
    		0.03 €Pre-Order
    8811000001182
    • Nut, M8
    • 60
    		0.06 €Pre-Order
    8811000001183
    • Pin, φ16×100
    • 61
    		1.40 €Pre-Order
    8811000001184
    • Washer, φ17.5×3×φ30
    • 62
    		0.08 €Pre-Order
    8811000001185
    • Bolt, M6×16
    • 1
    		0.03 €Pre-Order
    8811000001186
    • Valve Cover
    • 2
    		3.44 €Pre-Order
    8811000001187
    • Breather Hose
    • 3
    		0.80 €Pre-Order
    8811000001188
    • Gasket, Valve Cover
    • 4
    		1.87 €Pre-Order
    8811000001189
    • Rocker Arm Assembly
    • 5
    		0.80 €Pre-Order
    8811000001190
    • Rocker Arm Base
    • 6
    		0.33 €Pre-Order
    8811000001191
    • Valve Locker
    • 7
    		0.17 €Pre-Order
    8811000001192
    • Valve Adjust Cap, Exhaust
    • 8
    		0.28 €Pre-Order
    8811000001193
    • Valve Spring Seat
    • 9
    		0.55 €Pre-Order
    8811000001194
    • Valve Spring
    • 10
    		0.25 €Pre-Order
    8811000001195
    • Intake Valve Seal
    • 11
    		0.47 €Pre-Order
    8811000001196
    • Valve Spring Seat
    • 12
    		0.22 €Pre-Order
    8811000001197
    • Bolt, M10×1.25×87
    • 13
    		0.41 €Pre-Order
    8811000001198
    • Cylinder Head
    • 14
    		32.53 €Pre-Order
    8811000001199
    • Spark Plug
    • 15
    		1.40 €Pre-Order
    8811000001200
    • Stud, M8×35
    • 16
    		0.11 €Pre-Order
    8811000001201
    • Gasket, Muffler
    • 17
    		0.08 €Pre-Order
    8811000001202
    • Exhaust Pipe
    • 18
    		3.49 €Pre-Order
    8811000001203
    • Nut, M8
    • 19
    		0.03 €Pre-Order
    8811000001204
    • Shroud
    • 20
    		0.47 €Pre-Order
    8811000001205
    • Bolt, M6×10
    • 21
    		0.03 €Pre-Order
    8811000001206
    • Stud, M6-8×104
    • 22
    		0.36 €Pre-Order
    8811000001207
    • Gasket, Carburetor Insulator
    • 23
    		0.03 €Pre-Order
    8811000001208
    • Insulator
    • 24
    		0.66 €Pre-Order
    8811000001209
    • Gasket, Carburetor
    • 25
    		0.03 €Pre-Order
    8811000001210
    • Carburetor
    • 26
    		23.87 €Pre-Order
    8811000001211
    • Gasket, Air Filter
    • 27
    		0.03 €Pre-Order
    8811000001212
    • Air Filter Assembly
    • 28
    		12.51 €Pre-Order
    8811000001213
    • Air Filter Clip
    • 29
    		0.19 €Pre-Order
    8811000001214
    • Air Filter Base
    • 30
    		4.04 €Pre-Order
    8811000001215
    • Gasket, Air Filter
    • 31
    		0.94 €Pre-Order
    8811000001216
    • Air Filter Baffle
    • 32
    		1.71 €Pre-Order
    8811000001217
    • Air Filter Element
    • 33
    		1.59 €Pre-Order
    8811000001218
    • Air Filter Cover
    • 34
    		4.15 €Pre-Order
    8811000001219
    • Nut, M6
    • 35
    		0.03 €Pre-Order
    8811000001220
    • Gasket, Cylinder Head
    • 36
    		1.40 €Pre-Order
    8811000001221
    • Pin, φ12×20
    • 37
    		0.06 €Pre-Order
    8811000001222
    • Push Rod
    • 38
    		0.55 €Pre-Order
    8811000001223
    • Tappet
    • 39
    		0.49 €Pre-Order
    8811000001224
    • Exhaust Valve
    • 40
    		3.27 €Pre-Order
    8811000001225
    • Intake Vavle
    • 41
    		2.17 €Pre-Order
    8811000001226
    • Piston Ring Set
    • 42
    		3.35 €Pre-Order
    8811000001227
    • Circlip
    • 43
    		0.03 €Pre-Order
    8811000001228
    • Piston Pin
    • 44
    		0.94 €Pre-Order
    8811000001229
    • Piston
    • 45
    		7.87 €Pre-Order
    8811000001230
    • Connecting Rod Assembly
    • 46
    		5.61 €Pre-Order
    8811000001231
    • Governor Gear Bracket Assembly
    • 47
    		5.14 €Pre-Order
    8811000001232
    • Bolt, M6×12
    • 48
    		0.28 €Pre-Order
    8811000001233
    • Oil Sensor
    • 49
    		2.97 €Pre-Order
    8811000001234
    • Bearing, TM6207
    • 50
    		5.69 €Pre-Order
    8811000001235
    • Crankshaft
    • 51
    		41.52 €Pre-Order
    8811000001236
    • Woodruff Key
    • 52
    		0.08 €Pre-Order
    8811000001237
    • Camshaft
    • 53
    		12.76 €Pre-Order
    8811000001238
    • Washer, φ16.2×0.3×φ24
    • 54
    		0.08 €Pre-Order
    8811000001239
    • Pin, φ8×12
    • 55
    		0.03 €Pre-Order
    8811000001240
    • Gasket, Crankcase
    • 56
    		1.73 €Pre-Order
    8811000001241
    • Crankcase Cover
    • 57
    		24.28 €Pre-Order
    8811000001242
    • Oil Seal, φ35×φ52×7
    • 58
    		0.66 €Pre-Order
    8811000001243
    • Bolt, M8×38
    • 59
    		0.11 €Pre-Order
    8811000001244
    • Dipstick
    • 60
    		0.44 €Pre-Order
    8811000001245
    • Dipstick
    • 61
    		0.47 €Pre-Order
    8811000001246
    • O-Ring, Dipstick
    • 62
    		0.14 €Pre-Order
    8811000001247
    • Governor Gear
    • 63
    		2.81 €Pre-Order
    8811000001248
    • Bearing, 6202
    • 64
    		1.13 €Pre-Order
    8811000001249
    • Balance Shaft
    • 65
    		8.36 €Pre-Order
    8811000001250
    • Electric Starter
    • 66
    		38.67 €Pre-Order
    8811000001251
    • Crankcase
    • 67
    		78.57 €Pre-Order
    8811000001252
    • Governor Gear Shaft
    • 68
    		0.52 €Pre-Order
    8811000001253
    • Washer, φ8×0.8×φ20
    • 69
    		0.03 €Pre-Order
    8811000001254
    • Oil Seal, φ8×φ14×4
    • 70
    		0.28 €Pre-Order
    8811000001255
    • Cotter Pin
    • 71
    		0.03 €Pre-Order
    8811000001256
    • Governor Lever
    • 72
    		0.88 €Pre-Order
    8811000001257
    • Fuel Hose, φ4×φ10×190
    • 73
    		0.03 €Pre-Order
    8811000001258
    • Clamp
    • 74
    		0.11 €Pre-Order
    8811000001259
    • Governor Spring
    • 75
    		0.14 €Pre-Order
    8811000001260
    • Throttle Linkage
    • 76
    		0.14 €Pre-Order
    8811000001261
    • Idle Spring
    • 77
    		0.11 €Pre-Order
    8811000001262
    • Clip
    • 78
    		0.14 €Pre-Order
    8811000001263
    • Bolt, M8×35
    • 79
    		0.11 €Pre-Order
    8811000001264
    • Earth Bolt
    • 80
    		0.22 €Pre-Order
    8811000001265
    • Washer, φ12×2×φ20
    • 81
    		0.06 €Pre-Order
    8811000001266
    • Wire Board
    • 82
    		0.17 €Pre-Order
    8811000001267
    • Bolt, M6×8
    • 83
    		0.03 €Pre-Order
    8811000001268
    • Ignition Module
    • 84
    		5.91 €Pre-Order
    8811000001269
    • Bolt, M6×28
    • 85
    		0.06 €Pre-Order
    8811000001270
    • Clip
    • 86
    		0.08 €Pre-Order
    8811000001271
    • Bush, φ8×φ12×8
    • 87
    		0.14 €Pre-Order
    8811000001272
    • Charging Coil
    • 88
    		4.51 €Pre-Order
    8811000001273
    • Oil Seal, φ35×φ52×7
    • 89
    		0.58 €Pre-Order
    8811000001274
    • Flywheel
    • 90
    		30.30 €Pre-Order
    8811000001275
    • Cooling Fan
    • 91
    		2.25 €Pre-Order
    8811000001276
    • Starter Cup
    • 92
    		1.57 €Pre-Order
    8811000001277
    • Nut, M16×1.5
    • 93
    		0.41 €Pre-Order
    8811000001278
    • Recoil Starter
    • 94
    		23.24 €Pre-Order
    8811000001279
    • Blower Housing
    • 95
    		9.65 €Pre-Order
    8811000001280
    • Recoil Starter
    • 96
    		14.08 €Pre-Order
    8811000001281
    • Washer, φ6
    • 97
    		0.03 €Pre-Order
    8811000001282
    • Bolt, M6×10
    • 98
    		0.03 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products

    Add to compare
    Quick view
    Add to wishlist

    GSEm 12002 TBi Premium Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39120200104
    Weight 73 kg
    Model name

    GSEm 12002 TBI Premium
    Max Power

    10000W
    Rate Power

    11000W
    Dual power

    Yes
    Voltage

    230-400V
    Socket

    1x230Vx16A, 1x230Vx32A, 1x400Vx16A
    ATS connector

    Yes
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    520cc
    Start System

    Electric start
    Fuel Capacity

    40L
    Run Time(75% load)

    7h
    LPG

    NO
    Packing Dimensions (L×W×H)

    695*555*595mm
    GW/NW

    69kg
    Add to compare
    Quick view
    Add to wishlist

    GSEm 6002 TB Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39060020101
    Weight 83 kg
    Model name

    GSEm 6002 SB
    Max Power

    5500w
    Rate Power

    5000w
    Dual power

    Yes
    Voltage

    230V-400V
    Socket

    1x230Vx16A, 1x230Vx32A
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    389cc
    Start System

    Manual
    Fuel Capacity

    25L
    Run Time(75% load)

    10hr
    LPG

    NO
    Packing Dimensions (L×W×H)

    695*525*545mm
    GW/NW

    88/85 kg
    Add to compare
    Quick view
    Add to wishlist

    GSEm 4502 SBi Inverter Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39045020103
    Weight 24 kg
    Model name

    GSEm 4502 SBI
    Max Power

    3500W
    Rate Power

    3000W
    Dual power

    No
    Voltage

    230V
    Socket

    2x230V, 1x12V, 2xUSB
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    149cc
    Start System

    Manual
    Fuel Capacity

    4L
    Run Time(75% load)

    3.5h
    LPG

    NO
    Packing Dimensions (L×W×H)

    540*365*490mm
    GW/NW

    23.5/21.5
    Add to compare
    Quick view
    Add to wishlist

    GSEM 8250 TBE, el.start

    ,

    Out of stock

    Read more
    SKU: 39082500502
    Displacement (cm3)

    439
    Fuel tank (l)

    23
    Oil capacity (l)

    1.1
    Engine power (HP)

    14
    Max. power, 230V (kW)

    3.68/7.5
    Max. power, 400V (kW)

    8
    Max. continus running time (h)

    7
    Voltage (V)

    230/400
    Add to compare
    Quick view
    Add to wishlist

    GSEM 3300 SB

    ,

    Out of stock

    Read more
    SKU: 39033000102
    Displacement (cm3)

    208
    Fuel tank (l)

    13
    Oil capacity (l)

    0.6
    Engine power (HP)

    6
    Max. power, 230V (kW)

    3.3
    Rated power, 230V (kW)

    3
    Voltage (V)

    230
    Add to compare
    Quick view
    Add to wishlist

    GSEm 4500 SBI, Inverter

    ,

    Out of stock

    Read more
    SKU: 039045000501
    Displacement (cm3)

    212
    Fuel tank (l)

    7
    Oil capacity (l)

    0.6
    Max. power, 230V (kW)

    3.7
    Rated power, 230V (kW)

    3.4
    Max. continus running time (h)

    20
    Min. continus running time (h)

    6
    Voltage (V)

    230

    Customer Review
