    GSEM 8250 TBE, el.start

    SKU: 39082500502 Categories: ,

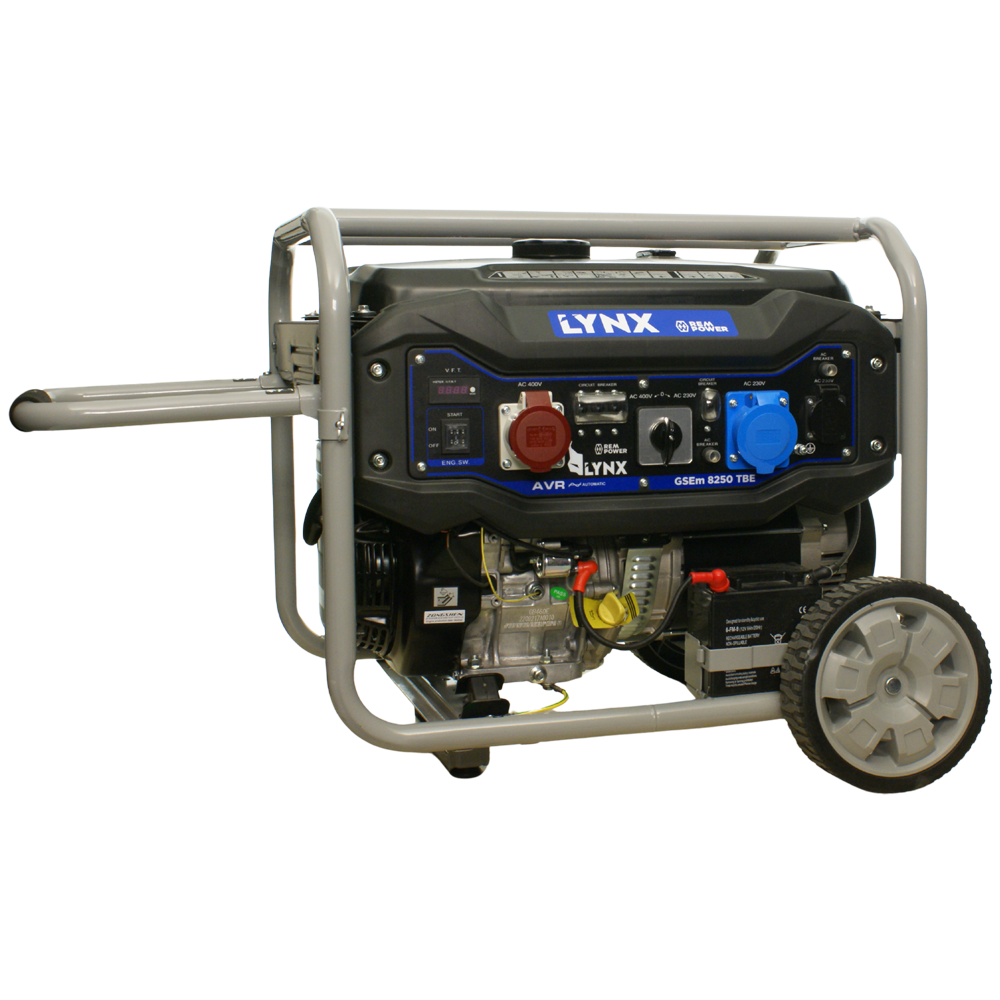

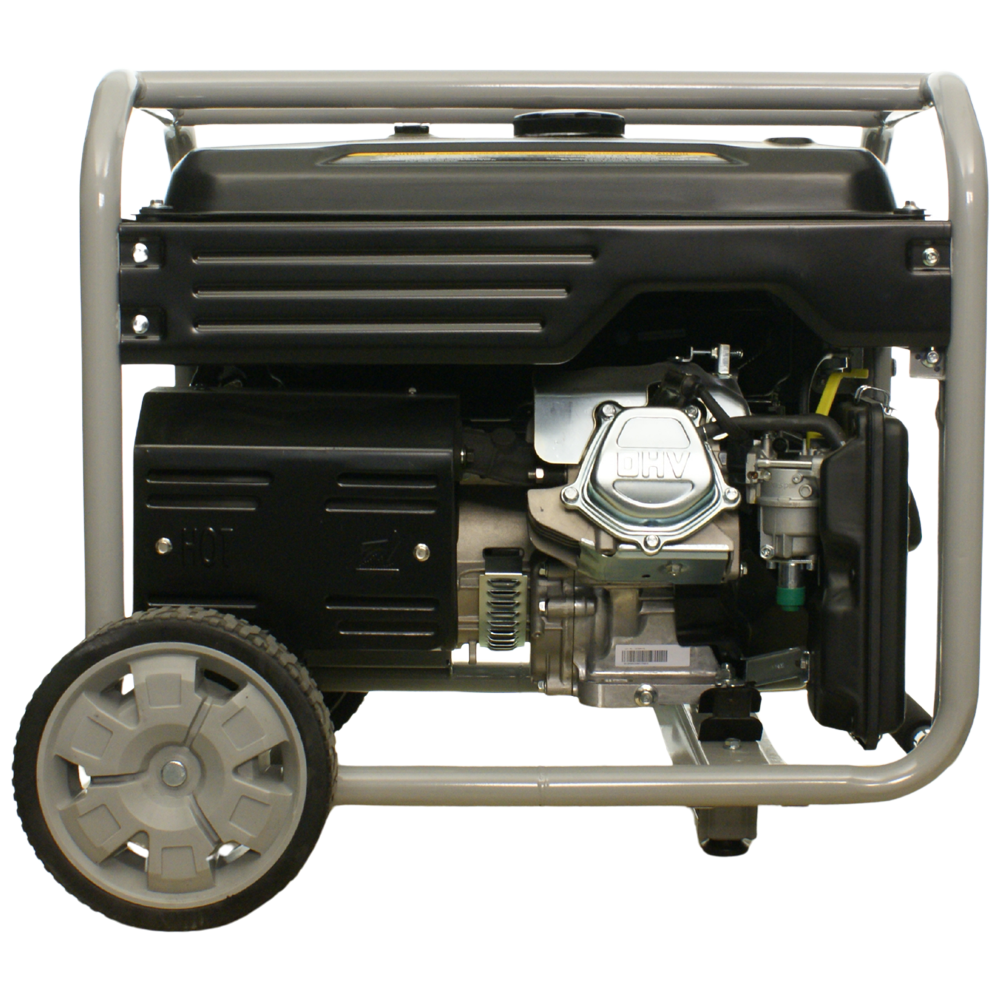

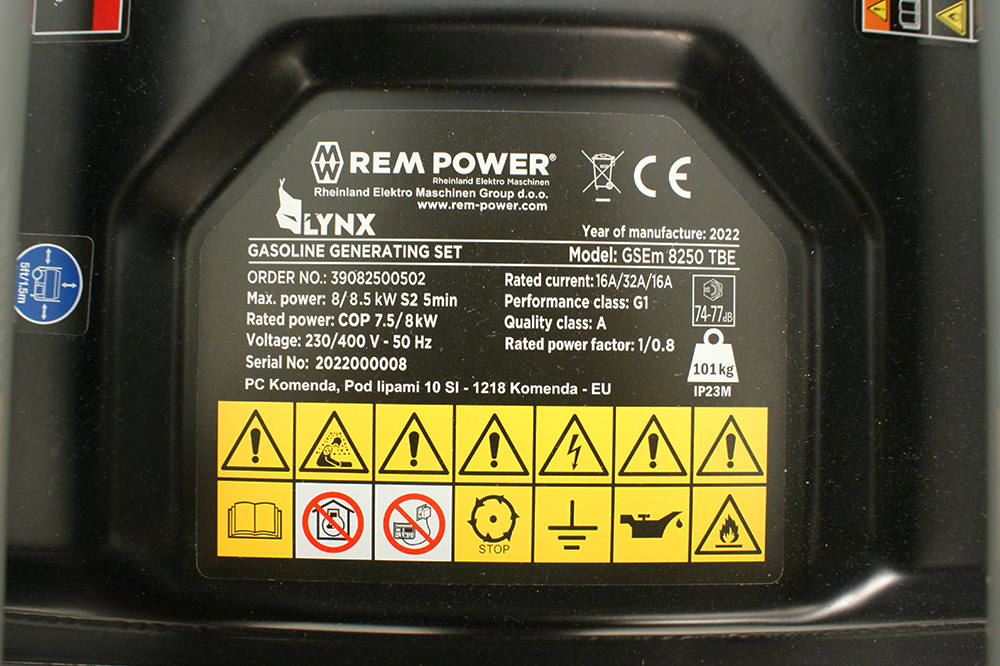

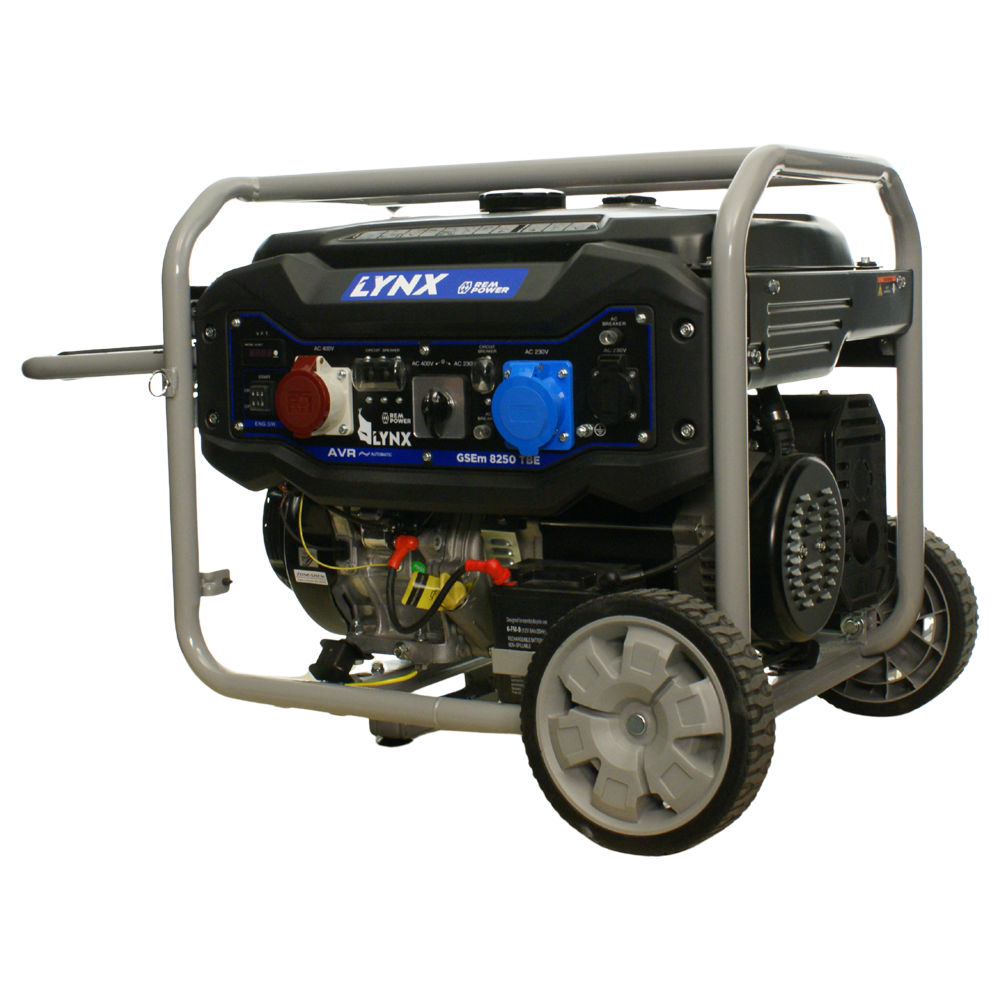

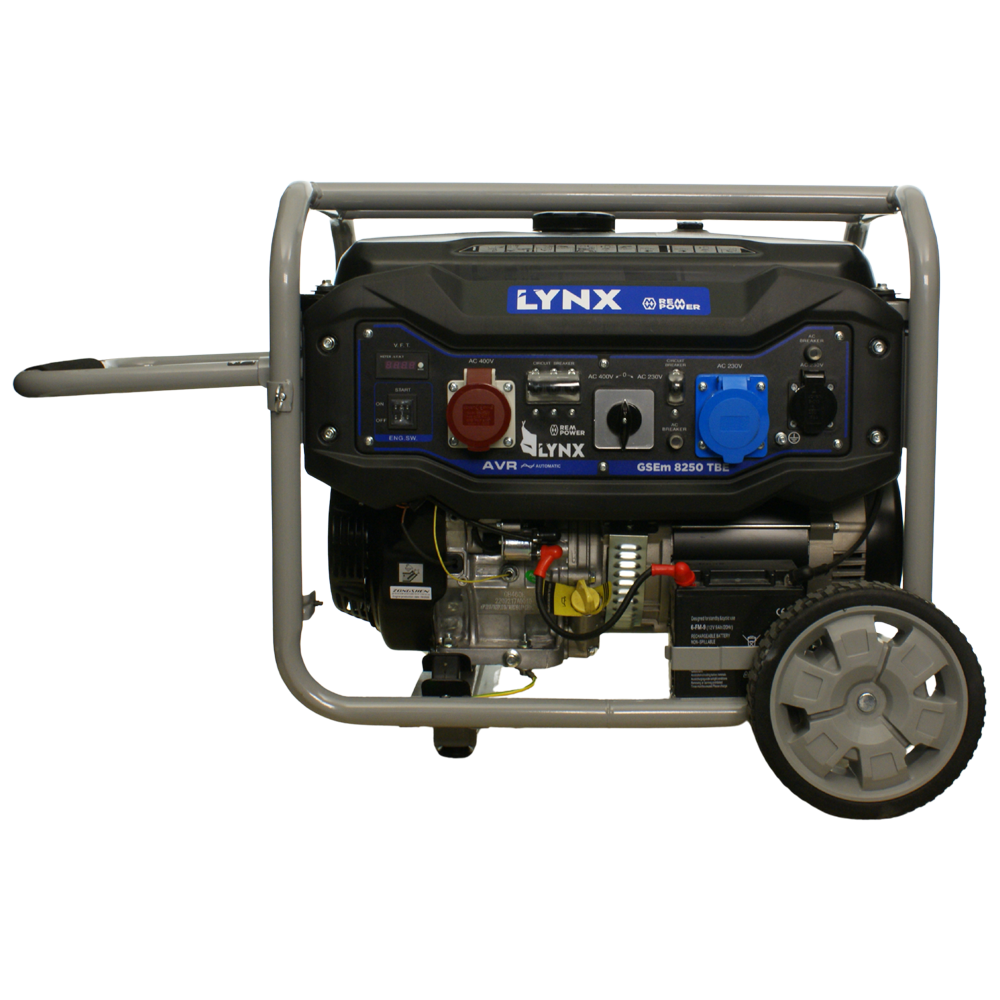

    GSEm 8250 TBE is a Petrol Generator, with output max power of 7.5kW, 230V

    Advantages:

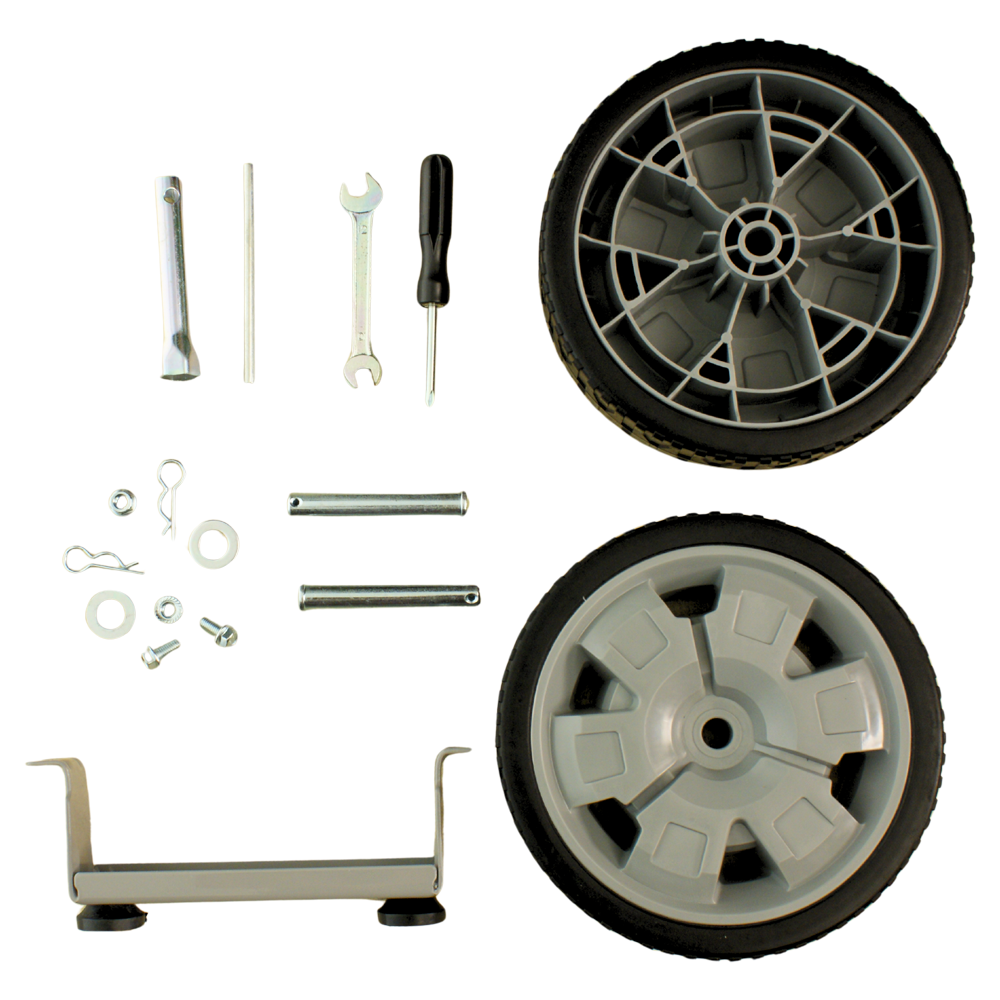

    • Heavy-duty, strong frame, never flat wheels with handles
    • Low-oil level shutdown – automatically safeguards engine from damage
    • AVR System (automatic voltage regulation)

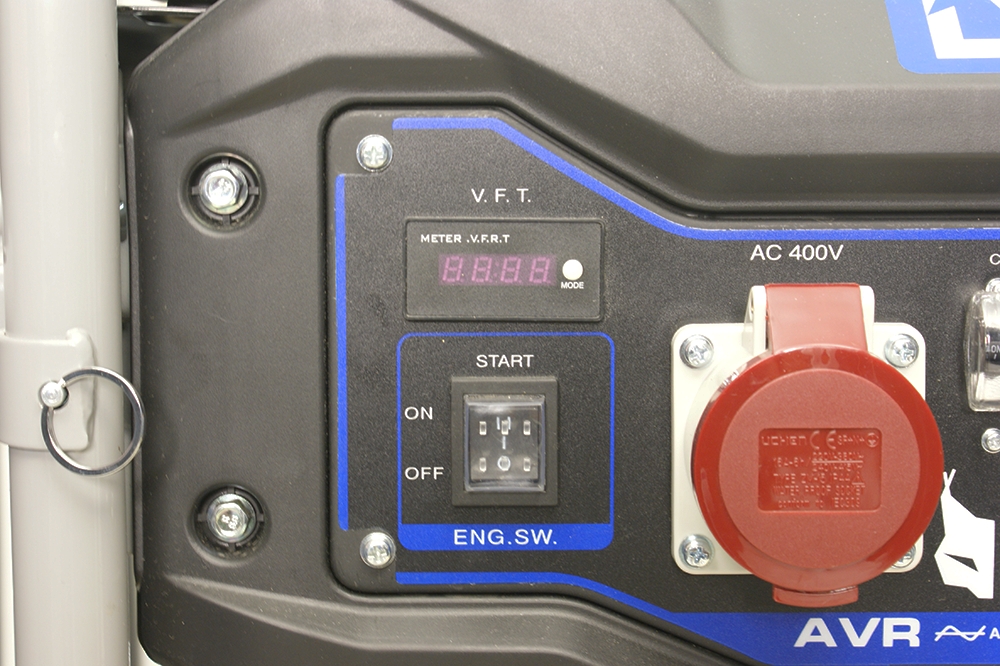

    • 3 in 1 display (voltage/frequency/working hours)
    • Electric start – battery included
    • Large-capacity steel fuel tank
    • Copper wire alternator

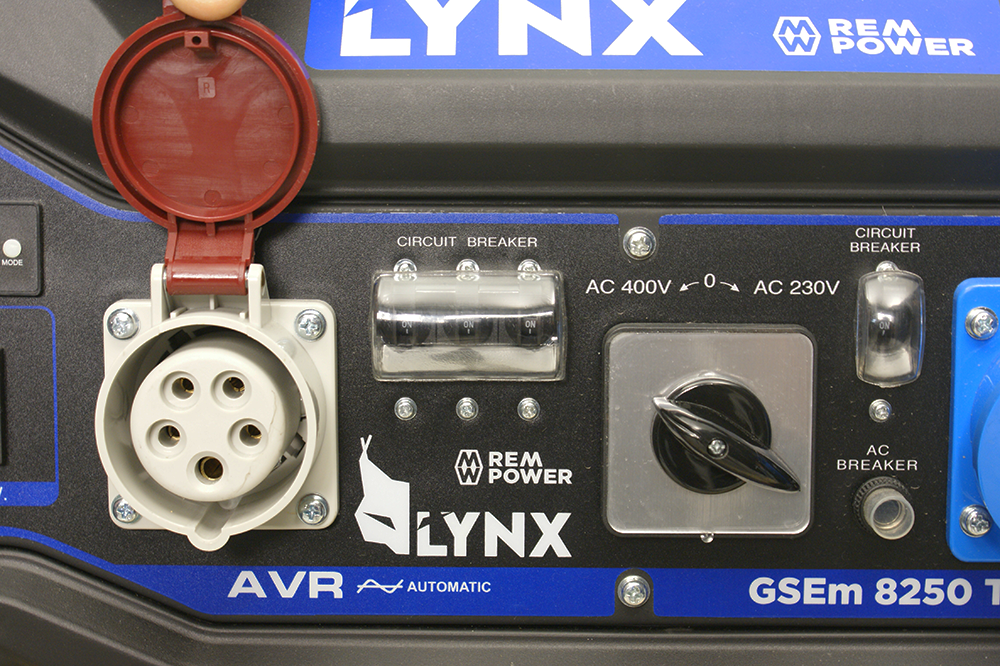

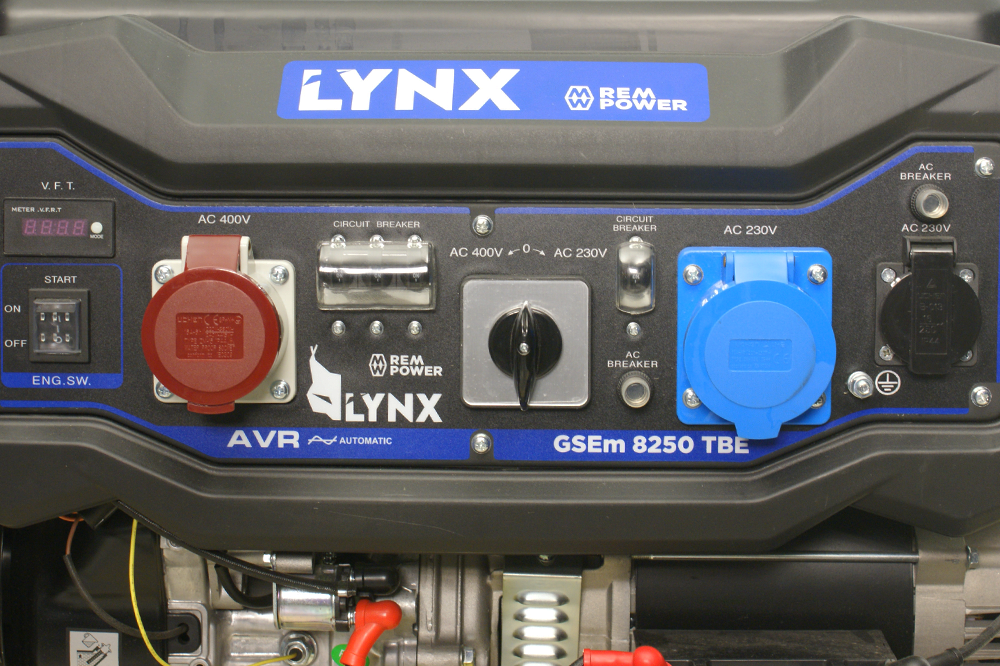

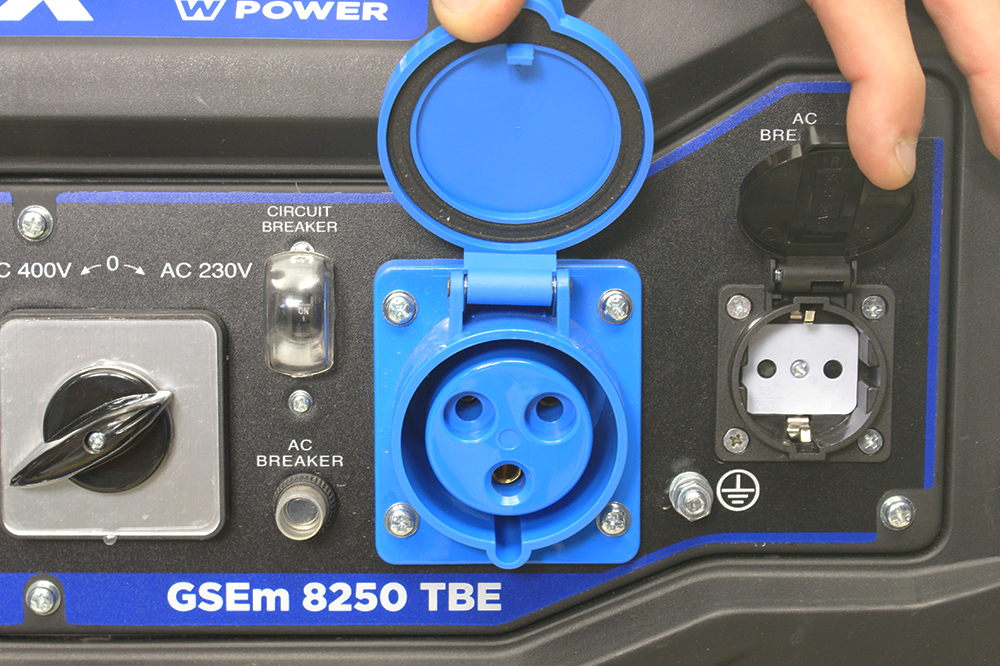

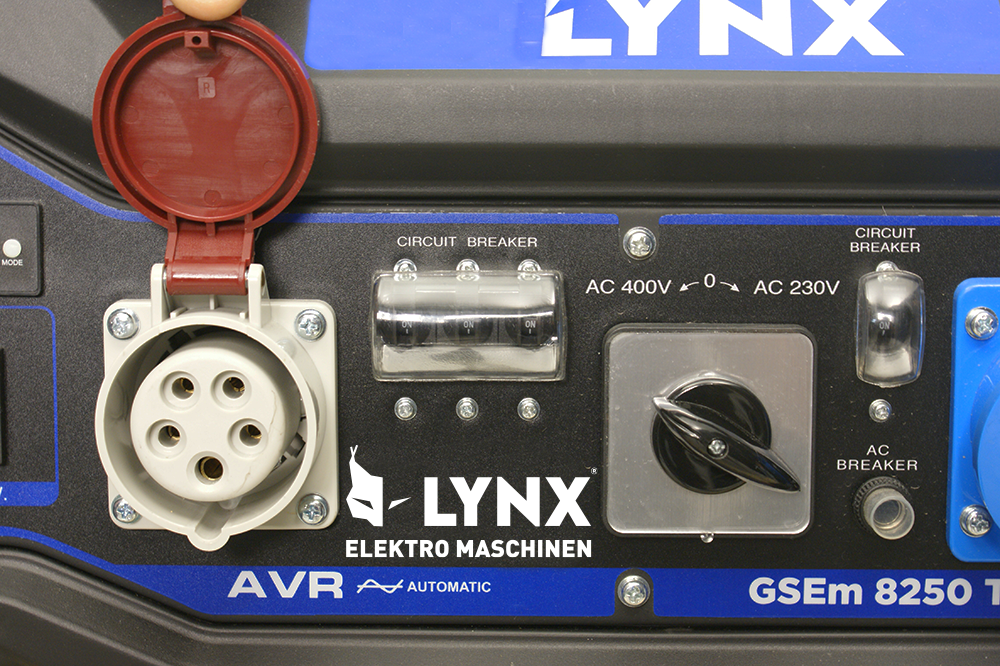

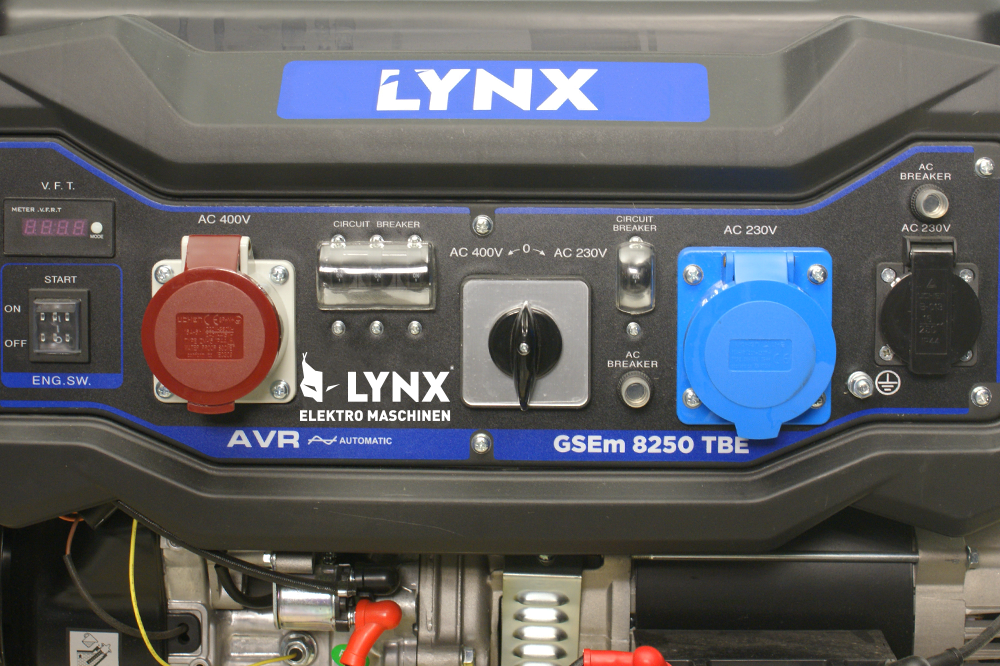

    • Control panel with three sockets:
    – 230V/ 16A – output 3.68 kW
    – 230V/32A – output 7.5 kW
    – 400V/16A – output 8 kW

    Out of stock

    Add to compare
    Add to wishlist
    10 People watching this product now!

    Payment:

    Displacement (cm3)

    439
    Fuel tank (l)

    23
    Oil capacity (l)

    1.1

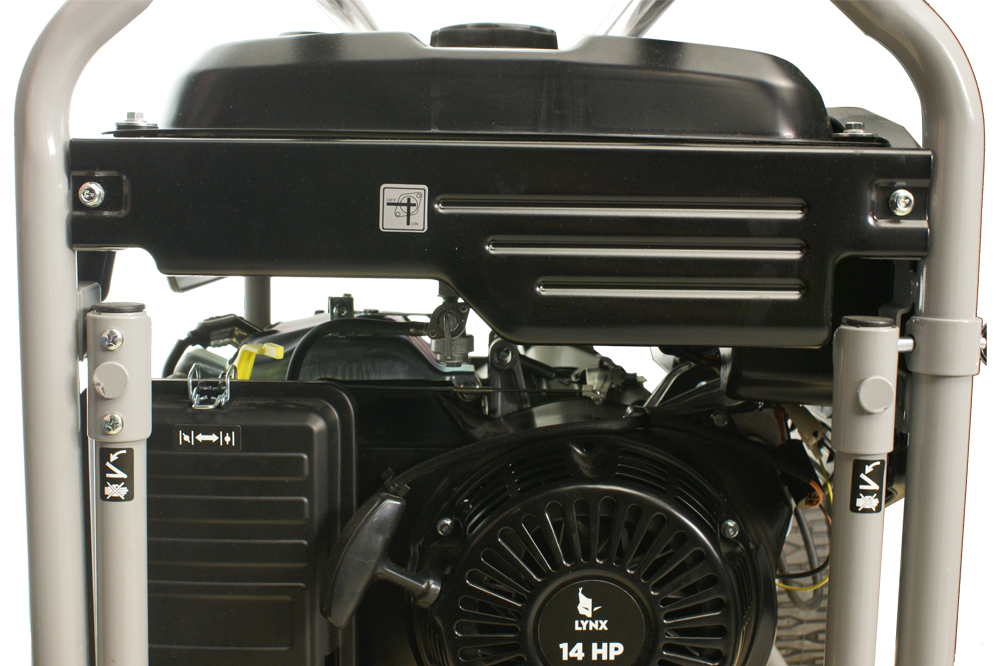

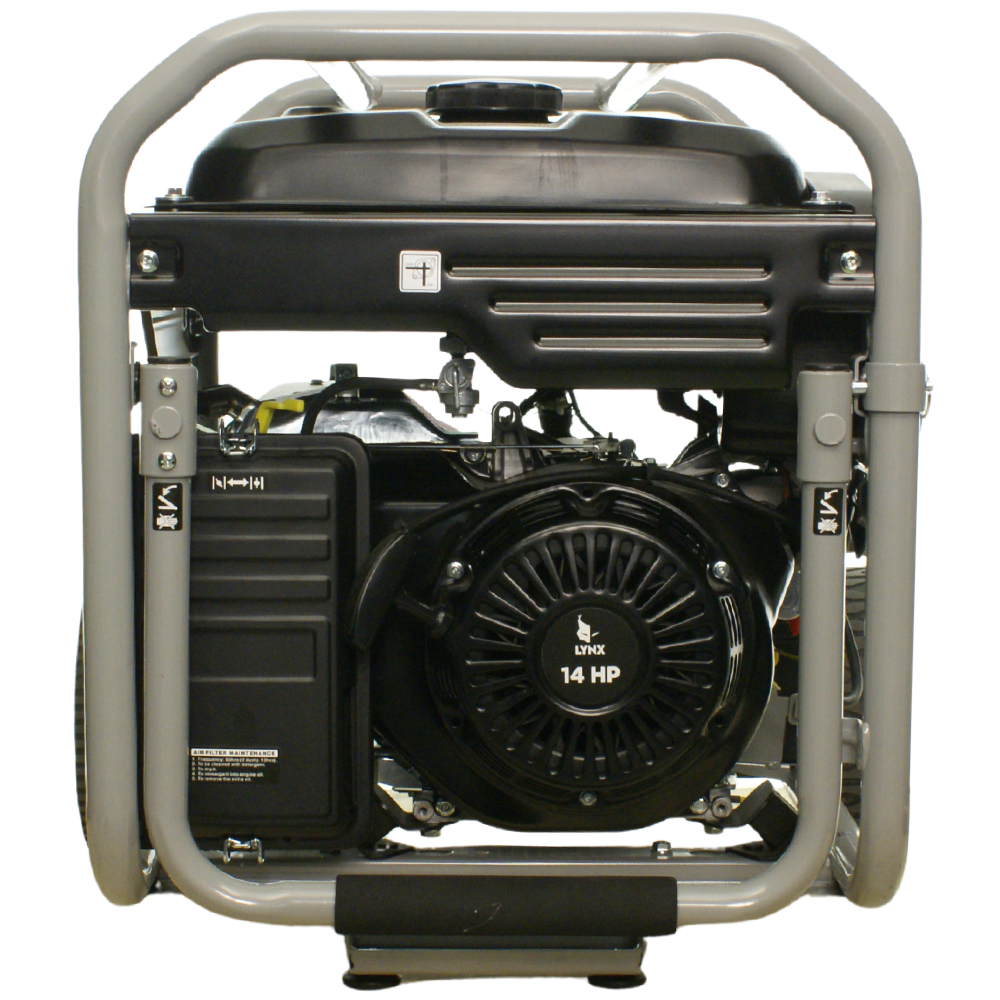

    Engine power (HP)

    14
    Max. power, 230V (kW)

    3.68/7.5
    Max. power, 400V (kW)

    8
    Max. continus running time (h)

    7
    Voltage (V)

    230/400

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8811000001353
    • Handle
    • 1
    		10.26 €Pre-Order
    8811000001354
    • Screw, M6×30
    • 2
    		0.03 €Pre-Order
    8811000001355
    • Handle Connecting Piece
    • 3
    		0.61 €Pre-Order
    8811000001356
    • Bolt, M8×16
    • 4
    		0.06 €Pre-Order
    8811000001357
    • Washer
    • 5
    		0.28 €Pre-Order
    8811000001358
    • Nut M8
    • 6
    		0.11 €Pre-Order
    8811000001359
    • Bolt, M6×12
    • 7
    		0.03 €Pre-Order
    8811000001360
    • Across Bar
    • 8
    		7.54 €Pre-Order
    8811000001361
    • Frame Assembly
    • 9
    		68.75 €Pre-Order
    8811000001362
    • Damping Pad
    • 10
    		0.08 €Pre-Order
    8811000001363
    • Pin
    • 11
    		0.41 €Pre-Order
    8811000001364
    • Spring
    • 12
    		0.08 €Pre-Order
    8811000001365
    • Chain
    • 13
    		0.19 €Pre-Order
    8811000001366
    • Circlip
    • 14
    		0.17 €Pre-Order
    8811000001367
    • Decorative Sheet, Rear
    • 15
    		6.41 €Pre-Order
    8811000001368
    • Tire
    • 16
    		9.07 €Pre-Order
    8811000001369
    • Washer, φ17.5×3×φ30
    • 17
    		0.08 €Pre-Order
    8811000001370
    • Pin, φ16×100
    • 18
    		1.40 €Pre-Order
    8811000001371
    • Clamp
    • 19
    		0.11 €Pre-Order
    8811000001372
    • Fuel Switch
    • 20
    		2.56 €Pre-Order
    8811000001373
    • Fuel Tank
    • 21
    		47.74 €Pre-Order
    8811000001374
    • Washer, φ6.5×2×φ25
    • 22
    		0.03 €Pre-Order
    8811000001375
    • Bolt, M6×25
    • 23
    		0.06 €Pre-Order
    8811000001376
    • Fuel Cap
    • 24
    		3.44 €Pre-Order
    8811000001377
    • Oily Sense Clip
    • 25
    		0.55 €Pre-Order
    8811000001378
    • Across Bar
    • 26
    		5.22 €Pre-Order
    8811000001379
    • Bolt, M6×30
    • 27
    		0.06 €Pre-Order
    8811000001380
    • Engine
    • 28
    		0.00 €Pre-Order
    8811000001381
    • Air Filter Bracket
    • 29
    		0.74 €Pre-Order
    8811000001382
    • Nut, M6
    • 30
    		0.03 €Pre-Order
    8811000001383
    • Plug
    • 31
    		0.11 €Pre-Order
    8811000001384
    • Nut, M5
    • 32
    		0.03 €Pre-Order
    8811000001385
    • Washer, φ5
    • 33
    		0.03 €Pre-Order
    8811000001386
    • Washer, φ5
    • 34
    		0.03 €Pre-Order
    8811000001387
    • Bolt, M5×235
    • 35
    		1.10 €Pre-Order
    8811000001388
    • Bolt, M8×32
    • 36
    		0.11 €Pre-Order
    8811000001389
    • Washer, φ8
    • 37
    		0.03 €Pre-Order
    8811000001390
    • Gasket, Muffler
    • 38
    		0.19 €Pre-Order
    8811000001391
    • Muffler
    • 39
    		38.97 €Pre-Order
    8811000001392
    • Bolt, M8×16
    • 40
    		0.08 €Pre-Order
    8811000001393
    • Bolt, M5×14
    • 41
    		0.03 €Pre-Order
    8811000001394
    • End Cover
    • 42
    		2.94 €Pre-Order
    8811000001395
    • Bolt, M5×18
    • 43
    		0.03 €Pre-Order
    8811000001396
    • Brush
    • 44
    		1.38 €Pre-Order
    8811000001397
    • Voltage Regulator
    • 45
    		16.89 €Pre-Order
    8811000001398
    • Bolt, M6×194
    • 46
    		0.63 €Pre-Order
    8811000001399
    • Rear Bracket
    • 47
    		15.98 €Pre-Order
    8811000001400
    • Nut, M10×1.25
    • 48
    		0.08 €Pre-Order
    8811000001401
    • Reinforcement Support
    • 49
    		0.55 €Pre-Order
    8811000001402
    • Damping Pad
    • 50
    		2.01 €Pre-Order
    8811000001403
    • Nut, M8
    • 51
    		0.06 €Pre-Order
    8811000001404
    • Bolt, M10×1.25×290
    • 52
    		1.35 €Pre-Order
    8811000001405
    • Washer, φ10
    • 53
    		0.03 €Pre-Order
    8811000001406
    • Washer, φ10
    • 54
    		0.06 €Pre-Order
    8811000001407
    • Alternator
    • 55
    		198.28 €Pre-Order
    8811000001408
    • Clip
    • 56
    		0.30 €Pre-Order
    8811000001409
    • Damping Pad
    • 57
    		1.90 €Pre-Order
    8811000001410
    • Bolt, M10×1.25×40
    • 58
    		0.22 €Pre-Order
    8811000001411
    • Nut, M6
    • 59
    		0.19 €Pre-Order
    8811000001412
    • Washer, φ6
    • 60
    		0.03 €Pre-Order
    8811000001413
    • Washer, φ6
    • 61
    		0.03 €Pre-Order
    8811000001414
    • Nut, M6
    • 62
    		0.03 €Pre-Order
    8811000001415
    • Earth Wire
    • 63
    		1.02 €Pre-Order
    8811000001416
    • Washer, φ6
    • 64
    		0.03 €Pre-Order
    8811000001417
    • Control Panel
    • 65
    		115.50 €Pre-Order
    8811000001418
    • Bolt, M6×15
    • 66
    		0.03 €Pre-Order
    8811000001419
    • Anode Wire
    • 67
    		0.91 €Pre-Order
    8811000001420
    • Cathode Wire
    • 68
    		1.93 €Pre-Order
    8811000001421
    • Battery
    • 69
    		39.85 €Pre-Order
    8811000001422
    • Binder Plate
    • 70
    		1.81 €Pre-Order
    8811000001423
    • Bolt, M6×18
    • 71
    		0.03 €Pre-Order
    8811000001424
    • Nut, M8
    • 72
    		0.06 €Pre-Order
    8811000001425
    • Support Base
    • 73
    		4.68 €Pre-Order
    8811000001426
    • Support Base
    • 74
    		2.89 €Pre-Order
    8811000001427
    • Damping Pad
    • 75
    		0.30 €Pre-Order
    8811000001428
    • Bolt, M6×16
    • 1
    		0.03 €Pre-Order
    8811000001429
    • Valve Cover
    • 2
    		3.44 €Pre-Order
    8811000001430
    • Breather Hose
    • 3
    		0.80 €Pre-Order
    8811000001431
    • Gasket, Valve Cover
    • 4
    		1.87 €Pre-Order
    8811000001432
    • Nut, M6
    • 5
    		0.03 €Pre-Order
    8811000001433
    • Rocker Arm Assembly
    • 6
    		1.68 €Pre-Order
    8811000001434
    • Rocker Arm Assembly
    • 7
    		1.68 €Pre-Order
    8811000001435
    • Rocker Arm Coreshaft
    • 8
    		0.77 €Pre-Order
    8811000001436
    • Rocker Arm Base
    • 9
    		2.37 €Pre-Order
    8811000001437
    • Bolt
    • 10
    		0.36 €Pre-Order
    8811000001438
    • Rocker Arm Base
    • 11
    		0.36 €Pre-Order
    8811000001439
    • Valve Spring Seat
    • 12
    		0.55 €Pre-Order
    8811000001440
    • Valve Locker
    • 13
    		0.17 €Pre-Order
    8811000001441
    • Valve Spring
    • 14
    		0.25 €Pre-Order
    8811000001442
    • Intake Valve Seal
    • 15
    		0.47 €Pre-Order
    8811000001443
    • Valve Spring Seat
    • 16
    		0.22 €Pre-Order
    8811000001444
    • Bolt, M10×1.25×87
    • 17
    		0.41 €Pre-Order
    8811000001445
    • Bolt, M10×1.25×65
    • 18
    		0.30 €Pre-Order
    8811000001446
    • Stud, M8×47
    • 19
    		0.30 €Pre-Order
    8811000001447
    • Gasket, Muffler
    • 20
    		0.11 €Pre-Order
    8811000001448
    • Nut, M8
    • 21
    		0.03 €Pre-Order
    8811000001449
    • Exhaust Pipe
    • 22
    		4.79 €Pre-Order
    8811000001450
    • Cylinder Head
    • 23
    		33.08 €Pre-Order
    8811000001451
    • Spark Plug
    • 24
    		1.40 €Pre-Order
    8811000001452
    • Bolt, M6×12
    • 25
    		0.03 €Pre-Order
    8811000001453
    • Shroud
    • 26
    		0.58 €Pre-Order
    8811000001454
    • Stud, M6-8×104
    • 27
    		0.36 €Pre-Order
    8811000001455
    • Gasket, Carburetor Insulator
    • 28
    		0.03 €Pre-Order
    8811000001456
    • Insulator
    • 29
    		0.96 €Pre-Order
    8811000001457
    • Gasket, Carburetor
    • 30
    		0.03 €Pre-Order
    8811000001458
    • Carburetor
    • 31
    		23.87 €Pre-Order
    8811000001459
    • Gasket, Air Filter
    • 32
    		0.03 €Pre-Order
    8811000001460
    • Air Filter Assembly
    • 33
    		12.18 €Pre-Order
    8811000001461
    • Air Filter Base
    • 34
    		13.20 €Pre-Order
    8811000001462
    • Air Filter Clip
    • 35
    		0.19 €Pre-Order
    8811000001463
    • Air Filter Baffle
    • 36
    		1.71 €Pre-Order
    8811000001464
    • Air Filter Element
    • 37
    		1.59 €Pre-Order
    8811000001465
    • Gasket, Air Filter
    • 38
    		0.94 €Pre-Order
    8811000001466
    • Air Filter Cover
    • 39
    		4.15 €Pre-Order
    8811000001467
    • Nut, M6
    • 40
    		0.03 €Pre-Order
    8811000001468
    • Clamp
    • 41
    		0.11 €Pre-Order
    8811000001469
    • Fuel Hose φ4×φ10×190
    • 42
    		0.03 €Pre-Order
    8811000001470
    • Gasket, Cylinder Head
    • 43
    		1.57 €Pre-Order
    8811000001471
    • Pin, φ12×20
    • 44
    		0.06 €Pre-Order
    8811000001472
    • Push Rod
    • 45
    		0.41 €Pre-Order
    8811000001473
    • Tappet
    • 46
    		0.55 €Pre-Order
    8811000001474
    • Intake Vavle
    • 47
    		2.17 €Pre-Order
    8811000001475
    • Exhaust Valve
    • 48
    		3.27 €Pre-Order
    8811000001476
    • Piston Ring Set
    • 49
    		3.74 €Pre-Order
    8811000001477
    • Circlip
    • 50
    		0.03 €Pre-Order
    8811000001478
    • Piston Pin
    • 51
    		0.94 €Pre-Order
    8811000001479
    • Piston
    • 52
    		7.95 €Pre-Order
    8811000001480
    • Connecting Rod Assembly
    • 53
    		5.67 €Pre-Order
    8811000001481
    • Shroud
    • 54
    		0.58 €Pre-Order
    8811000001482
    • Oil Sensor
    • 55
    		2.97 €Pre-Order
    8811000001483
    • Bolt, M6×16
    • 56
    		0.03 €Pre-Order
    8811000001484
    • Crankshaft
    • 57
    		41.33 €Pre-Order
    8811000001485
    • Woodruff Key
    • 58
    		0.08 €Pre-Order
    8811000001486
    • Camshaft
    • 59
    		12.76 €Pre-Order
    8811000001487
    • Washer, φ16.2×0.3×φ24
    • 60
    		0.08 €Pre-Order
    8811000001488
    • Bearing, TM6207E
    • 61
    		5.69 €Pre-Order
    8811000001489
    • Washer, φ35×0.3×φ42
    • 62
    		0.11 €Pre-Order
    8811000001490
    • Pin, φ7×14
    • 63
    		0.03 €Pre-Order
    8811000001491
    • Pin, φ9×12
    • 64
    		0.03 €Pre-Order
    8811000001492
    • Gasket, Crankcase
    • 65
    		1.71 €Pre-Order
    8811000001493
    • Crankcase Cover
    • 66
    		31.79 €Pre-Order
    8811000001494
    • Oil Seal, φ35×φ52×7
    • 67
    		0.66 €Pre-Order
    8811000001495
    • Bolt, M8×45
    • 68
    		0.17 €Pre-Order
    8811000001496
    • Bolt, M8×38
    • 69
    		1.10 €Pre-Order
    8811000001497
    • Dipstick
    • 70
    		0.44 €Pre-Order
    8811000001498
    • O-Ring, Dipstick
    • 71
    		0.14 €Pre-Order
    8811000001499
    • Dipstick
    • 72
    		0.47 €Pre-Order
    8811000001500
    • Governor Gear
    • 73
    		2.81 €Pre-Order
    8811000001501
    • Bearing, 6202
    • 74
    		1.13 €Pre-Order
    8811000001502
    • Balance Shaft
    • 75
    		9.90 €Pre-Order
    8811000001503
    • Clip
    • 76
    		0.08 €Pre-Order
    8811000001504
    • Cylinder Head Baffle
    • 77
    		4.35 €Pre-Order
    8811000001505
    • Electric Starter
    • 78
    		49.80 €Pre-Order
    8811000001506
    • Governor Gear Bracket Assembly
    • 79
    		1.21 €Pre-Order
    8811000001507
    • Bolt, M8×14
    • 80
    		0.08 €Pre-Order
    8811000001508
    • Governor Gear Shaft
    • 81
    		0.52 €Pre-Order
    8811000001509
    • Washer, φ8×0.8×φ20
    • 82
    		0.03 €Pre-Order
    8811000001510
    • Oil Seal, φ8×φ14×4
    • 83
    		0.28 €Pre-Order
    8811000001511
    • Cotter Pin
    • 84
    		0.03 €Pre-Order
    8811000001512
    • Governor Lever
    • 85
    		0.88 €Pre-Order
    8811000001513
    • Idle Spring
    • 86
    		0.08 €Pre-Order
    8811000001514
    • Throttle Linkage
    • 87
    		0.14 €Pre-Order
    8811000001515
    • Governor Spring
    • 88
    		0.17 €Pre-Order
    8811000001516
    • Crankcase
    • 89
    		79.72 €Pre-Order
    8811000001517
    • Clip
    • 90
    		0.14 €Pre-Order
    8811000001518
    • Earth Bolt
    • 91
    		0.22 €Pre-Order
    8811000001519
    • Washer, φ12×2×φ20
    • 92
    		0.06 €Pre-Order
    8811000001520
    • Alternator Bolt
    • 93
    		0.25 €Pre-Order
    8811000001521
    • Wire Board
    • 94
    		0.17 €Pre-Order
    8811000001522
    • Bolt, M6×8
    • 95
    		0.03 €Pre-Order
    8811000001523
    • Bush, φ8×φ12×6
    • 96
    		0.14 €Pre-Order
    8811000001524
    • Charging Coil
    • 97
    		4.51 €Pre-Order
    8811000001525
    • Bolt, M6×30
    • 98
    		0.06 €Pre-Order
    8811000001526
    • Shroud
    • 99
    		0.58 €Pre-Order
    8811000001527
    • Ignition Module
    • 100
    		6.02 €Pre-Order
    8811000001528
    • Bolt, M6×28
    • 101
    		0.06 €Pre-Order
    8811000001529
    • Oil Seal, φ35×φ52×7
    • 102
    		0.58 €Pre-Order
    8811000001530
    • Flywheel
    • 103
    		30.58 €Pre-Order
    8811000001531
    • Cooling Fan
    • 104
    		2.25 €Pre-Order
    8811000001532
    • Starter Cup
    • 105
    		1.57 €Pre-Order
    8811000001533
    • Nut, M16×1.5
    • 106
    		0.41 €Pre-Order
    8811000001534
    • Recoil Starter
    • 107
    		23.76 €Pre-Order
    8811000001535
    • Blower Housing
    • 108
    		9.90 €Pre-Order
    8811000001536
    • Recoil Starter
    • 109
    		14.85 €Pre-Order
    8811000001537
    • Washer, φ6
    • 110
    		0.03 €Pre-Order
    8811000001538
    • Bolt, M6×10
    • 111
    		0.03 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products

    Add to compare
    Quick view
    Add to wishlist

    GSEm 8502 TBE Premium Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39085020102
    Weight 92 kg
    Model name

    GSEm 8502 TBE Premium
    Max Power

    8000W
    Rate Power

    7500W
    Dual power

    Yes
    Voltage

    230V-400V
    Socket

    2x230V(1x16A+1*32A)+1x400Vx16A
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    459cc
    Start System

    Electric
    Fuel Capacity

    25L
    Run Time(75% load)

    8hr
    LPG

    NO
    Packing Dimensions (L×W×H)

    700*555*560
    GW/NW

    102/105kg
    Add to compare
    Quick view
    Add to wishlist

    GSEm 6002 TB Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39060020101
    Weight 83 kg
    Model name

    GSEm 6002 SB
    Max Power

    5500w
    Rate Power

    5000w
    Dual power

    Yes
    Voltage

    230V-400V
    Socket

    1x230Vx16A, 1x230Vx32A
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    389cc
    Start System

    Manual
    Fuel Capacity

    25L
    Run Time(75% load)

    10hr
    LPG

    NO
    Packing Dimensions (L×W×H)

    695*525*545mm
    GW/NW

    88/85 kg
    Add to compare
    Quick view
    Add to wishlist

    GSEm 4502 SBi Inverter Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39045020103
    Weight 24 kg
    Model name

    GSEm 4502 SBI
    Max Power

    3500W
    Rate Power

    3000W
    Dual power

    No
    Voltage

    230V
    Socket

    2x230V, 1x12V, 2xUSB
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    149cc
    Start System

    Manual
    Fuel Capacity

    4L
    Run Time(75% load)

    3.5h
    LPG

    NO
    Packing Dimensions (L×W×H)

    540*365*490mm
    GW/NW

    23.5/21.5
    Add to compare
    Quick view
    Add to wishlist

    GSEm 3002 SB Petrol Generator

    ,

    Out of stock

    Read more
    SKU: 39030020101
    Weight 48 kg
    Model name

    GSEm 3002 SB Petrol Generator
    Max Power

    3000w
    Rate Power

    2800w
    Dual power

    No
    Voltage

    230V
    Socket

    2x230V x 16A
    ATS connector

    No
    Voltmeter

    Digital display
    Over Voltage Peotector

    Yes
    Displacement

    208cc
    Start System

    Manual
    Fuel Capacity

    15L
    Run Time(75% load)

    10hr
    LPG

    NO
    Packing Dimensions (L×W×H)

    605*445*450mm
    GW/NW

    48/45 kg
    Add to compare
    Quick view
    Add to wishlist

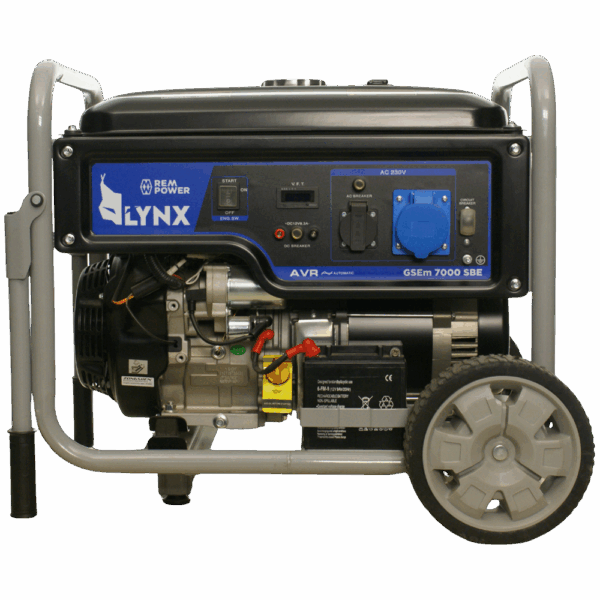

    GSEM 7000 SBE, el.start

    ,

    In stock

    Read more
    SKU: 39070000502
    Displacement (cm3)

    420
    Fuel tank (l)

    23
    Oil capacity (l)

    1.1
    Engine power (HP)

    12.5
    Max. power, 230V (kW)

    3.68/6
    Max. continus running time (h)

    8.5
    Voltage (V)

    230
    Add to compare
    Quick view
    Add to wishlist

    GSEm 4500 SBI, Inverter

    ,

    Out of stock

    Read more
    SKU: 039045000501
    Displacement (cm3)

    212
    Fuel tank (l)

    7
    Oil capacity (l)

    0.6
    Max. power, 230V (kW)

    3.7
    Rated power, 230V (kW)

    3.4
    Max. continus running time (h)

    20
    Min. continus running time (h)

    6
    Voltage (V)

    230

    Customer Review
