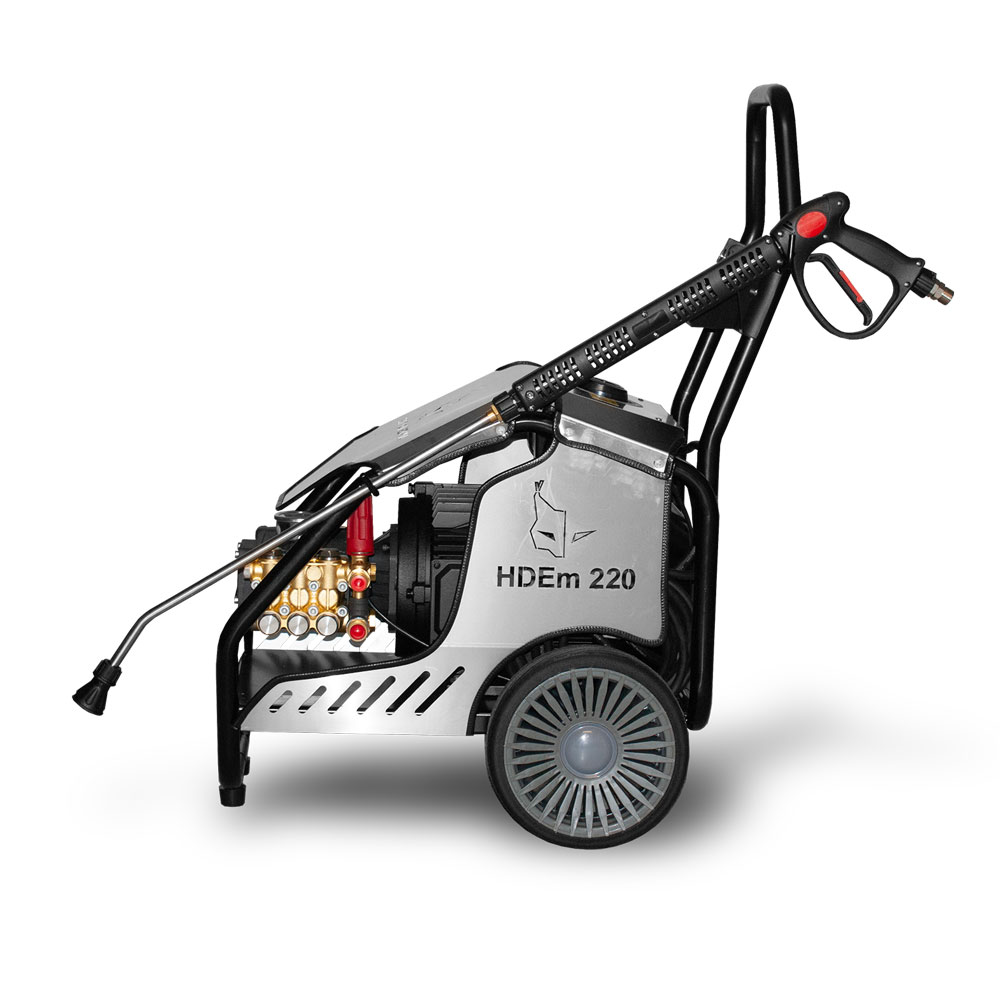

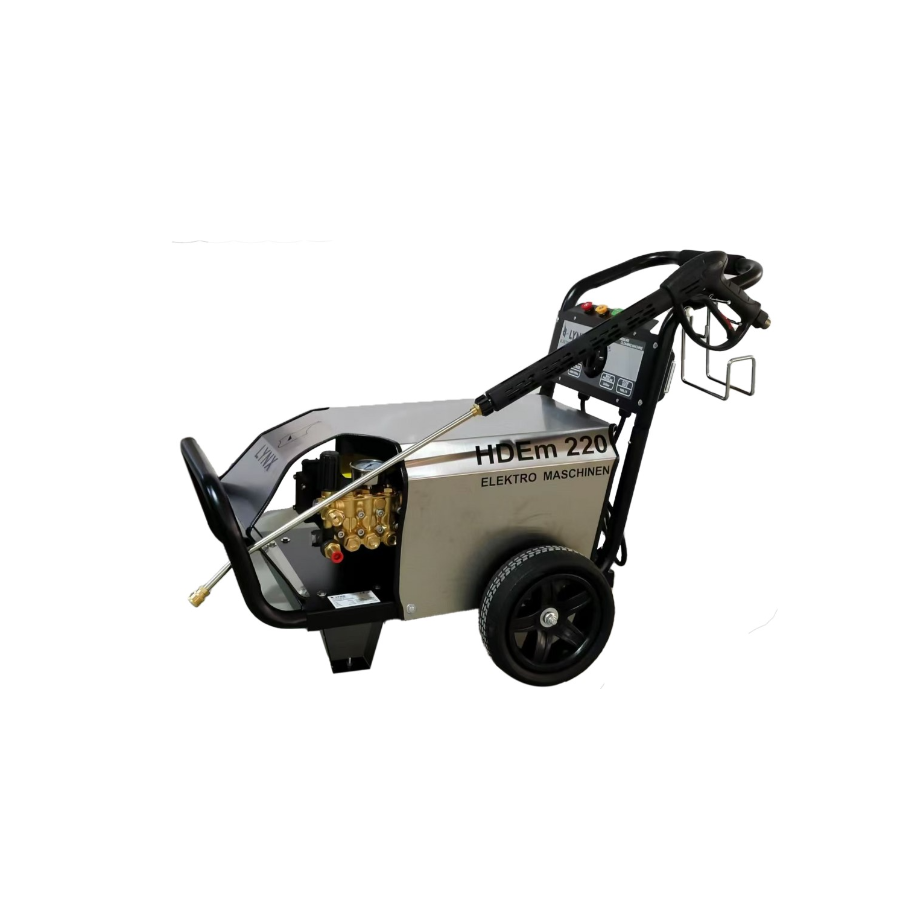

    HDEm 220

    SKU: 90425432200 Categories: , Brand:

    HDEm 220 is a Hgh Pressure cleaner, with a max pressure of 210 bar

    Advantages:

    • Four-pole electric induction motor with 1450 rpmand thermal protection
    • Solid stainless steel sprayed porcelain plunger with heat treatment
    • »By-pass« system of pump deactivation on a water gun
    • Pressure regulation switch
    • Ceramic valve water gun, 4 types of nozzles
    • Auto cut off power when over 60 min. no working

    Out of stock

    Add to compare
    Add to wishlist
    17 People watching this product now!

    Payment:

    MAX PRESSURE (bar)

    210
    WATER FLOW (l/h)

    900
    POWER (kW)

    5.5
    VOLTAGE (V/Hz)

    400/50
    INLET WATER MAX. TEMP. (°C)

    50
    LENGTH OF H.P. HOSE (m)

    13

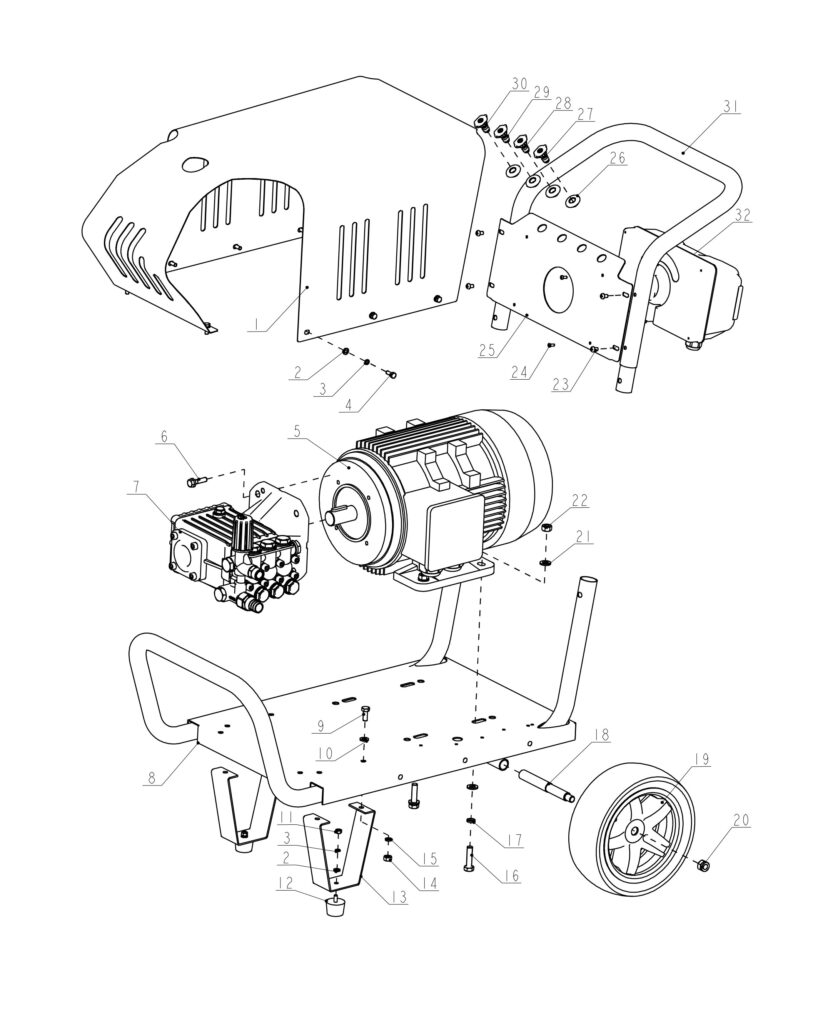

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    90425432SM01
    • Stainless steel cover, round corner type
    • 1
    		36.64 €Pre-Order
    90425432SM02
    • Flat washers Grade C, D6
    • 2
    		0.05 €Pre-Order
    90425432SM03
    • Standard spring washers D6
    • 3
    		0.05 €Pre-Order
    90425432SM04
    • Hexagon head bolts, M6x16
    • 4
    		0.14 €Pre-Order
    90425432SM06
    • Hexagon head flange screw M8X30
    • 6
    		0.22 €Pre-Order
    90425432SM07
    • High-pressure plunger pump
    • 7
    		203.57 €Pre-Order
    90425432SM08
    • Cleaning machine base frame 5.5 -7.5KW
    • 8
    		32.57 €Pre-Order
    90425432SM09
    • Hexagon head bolts, M8x20
    • 9
    		0.19 €Pre-Order
    90425432SM10
    • Flat washers Grade C, D8
    • 10
    		0.05 €Pre-Order
    90425432SM11
    • I-type hexagon nuts M6
    • 11
    		0.07 €Pre-Order
    90425432SM12
    • Foot pad type shock absorber VE35*24 M6
    • 12
    		0.81 €Pre-Order
    90425432SM13
    • Chassis support plate
    • 13
    		3.26 €Pre-Order
    90425432SM14
    • I-type hexagon nuts M8
    • 14
    		0.09 €Pre-Order
    90425432SM15
    • Standard spring washers D10
    • 15
    		0.05 €Pre-Order
    90425432SM16
    • Hexagon head bolts, M10x40
    • 16
    		0.18 €Pre-Order
    90425432SM17
    • Standard spring washers D10
    • 17
    		0.05 €Pre-Order
    90425432SM18
    • Wheel axle 16*55
    • 18
    		0.95 €Pre-Order
    90425432SM19
    • 10 inch plastic rubber wheel, with bearing, ID 16
    • 19
    		6.79 €Pre-Order
    90425432SM20
    • II-type metal hexagon locking nut M12
    • 20
    		0.24 €Pre-Order
    90425432SM21
    • Flat washers Grade C, D10
    • 21
    		0.05 €Pre-Order
    90425432SM22
    • I-type hexagon nuts M10
    • 22
    		0.22 €Pre-Order
    90425432SM23
    • Cross pan head screw M6X10
    • 23
    		0.14 €Pre-Order
    90425432SM24
    • Cross slot pan head self tapping screw ST35X10C
    • 24
    		0.05 €Pre-Order
    90425432SM25
    • Handrail panel 7.5KW
    • 25
    		4.34 €Pre-Order
    90425432SM26
    • Nozzle ferrules 18 Thickness 1.5
    • 26
    		0.07 €Pre-Order
    90425432SM27
    • Butterfly nozzle, white, 40 degrees
    • 27
    		0.68 €Pre-Order
    90425432SM28
    • Butterfly nozzle, yellow, 25 degrees
    • 28
    		0.68 €Pre-Order
    90425432SM29
    • Butterfly nozzle, green, 15 degrees
    • 29
    		0.68 €Pre-Order
    90425432SM30
    • Inlet pipe; ID 19; 2.4M
    • 30
    		2.44 €Pre-Order
    90425432SM31
    • High pressure hose ID 8; M22*1.5 ID 14, Insert Core; c10M
    • 31
    		32.57 €Pre-Order
    90425432SM32
    • Spray gun + curved rod - 40cm+58cm
    • 32
    		23.07 €Pre-Order
    90425432SM33
    • Clamp D25
    • 33
    		0.41 €Pre-Order
    90425432SM34
    • Sponge Sleeve; ID 28*175
    • 34
    		0.81 €Pre-Order
    90425432SMA5
    • AC asynchronous motor, right side, B34A -132S -4;5.5KW 28 , Stop 110
    • 5
    		228.00 €Pre-Order
    90425432SMB5
    • AC asynchronous motor, right side, B34A -132S -4;7.5KW 28 , Stop 110
      		266.00 €Pre-Order
      90425432SP01
      • Crankc ase
      • 1
      		19.81 €Pre-Order
      90425432SP02
      • Bent Axle
      • 2
      		10.99 €Pre-Order
      90425432SP03
      • Needle Bearing
      • 3
      		4.02 €Pre-Order
      90425432SP04
      • 63X2.2 0 type Loop
      • 4
      		0.19 €Pre-Order
      90425432SP05
      • Flange
      • 5
      		2.99 €Pre-Order
      90425432SP06
      • 45X55X7 0il seal
      • 6
      		1.47 €Pre-Order
      90425432SP07
      • M8X25 Bolt
      • 7
      		0.11 €Pre-Order
      90425432SP08
      • 6305 Bearing
      • 8
      		4.61 €Pre-Order
      90425432SP09
      • Bearing Cap
      • 9
      		1.09 €Pre-Order
      90425432SP10
      • MBX20 Bolt
      • 10
      		0.11 €Pre-Order
      90425432SP11
      • Connecting Rod
      • 11
      		2.61 €Pre-Order
      90425432SP12
      • Plunger Pin
      • 12
      		0.11 €Pre-Order
      90425432SP13
      • Plunger
      • 13
      		5.97 €Pre-Order
      90425432SP14
      • 18X28X 6/7 Oil Seal
      • 14
      		0.33 €Pre-Order
      90425432SP15
      • Pressure Ring
      • 15
      		1.22 €Pre-Order
      90425432SP16
      • 31X2.2 0 type loop
      • 16
      		0.07 €Pre-Order
      90425432SP17
      • Water seal
      • 17
      		0.23 €Pre-Order
      90425432SP18
      • Supporting Rhlg
      • 18
      		0.87 €Pre-Order
      90425432SP19
      • Water Seal Washer
      • 19
      		2.33 €Pre-Order
      90425432SP20
      • Water Seal
      • 20
      		0.00 €Pre-Order
      90425432SP21
      • Water seal supporting loop
      • 21
      		0.00 €Pre-Order
      90425432SP22
      • Cylinder
      • 22
      		54.01 €Pre-Order
      90425432SP23
      • 15X2.4 0 type loop
      • 23
      		0.03 €Pre-Order
      90425432SP24
      • One-way valve
      • 24
      		0.68 €Pre-Order
      90425432SP25
      • 17X2.65 0 type loop
      • 25
      		0.03 €Pre-Order
      90425432SP26
      • One- way valve pressure cap
      • 26
      		2.17 €Pre-Order
      90425432SP27
      • M8X60 Bolt
      • 27
      		0.27 €Pre-Order
      90425432SP28
      • 13.5Xl.8 0 type loop
      • 28
      		0.02 €Pre-Order
      90425432SP29
      • Oil Plug
      • 29
      		0.08 €Pre-Order
      90425432SP30
      • 122X2.6 5 0 type loop
      • 30
      		0.52 €Pre-Order
      90425432SP31
      • Crankcas e rear cap
      • 31
      		2.28 €Pre-Order
      90425432SP32
      • 11.2Xl.8 0 type loop
      • 32
      		0.02 €Pre-Order
      90425432SP33
      • Purge Cock
      • 33
      		0.68 €Pre-Order
      90425432SP34
      • 25.8X2.65 0 type loop
      • 34
      		—Pre-Order
      90425432SP35
      • M27 0il lens
      • 35
      		0.37 €Pre-Order
      90425432SP36
      • M6X20 BoIt
      • 36
      		0.07 €Pre-Order
      90425432SP37
      • 3/8 screwe d plug
      • 37
      		1.36 €Pre-Order
      90425432SP38
      • 18Xl.8 0 type loop
      • 38
      		0.02 €Pre-Order
      90425432SP39
      • 112 Screwed Plug
      • 39
      		1.60 €Pre-Order
      90425432SP40
      • 25 Ring -shield
      • 40
      		0.05 €Pre-Order
      90425432SP41
      • Spring washer
      • 41
      		0.05 €Pre-Order
      90425432SP42
      • Spring washer
      • 42
      		0.05 €Pre-Order
      90425432SV01
      • Water outlet tee joint
      • 1
      		7.46 €Pre-Order
      90425432SV02
      • lOXl.9 0 type loop
      • 2
      		0.11 €Pre-Order
      90425432SV03
      • Oral pad
      • 3
      		0.54 €Pre-Order
      90425432SV04
      • Differenti al Valve
      • 4
      		4.61 €Pre-Order
      90425432SV05
      • 12.5Xl.8 0 type loop
      • 5
      		0.02 €Pre-Order
      90425432SV06
      • Plunger washer
      • 6
      		0.43 €Pre-Order
      90425432SV07
      • 6X9Xl Stop ring
      • 7
      		0.07 €Pre-Order
      90425432SV08
      • 6Xl.8 0 type loop
      • 8
      		0.11 €Pre-Order
      90425432SV09
      • 17.5Xl.8 0 type loop
      • 9
      		0.11 €Pre-Order
      90425432SV10
      • Pressur e regulation pipe
      • 10
      		2.25 €Pre-Order
      90425432SV11
      • 6.5X2.6 0 type loop
      • 11
      		0.11 €Pre-Order
      90425432SV12
      • 7X11Xl.2 Stop ring
      • 12
      		0.11 €Pre-Order
      90425432SV13
      • Differe ntial plunger
      • 13
      		0.87 €Pre-Order
      90425432SV14
      • Pressur e regulatin g ring pad
      • 14
      		0.54 €Pre-Order
      90425432SV15
      • Imbibitio ns spring
      • 15
      		0.95 €Pre-Order
      90425432SV16
      • Imbibitio ns cone calve
      • 16
      		0.00 €Pre-Order
      90425432SV17
      • 3Xl.5 0 type loop
      • 17
      		—Pre-Order
      90425432SV18
      • Imbibitio ns connector
      • 18
      		0.00 €Pre-Order
      90425432SV19
      • Pressure regulatio n locking nut
      • 19
      		0.95 €Pre-Order
      90425432SV20
      • M4X4 bolt
      • 20
      		0.04 €Pre-Order
      90425432SV21
      • Pressur e adjusting spring
      • 21
      		0.39 €Pre-Order
      90425432SV22
      • Pressur e adjustin g cap
      • 22
      		1.85 €Pre-Order
      90425432SV23
      • Pressure adjusting handrail
      • 23
      		1.19 €Pre-Order
      90425432SV24
      • M6X16 Bolt
      • 24
      		0.07 €Pre-Order
      90425432SV25
      • 4.3X3 0 type loop
      • 25
      		0.11 €Pre-Order
      90425432SV26
      • Outlet valve
      • 26
      		0.90 €Pre-Order
      90425432SV27
      • Valve head spring
      • 27
      		0.11 €Pre-Order
      90425432SV28
      • 15Xl.8 0 type loop
      • 28
      		0.07 €Pre-Order
      90425432SV29
      • Water conver sion connector
      • 29
      		2.17 €Pre-Order
      90425432SV30
      • 13.5X2 0 type loop
      • 30
      		0.07 €Pre-Order
      90425432SV31
      • Outlet tee joint locking bolt
      • 31
      		3.39 €Pre-Order
      90425432SV32
      • Water absorptio n connector
      • 32
      		3.12 €Pre-Order
      90425432SV33
      • 17X2.6 0 type loop
      • 33
      		0.11 €Pre-Order
      90425432SV34
      • 10.6X2.4 0 type loop
      • 34
      		0.07 €Pre-Order
      90425432SV35
      • water absorption tee joint
      • 35
      		5.43 €Pre-Order
      90425432SV36
      • Inlet tee joint locking bolt
      • 36
      		3.47 €Pre-Order
      90425432SV37
      • 20Xl.8 0 type
      • 37
      		0.11 €Pre-Order
      90425432SV38
      • filter screen
      • 38
      		0.24 €Pre-Order

      Product Data

      CE declaration

      EN user manual

      Related products

      Add to compare
      Quick view
      Add to wishlist

      HDEM 800 HW

      ,

      In stock

      Read more
      SKU: 950800400502
      OPERATING PRESSURE (bar)

      170
      WATER FLOW (l/h)

      800
      POWER (kW)

      4.7
      VOLTAGE (V/Hz)

      400/50
      OUTLET WATER MAX. TEMP. (°C)

      130
      FUEL CONSUMPTION (l/h)

      3,2
      FUEL TANK (l)

      18
      LENGTH OF H.P. HOSE (m)

      8
      DETERGENT TANK (l)

      2,5
      ANTI-CALC LIQUID TANK (l)

      2,5
      Add to compare
      Quick view
      Add to wishlist

      HDEM 800 HW – E

      ,

      Out of stock

      Read more
      SKU: 95080040001
      OPERATING PRESSURE (bar)

      170
      WATER FLOW (l/h)

      800
      POWER (kW)

      4.7
      VOLTAGE (V/Hz)

      400/50
      OUTLET WATER MAX. TEMP. (°C)

      130
      FUEL CONSUMPTION (l/h)

      3,2
      FUEL TANK (l)

      18
      LENGTH OF H.P. HOSE (m)

      8
      DETERGENT TANK (l)

      –
      ANTI-CALC LIQUID TANK (l)

      –
      Add to compare
      Quick view
      Add to wishlist

      HDEM 942 HW

      ,

      Out of stock

      Read more
      SKU: 950942400502
      OPERATING PRESSURE (bar)

      180
      WATER FLOW (l/h)

      800
      POWER (kW)

      5.5
      VOLTAGE (V/Hz)

      400/50
      OUTLET WATER MAX. TEMP. (°C)

      140
      FUEL CONSUMPTION (l/h)

      5.8
      FUEL TANK (l)

      25
      LENGTH OF H.P. HOSE (m)

      10
      DETERGENT TANK (l)

      22
      ANTI-CALC LIQUID TANK (l)

      2.3
      Add to compare
      Quick view
      Add to wishlist

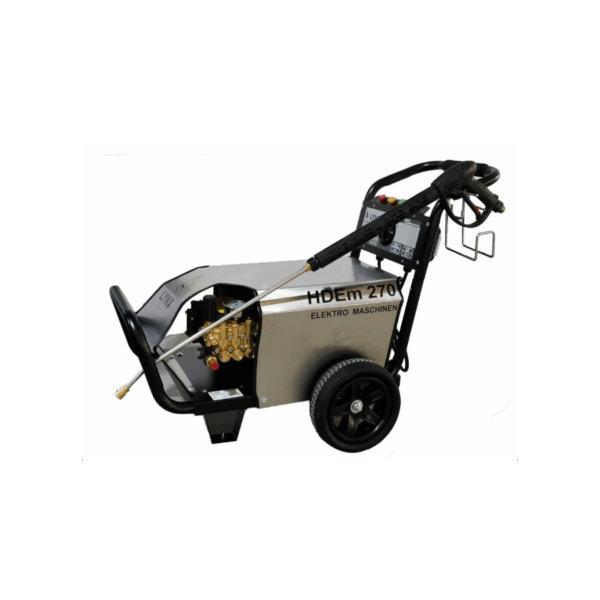

      HDEm 270

      ,
