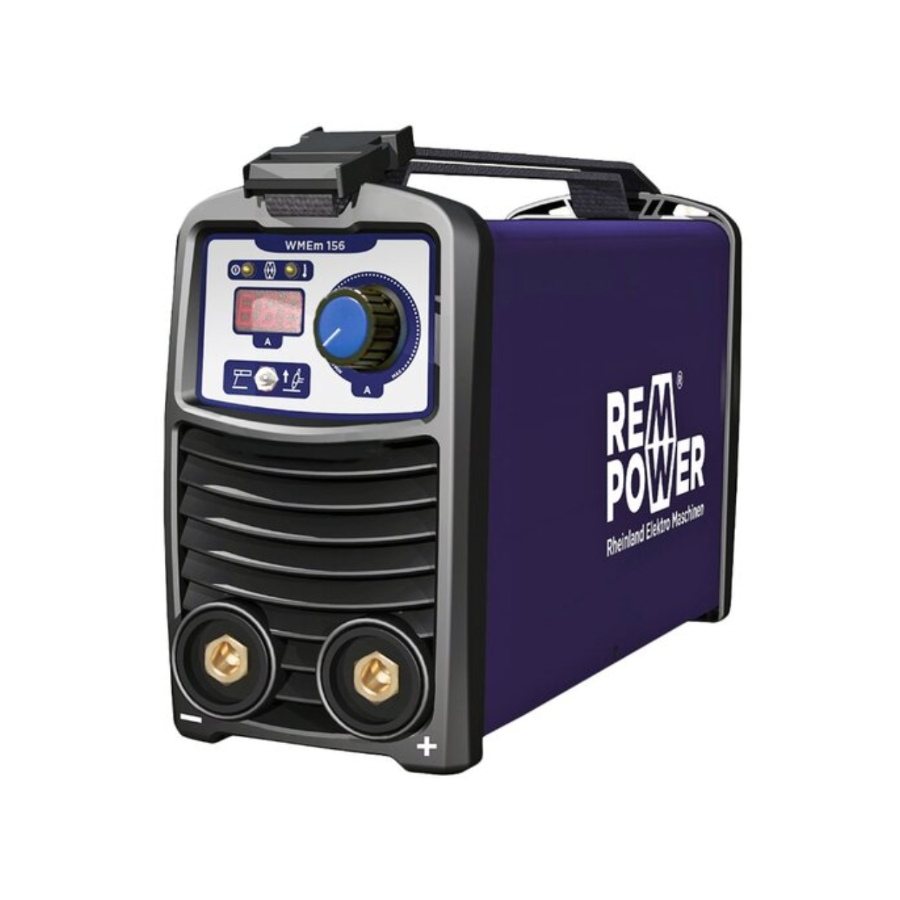

    WMEm 156 series II

    SKU: 301402002 Categories: ,

    WMEm 156 series II is a Welding inverter, equiped with Compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA, TIG welding
    • Durable and impact resistence design with OKC cable connectors
    • Easy to operate – only current setting needed
    • Fan cooling
    • Welds most electrodes from ø 1,6 – 3,2 mm
    • Capable to work on generator power source
    • Thermal protection
    • Automatic arc force
    • Full color packaging

    Standard equipment:

    • welding cable
    • returne cable

    Out of stock

    Add to compare
    Add to wishlist
    14 People watching this product now!

    Payment:

    MAIN SUPPLY (V/Ph Hz)

    230/1 15% 50/60
    FUSE, SLOW (A)

    16
    PRIMARY CURRENT (A)

    25
    MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V

    63/22,5
    MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V

    63/12,5
    SETTING RANGE MMA (A)

    20-140
    OPEN CIRCUIT VOLTAGE (V)

    68
    POWER FACTOR AT MAX. CURRENT

    0,85
    DIAMETER OF ELECTRODES (mm)

    1,6-3,2
    OKC

    16
    PROTECTION CLASS

    IP21S
    DIMENSIONS (LxBxH mm)

    230x363x185
    WEIGHT (kg)

    6,0

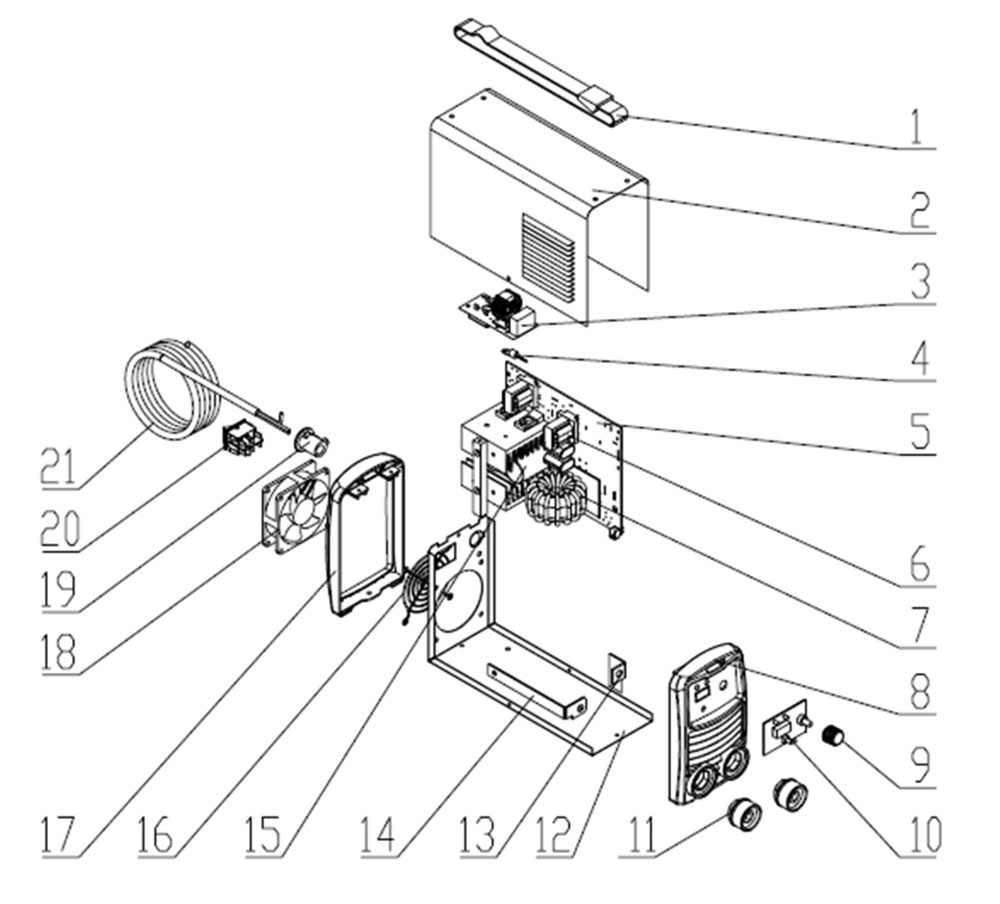

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    8807000000208
    • Cover
    • 2
    		9.99 €Pre-Order
    8807000000210
    • Chassis
    • 12
    		8.53 €Pre-Order
    8807000000211
    • Negative output busbar
    • 13
    		3.83 €Pre-Order
    8807000000212
    • Positive output busbar
    • 14
    		4.11 €Pre-Order
    8807000000214
    • Main control board
    • 5
    		125.00 €Pre-Order
    8807000000216
    • Panel
    • 10
    		8.51 €Pre-Order
    8807000000217
    • EMC Board
    • 3
    		20.30 €Pre-Order
    8807000000220
    • ower cable input harnes
    • 21
    		10.72 €Pre-Order
    8807000000221
    • NTC resistance harness
    • 4
    		1.90 €Pre-Order
    8807000000222
    • Cable clamp
    • 19
    		0.60 €Pre-Order
    8807000000223
    • belt
    • 1
    		1.50 €Pre-Order
    8807000000224
    • Plastic frame
    • 17
    		0.90 €Pre-Order
    8807000000225
    • Plastic front plate
    • 8
    		1.80 €Pre-Order
    8807000000226
    • Potentiometer knob
    • 9
    		0.60 €Pre-Order
    8807000000228
    • Capacitor
    • 15
    		4.00 €Pre-Order
    8807000000229
    • Main transformer
    • 7
    		15.56 €Pre-Order
    8807000000230
    • witching powertransform
    • 6
    		1.62 €Pre-Order
    8807000000231
    • Quick socket
    • 11
    		2.49 €Pre-Order
    8807000000232
    • Rocker switch
    • 20
    		1.80 €Pre-Order
    8807000000233
    • Fan cover
    • 16
    		0.80 €Pre-Order
    8807000000234
    • Fan
    • 18
    		7.94 €Pre-Order

    Product Data

    CE declaration

    EN user manual
