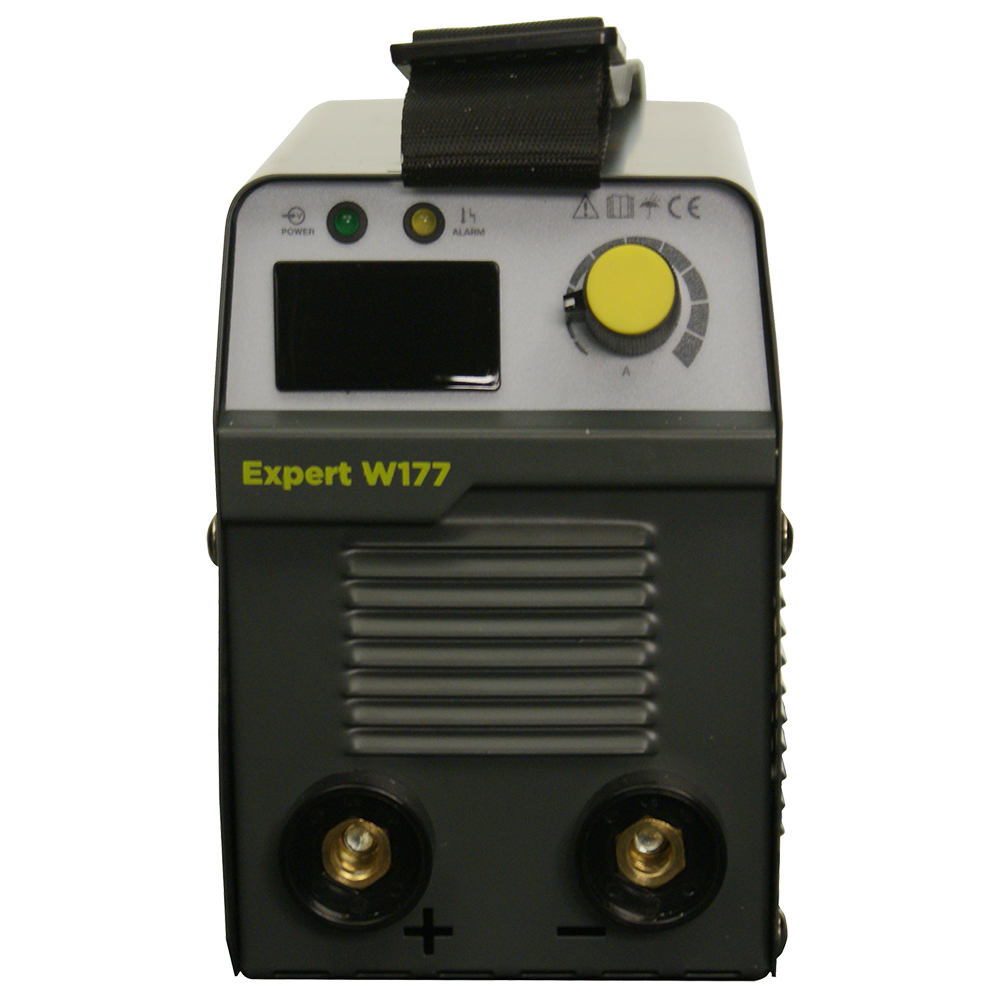

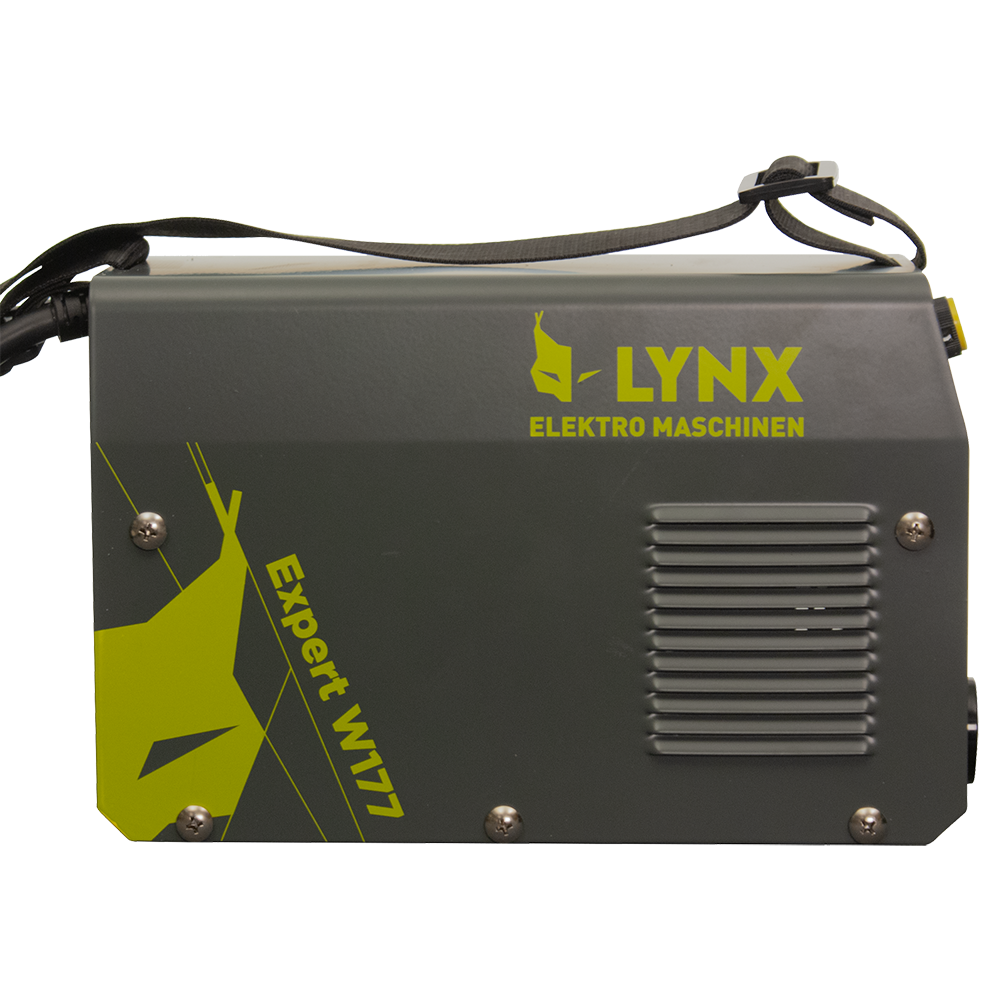

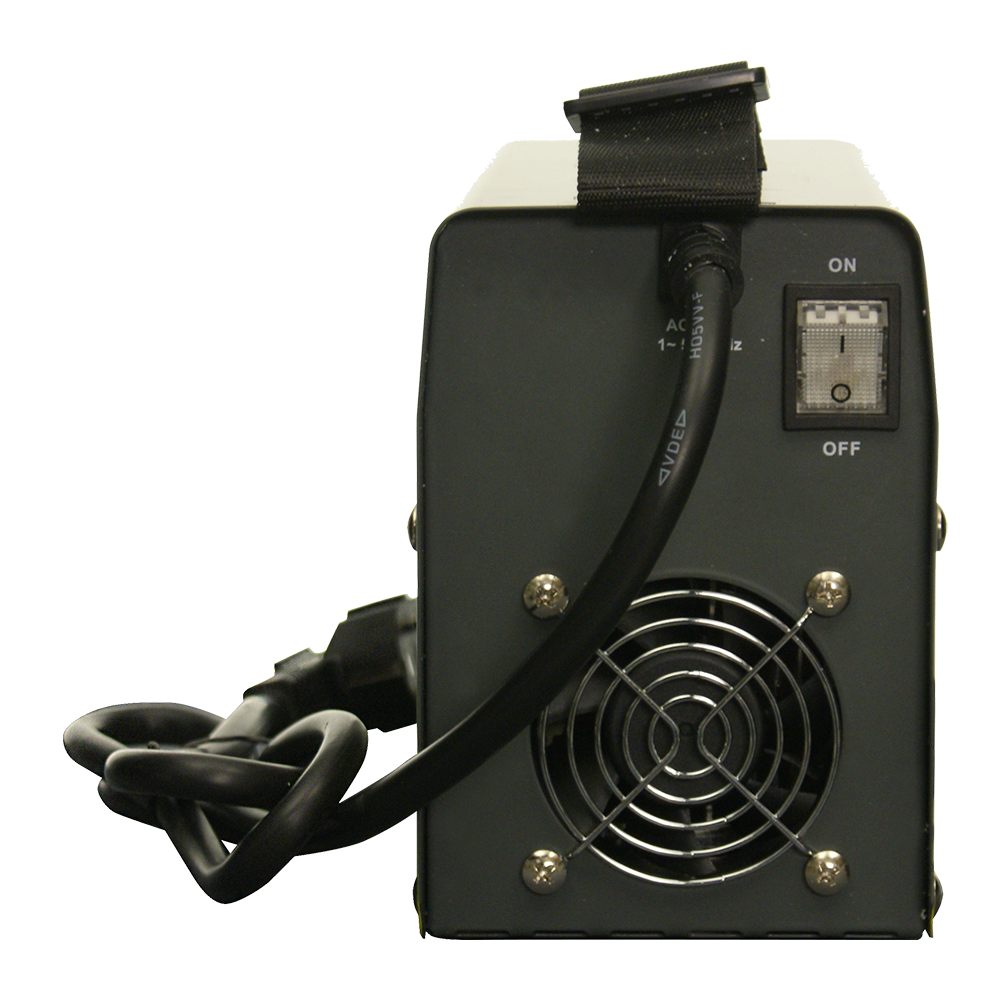

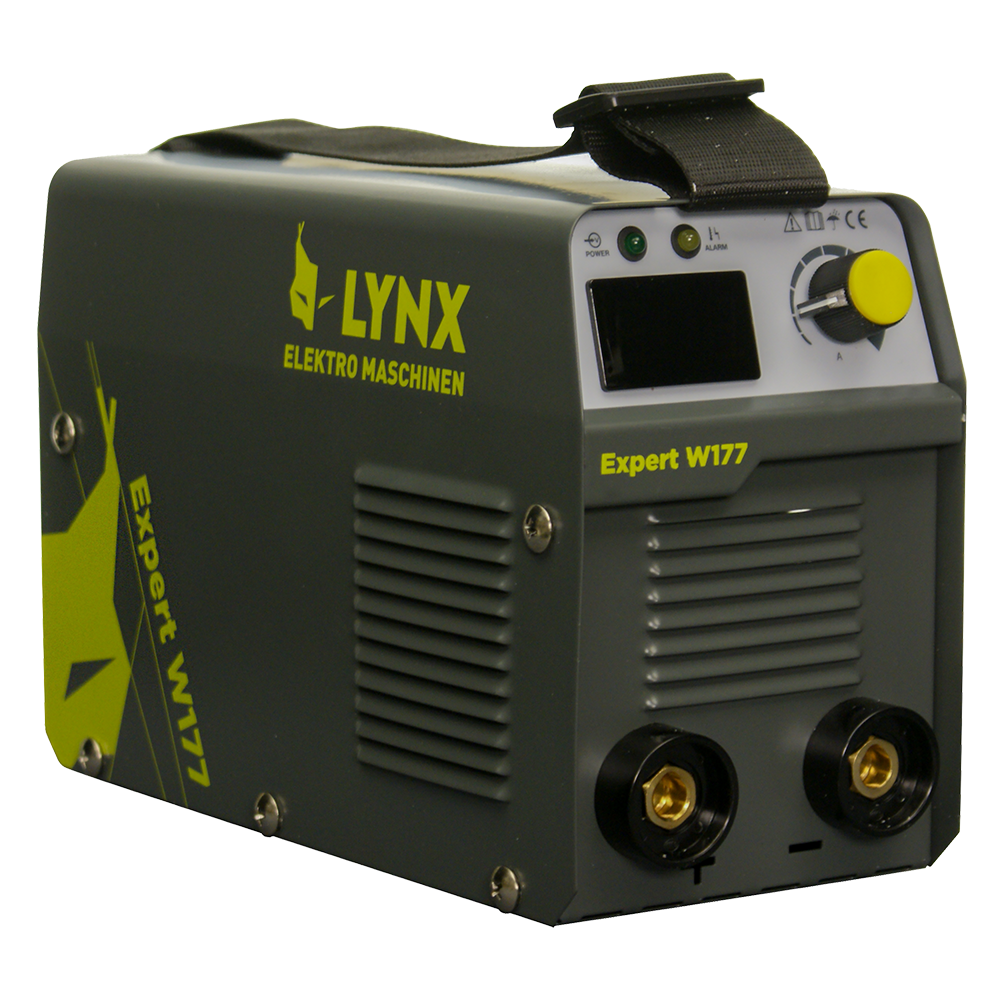

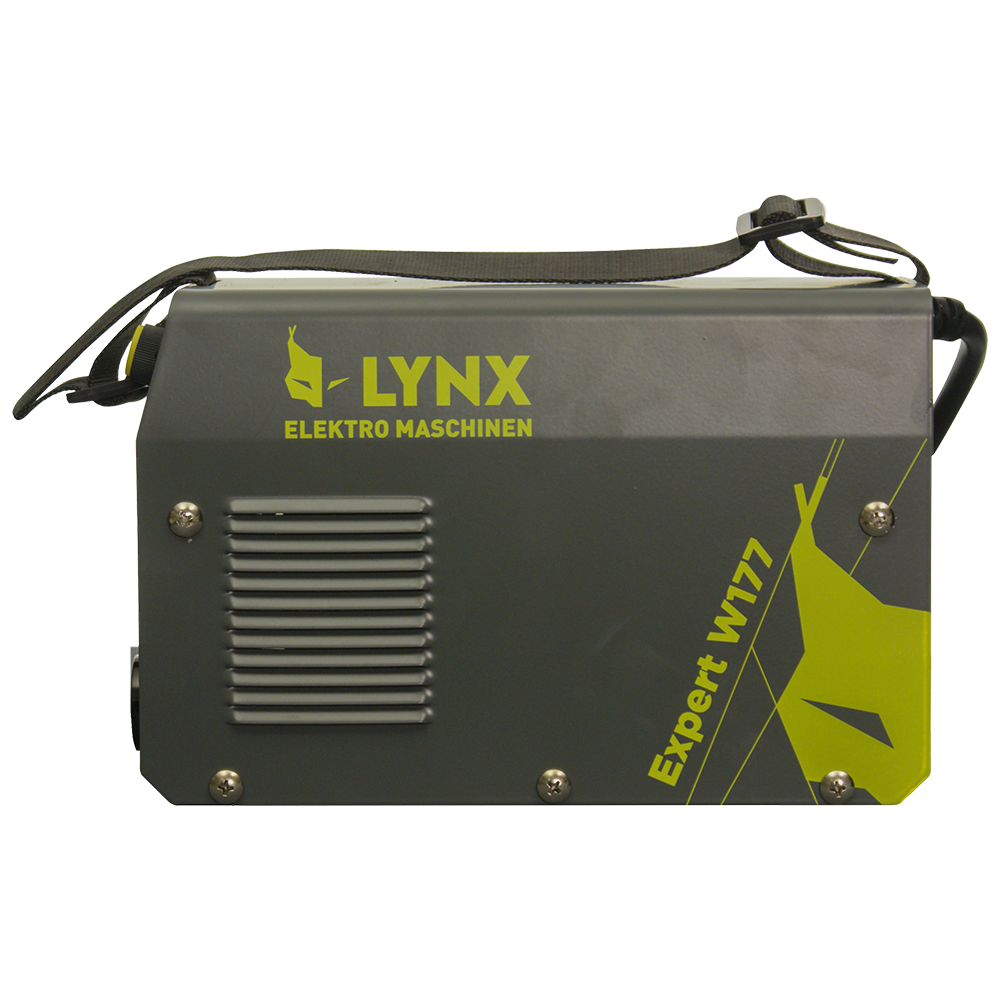

    WMEm 177 Expert line

    SKU: 301602032 Categories: ,

    WMEm 177 Expert line II is a Welding inverter, equiped with compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding
    • Durable and impact resistance design
    • Easy to operate – only current setting needed
    • Digital Ampere meter shows the welding current
    • Welds most electrodes from a 2,0- 4,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Automatic hot start
    • Automatic are force
    • Automatic anti-stick function

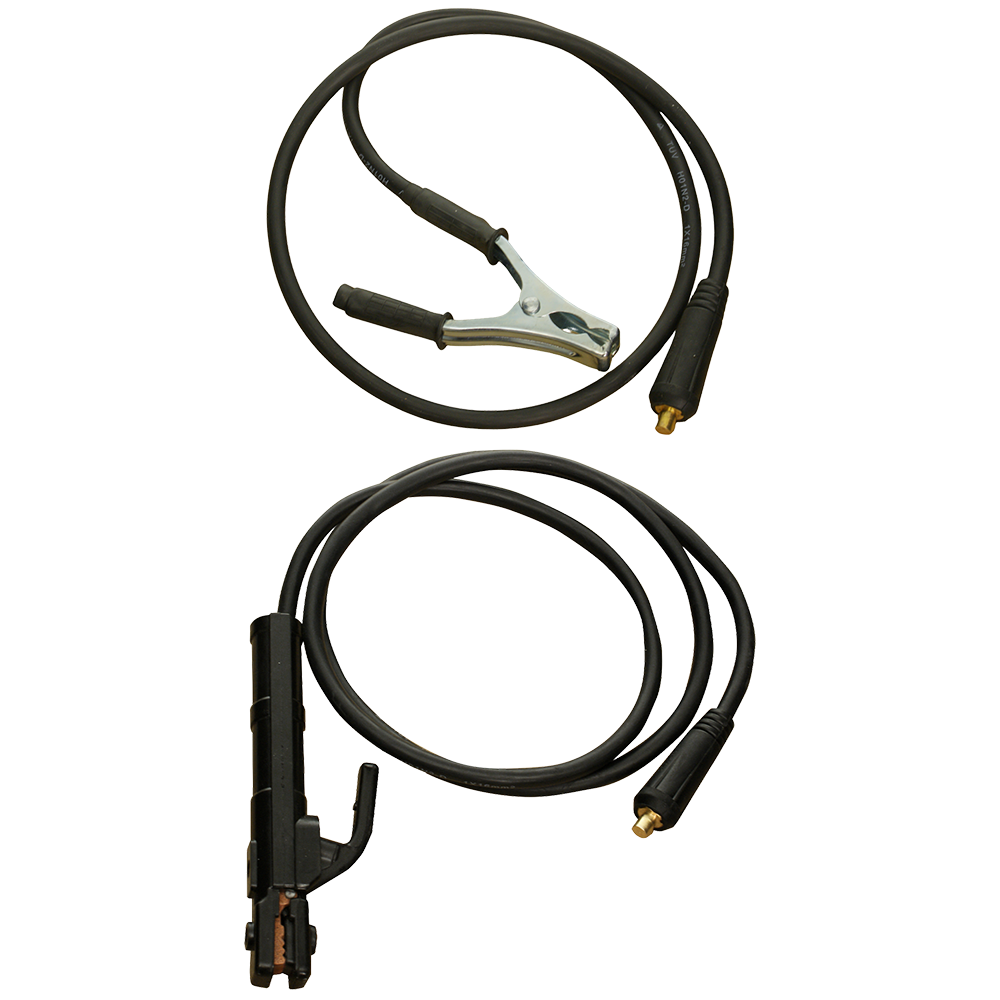

    Standard equipment:

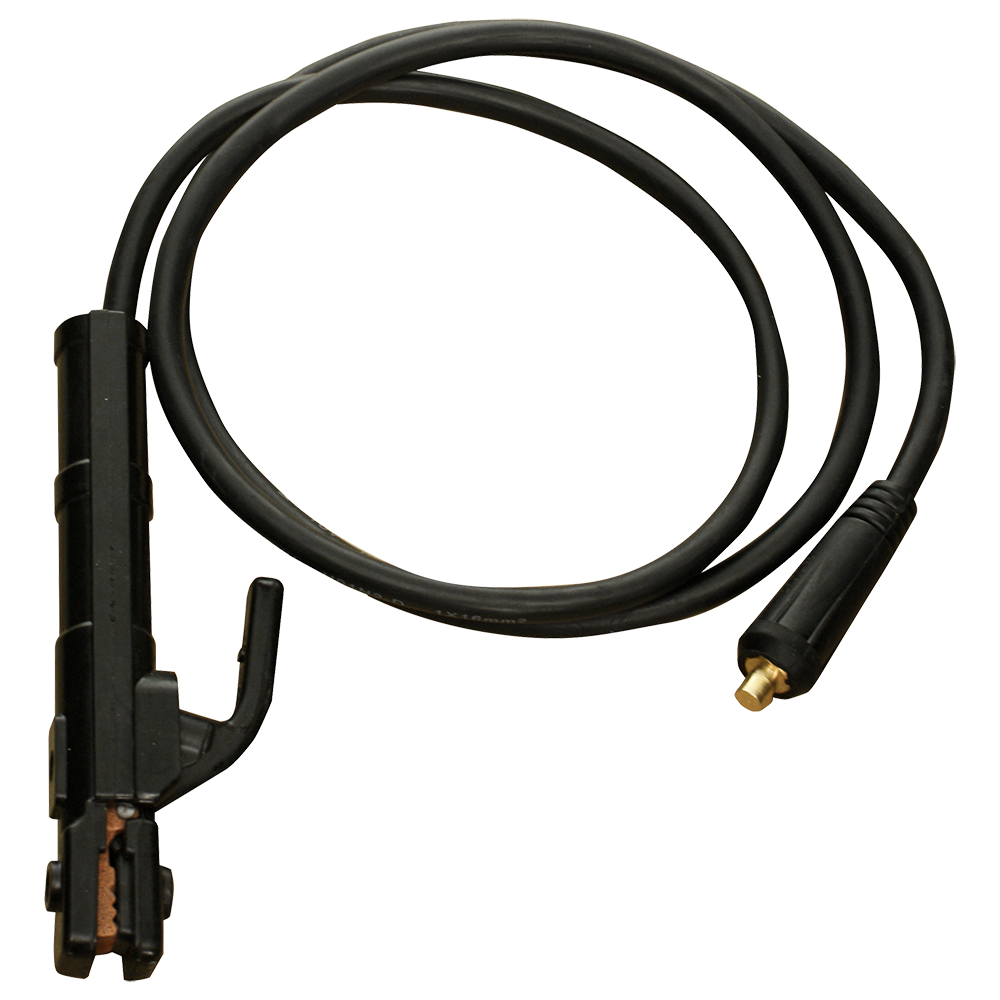

    • Welding cable

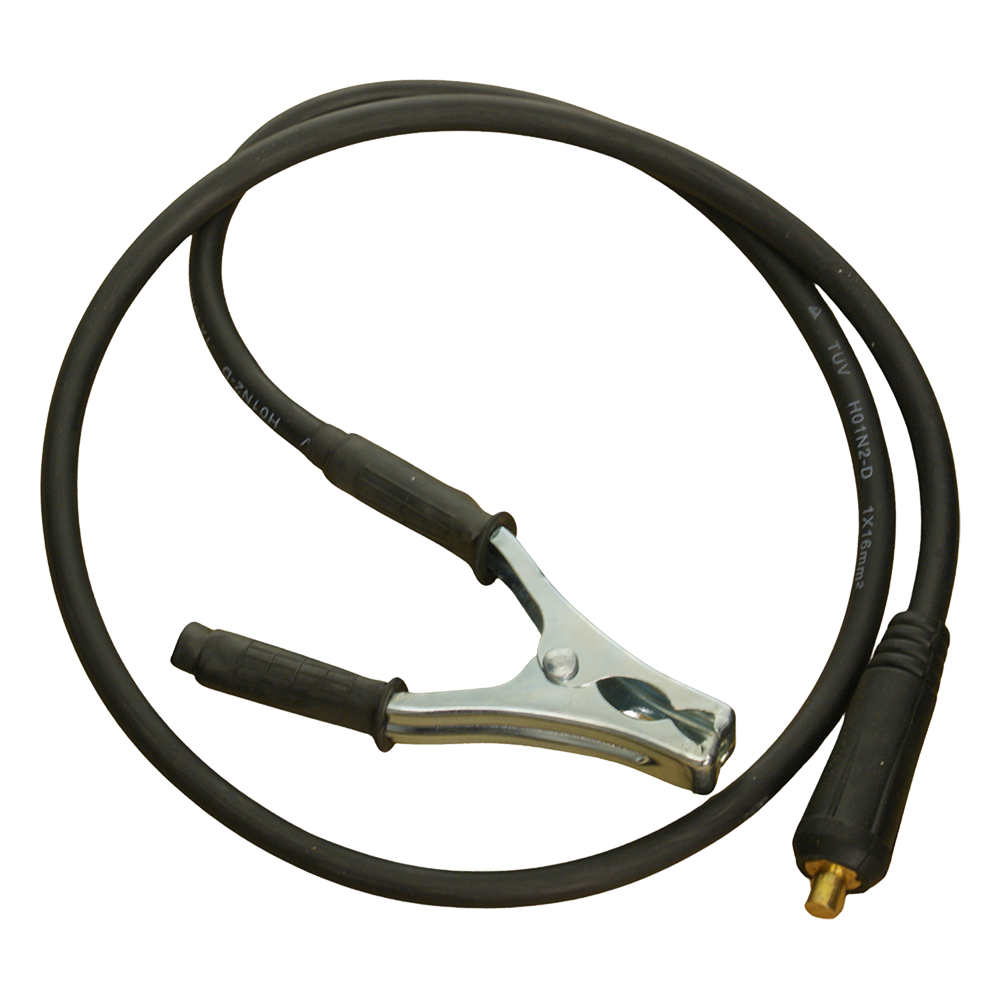

    • Returne cable

    In stock

    Add to compare
    Add to wishlist
    12 People watching this product now!

    Payment:

    Main Supply (V/Ph Hz)

    230V / 50Hz
    Input Voltage Tolerance

    ±15%
    Input Power

    6.6 kVA
    Setting Range

    20–160 A
    Max Output @ 20% Duty Cycle (MMA)

    160 A
    Max Output @ 60% Duty Cycle (MMA)

    80 A
    Max Output @ 100% Duty Cycle (MMA)

    62 A
    Open-Circuit Voltage

    66 V
    Electrode Size

    2.0–4.0 mm
    Dimensions

    247 × 111.5 × 161 mm
    Weight

    5.0 kg

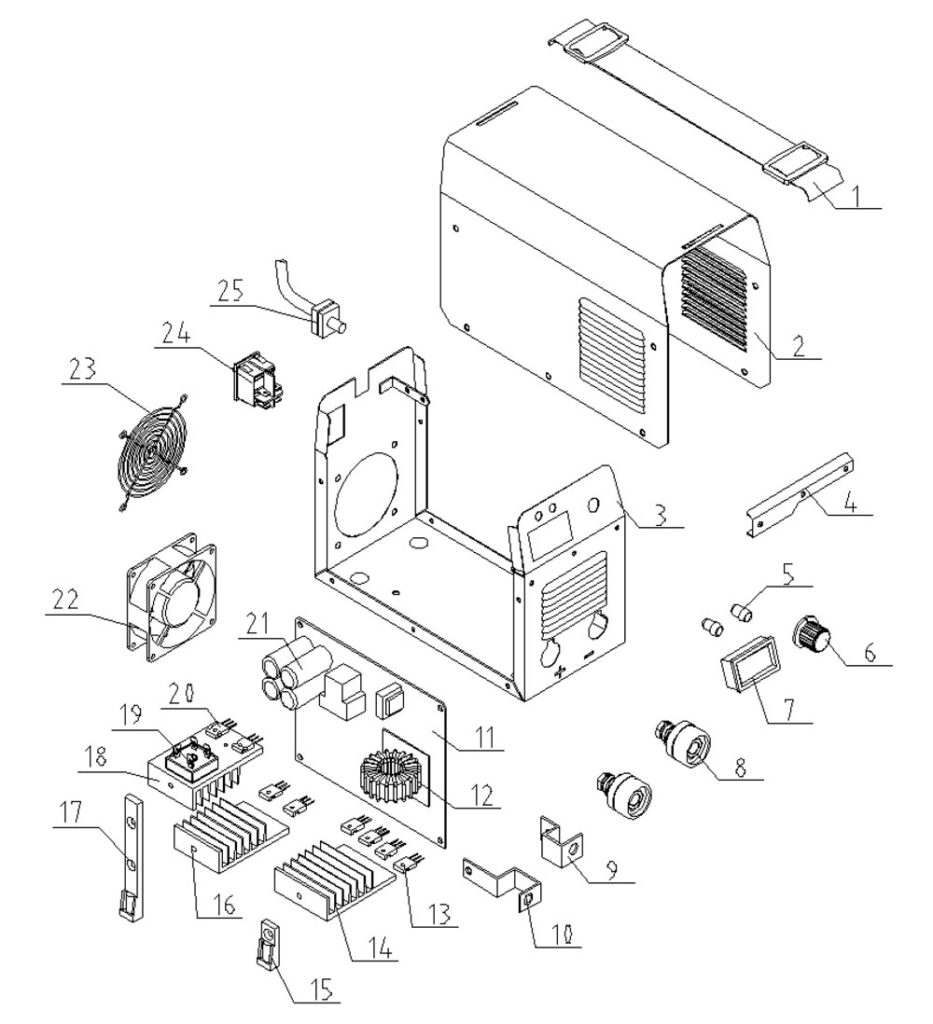

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    301602032S001
    • Backstraps
    • 1
    		0.55 €Pre-Order
    301602032S002
    • Shell
    • 2
    		1.65 €Pre-Order
    301602032S003
    • Bottom plate metal
    • 3
    		1.03 €Pre-Order
    301602032S004
    • Decorative cover plate
    • 4
    		0.08 €Pre-Order
    301602032S005
    • Indicator light socket
    • 5
    		0.04 €Pre-Order
    301602032S006
    • Potentiometer knob
    • 6
    		0.21 €Pre-Order
    301602032S007
    • Digital display meter
    • 7
    		1.98 €Pre-Order
    301602032S008
    • European style quick socket copper parts (22mm long)
    • 8
    		0.51 €Pre-Order
    301602032S009
    • Output copper bar 2
    • 9
    		0.19 €Pre-Order
    301602032S010
    • Output copper bar 1
    • 10
    		0.19 €Pre-Order
    301602032S011
    • Main board (Pure board, no components )
    • 11
    		34.85 €Pre-Order
    301602032S012
    • Intermediate frequency transformer
    • 12
    		6.57 €Pre-Order
    301602032S013
    • Fast recovery diode
    • 13
    		0.68 €Pre-Order
    301602032S014
    • Quick recovery tube radiator
    • 14
    		1.92 €Pre-Order
    301602032S015
    • Plastic support column2
    • 15
    		0.04 €Pre-Order
    301602032S016
    • IGBT radiator 2
    • 16
    		1.92 €Pre-Order
    301602032S017
    • Plastic support column 1
    • 17
    		0.08 €Pre-Order
    301602032S018
    • Radiator
    • 18
    		1.37 €Pre-Order
    301602032S019
    • Rectifier bridge
    • 19
    		0.99 €Pre-Order
    301602032S020
    • IGBT
    • 20
    		1.56 €Pre-Order
    301602032S021
    • Electrolytic capacitor
    • 21
    		1.88 €Pre-Order
    301602032S022
    • DC fan
    • 22
    		1.52 €Pre-Order
    301602032S023
    • Fan mesh cover
    • 23
    		0.23 €Pre-Order
    301602032S024
    • Rocker switch
    • 24
    		0.91 €Pre-Order
    301602032S025
    • 16A European style plug, first grade plastic power cord 3 * 2.5mm2 * 1.7M (with square fixing head)
    • European style quick socket rubber wood base
    • 25
    		6.48 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products
    Add to compare
    Quick view
    Add to wishlist

    WMEm 200i Lynx

    ,

    Out of stock

    Read more
    SKU: 0302003503
    Max. diameter of electrdoe (mm)

    5
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    78
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    89
    Max. outputs at 20% duty cycle, (MMA) (А)

    200
    Max. outputs at 60% duty cycle, (MMA) (А)

    115
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    200
    Min. welding current, (MMA) (А)

    25
    Add to compare
    Quick view
    Add to wishlist

    WMEm 180 Lynx

    ,

    Out of stock

    Read more
    SKU: 0301803502
    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    82
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    80
    Max. outputs at 20% duty cycle, (MMA) (А)

    180
    Max. outputs at 60% duty cycle, (MMA) (А)

    104
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    180
    Min. welding current, (MMA) (А)

    20
    Add to compare
    Quick view
    Add to wishlist

    WMEm 197 expert line

    ,

    Out of stock

    Read more
    SKU: 301402002-1
    Main Supply (V/Ph Hz)

    230V / 50–60Hz
    Input Power (kVA)

    7.8
    Setting Range (A)

    10–180 A
    Rated Input Current (A)

    34 A
    Rated Duty Cycle (40°C)

    10% @ 180 A
    No-Load Voltage (V)

    70 V
    Electrode Size (mm)

    1.6–4.0
    Insulated Grade

    H
    Protection Class

    IP21S
    Dimensions (mm)

    279 × 116.4 × 182
    Weight (kg)

    3.2
    Add to compare
    Quick view
    Add to wishlist

    WMEm 156 series II

    ,

    Out of stock

    Read more
    SKU: 301402002
    MAIN SUPPLY (V/Ph Hz)

    230/1 15% 50/60
    FUSE, SLOW (A)

    16
    PRIMARY CURRENT (A)

    25
    MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V

    63/22,5
    MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V

    63/12,5
    SETTING RANGE MMA (A)

    20-140
    OPEN CIRCUIT VOLTAGE (V)

    68
    POWER FACTOR AT MAX. CURRENT

    0,85
    DIAMETER OF ELECTRODES (mm)

    1,6-3,2
    OKC

    16
    PROTECTION CLASS

    IP21S
    DIMENSIONS (LxBxH mm)

    230x363x185
    WEIGHT (kg)

    6,0
    Add to compare
    Quick view
    Add to wishlist

    WMEm 136 series II

    ,

    Out of stock

    Read more
    SKU: 301256002
    MAIN SUPPLY (V/Ph Hz)

    230/1 15% 50/60
    FUSE, SLOW (A)

    16
    PRIMARY CURRENT (A)

    22
    MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V

    47/21,8
    MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V

    47/11,8
    SETTING RANGE MMA (V)

    20-120
    OPEN CIRCUIT VOLTAGE (V)

    68
    POWER FACTOR AT MAX. CURRENT

    0.85
    DIAMETER OF ELECTRODES (mm)

    1,6-3,2
    OKC

    16
    PROTECTION CLASS

    IP21S
    DIMENSIONS (LxWxH mm)

    230x363x185
    WEIGHT (kg)

    5
    Add to compare
    Quick view
    Add to wishlist

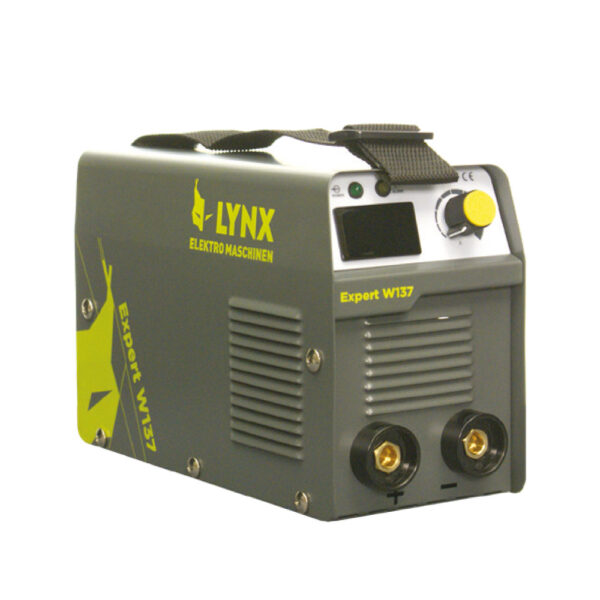

    WMEm 137 Expert line

    ,
