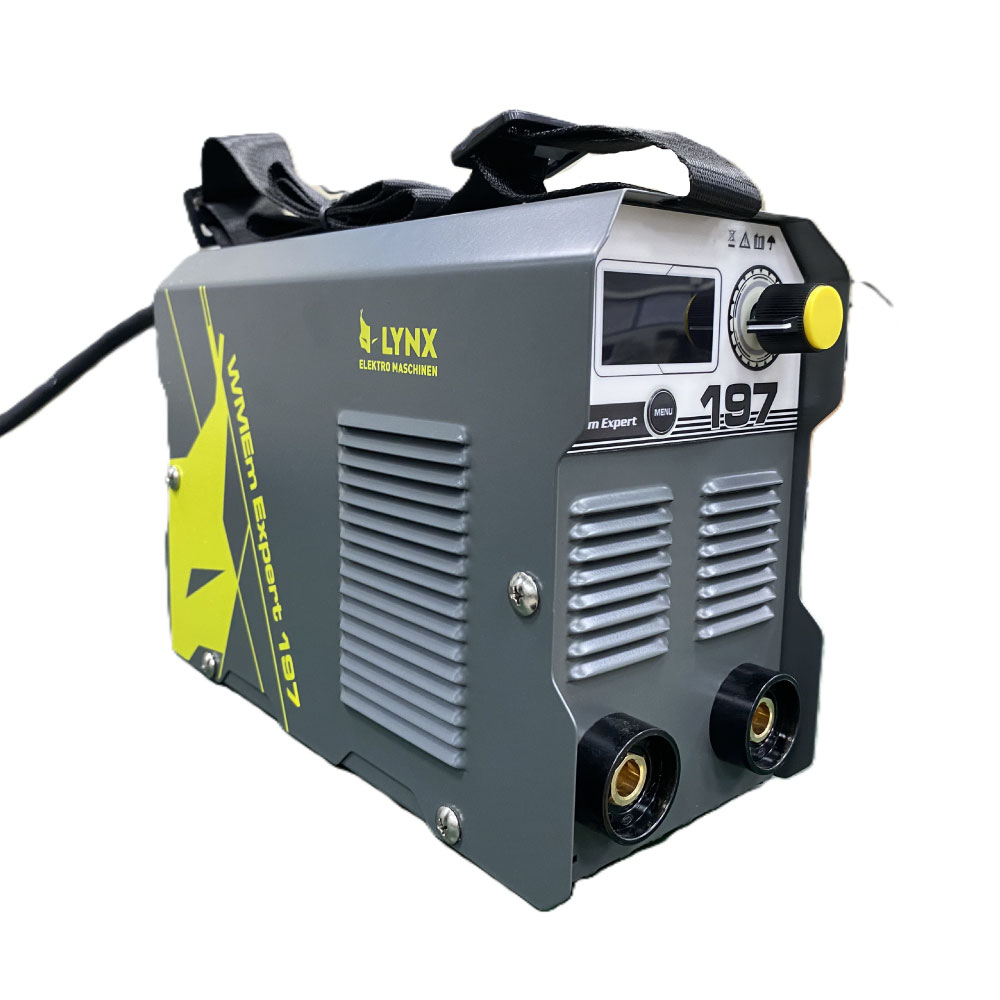

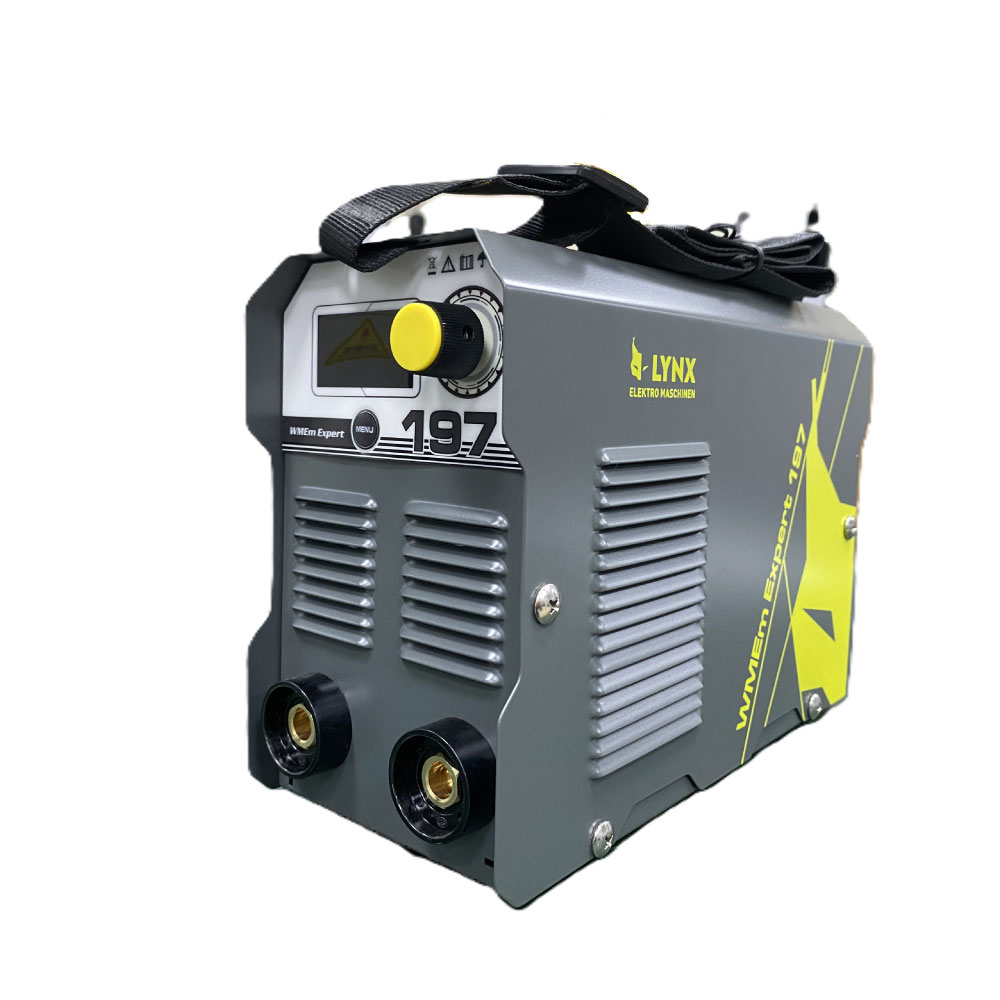

WMEm 197 expert line
WMEm 197 expert line is a Welding inverter, equiped with compact and portable inverter for MMA welding
• Digital MMA machine with Synergic MCU control system
• Real 2-in-1 MMA/LIFT TIG function
• Durable and impact resistance design
• With Electrode rod selection and current default setting function
• 1 Inch LCD screen, easy to operate
• With Hot start(0-100%). Arc force(0-50%)
• Antistick function
• Welding cable
• Returne cable
Out of stock
Payment:
| Main Supply (V/Ph Hz) |
230V / 50–60Hz |
|---|---|
| Input Power (kVA) |
7.8 |
| Setting Range (A) |
10–180 A |
| Rated Input Current (A) |
34 A |
| Rated Duty Cycle (40°C) |
10% @ 180 A |
| No-Load Voltage (V) |
70 V |
| Electrode Size (mm) |
1.6–4.0 |
| Insulated Grade |
H |
| Protection Class |
IP21S |
| Dimensions (mm) |
279 × 116.4 × 182 |
| Weight (kg) |
3.2 |
PDF Spear Parts
