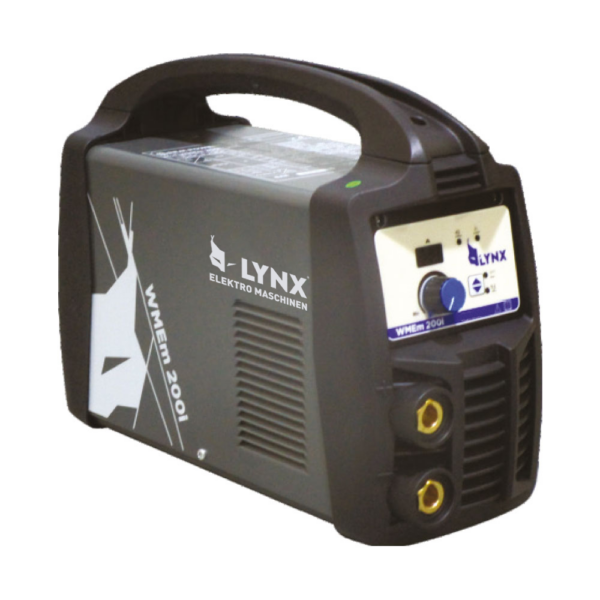

WMEm 200i Lynx
WMEm 200i Lynx
Click to enlarge

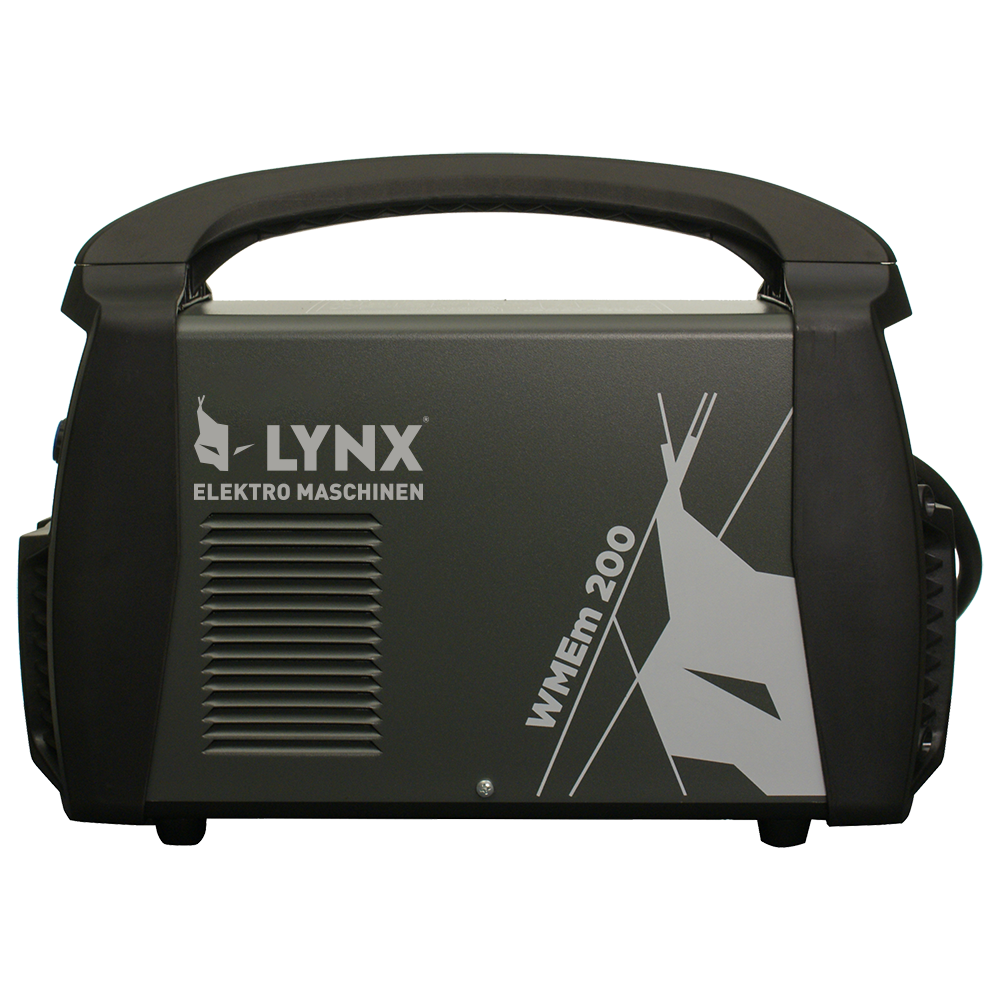

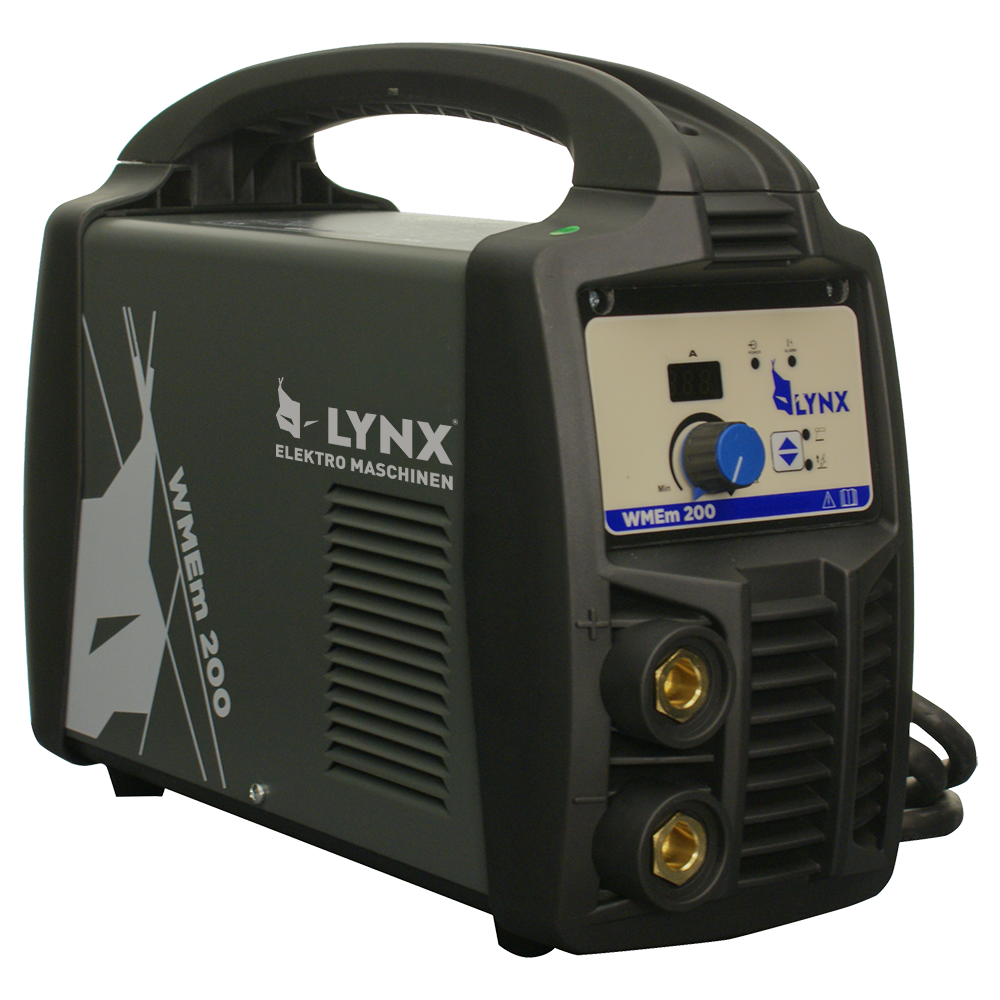

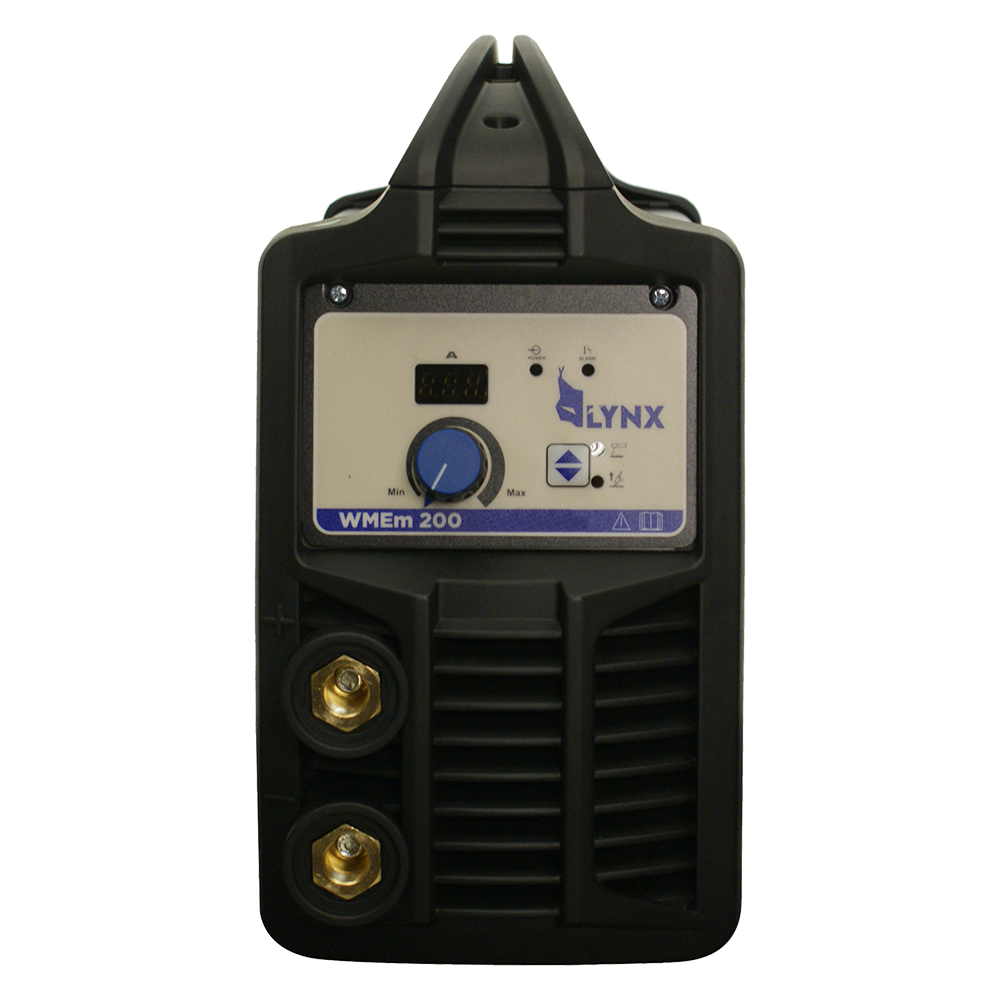

    WMEm 200 Lynx

    SKU: 0302003502 Categories: ,

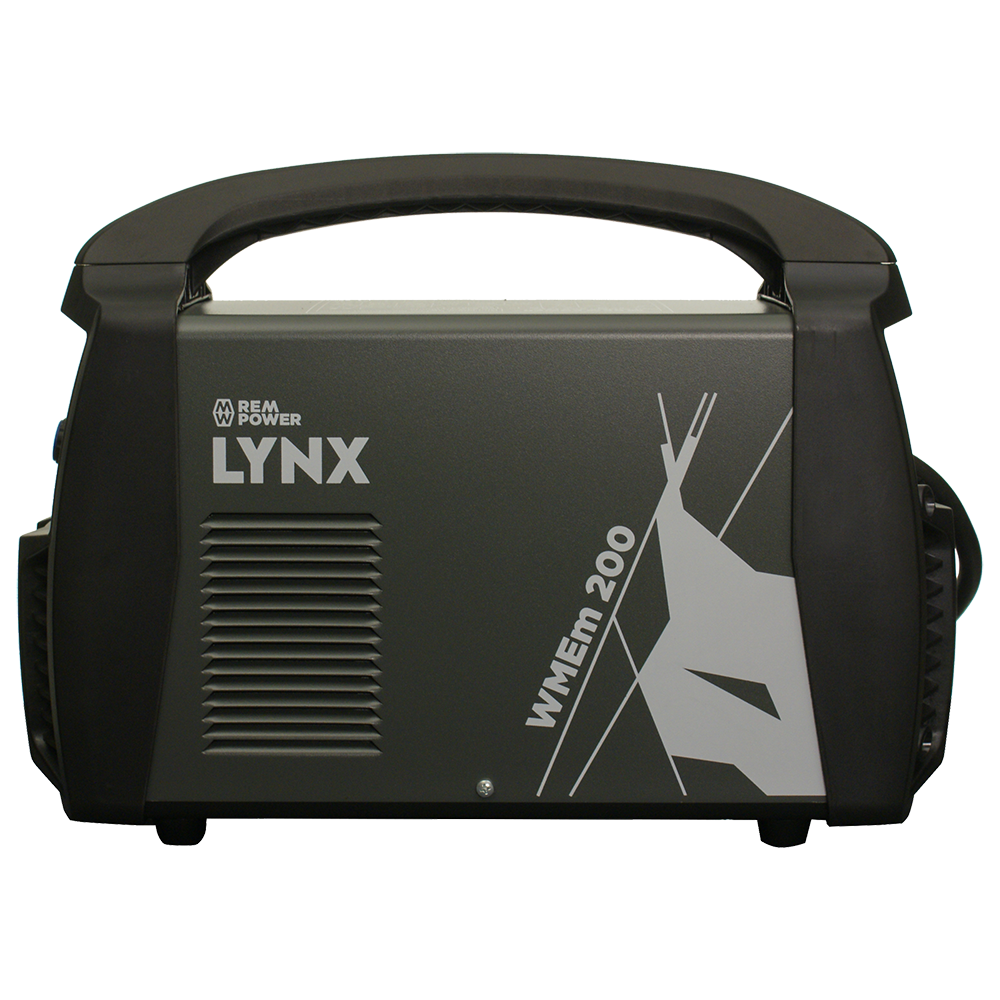

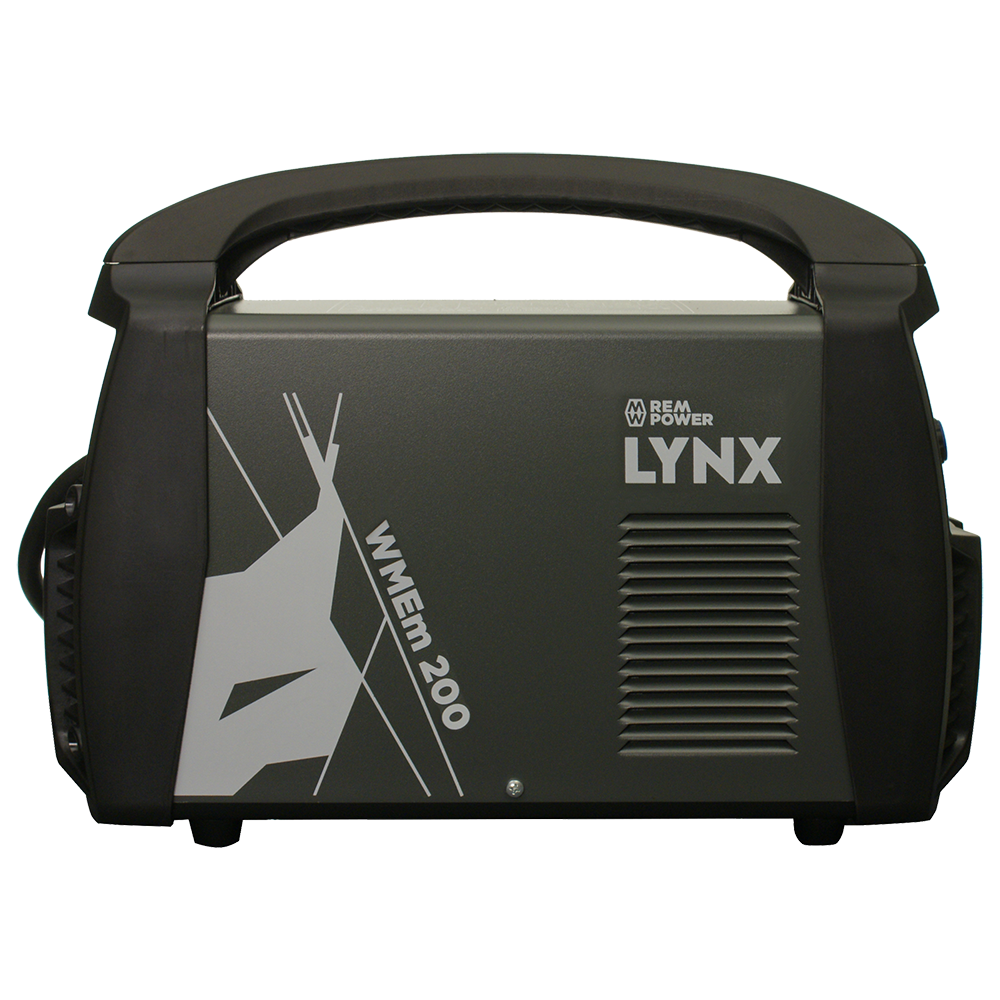

    WMEm 200 Lynx is a Welding inverter, equiped with compact and portable inverter for MMA welding

    Advantages:

    • Compact and portable inverter for MMA welding
    • Durable and impact resistance design
    • Easy to operate – only current setting needed

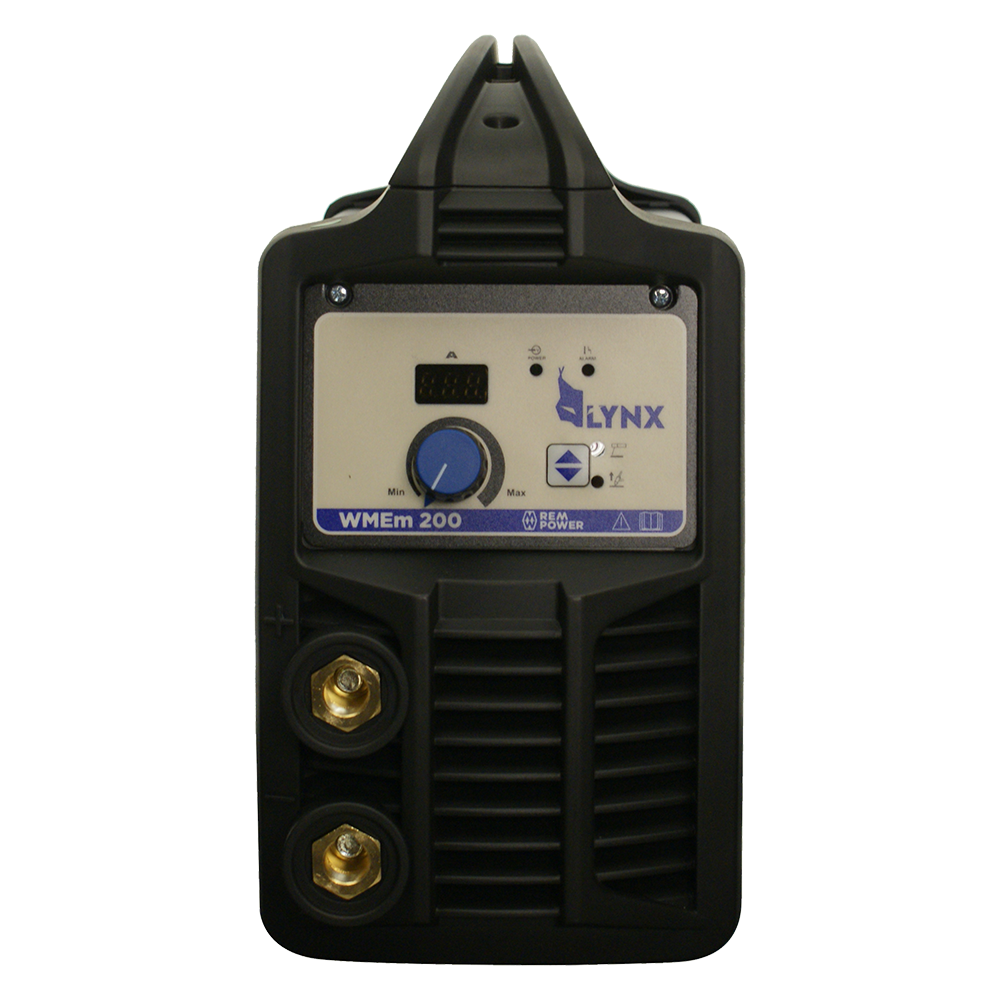

    • Digital Ampere meter shows the welding current
    • Welds most electrodes from a 1,6 – 5,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Automatic hot start
    • Automatic are force
    • Automatic anti-stick function

    Standard equipment:

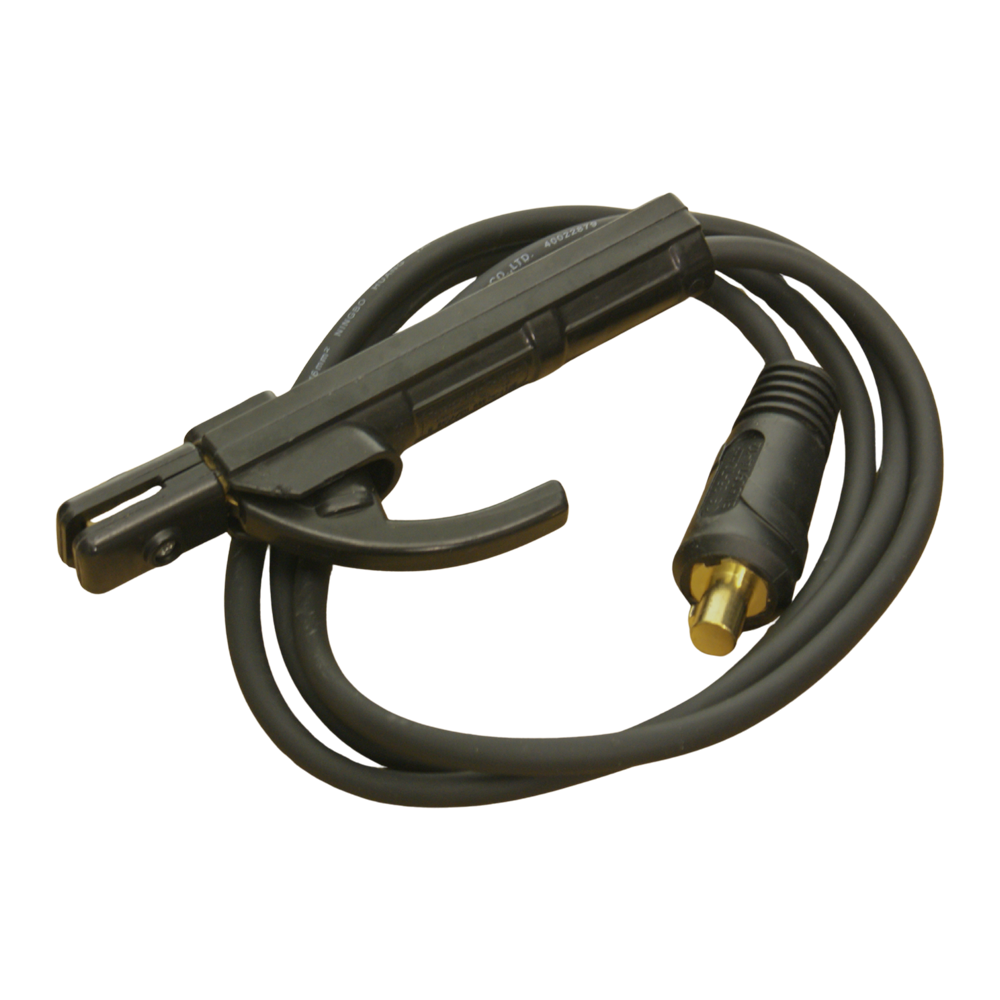

    • Welding cable

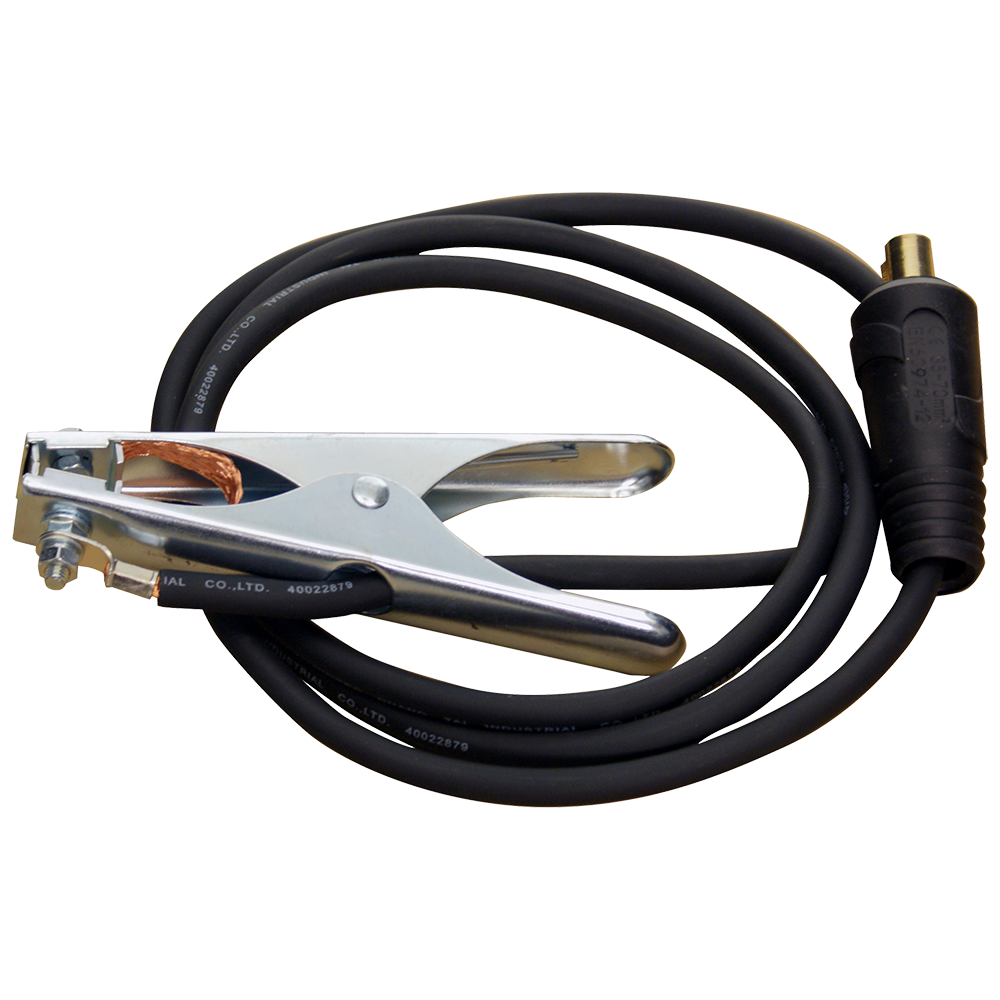

    • Returne cable

    Out of stock

    Add to compare
    Add to wishlist
    15 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    5
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    82
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    77
    Max. outputs at 15% duty cycle, (MMA) (А)

    200
    Max. outputs at 60% duty cycle, (MMA) (А)

    100
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    200
    Min. welding current, (MMA) (А)

    20

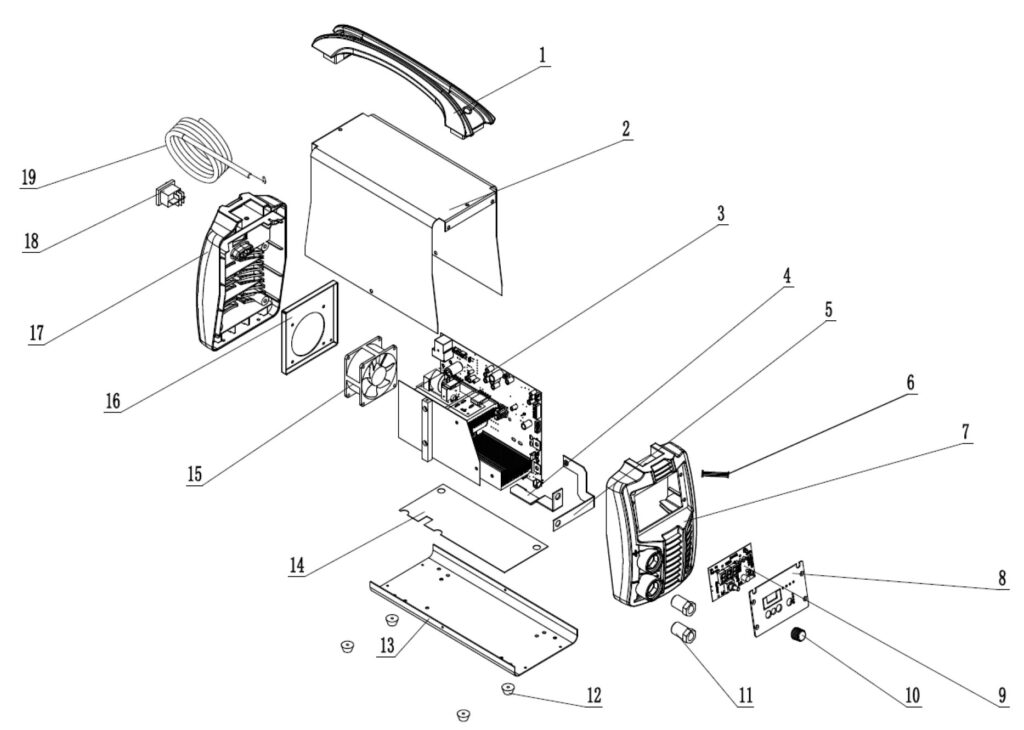

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0301803502S001
    • Handle
    • 1
    		2.89 €Pre-Order
    0301803502S002
    • Case
    • 2
    		9.70 €Pre-Order
    0301803502S003
    • Main board
    • 3
    		258.35 €Pre-Order
    0301803502S004
    • Output busbar
    • 4
    		1.14 €Pre-Order
    0301803502S005
    • Negative Output busbar
    • 5
    		14.39 €Pre-Order
    0301803502S006
    • Connecting line
    • 6
    		0.47 €Pre-Order
    0301803502S007
    • plastic panel
    • 7
    		5.80 €Pre-Order
    0301803502S008
    • adjusting plate
    • 8
    		1.03 €Pre-Order
    0301803502S009
    • PCB panel
    • 9
    		12.11 €Pre-Order
    0301803502S010
    • Knob
    • 10
    		0.23 €Pre-Order
    0301803502S011
    • European connector
    • 11
    		2.19 €Pre-Order
    0301803502S012
    • Angle
    • 12
    		0.12 €Pre-Order
    0301803502S013
    • Bottom plate
    • 13
    		4.62 €Pre-Order
    0301803502S014
    • Insulation plate
    • 14
    		0.41 €Pre-Order
    0301803502S015
    • Fan
    • 15
    		6.56 €Pre-Order
    0301803502S016
    • Fan plate
    • 16
    		0.43 €Pre-Order
    0301803502S017
    • Back plate

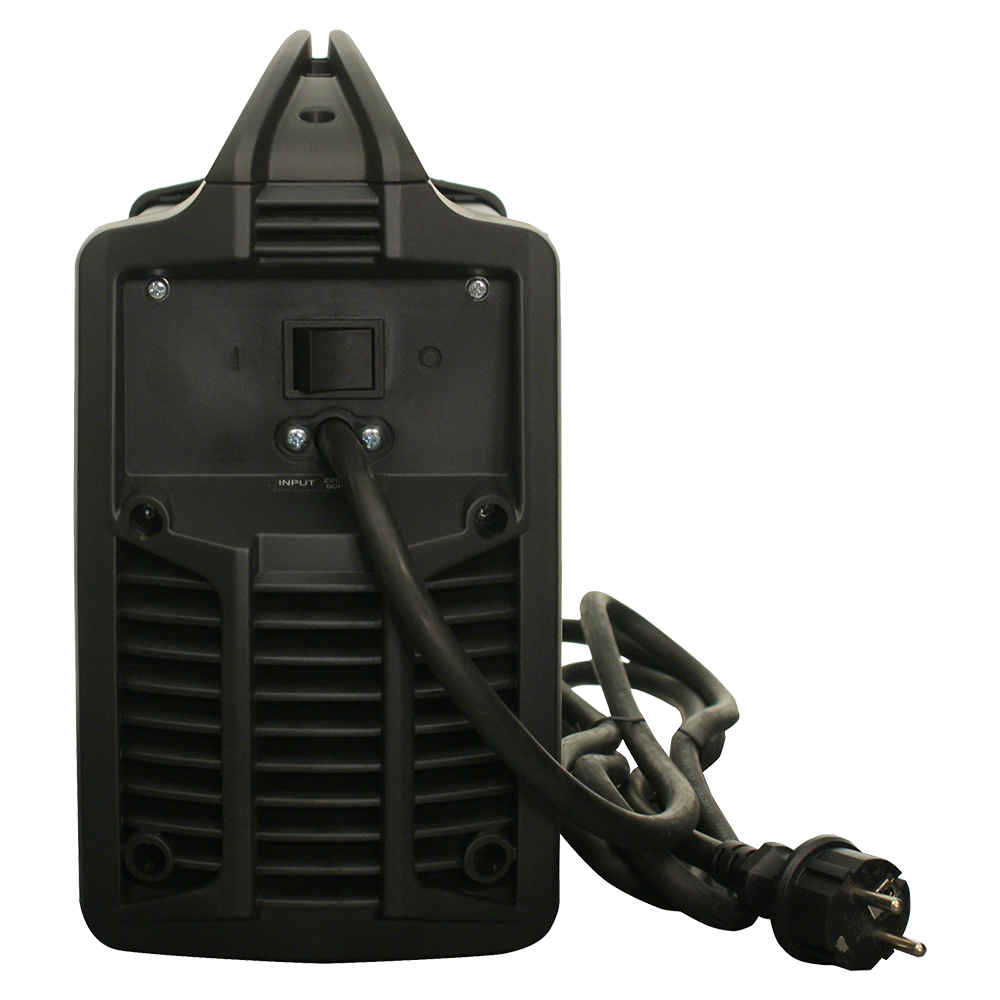

    • 17
    		6.21 €Pre-Order
    0301803502S018
    • Switch
    • 18
    		1.13 €Pre-Order
    0301803502S019
    • Power line with plug
    • 19
    		12.73 €Pre-Order

    Product Data

    CE declaration

    EN user manual
