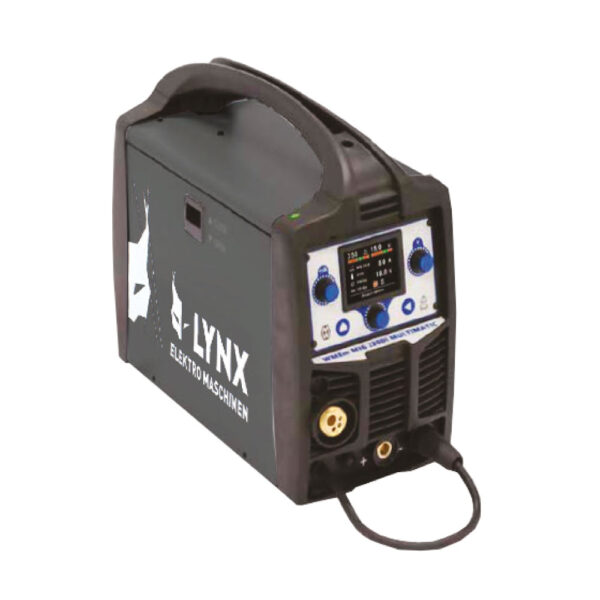

WMEm MIG 220 DI
WMEm MIG 220 DI
Click to enlarge

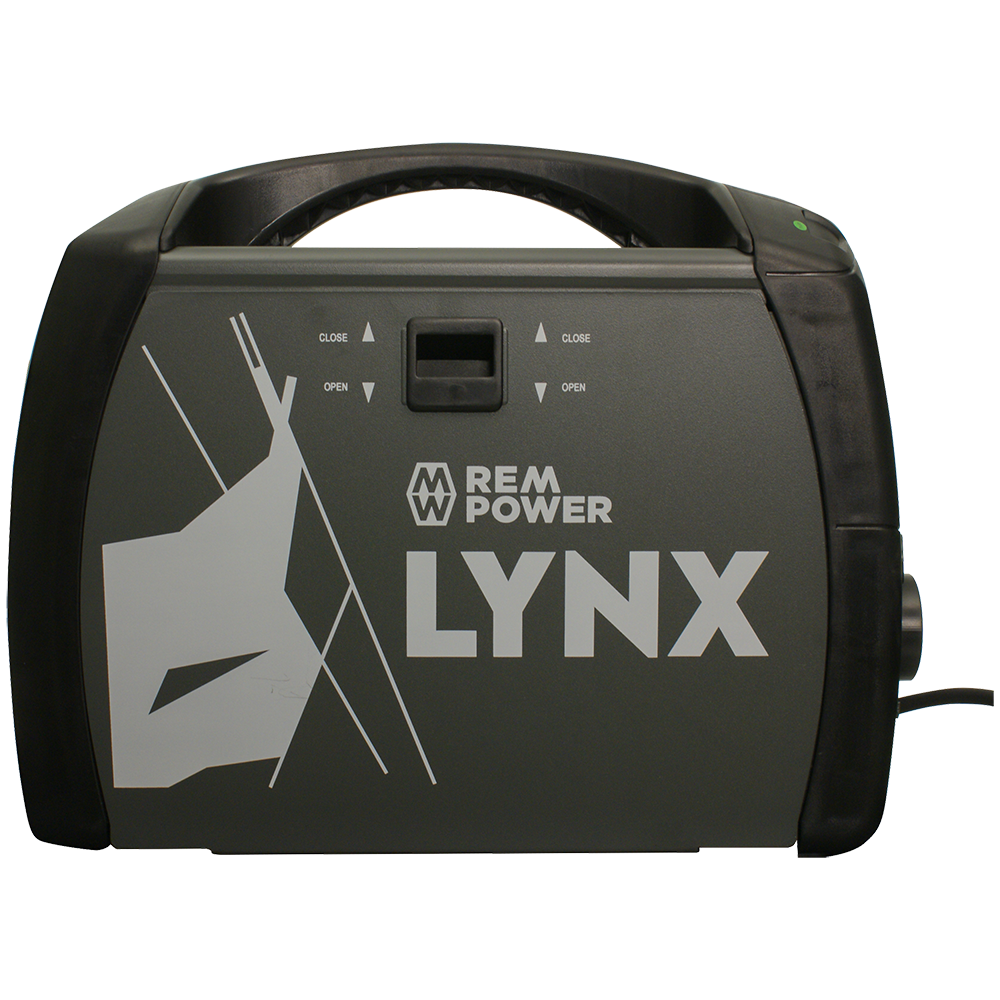

    WMEm MIG 200D

    SKU: 0312002502 Categories: ,

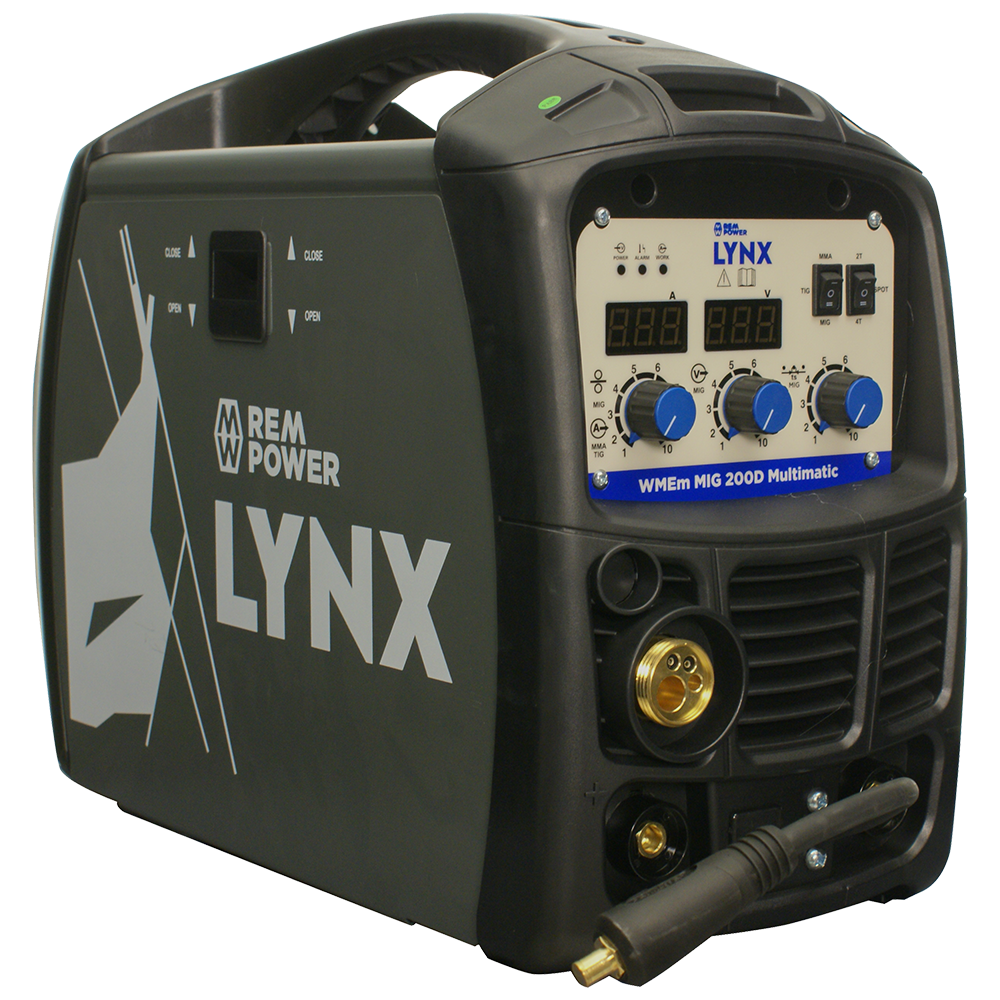

    WMEm MIG 200D is a machine designed for professional use, offering MIG, TIG, and MMA welding capabilities. It can operate with wire from 0.6 to 0.8 mm and electrodes up to 3.2 mm.

    Advantages:

    • Compact and portable inverter for MIG/TIG/MMA welding
    • Durable and impact resistence design
    • Cable plug / polarity change possibility (FLUX welding)
    • Easy to operate – only current setting needed
    • LED indicator for power and failure indication
    • Welds wire from ø 0,6 – 1,0 mm
    • Welds electrode ø 1,6 – 4,0 mm
    • Capable to work on generator power source
    • Termal protection / Over voltage protection

    Standard equipment:

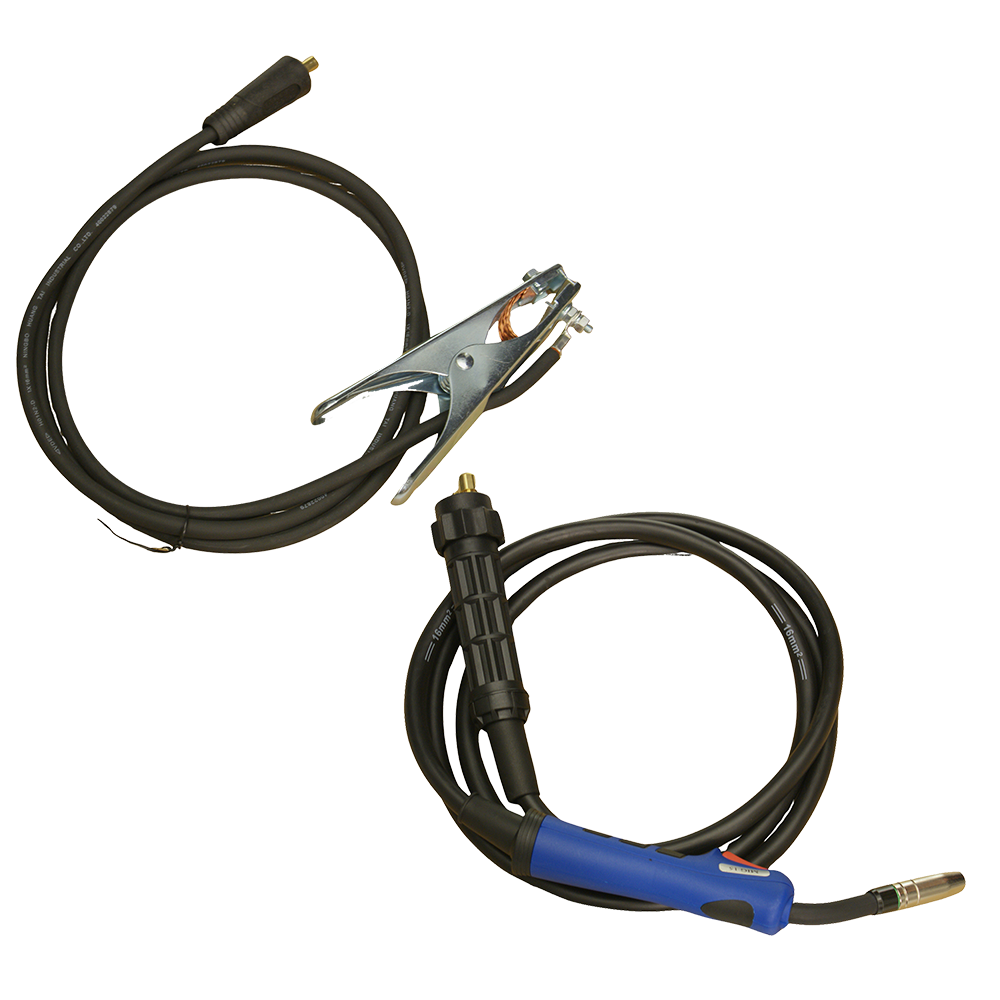

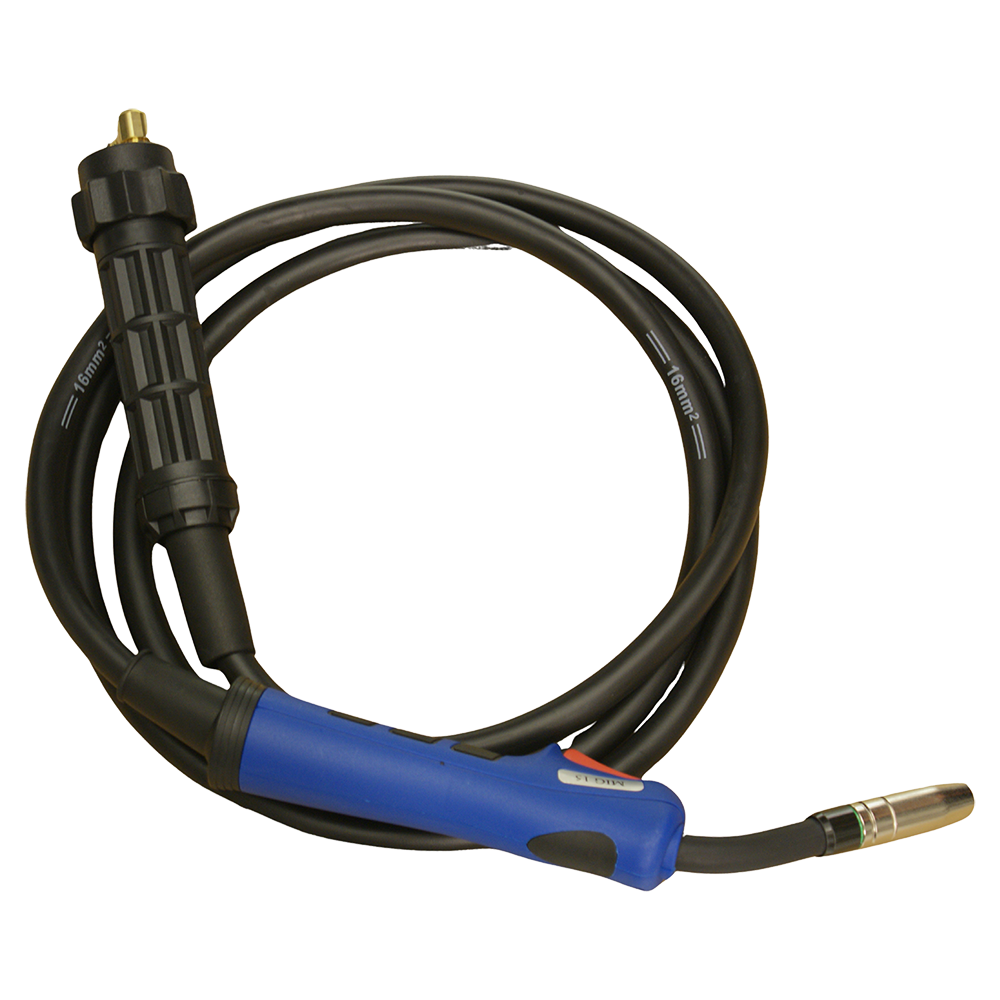

    • Welding cable with torch 3m
    • Returne cable kit (16 mm2) 2m

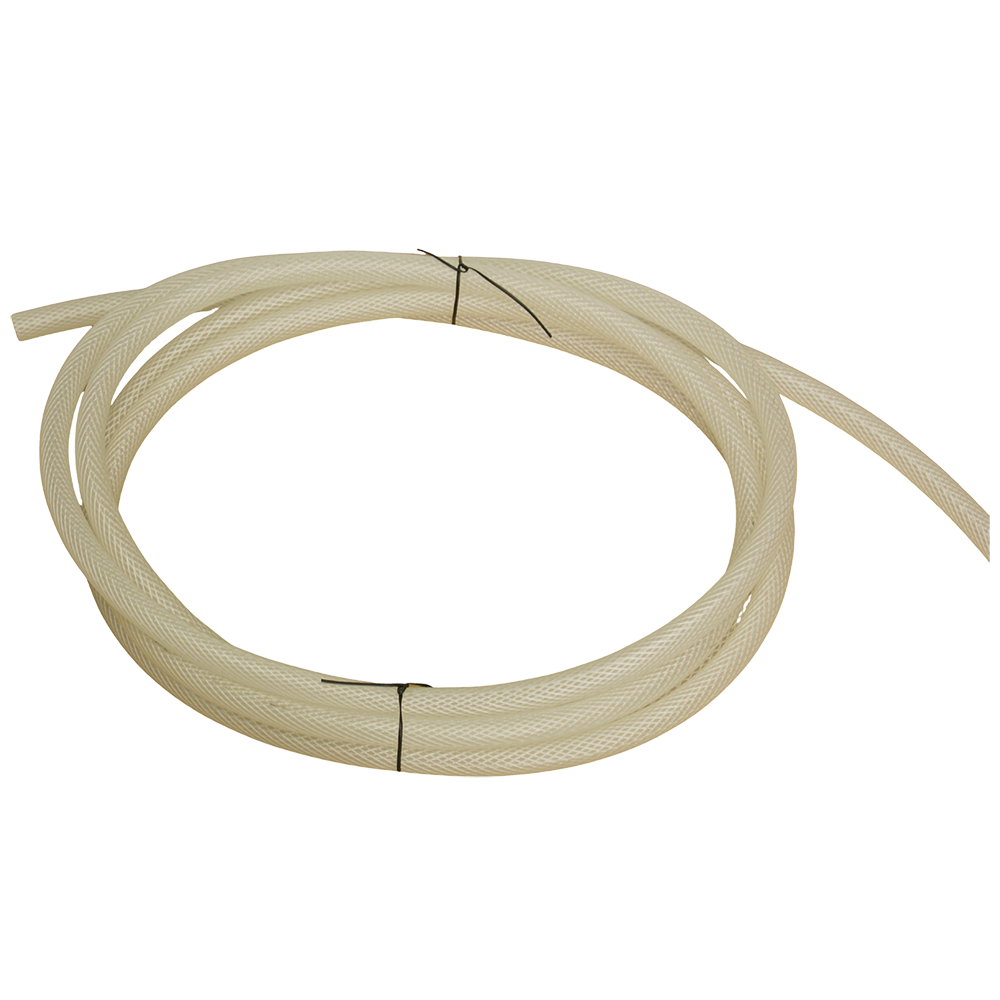

    • Gas hose ø 8 mm

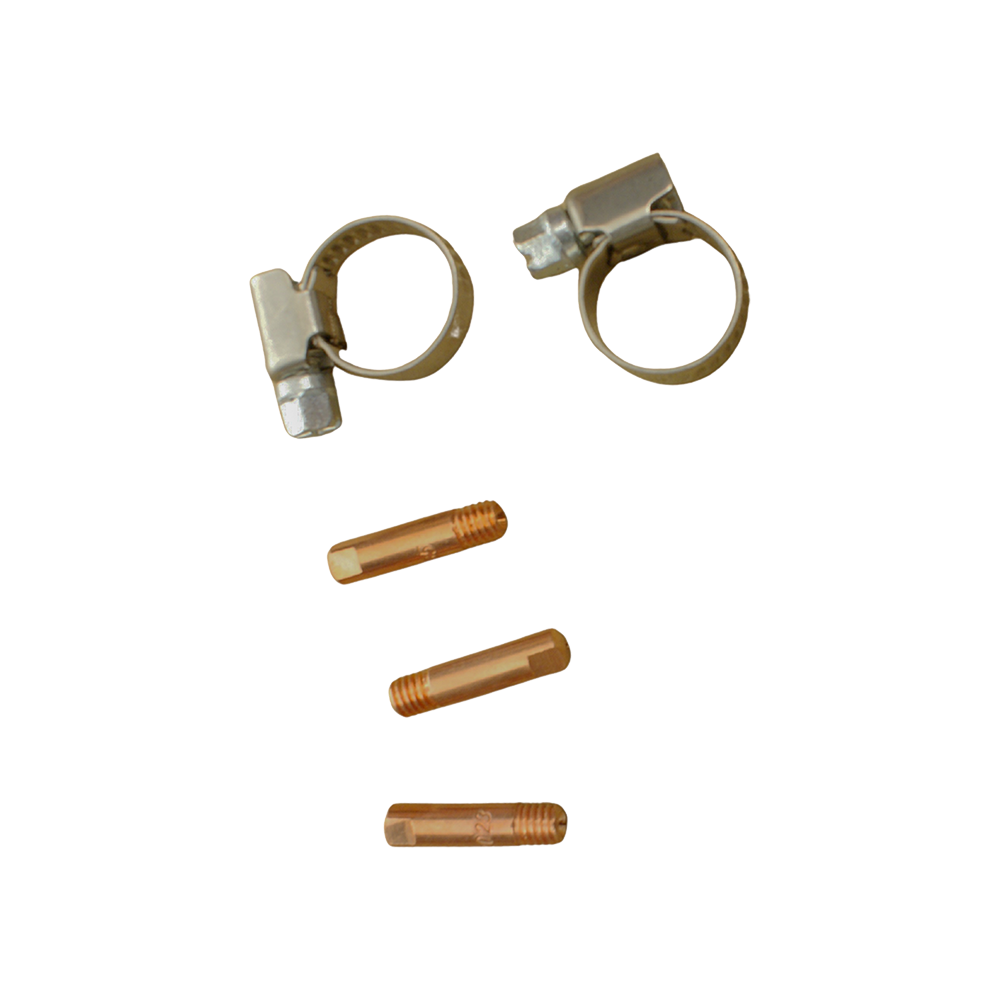

    • Clamp 2 pcs
    • Tip ø 0,6; 0,9; 1,0

    In stock

    Add to compare
    Add to wishlist
    12 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    68
    Max. outputs at 100% duty cycle, (MIG) (А)

    77
    Max. outputs at 100% duty cycle, (MMA) (А)

    66
    Max. outputs at 60% duty cycle, (MIG) (А)

    100
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    170
    Min. welding current, (MMA) (А)

    30
    Max wire Ø, unall. solid (mm)

    1

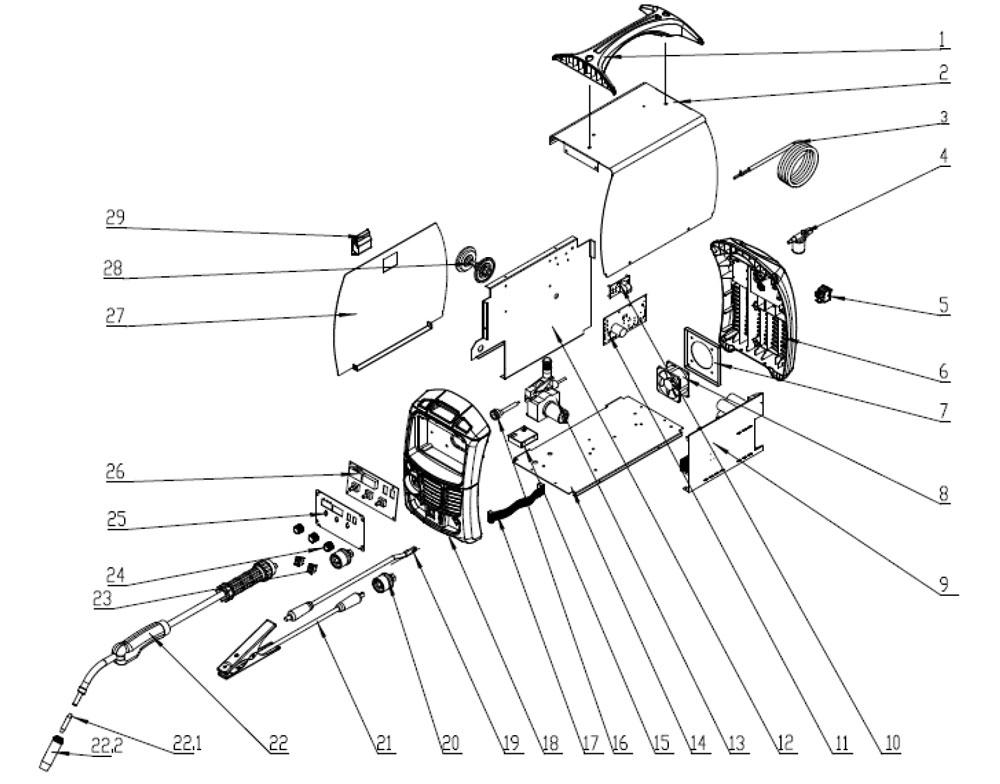

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0312002502S001
    • handle
    • 1
    		1.75 €Pre-Order
    0312002502S002
    • enclosure
    • 2
    		11.59 €Pre-Order
    0312002502S003
    • power line
    • 3
    		15.68 €Pre-Order
    0312002502S004
    • solenoid valve
    • 4
    		10.22 €Pre-Order
    0312002502S005
    • Rocker Switch
    • 5
    		1.48 €Pre-Order
    0312002502S006

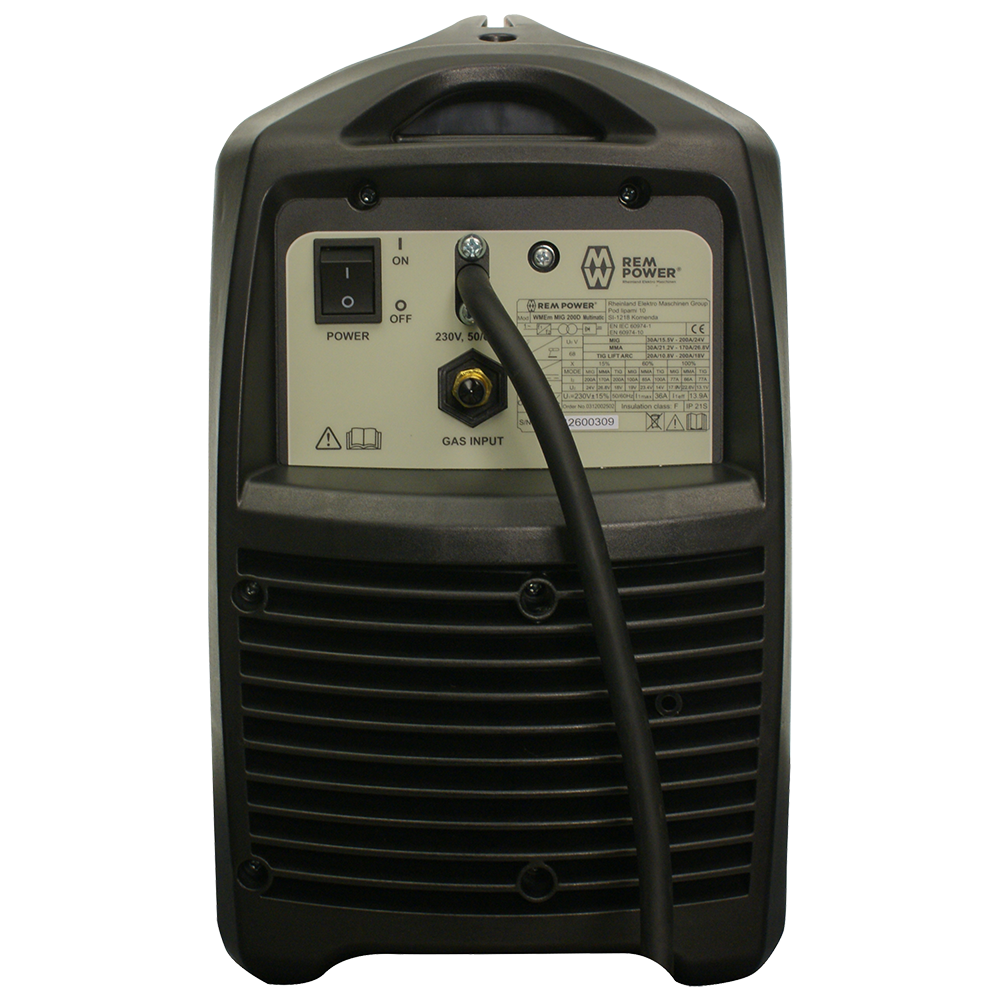

    • back panel
    • 6
    		4.79 €Pre-Order
    0312002502S007
    • Fan support
    • 7
    		0.42 €Pre-Order
    0312002502S008
    • fan
    • 8
    		6.50 €Pre-Order
    0312002502S009
    • main control board
    • 9
    		197.68 €Pre-Order
    0312002502S010
    • Emc board
    • 10
    		16.26 €Pre-Order
    0312002502S011
    • control board
    • 11
    		28.08 €Pre-Order
    0312002502S012
    • median septum
    • 12
    		9.27 €Pre-Order
    0312002502S013

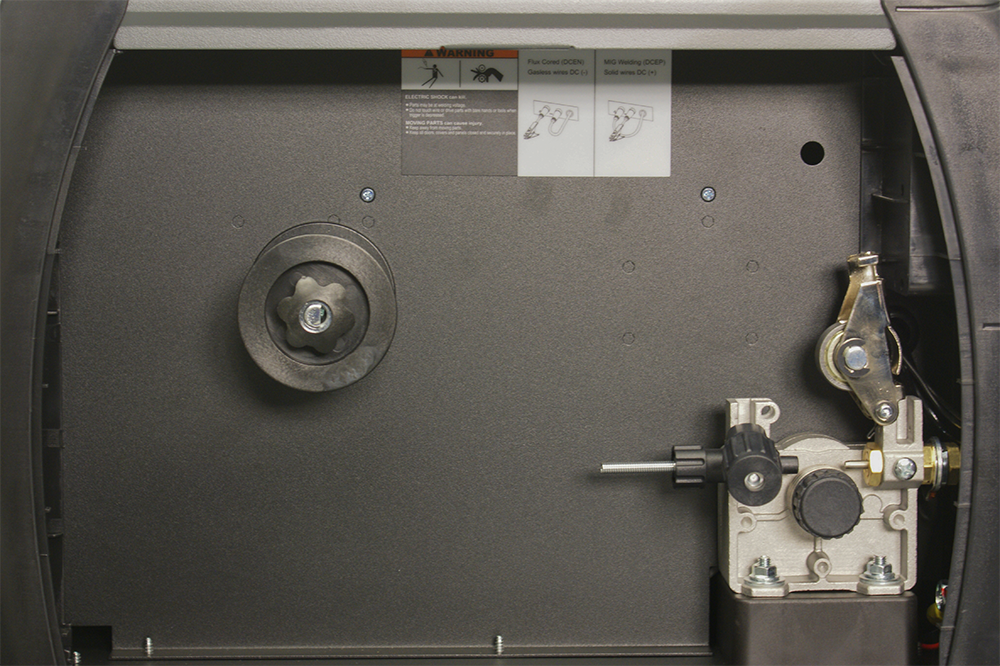

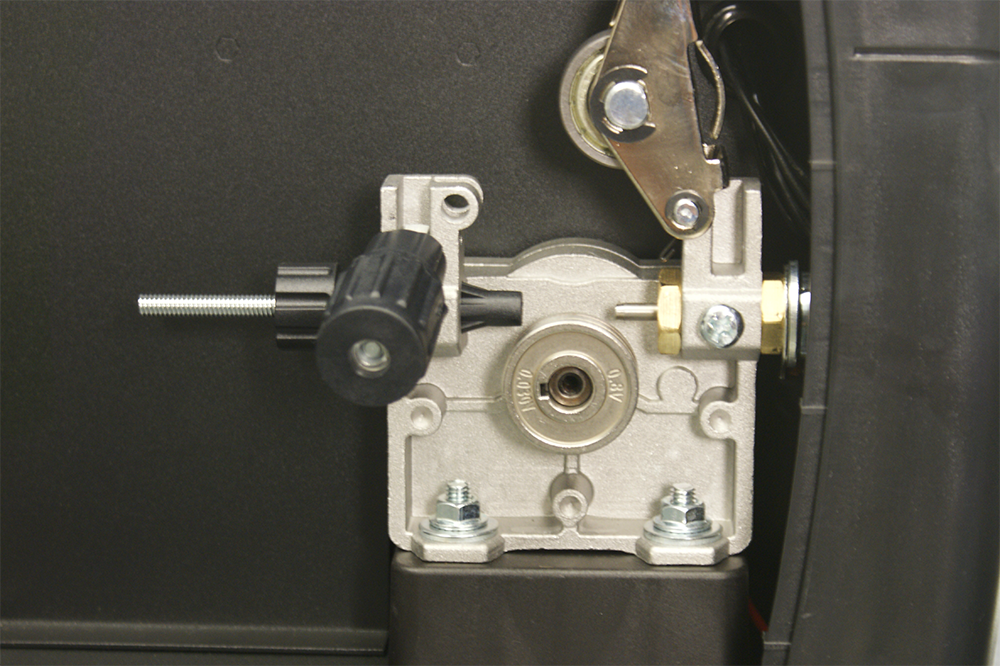

    • wire feeder
    • 13
    		18.81 €Pre-Order
    0312002502S014
    • baseboard
    • 14
    		7.14 €Pre-Order
    0312002502S015
    • wire feeder support
    • 15
    		1.63 €Pre-Order
    0312002502S016
    • torch socket
    • 16
    		9.80 €Pre-Order
    0312002502S017
    • Flat cable
    • 17
    		0.99 €Pre-Order
    0312002502S018
    • front panel
    • 18
    		5.85 €Pre-Order
    0312002502S019
    • polarity conversion cable
    • 19
    		4.52 €Pre-Order
    0312002502S020
    • Euro quick socket
    • 20
    		0.93 €Pre-Order
    0312002502S021

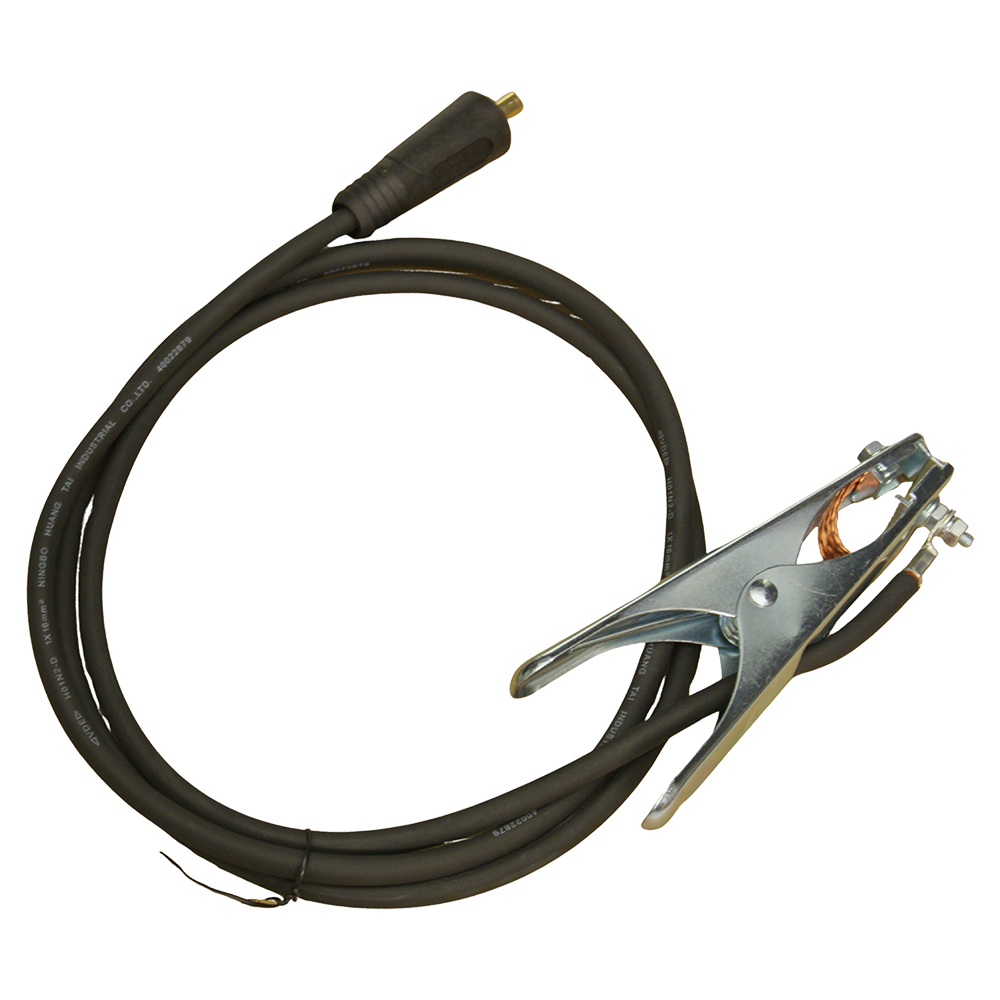

    • Ground cable
    • 21
    		14.67 €Pre-Order
    0312002502S022
    • MIG gun
    • 22
    		48.81 €Pre-Order
    0312002502S023
    • Contact tube
    • 22.1
    		0.34 €Pre-Order
    0312002502S024
    • nozzle
    • 22.2
    		1.82 €Pre-Order
    0312002502S025
    • Welding mode change-over switch
    • 23
    		0.00 €Pre-Order
    0312002502S026
    • Potentiometer knob
    • 24
    		0.23 €Pre-Order
    0312002502S027
    • Panel support panel
    • 25
    		2.60 €Pre-Order
    0312002502S028
    • Panel control panel
    • 26
    		15.14 €Pre-Order
    0312002502S029
    • side panel
    • 27
    		6.00 €Pre-Order
    0312002502S030
    • spool holder
    • 28
    		2.20 €Pre-Order
    0312002502S031
    • door latch
    • 29
    		0.28 €Pre-Order
