    WMEm MIG 250Di

    SKU: 312502001 Categories: ,

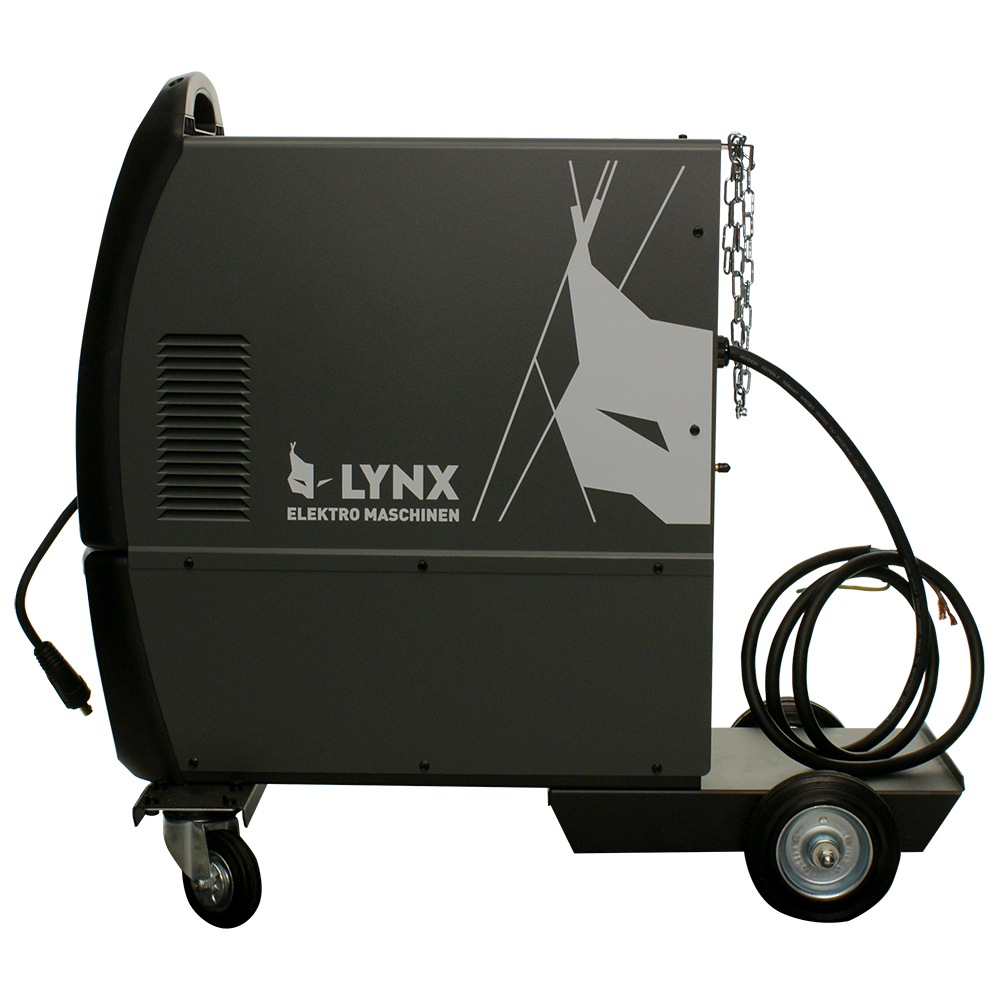

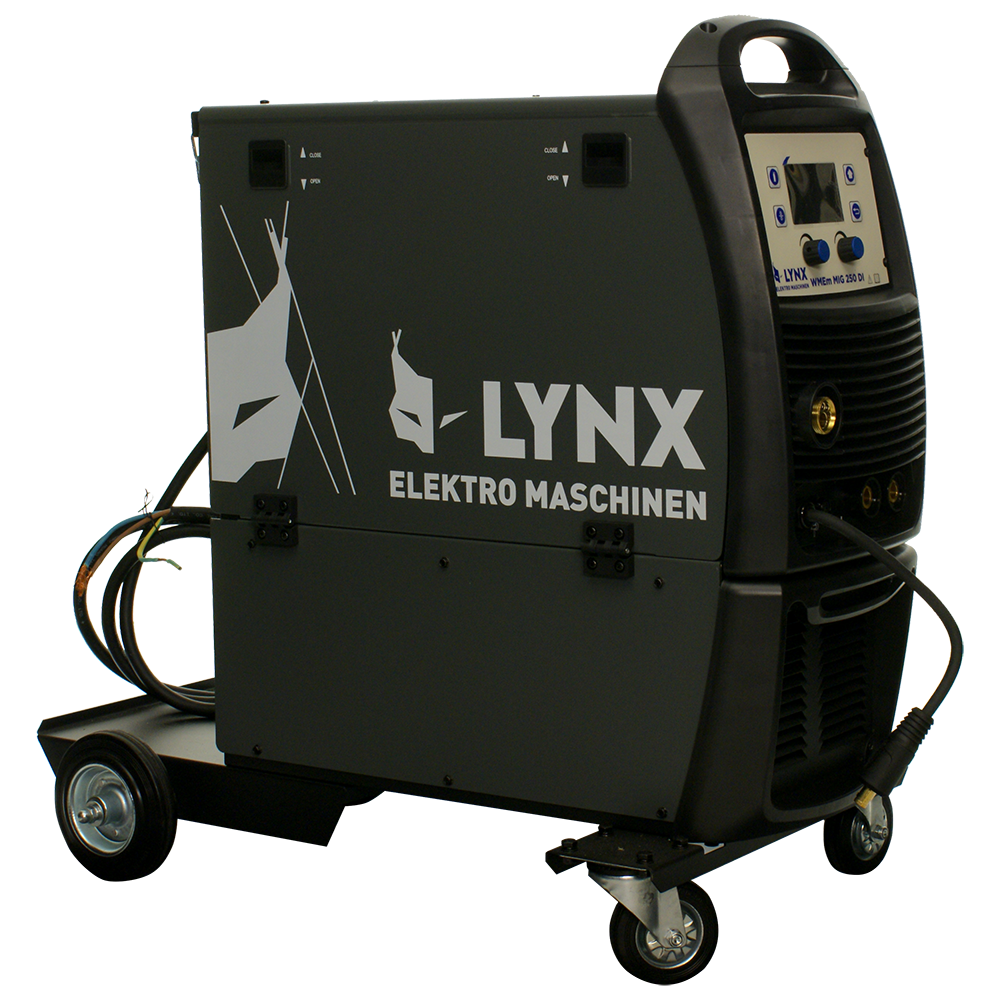

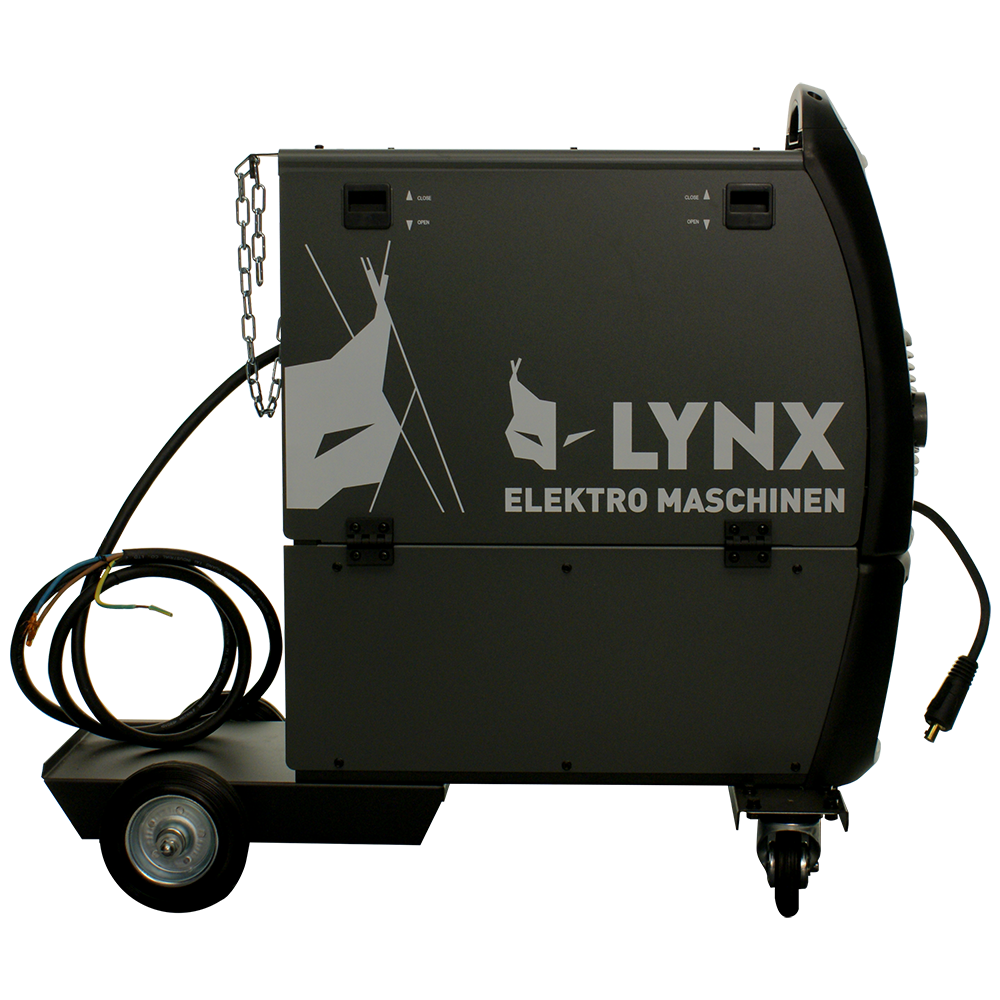

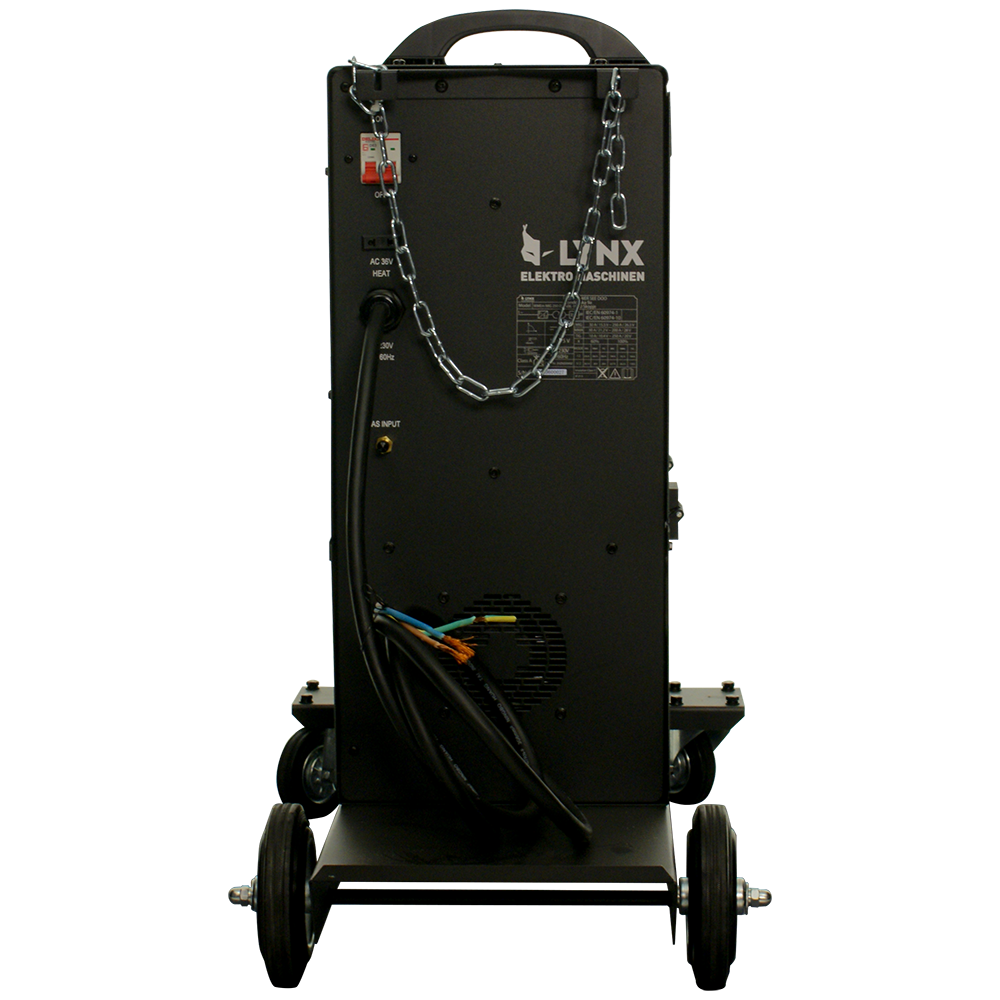

    WMEm MIG 250Di is a machine designed for professional use — a Multimatic unit suitable for MMA, MIG, and TIG welding. It can operate with wire from 0.8 to 1 mm and electrodes from 1.6 to 4 mm.

    Advantages:

    • Compact and portable inverter for MIG/TIG/MMA welding
    • Durable and impact resistence design
    • Adjustable arc force control (MMA)
    • Adjustable hot start control (MMA)
    • Trigger hold function 2T / 4T / SPOT
    • Infinite voltage control
    • Adjustable inductance
    • Gas pre and post-flow time adjustment
    • Lift TIG arc starts
    • MIG/MAG EURO connector
    • Weld parameter storage (4x)

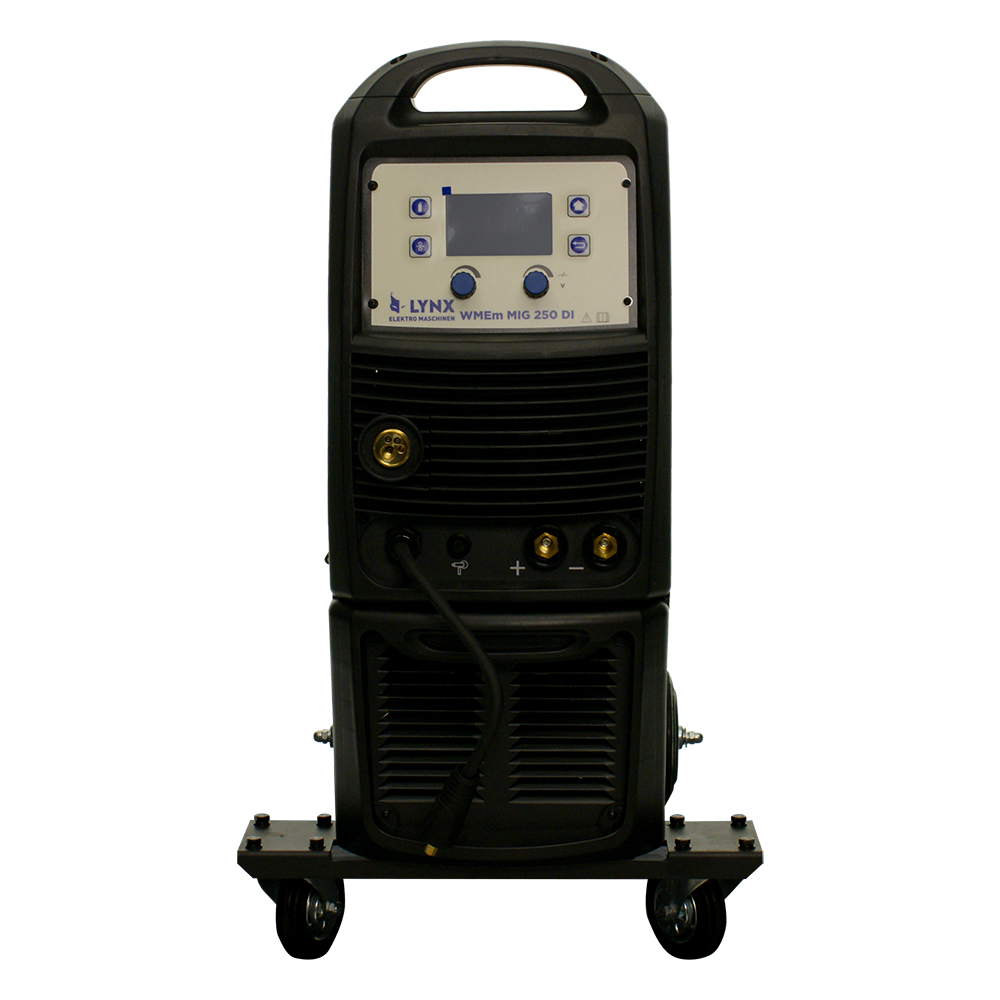

    • Intuitive LCD/TFT display
    • Easily switch from one process to the next
    • Multilingual capabilities
    • Welds electrode ø 1,6 – 4,0 mm
    • Welds wire ø 0,6 – 1,0 mm

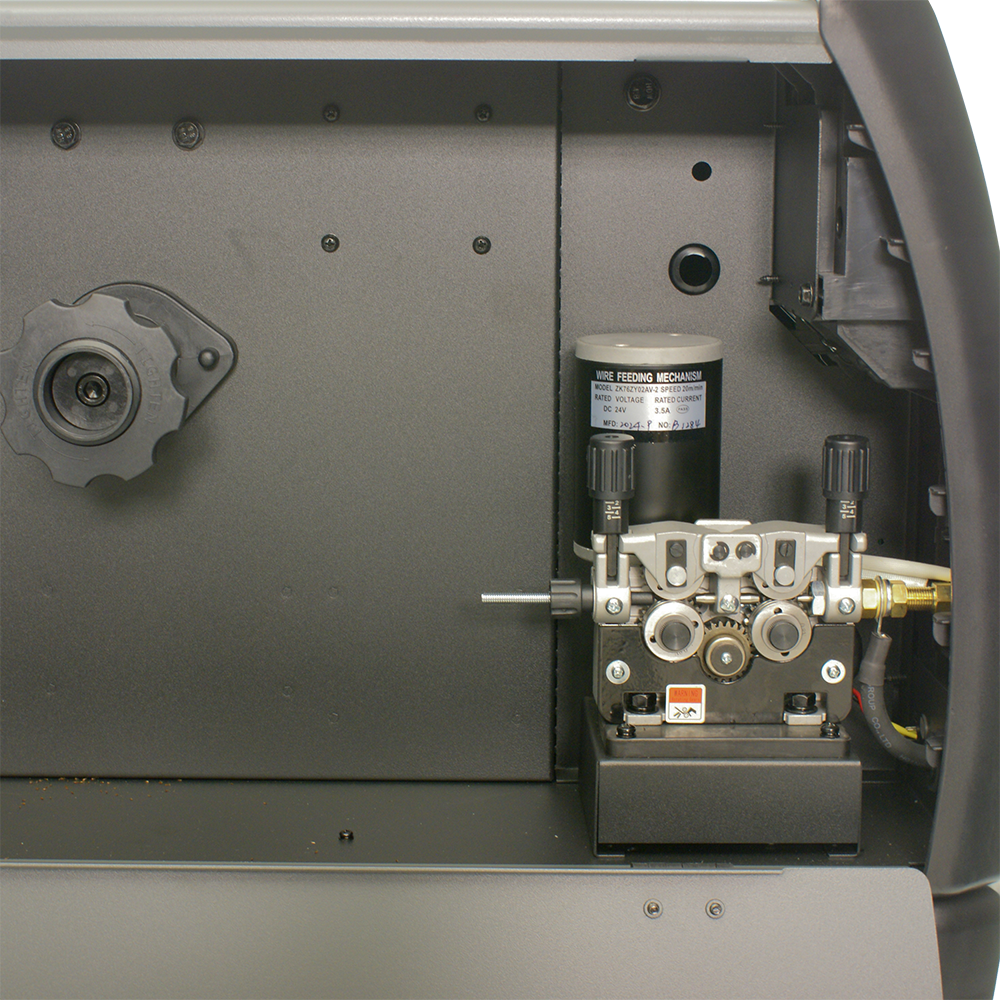

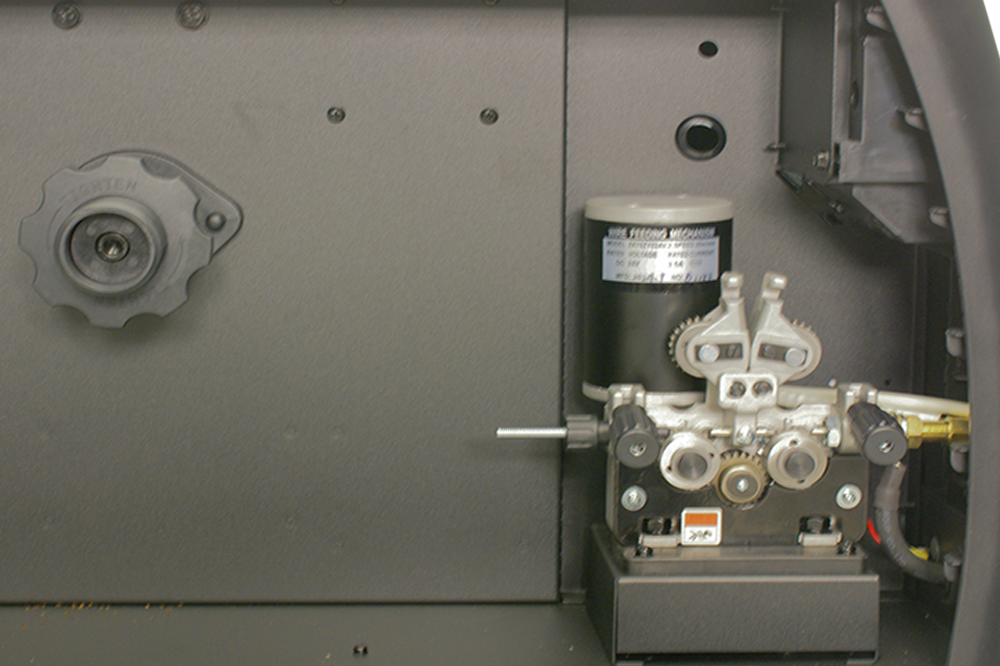

    • 4 roller wire mechanism
    • Termal protection / Over voltage protection

    Standard equipment:

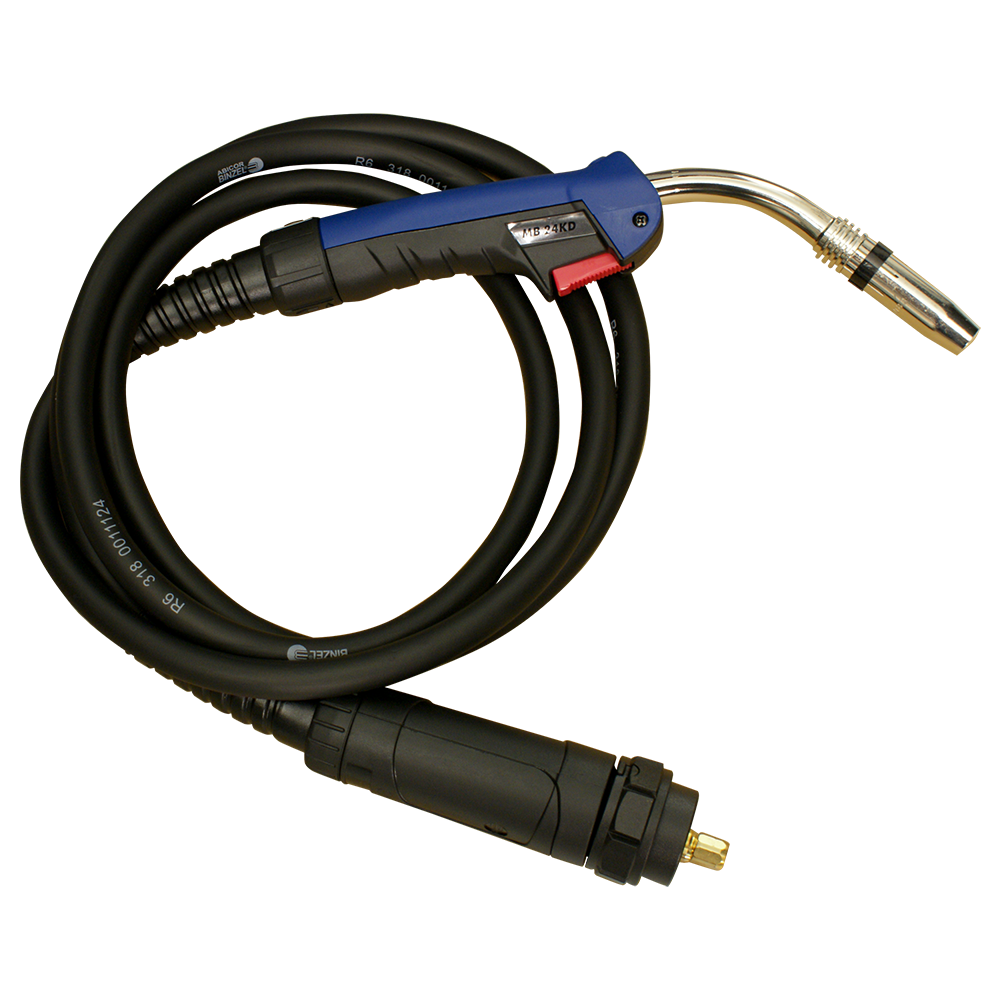

    • MIG torch 3m

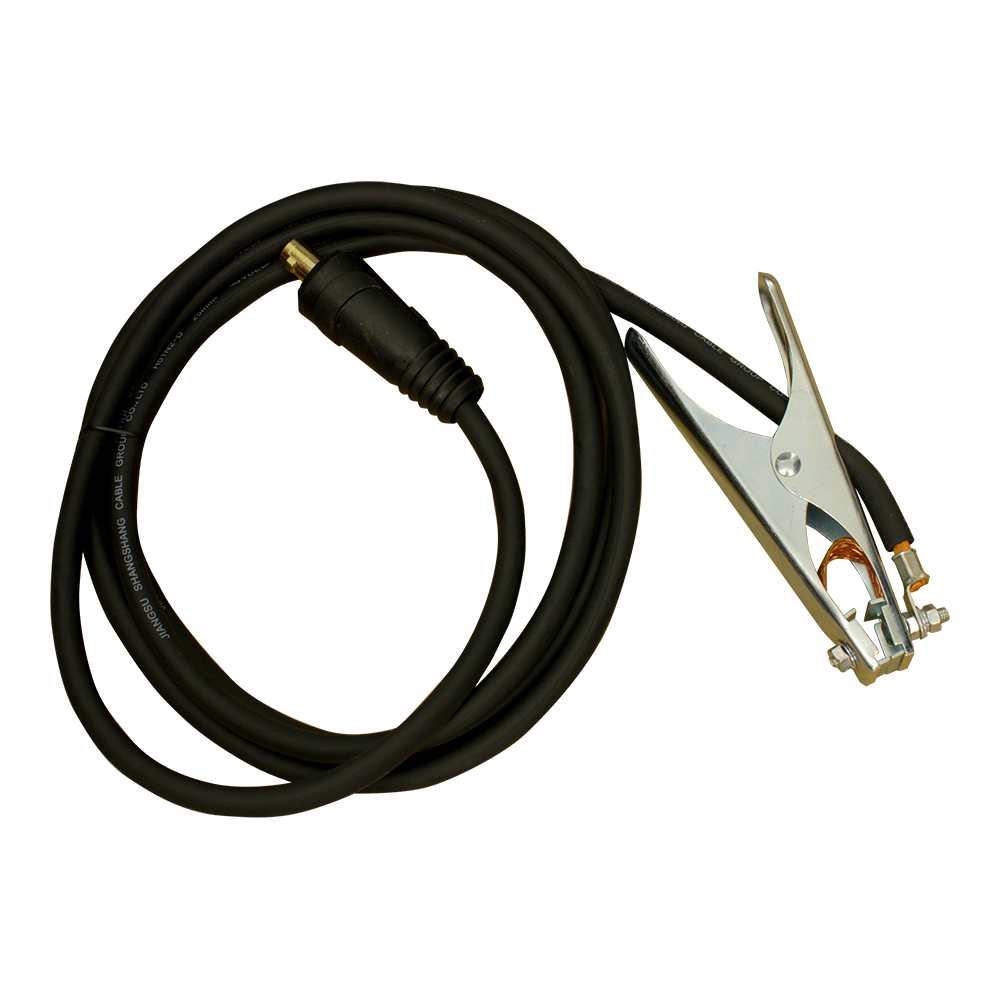

    • Returne cable kit (16 mm2) 3,0m

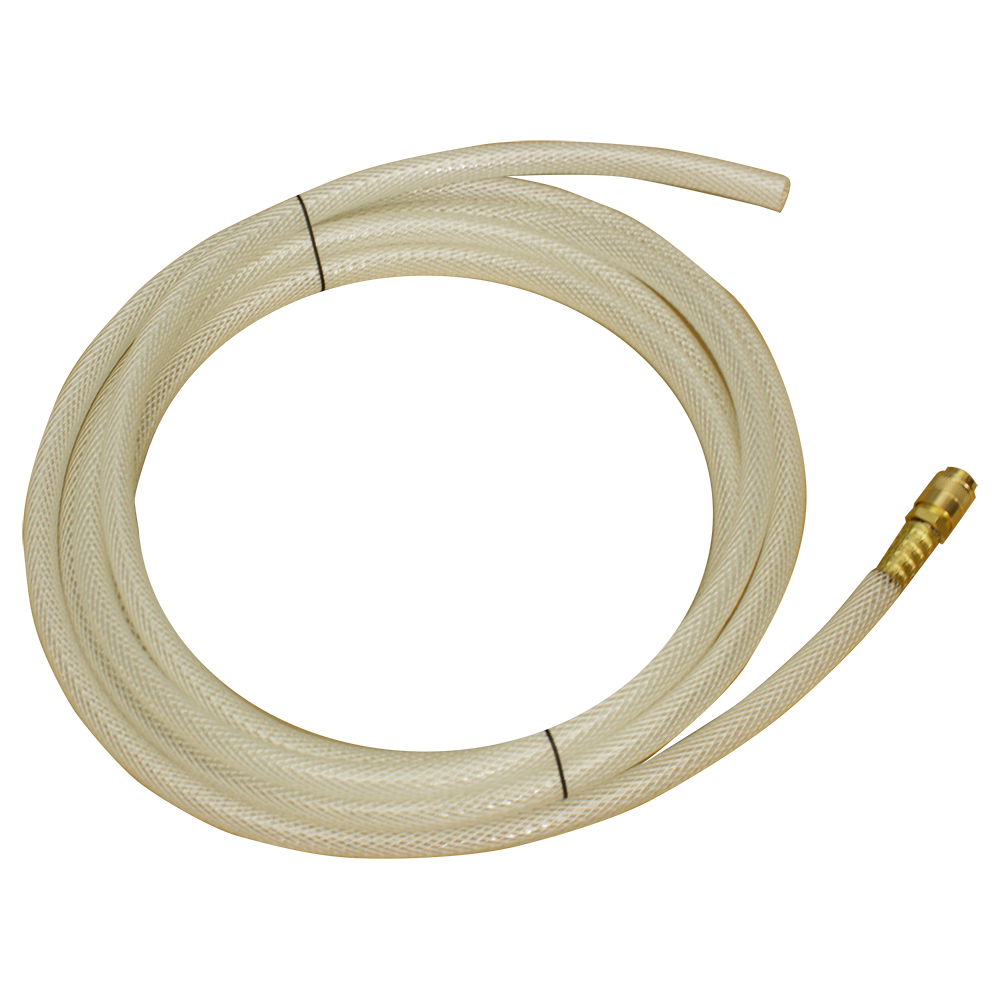

    • Gas hose ø 5,5 x 8 mm
    • Clamp ø 7 mm 2 pcs
    • Tip ø 0,6, 0,9, 1,0 mm
    • Robust Trolley
    • Toolbox drawer
    • Gas bottle holder system

    In stock

    Add to compare
    Add to wishlist
    17 People watching this product now!

    Payment:

    MAIN SUPPLY (V/Ph Hz)

    230/1 15% 50/60
    MAX. PRIMARY CURRENT (A)

    45
    SETTING RANGE (A)

    40-250
    MAX. OUTPUT AT 100% DUTY CYCLE (MIG) A/V

    112/19,6
    MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V

    90/23,6
    MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V

    112/14,5
    RATED WORKING VOLTAGE (V)

    16-26,5
    OPEN CIRCUIT VOLTAGE (V)

    69
    POWER FACTOR AT MAX. CURRENT

    0,75
    EFFICIENCY (ŋ/%)

    85
    DIAMETER OF ELECTRODES (mm)

    1,6-4,0
    DIAMETER OF WIRE (mm)

    0,6-1,0
    PROTECTION CLASS

    IP21S
    INSULATION CLASS

    H
    DIMENSIONS (LxBxH cm)

    95x49x89
    WEIGHT (kg)

    50

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    12502002S017
    • Radiator/left
    • Radiator/right
    • Radiator/ right
    • Radiator fixing plate
    • Inverter board assembly
    • Driver plate
    • 17.1
    • 17.2
    • 17.3
    • 17.4
    • 17.5
    • 17.6
    		293.28 €Pre-Order
    312502002S001
    • Case
    • 1
    		25.07 €Pre-Order
    312502002S002
    • Handle
    • 2
    		1.27 €Pre-Order
    312502002S003
    • Right bottom plate
    • 3
    		10.23 €Pre-Order
    312502002S004
    • Filter capacitor
    • 4
    		6.50 €Pre-Order
    312502002S005
    • Medium panel two
    • 5
    		26.06 €Pre-Order
    312502002S006
    • Spool holder plate
    • 6
    		5.46 €Pre-Order
    312502002S007
    • Control transformer
    • 7
    		41.39 €Pre-Order
    312502002S008
    • EMC EMC board
    • 8
    		54.44 €Pre-Order
    312502002S009
    • Wire feed board
    • 9
    		35.45 €Pre-Order
    312502002S010
    • Switching power supply board
    • 10
    		31.59 €Pre-Order
    312502002S011
    • Load board
    • 11
    		2.50 €Pre-Order
    312502002S012
    • Main control PCB
    • 12
    		28.87 €Pre-Order
    312502002S013
    • Circular terminal
    • 13
    		2.83 €Pre-Order
    312502002S014
    • Hall harness
    • 14
    		11.07 €Pre-Order
    312502002S015
    • Output bubar
    • 15
    		1.68 €Pre-Order
    312502002S016
    • Medium panel one
    • 16
    		22.06 €Pre-Order
    312502002S017
    • IGBT radiator assembly
    • 17
    		—Pre-Order
    312502002S018
    • Input rectifier plate
    • 18
    		72.70 €Pre-Order
    312502002S019
    • Wire feeder plate
    • 19
    		0.64 €Pre-Order
    312502002S020
    • Wire feeder harness
    • 20
    		160.65 €Pre-Order
    312502002S021
    • Panel baffle
    • 21
    		2.75 €Pre-Order
    312502002S022
    • Plastic front plate
    • 22
    		12.21 €Pre-Order
    312502002S023
    • 高清屏液晶面板控
    • 23
    		0.00 €Pre-Order
    312502002S024
    • Panel support plate
    • 24
    		4.90 €Pre-Order
    312502002S025
    • Potentiometer knob
    • 25
    		0.28 €Pre-Order
    312502002S026
    • Potentiometer knob
    • 26
    		0.28 €Pre-Order
    312502002S027
    • Quick socket
    • 27
    		2.83 €Pre-Order
    312502002S028
    • Wire harness for spool gun connector
    • 28
    		3.06 €Pre-Order
    312502002S029
    • Radiator right windshield
    • 29
    		7.47 €Pre-Order
    312502002S030
    • Wire feeder mounting plate
    • 30
    		5.51 €Pre-Order
    312502002S031
    • Welding torch socket harness
    • 31
    		21.24 €Pre-Order
    312502002S032
    • Radiator windshield support
    • 32
    		11.70 €Pre-Order
    312502002S033
    • Output reactor
    • 33
    		23.26 €Pre-Order
    312502002S034
    • Polarity switching cable
    • 34
    		12.24 €Pre-Order
    312502002S035
    • Plastic frame
    • 35
    		4.67 €Pre-Order
    312502002S036
    • Front apron
    • 36
    		10.56 €Pre-Order
    312502002S037
    • Support frame
    • 37
    		7.50 €Pre-Order
    312502002S038
    • Universal wheel
    • 38
    		8.49 €Pre-Order
    312502002S039
    • Front wheel fixing plate
    • 39
    		9.77 €Pre-Order
    312502002S040
    • Bottom plate
    • 40
    		16.40 €Pre-Order
    312502002S041
    • Filter board
    • 41
    		132.57 €Pre-Order
    312502002S042
    • Main transformer
    • 42
    		54.47 €Pre-Order
    312502002S043
    • Radiator left windshield
    • 43
    		7.09 €Pre-Order
    312502002S044
    • Output bus row
    • 44
    		4.23 €Pre-Order
    312502002S045
    • Cryo tube bus line one
    • 45
    		7.60 €Pre-Order
    312502002S046
    • Output rectifier assembly
    • 46
    		50.08 €Pre-Order
    312502002S047
    • Cap nut
    • 47
    		0.10 €Pre-Order
    312502002S048
    • Extra flat pad
    • 48
    		0.03 €Pre-Order
    312502002S049
    • Rubber single wheel
    • 49
    		14.13 €Pre-Order
    312502002S050
    • Base plate support welding
    • 50
    		25.88 €Pre-Order
    312502002S051
    • Left bottom plate
    • 51
    		11.53 €Pre-Order
    312502002S052
    • Plastic hinge
    • 52
    		0.48 €Pre-Order
    312502002S053
    • Door lock
    • 53
    		0.36 €Pre-Order
    312502002S054
    • Side board
    • 54
    		17.24 €Pre-Order
    312502002S055
    • Spool holder
    • 55
    		6.83 €Pre-Order
    312502002S056
    • Fan
    • 56
    		15.07 €Pre-Order
    312502002S057
    • Gas valve harness
    • 57
    		10.81 €Pre-Order
    312502002S058
    • Gas connection
    • 58
    		1.45 €Pre-Order
    312502002S059
    • Cable ramp
    • 59
    		0.15 €Pre-Order
    312502002S060
    • Power input harness
    • 60
    		33.97 €Pre-Order
    312502002S061
    • Heater output harness
    • 61
    		1.63 €Pre-Order
    312502002S062
    • Switch bracket
    • 62
    		0.71 €Pre-Order
    312502002S063
    • Circuit breaker
    • 63
    		8.03 €Pre-Order
    312502002S064
    • Gas cylinder support
    • 64
    		2.75 €Pre-Order
    312502002S065
    • Iron chain
    • 65
    		1.05 €Pre-Order
    312502002S066
    • Rear panel
    • 66
    		19.43 €Pre-Order

    Product Data

    CE declaration

    EN user manual
