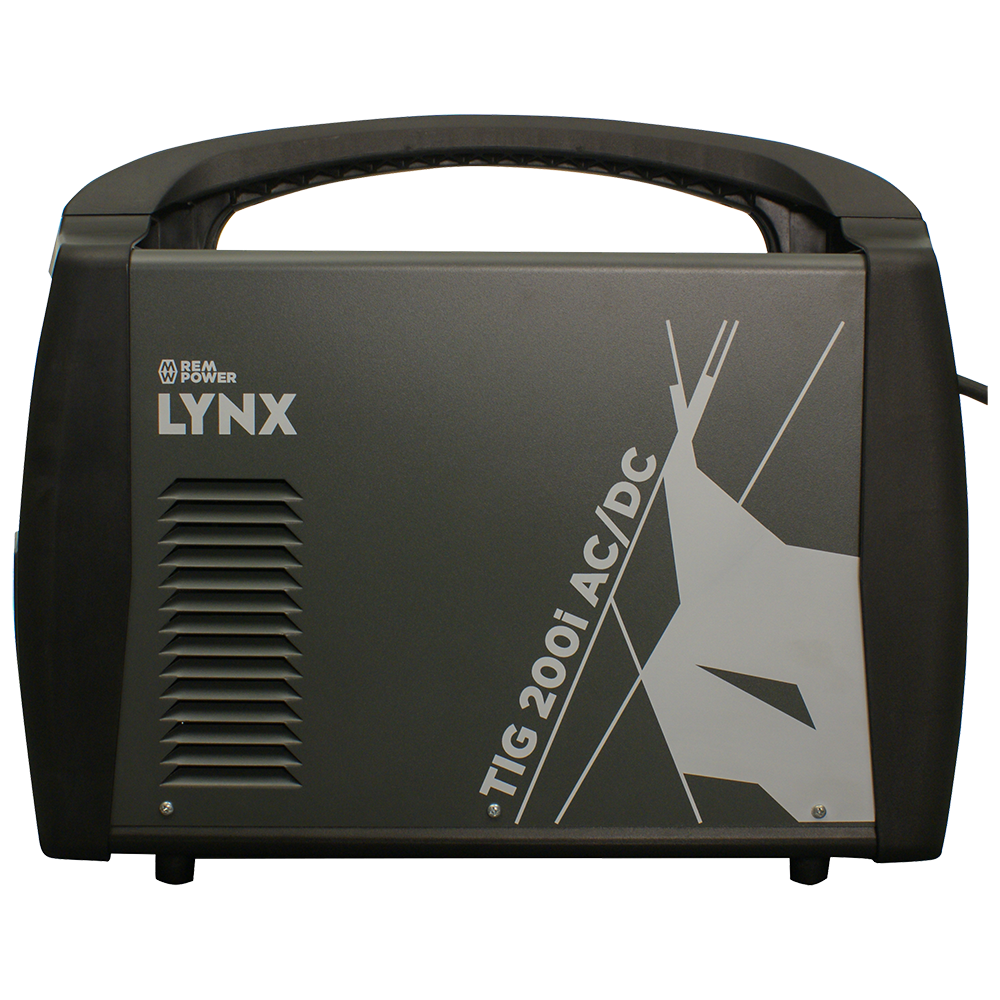

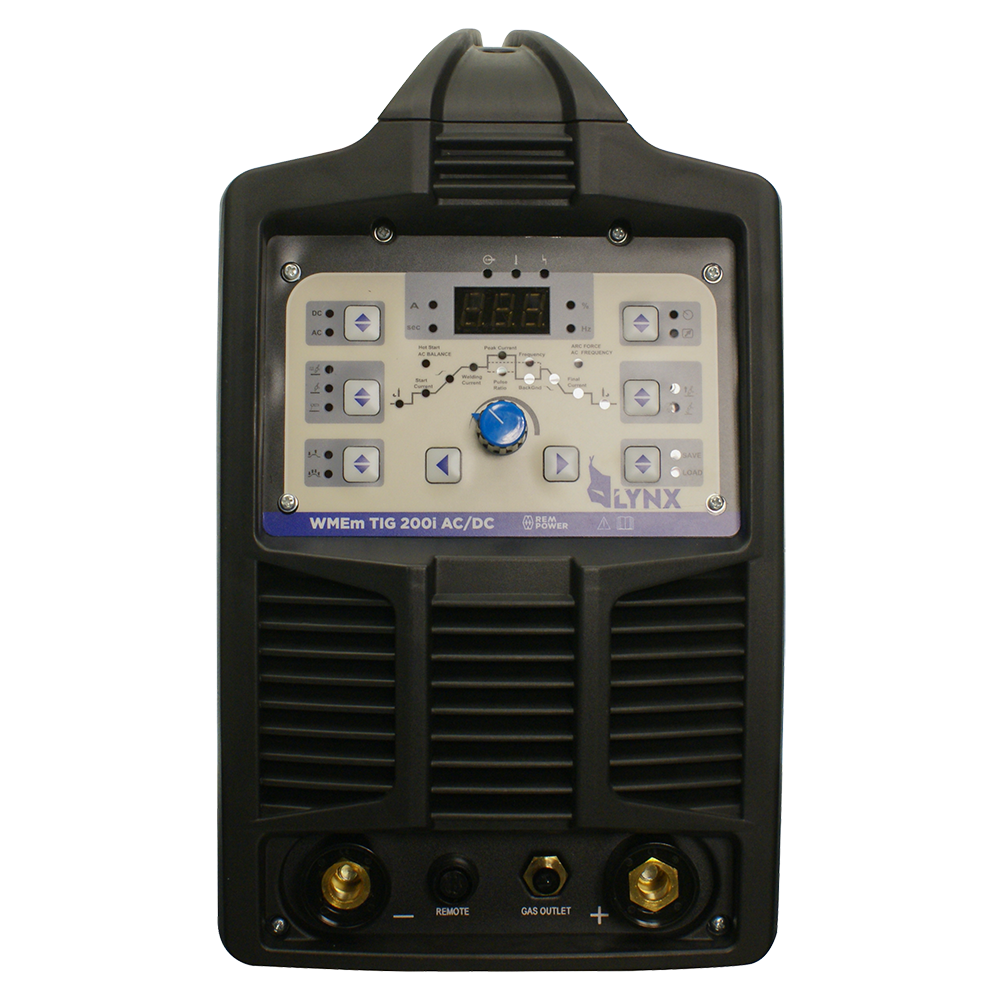

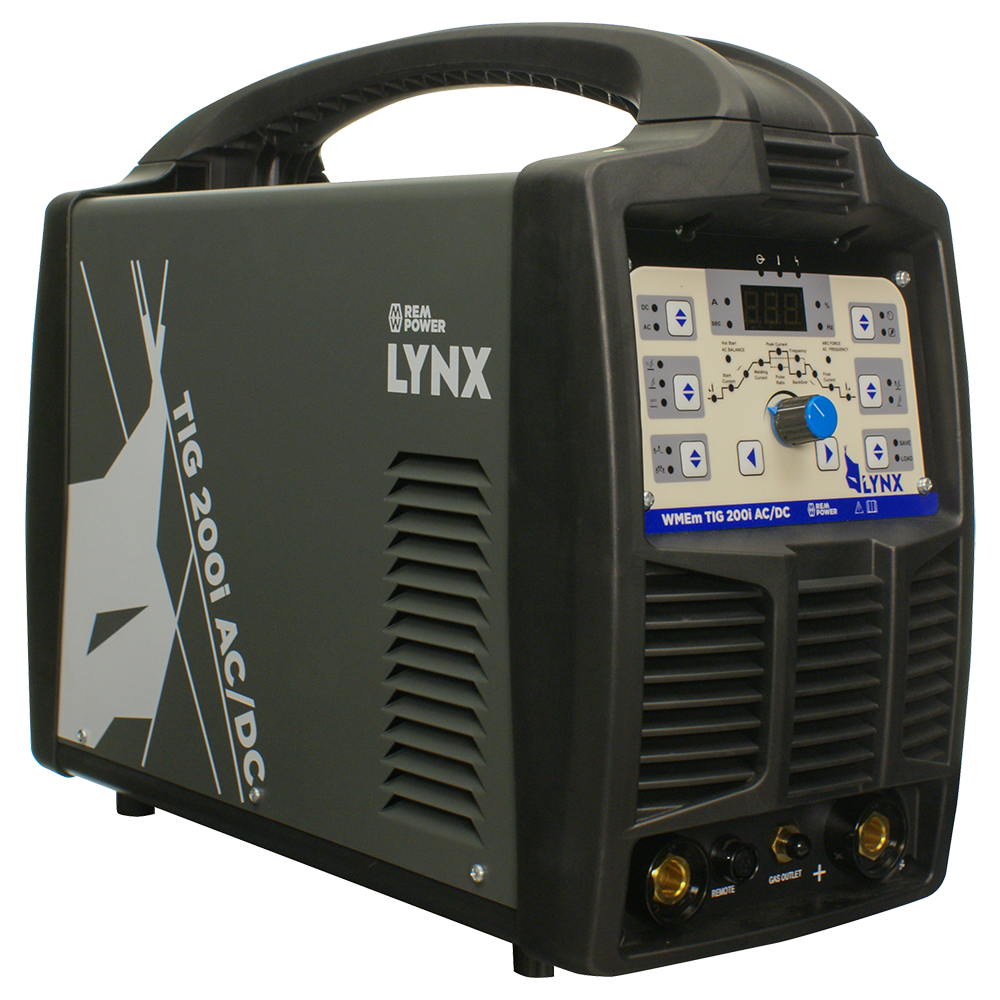

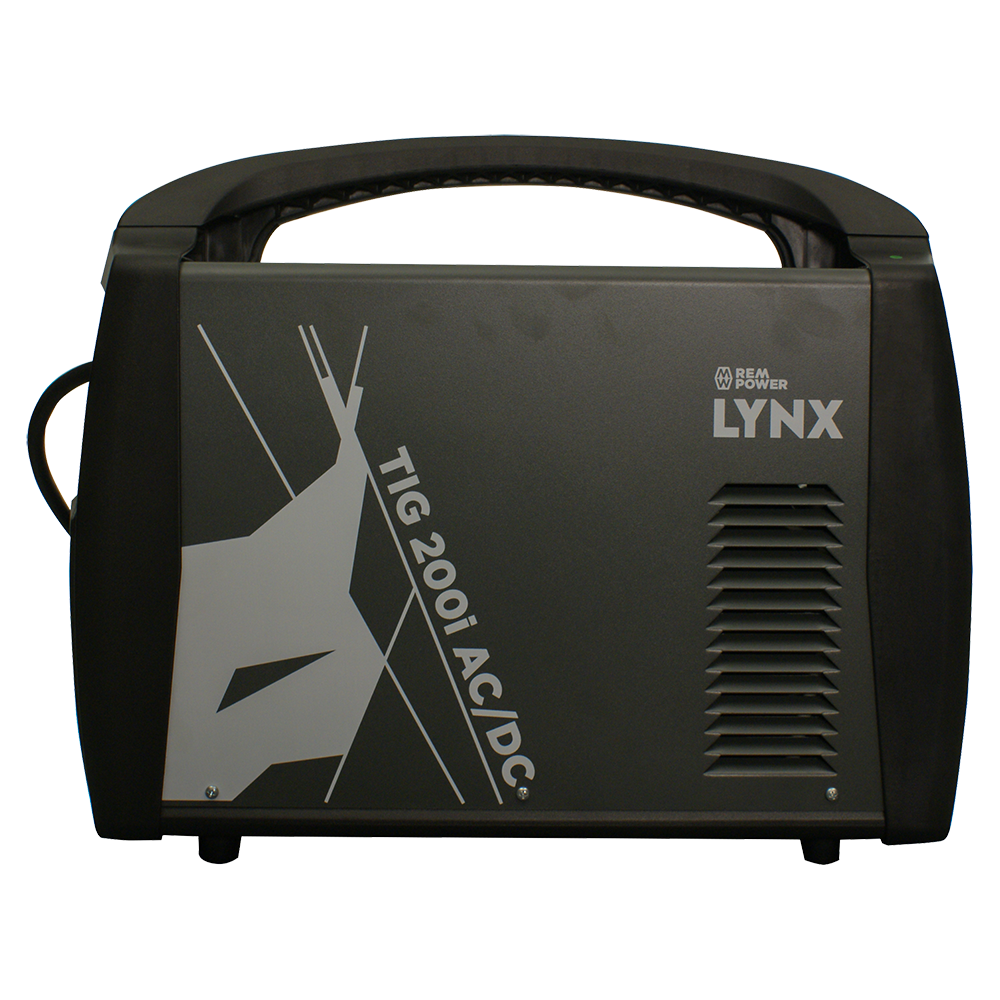

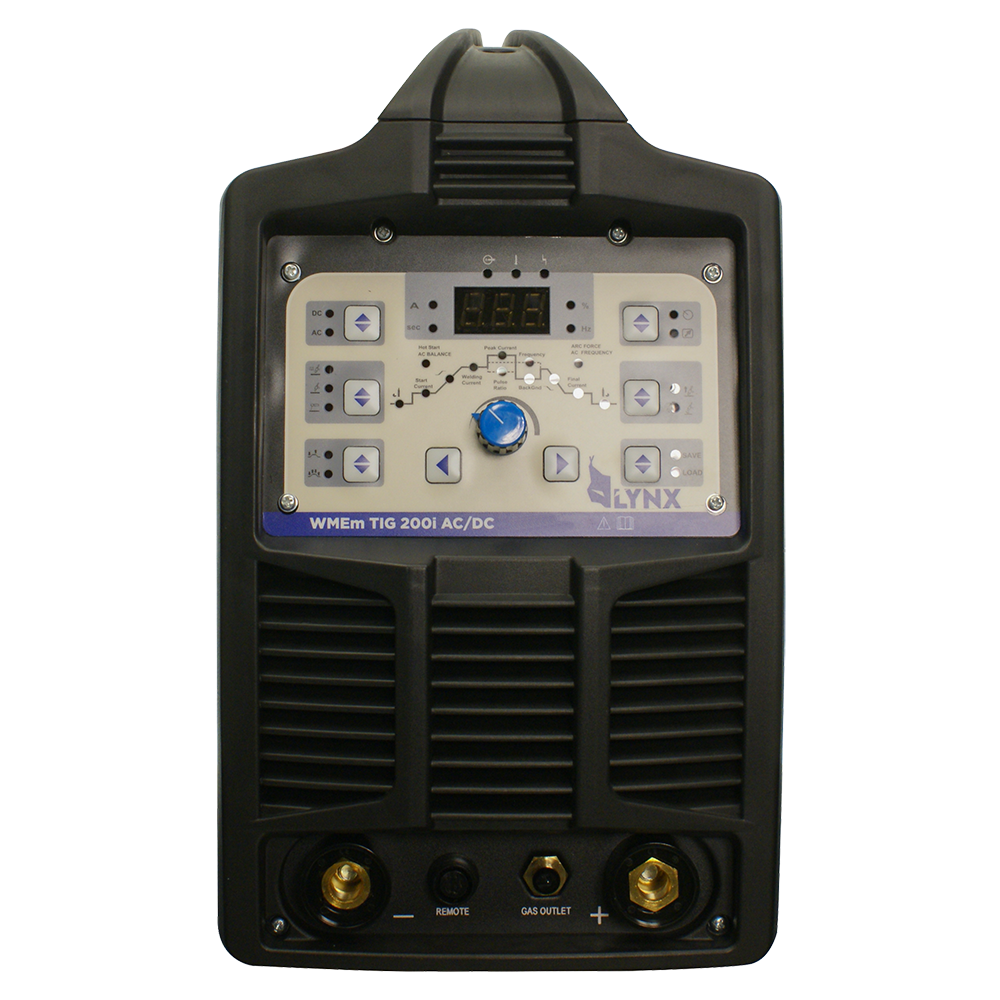

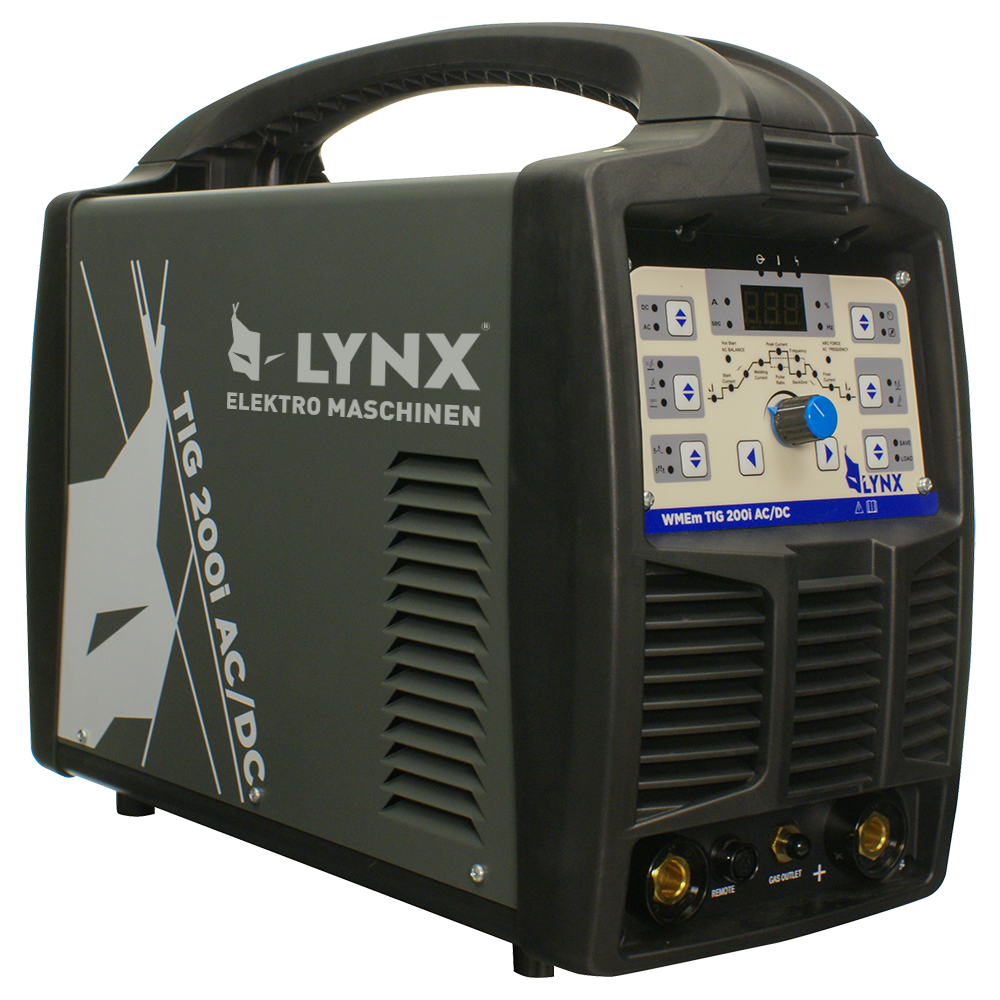

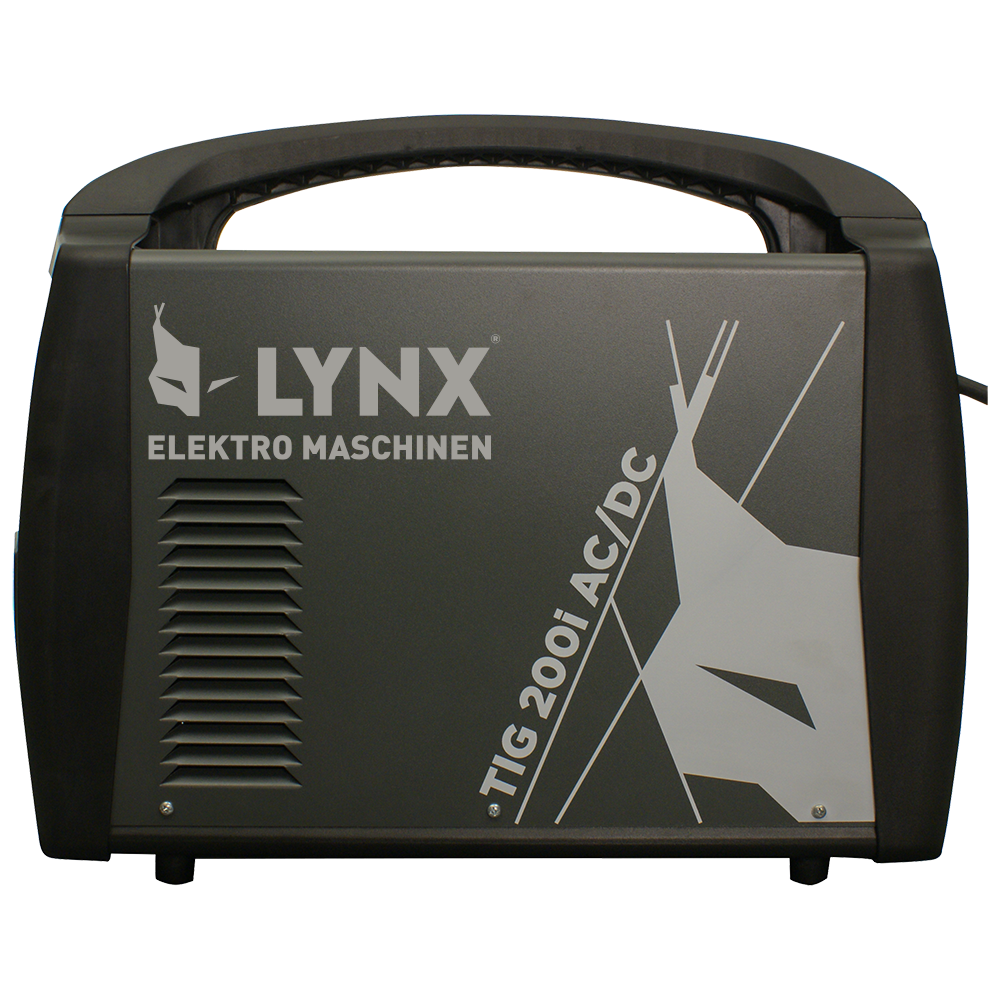

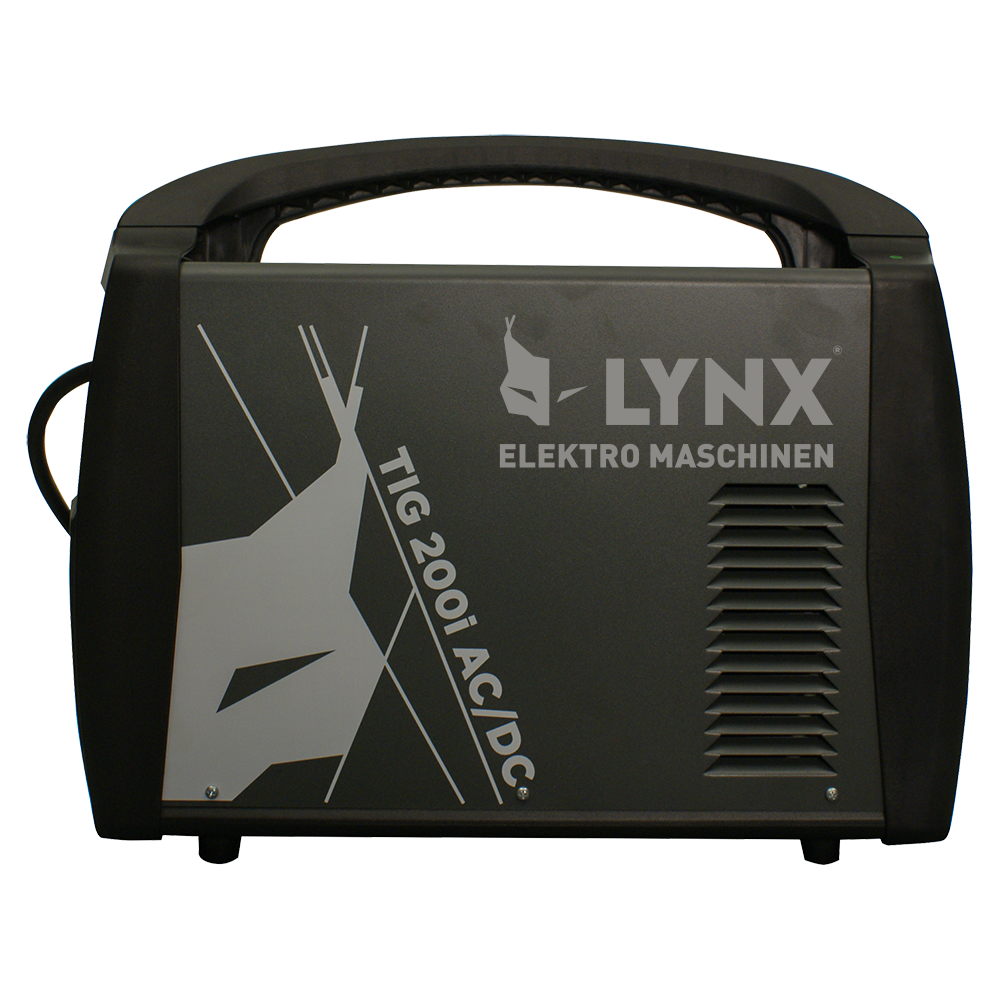

    WMEm TIG 200i Lynx AC/DC

    SKU: 0302006018 Categories: ,

    WMEm TIG 200i AC/DC is TIG welding inverter, it is capable to work TIG and MMA welding, portable and easy to work with. Can work on generator. Strong and durable design. Have TIG pulse function. PFC tehnology.

    Advantages:

    • Compact and portable digital inverter for TIG welding with HF or Lift arc start and MMA
    • Self-saving and recalling function on welding data
    • PFC technology
    • AC/DC technology
    • Durable and impact resistance design
    • Single knob and contact control panel, precise and adjustable welding data, easy to operate
    • Welds electrodes from ø 1,6 – 4,0 mm
    • Capable to work on generator power source
    • Over current protection / Over voltage protection
    • Adjustable slope up/down and gas pre/post flow to control starts and avoid cracks and oxidation at the end
    • Pulsed TIG welding

    In stock

    Add to compare
    Add to wishlist
    16 People watching this product now!

    Payment:

    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    OKC

    50
    Max. outputs at 100% duty cycle, (MMA) (А)

    72
    Max. outputs at 100% duty cycle, (TIG) (А)

    89
    Max. outputs at 20% duty cycle, (MMA) (А)

    160
    Max. outputs at 20% duty cycle, (TIG) (А)

    200
    Max. outputs at 60% duty cycle, (MMA) (А)

    92
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    160
    Min. welding current, (MMA) (А)

    10
    Max. welding current, (TIG) (А)

    200
    Min. welding current, (TIG) (А)

    10

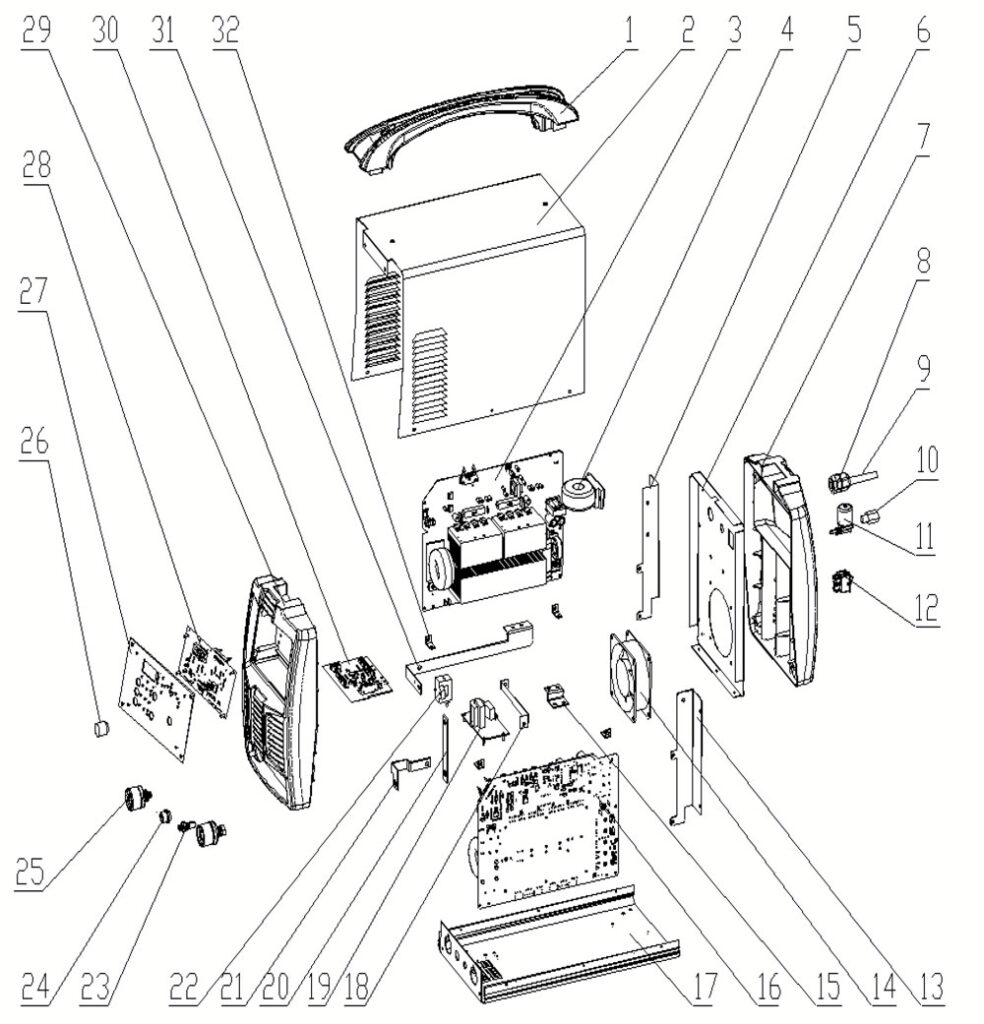

    PDF Spear Parts

    REM Code Name Position Price Stock Order
    0302006018S001
    • plastic handle
    • 1
    		7.85 €Pre-Order
    0302006018S002
    • outer shell
    • 2
    		16.45 €Pre-Order
    0302006018S003
    • Secondary inverter board
    • 3
    		270.00 €Pre-Order
    0302006018S004
    • PFC inductor
    • 4
    		25.12 €Pre-Order
    0302006018S005
    • Main board fixing plate right
    • 5
    		3.52 €Pre-Order
    0302006018S006
    • rear panel
    • 6
    		5.85 €Pre-Order
    0302006018S007
    • back panel
    • 7
    		13.44 €Pre-Order
    0302006018S009
    • power input harness
    • 8
    		21.03 €Pre-Order
    0302006018S011
    • gas valve harness
    • 9
    		10.39 €Pre-Order
    0302006018S012
    • rocker switch
    • 10
    		1.29 €Pre-Order
    0302006018S013
    • Main board fixing plate left
    • 11
    		2.94 €Pre-Order
    0302006018S014
    • Fan
    • 12
    		23.85 €Pre-Order
    0302006018S015
    • Conductive sheet
    • 13
    		7.61 €Pre-Order
    0302006018S016
    • Primary inverter board
    • 14
    		390.00 €Pre-Order
    0302006018S017
    • Bottom plate
    • 15
    		10.53 €Pre-Order
    0302006018S018
    • Conductive sheet
    • 16
    		7.68 €Pre-Order
    0302006018S019
    • High voltage arc ignition plate
    • 17
    		25.94 €Pre-Order
    0302006018S020
    • output busbarbar 2
    • 18
    		6.56 €Pre-Order
    0302006018S021
    • output busbarbar 4
    • 19
    		13.70 €Pre-Order
    0302006018S022
    • Hall harness
    • 20
    		8.53 €Pre-Order
    0302006018S023
    • Argon gas fitting
    • 21
    		2.44 €Pre-Order
    0302006018S024
    • Aviation socket
    • 22
    		2.23 €Pre-Order
    0302006018S025
    • Potentiometer knob
    • 23
    		0.49 €Pre-Order
    0302006018S026
    • quick socket
    • 24
    		2.70 €Pre-Order
    0302006018S027
    • plate support plate
    • 25
    		5.01 €Pre-Order
    0302006018S028
    • panel control panel
    • 26
    		27.96 €Pre-Order
    0302006018S029
    • plastic front plate
    • 27
    		6.86 €Pre-Order
    0302006018S030
    • main control board
    • 28
    		75.69 €Pre-Order
    0302006018S031
    • output busbarbar 1
    • 29
    		41.34 €Pre-Order
    0302006018S032
    • Main fixing board
    • Power cord fixed head
    • Gas valve input connector
    • 30
    • 31
    • 32
    		1.50 €Pre-Order

    Product Data

    CE declaration

    EN user manual

    Related products
    Add to compare
    Quick view
    Add to wishlist

    WMEm MIG 250Di

    ,

    In stock

    Read more
    SKU: 312502001
    MAIN SUPPLY (V/Ph Hz)

    230/1 15% 50/60
    MAX. PRIMARY CURRENT (A)

    45
    SETTING RANGE (A)

    40-250
    MAX. OUTPUT AT 100% DUTY CYCLE (MIG) A/V

    112/19,6
    MAX. OUTPUT AT 100% DUTY CYCLE (MMA) A/V

    90/23,6
    MAX. OUTPUT AT 100% DUTY CYCLE (TIG) A/V

    112/14,5
    RATED WORKING VOLTAGE (V)

    16-26,5
    OPEN CIRCUIT VOLTAGE (V)

    69
    POWER FACTOR AT MAX. CURRENT

    0,75
    EFFICIENCY (ŋ/%)

    85
    DIAMETER OF ELECTRODES (mm)

    1,6-4,0
    DIAMETER OF WIRE (mm)

    0,6-1,0
    PROTECTION CLASS

    IP21S
    INSULATION CLASS

    H
    DIMENSIONS (LxBxH cm)

    95x49x89
    WEIGHT (kg)

    50
    Add to compare
    Quick view
    Add to wishlist

    WMEm MIG 200D

    ,

    In stock

    Read more
    SKU: 0312002502
    Max. diameter of electrdoe (mm)

    4
    Fuse, slow (А)

    16
    Open circuit voltage (V)

    68
    Max. outputs at 100% duty cycle, (MIG) (А)

    77
    Max. outputs at 100% duty cycle, (MMA) (А)

    66
    Max. outputs at 60% duty cycle, (MIG) (А)

    100
    Voltage (V)

    230
    Max. welding current, (MMA) (А)

    170
    Min. welding current, (MMA) (А)

    30
    Max wire Ø, unall. solid (mm)

    1
    Add to compare
    Quick view
    Add to wishlist

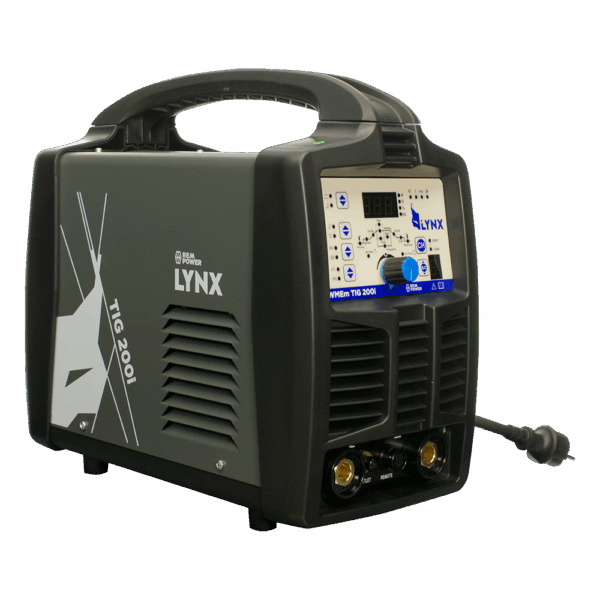

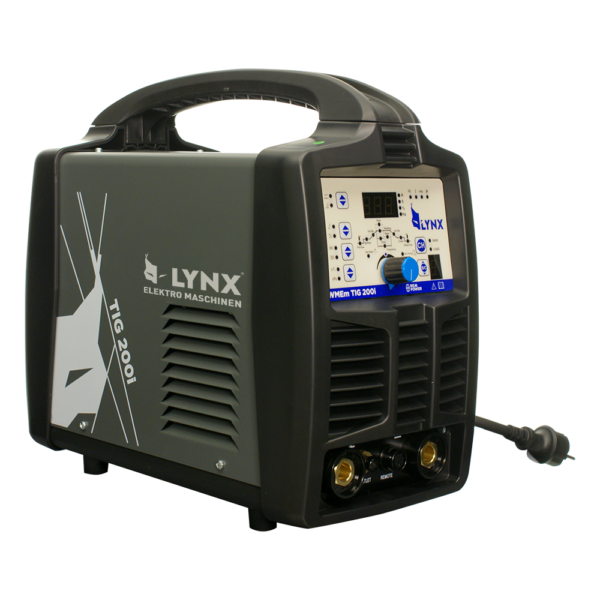

    WMEm TIG 200i Lynx

    ,
